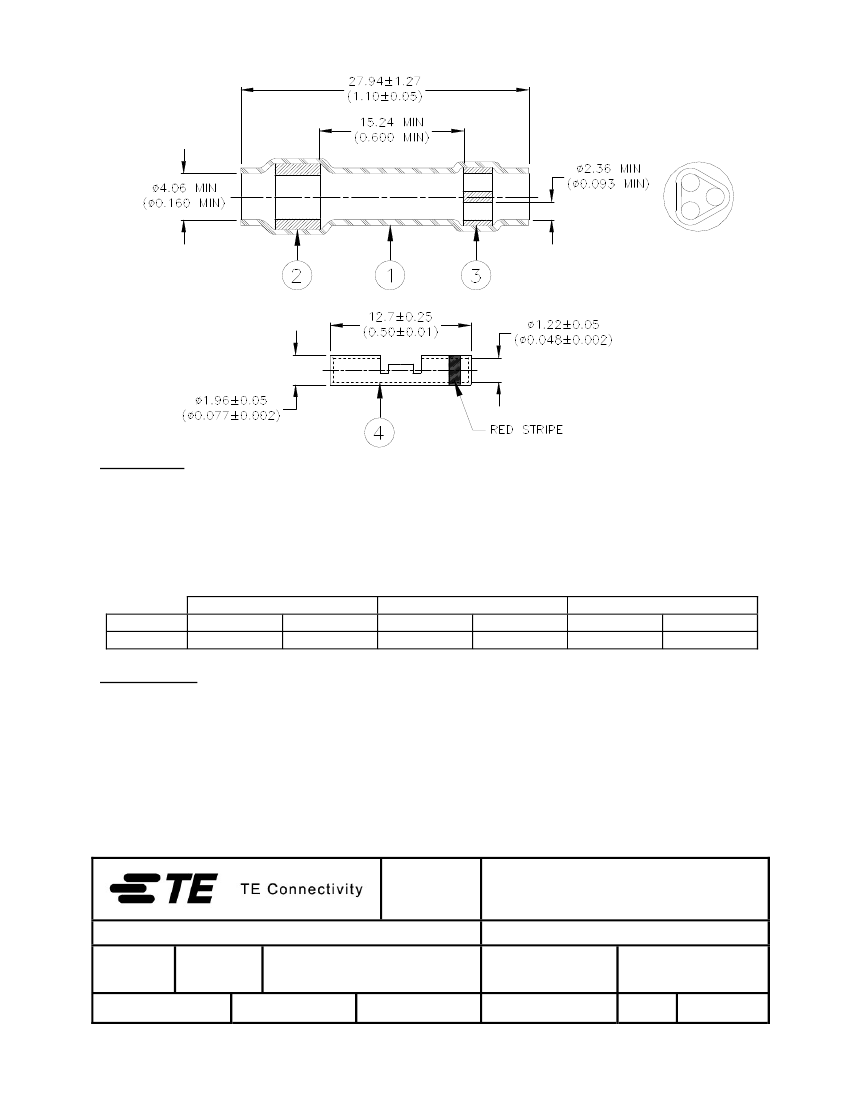

CUSTOMER DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene
fluoride.
2. SINGLE WIRE SEAL: Low outgassing immersion resistant thermoplastic fluoroelastomer. Color: BLUE.
3. INTEGRAL WIRE SEAL: Low outgassing immersion resistant thermoplastic fluoroelastomer. Color: BLUE.
4. CRIMP SPLICE: Base Metal: Copper Alloy 102 per ASTM B-75.
Plating: Tin, per MIL-T-10727, Type I
Wire Size Range of Crimp Splice
One Wire
Two Wires
min
max
min
max
26
20
26
24
Three Wires
min
28
max
26
Size
20 - 26
APPLICATION
1. These parts are designed to provide immersion resistant in-line splices of 2 or 3 to 1 wires falling within size range
listed above, and having insulations rated for 135C.
2. Parts are available only as an assembly of one each item #I and item #II.
3. Parts are to be installed following Devices Assembly Procedure (see sheet 2 of 2).
4. Inside diameter and outside diameter of splicer are to be measured in crimp areas, 2.54 to 5.08 (0.100 to 0.200)
from ends of part. Slight burr permitted on parted surfaces.
5. Packing and packaging shall be accordance with Section 5, Level C, of MIL-T-7928.
6. This document takes precedence over documents referenced herein.
7. For other sizes of this configuration, see Devices specification Control Drawings D-436-42/-43.
TITLE :
Raychem
Devices
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TE CONNECTIVITY (TE) RESERVES THE RIGHT TO
ANGLES: N/A
TOLERANCES:
CHANGE THIS DRAWING AT ANYTIME. USER
0.00 N/A
SHOULD EVALUATE THE SUITABILITY OF THE
ROUGHNESS IN
0.0 N/A
PRODUCT FOR THEIR APPLICATION.
MICRON
0 N/A
DRAWN BY:
ECO APPROVED:
ECO NUMBER:
IN-LINE SPLICE SEALING SYSTEM,
2 or 3 to 1 SPLICE: TIN PLATED,
COLOR CODED with Inspection Slots
DOCUMENT NO.:
DATE:
D-436-0110
REVISION:
June 25, 2015
SCALE:
SIZE:
B
SHEET:
M. FORONDA
L. RODRIGUEZ
15-009842
None
A
1 of 2
©2015 TE CONNECTIVITY LTD. FAMILY OF COMPANIES. ALL RIGHT RESERVED.
If this document is printed it becomes uncontrolled. Check for the latest revision.
CUSTOMER DRAWING
DEVICES ASSEMBLY PROCEDURE
1.0
SCOPE
This document oulines the procedure to be followed to obtain immersion resistant 3 or 2 to 1 in-line splices
using Devices In-line Splice Sealing System D-436-0110
.
PROCEDURE
a. Strip all wires 6.35 to 7.92 (0.250 to 0.312).
b. Attach the single lead to the appropriate size crimp splicer using a Raychem AD-1377 crimp tool.
c. Pass the wires to be attached to the other barrel through the sealing sleeve from the three-hole insert end.
d. Insert wires into barrel and crimp. Care must be taken so that wires remain untwisted between the crimp
splicer and the three wire seal or the sealing sleeve cannot be positioned properly.
e. Apply heat, first to the three-hole insert and then to the other. Heat should be applied until insert melts
and flows axially along the wire.
2.0
TITLE :
Raychem
Devices
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TE CONNECTIVITY (TE) RESERVES THE RIGHT TO
ANGLES: N/A
TOLERANCES:
CHANGE THIS DRAWING AT ANYTIME. USER
0.00 N/A
SHOULD EVALUATE THE SUITABILITY OF THE
ROUGHNESS IN
0.0 N/A
PRODUCT FOR THEIR APPLICATION.
MICRON
0 N/A
DRAWN BY:
ECO APPROVED:
ECO NUMBER:
IN-LINE SPLICE SEALING SYSTEM,
2 or 3 to 1 SPLICE: TIN PLATED,
COLOR CODED with Inspection Slots
DOCUMENT NO.:
DATE:
D-436-0110
REVISION:
June 25, 2015
SCALE:
SIZE:
B
SHEET:
M. FORONDA
L. RODRIGUEZ
15-009842
None
A
2 of 2
©2015 TE CONNECTIVITY LTD. FAMILY OF COMPANIES. ALL RIGHT RESERVED.
If this document is printed it becomes uncontrolled. Check for the latest revision.
