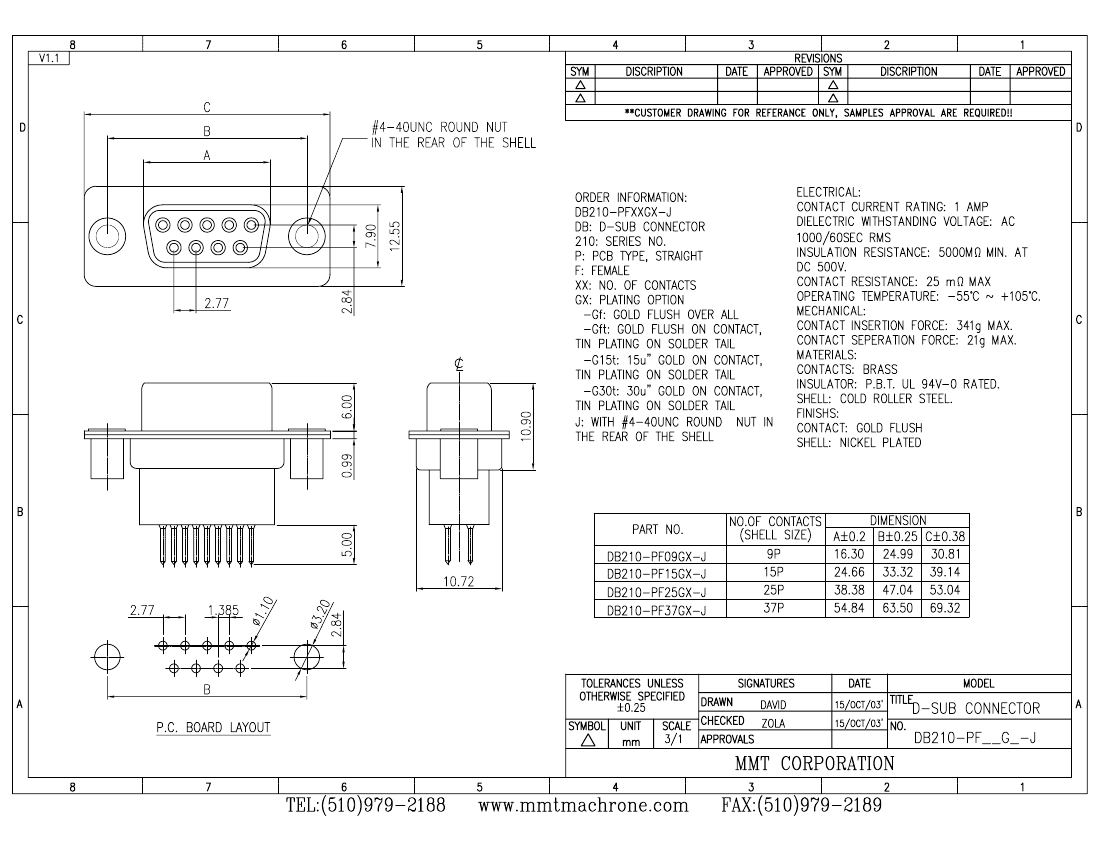

Preview

DB210-PF15GF-J: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric Compare View All

DB210-PF15GF-J Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DB210-PF15GF-J Parametric

Parameter Name	Attribute value
Maker	MMT Corp
Reach Compliance Code	unknown
body width	0.494 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DB210
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKNUT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.197 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	.1946 N
Base Number Matches	1

Preview

Download Datasheet

View All

DB210-PF15GF-J Related Products

	DB210-PF15GF-J	DB210-PF25GF-J	DB210-PF09G30T-J
Description	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Maker	MMT Corp	MMT Corp	MMT Corp
Reach Compliance Code	unknown	unknown	unknown
body width	0.494 inch	0.494 inch	0.494 inch
body length	1.541 inch	2.088 inch	1.213 inch
Body/casing type	PLUG	PLUG	PLUG
Contact to complete cooperation	AU	AU	AU
Contact completed and terminated	GOLD FLASH	GOLD FLASH	TIN
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DB210	DB210	DB210
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40
Installation option 2	LOCKNUT	LOCKNUT	LOCKNUT
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	FLASH inch	FLASH inch	30u inch
Rated current (signal)	1 A	1 A	1 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL
Terminal length	0.197 inch	0.197 inch	0.197 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	9
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N
Base Number Matches	1	1	1
