55PC0812-14-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> 55PC0812-14-9

55PC0812-14-9: Description55PC0812-14-9; CategoryWire/cable; File Size80KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC0812-14-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55PC0812-14-9	-	-	View	Buy Now

55PC0812-14-9 Overview

55PC0812-14-9

55PC0812-14-9 Parametric

Parameter Name	Attribute value
Cable type	Specifications 55PC
Product Categories	High performance - Spec 44, 55 and RCW
Number of shares	19
Number of conductors	1
Rated voltage (V)	600
Insulation Materials	Irradiation cross-linked modified ETFE
conductor material	silver coated copper, silver coated copper
Wire color	White
Stock size (AWG)	27
Wire size (AWG)	14
Wire size (mm²)	2.08
Wire diameter (in)	.092
Overall outside diameter (in)	.092
Conductor diameter (in)	.066
Operating temperature range (°C)	-65 – 200

Preview

Download Datasheet

View All

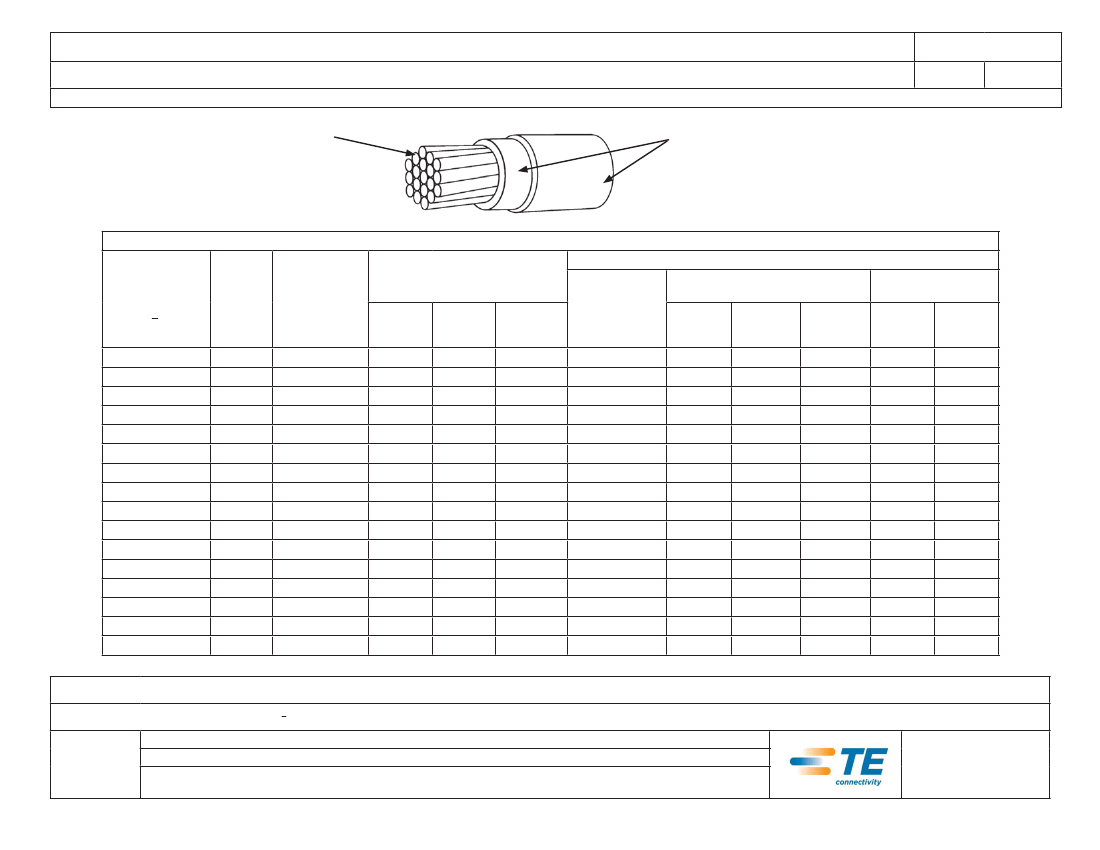

SPECIFICATION CONTROL DRAWING

TITLE

55PC0812

Date

WIRE, RADIATION-CROSSLINKED, MODIFIED ETFE-INSULATED, NORMAL WEIGHT, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55PC.

CONDUCTOR - SILVER-COATED COPPER

INSULATION - RADIATION - CROSSLINKED,

MODIFIED ETFE

1-17-12

Revision

CONSTRUCTION DETAILS

CONDUCTOR DIAMETER

(in.)

LOWER

SPEC

LIMIT

.0175

.0225

.0285

.0365

.0452

.0514

.0644

.0825

.1050

.158

.198

.250

.320

.360

.395

.440

TARGET

VALUE

.0183

.0233

.0293

.0375

.0464

.0527

.0659

.0845

.1070

.163

.205

.260

.330

.370

.415

.462

UPPER

SPEC

LIMIT

.0191

.0241

.0301

.0385

.0476

.0538

.0674

.0865

.1090

.169

.212

.268

.340

.380

.425

.475

FINISHED WIRE

MAXIMUM

RESISTANCE

AT 20°C

(ohms/1000 ft.)

38.4

24.3

15.1

9.19

5.79

4.52

2.88

1.90

1.19

.658

.418

.264

.170

.139

.108

.085

DIAMETER

(in.)

LOWER

SPEC

LIMIT

.0366

.0416

.0476

.0561

.0659

.0737

.0896

.1076

.1290

.188

.233

.300

.370

.408

.449

.505

TARGET

VALUE

.0385

.0435

.0495

.0580

.0680

.0760

.0920

.1105

.1330

.196

.242

.311

.383

.423

.466

.525

UPPER

SPEC

LIMIT

.0404

.0454

.0514

.0599

.0701

.0783

.0944

.1134

.1370

.203

.251

.322

.397

.438

.483

.545

WEIGHT

(lbs/1000 ft.)

TARGET

VALUE

1.55

2.18

3.12

4.64

6.94

8.80

13.50

20.45

31.73

56.8

89.7

146.

227.

278.

343.

450.

UPPER

SPEC

LIMIT

1.70

2.34

3.30

4.85

7.27

9.17

13.99

21.08

32.78

59.9

94.7

154.

240.

288.

366.

481.

PART

NUMBER

WIRE

SIZE

(AWG)

CONDUCTOR

STRANDING

(number x AWG)

55PC0812-26-*

55PC0812-24-*

55PC0812-22-*

55PC0812-20-*

55PC0812-18-*

55PC0812-16-*

55PC0812-14-*

55PC0812-12-*

55PC0812-10-*

55PC0812-8-*

55PC0812-6-*

55PC0812-4-*

55PC0812-2-*

55PC0812-1-*

55PC0812-0-*

55PC0812-00-*

19 x 38

19 x 36

19 x 34

19 x 32

19 x 30

19 x 29

19 x 27

37 x 28

37 x 26

133 x 29

133 x 27

133 x 25

665 x 30

817 x 30

1045 x 30

1330 x 30

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. OTHER CODES AND SUFFIXES MAY BE

ADDED TO THE PART NUMBER. AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.

55PC0812-14-9 Related Products

	55PC0812-14-9	55PC0812-16-94	55PC0812-12-94	55PC0812-14-94	55PC0812-20-94	55PC0812-18-9
Description	55PC0812-14-9	55PC0812-16-94	55PC0812-12-94	55PC0812-14-94	55PC0812-20-94	Wire And Cable, 1 Conductor(s), 18AWG, 600V, Flexible Cord And Fixture Wire
Cable type	Specifications 55PC	Specifications 55PC	Specifications 55PC	Specifications 55PC	Specifications 55PC	SPEC 55
Number of conductors	1	1	1	1	1	1
conductor material	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	silver coated copper, silver coated copper	COPPER ALLOY
Product Categories	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	High performance - Spec 44, 55 and RCW	-
Number of shares	19	19	37	19	19	-
Rated voltage (V)	600	600	600	600	600	-
Insulation Materials	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	-
Wire color	White	White with yellow stripes	White with yellow stripes	White with yellow stripes	White with yellow stripes	-
Stock size (AWG)	27	29	28	27	32	-
Wire size (AWG)	14	16	12	14	20	-
Wire size (mm²)	2.08	1.31	3.31	2.08	.52	-
Wire diameter (in)	.092	.076	.111	.092	.058	-
Overall outside diameter (in)	.092	.053	.111	.092	.038	-
Conductor diameter (in)	.066	.053	.085	.066	.038	-
Operating temperature range (°C)	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-65 – 200	-
