SO63-1-W1-24-9-100

Description
SO63-1-W1-24-9-100
CategoryThe connector
File Size133KB,10 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

SO63-1-W1-24-9-100 Online Shopping

Suppliers Part Number Price MOQ In stock
SO63-1-W1-24-9-100 - - View Buy Now

SO63-1-W1-24-9-100 Overview

SO63-1-W1-24-9-100

SO63-1-W1-24-9-100 Parametric

Parameter NameAttribute value
Temperature identificationyes
Temperature identification typefusible ring
Connector typeShield terminator
Pre-installed leadsyes
Preassembled lead typesM22759/81
Lead splittingStranded wire
Lead plating materialssilver
Lead colorWhite
Termination methodwelding
Insulating sleeve outer diameter1.9 mm [ .075 in ]
Expand inner diameter (minimum value)1.9 mm [ .075 in ]
Recovered inner diameter (maximum value).5 mm [ .02 in ]
total length16.5 mm [ .65 in ]
Preassembled lead size (mm²).24
Preassembled lead size (AWG)24
Shield outer diameter (minimum value).9 mm [ .035 in ]
Dielectric outer diameter (maximum).5 mm [ .02 in ]
Preassembled Lead Dimensions (CMA)475
Operating temperature (max) (°C)150
Resistance propertiesImmersion protection
Wire temperature (max) (°C)125
MIL/NAS specifications (MIL-S-83519, NAS-1747)no
Meet government qualificationsno
Installation Procedure for Standard SolderSleeve
Shield Terminators
Devices Installation Procedure
RCPS-100-70
Revision J1
5-Apr-18
RTS: 1376204
1.0
Scope:
This standard covers the installation procedure and inspection requirements for terminating cable
shields to ground leads using Tyco Electronics SolderSleeve shield terminators. The Tyco
Electronics part numbers covered by this document includes: S01, S02, S03, SO63, SO96, SO175,
ST18, ST63, D-108, and B-023.
References:
2.1
Tyco Electronics Instructions:
1. Operating instructions for the heating device used.
Application Equipment:
Tyco Electronics approved heat sources must be used to install these devices. The heater must be
equipped with the recommended reflector to concentrate the heat and protect surrounding materials
from damage.

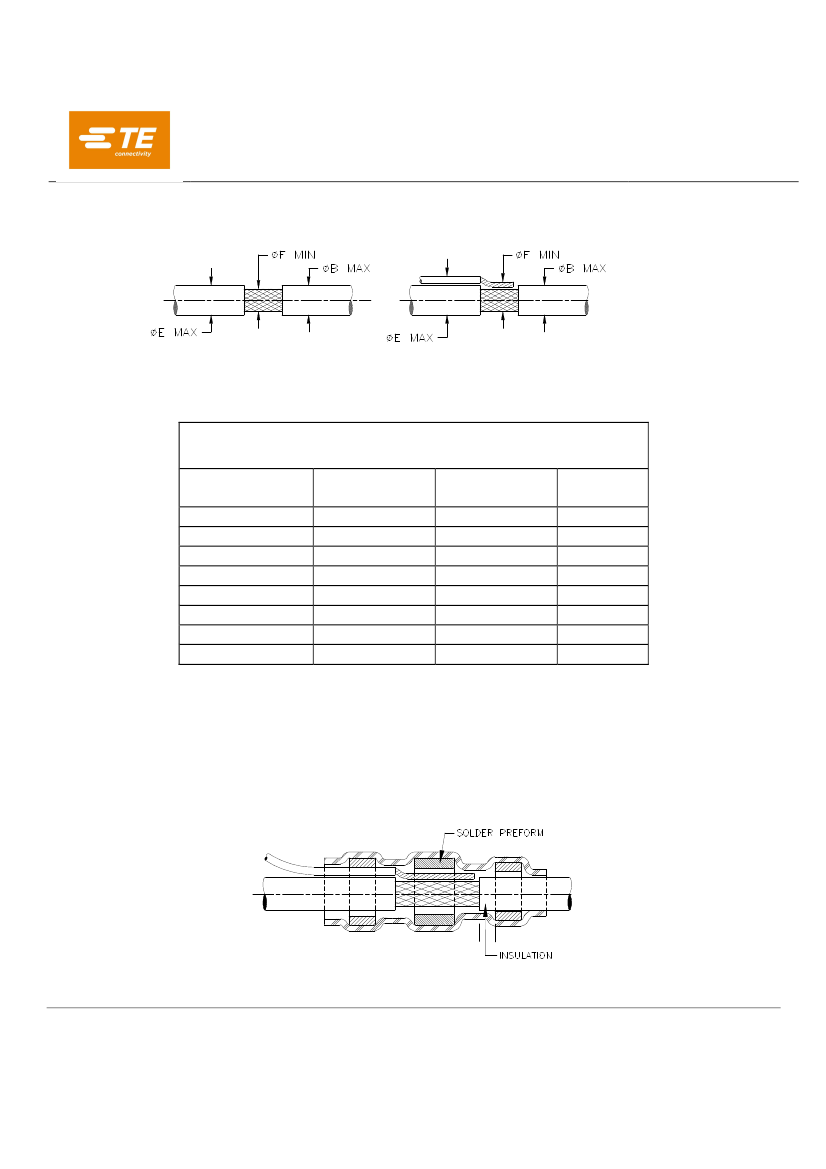

Termination Procedure:
Unless otherwise noted on the Specification Control Drawing for the shield terminator being used,
the following procedures shall be used for all SolderSleeve shield termination devices.
WARNING
Follow installation instructions carefully. Use adequate ventilation and
avoid charring or burning during installation. Charring or burning the
product will produce fumes that may cause eye, skin, nose and throat
irritation. Consult Material Safety Data Sheets
RAY5103
or
RAY5104
for further information.
2.0
3.0
4.0
4.1
Ground Lead Preparation: (if using loose ground leads).
1. Remove 1/4 to 5/16 inch of the insulation from the end of the ground lead as shown.
Unless otherwise specified dimensions are in millimeters. [Inches dimensions are in between brackets]
© 2016-2018 TE Connectivity Corporation. All Rights Reserved. TE Proprietary & Confidential Information.
If this document is printed, it becomes uncontrolled. Check for latest revision.
Page 1 of 10
