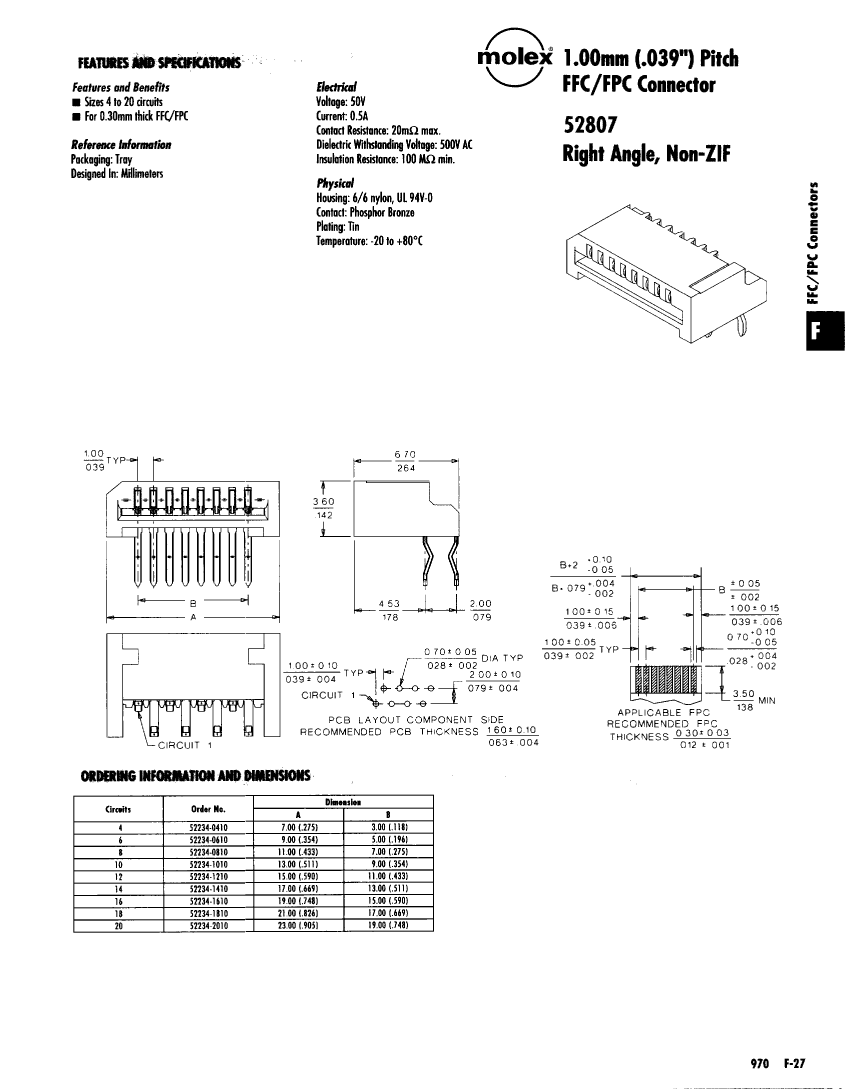

52234-0410: DescriptionCard Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size34KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52234-0410 Overview

Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal

52234-0410 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
body width	0.142 inch
subject depth	0.264 inch
body length	0.275 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.0066 mm
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

52234-0410 Related Products

	52234-0410	52234-1010	52234-1210	52234-1410	52234-1610	52234-1810	52234-2010	52234-0610	52234-0810
Description	Card Edge Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 10 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 12 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 14 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal	Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Right Angle, 0.039 inch Pitch, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION
body width	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch	0.142 inch
subject depth	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch	0.264 inch
body length	0.275 inch	0.511 inch	0.59 inch	0.669 inch	0.748 inch	0.826 inch	0.905 inch	0.354 inch	0.433 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	10	12	14	16	18	20	6	8
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
