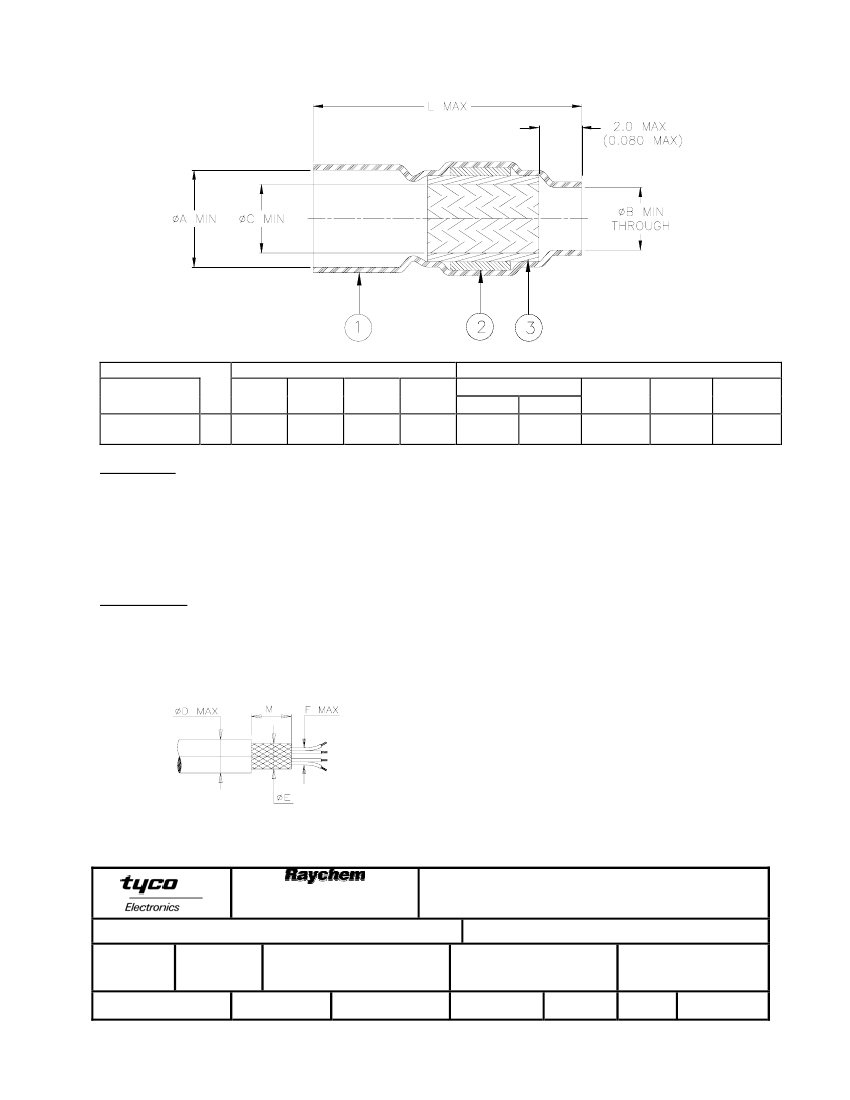

SPECIFICATION CONTROL DRAWING
Product Revision
Product
Name
B-070-12-08-01
A
øA
min
7.0
(0.275)
Product Dimensions
øB
øC
min
min
5.3
(0.210)
5.5
(0.215)
L
max
26.5
(1.045)
Cable Dimensions
øD
F
øE
max
max
min
max
2.4
5.5
7.0
5.3
(0.095)
(0.215)
(0.275)
(0.210)
M±1.00
(M±0.04)
12
(0.470)
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene fluoride.
2. SOLDER PREFORM WITH FLUX:
SOLDER:
TYPE Sn96 per ANSI-J-STD-006.
FLUX:
TYPE ROM1 per ANSI-J-STD-004.
3. SHIELD: Solder impregnated, flux coated, tin plated copper braid.
SOLDER:
TYPE Sn96 per ANSI-J-STD-006.
FLUX:
TYPE ROM1 per ANSI-J-STD-004.
APPLICATION
1. These controlled soldering devices are designed for shield termination of a tin, silver or nickel plated shielded cable, having
an insulation rated for at least 125°C.
2. Temperature range: -55°C to +175°C.
3. Installation Procedure: RPIP-500-07.
For best results, prepare the cable as shown:
TITLE :
305 Constitution Drive
Menlo Park, CA 94025, USA
Unless otherwise specified dimensions are in millimeters.
Inches dimensions are in between brackets.
Tyco Electronics reserves the right to
ANGLES: N/A
TOLERANCES:
amend this drawing at any time. Users
0.00 N/A
should evaluate the suitability of the
ROUGHNESS IN
0.0 N/A
product for their application.
MICRON
0 N/A
SOLDERSHIELD DEVICE
DOCUMENT NO.:
DCR NUMBER:
B-070-12-08-01
REPLACES:
D020391
SCALE:
None
SIZE:
A
D010409
SHEET:
1 of 1
PREPARED BY:
DATE:
PROD. REV.
DOC ISSUE:
mforonda
6/14/01
A
1
If this document is printed it becomes uncontrolled. Check for the latest revision.
