55PC2112-18-9-94: Description55PC2112-18-9-94; CategoryWire/cable; File Size140KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC2112-18-9-94 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	55PC2112-18-9-94	-	-	View	Buy Now

55PC2112-18-9-94 Overview

55PC2112-18-9-94

55PC2112-18-9-94 Parametric

Parameter Name	Attribute value
Cable type	Spec 55
Cable type	Flat braided shielding and jacketing
Product Categories	High Performance - Sizes 44, 55 and RCW
Number of shares	19
Number of conductors	1
Rated voltage (V)	600
shielding material	silver coated copper, silver coated copper
Insulating sleeve color	White with yellow stripes
Wire color	White
conductor material	tinned copper, tinned copper
Conductor diameter (in)	.046
Stock size (AWG)	30
Overall outside diameter (in)	.08
Wire size (AWG)	18
Wire diameter (in)	.059
Operating temperature range (°C)	-65 – 200

Preview

Download Datasheet

View All

TITLE

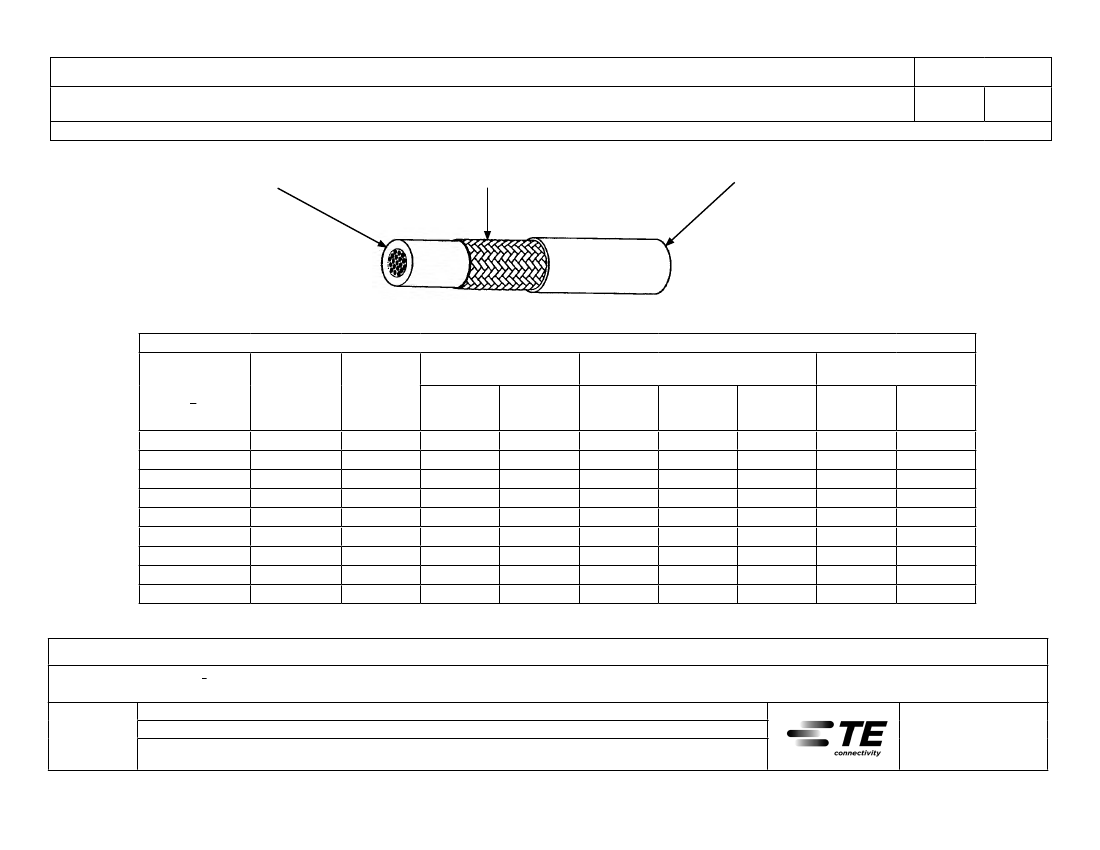

SPECIFICATION CONTROL DRAWING

ONE CONDUCTOR CABLE, FLAT BRAID SHIELDED, JACKETED, GENERAL PURPOSE, 600 VOLT

This specification sheet forms a part of the latest issue of Raychem Specification 55PC.

JACKET -

RADIATION-CROSSLINKED,

MODIFIED ETFE

55PC2112

Date

5-28-13

Revision

E

COMPONENT WIRE - 55PC0112

SHIELD - SILVER-COATED COPPER

CONSTRUCTION DETAILS

PART NUMBER

1/

55PC2112-26-*

55PC2112-24-*

55PC2112-22-*

55PC2112-20-*

55PC2112-18-*

55PC2112-16-*

55PC2112-14-*

55PC2112-12-*

55PC2112-10-*

CONDUCTOR

SIZE

(AWG)

26

24

22

20

18

16

14

12

10

SHIELD

STRAND

THICKNESS

(± .0004)

.0015

JACKET THICKNESS

( in. )

LOWER

SPEC

LIMIT

.0055

.0060

TARGET

WALL

.0070

.0075

LOWER

SPEC

LIMIT

.047

.052

.058

.066

.075

.083

.097

.117

.142

OUTSIDE DIAMETER

( in. )

TARGET

VALUE

.051

.056

.062

.070

.080

.087

.102

.122

.148

UPPER

SPEC

LIMIT

.055

.060

.066

.074

.084

.092

.106

.127

.154

WEIGHT

( lbs/1000 ft. )

TARGET

VALUE

2.73

3.51

4.63

6.36

8.89

10.93

15.89

23.55

36.13

UPPER

SPEC

LIMIT

3.01

3.82

4.97

6.75

9.41

11.48

16.57

24.40

37.42

Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice.

Tyco Electronics Corporation also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer.

1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER,

AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: “901/902...” MAY BE REPLACED BY “Axxx”.) OTHER CODES

AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER.

Raychem, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.

Raychem Wire & Cable

501 Oakside Avenue

Redwood City, CA 94063-3800

Phone: 1-800-227-8816

Fax: 1-650-361-6297

Page 1 of 2

DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL.

THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.

REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID.
