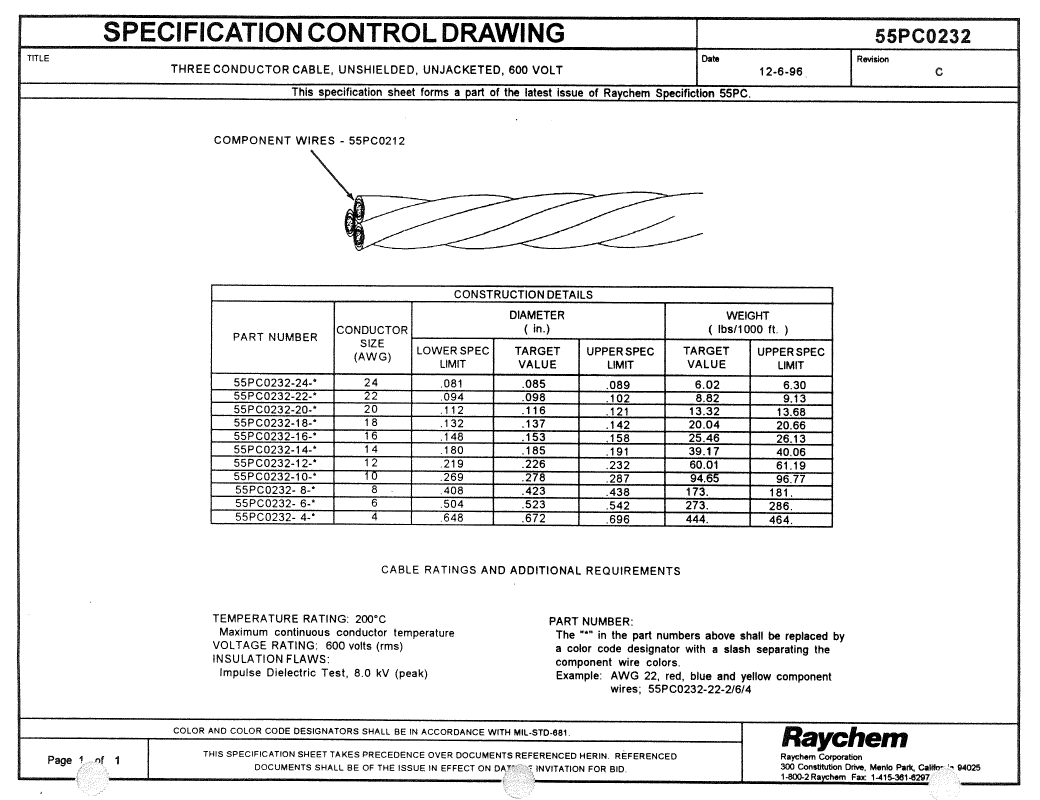

55PC0232-22-3/6/9 datasheet, PDF

55PC0232-22-3/6/9: Description55PC0232-22-3/6/9; CategoryWire/cable; File Size89KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

55PC0232-22-3/6/9 Overview

55PC0232-22-3/6/9

Parameter Name	Attribute value
Cable type	Spec 55PC
Cable type	primary
Product Categories	Cables - High Performance - Sizes 44, 55 and RCW
Number of shares	19
Rated voltage (VAC)	600
Insulation Materials	Irradiation cross-linked modified ETFE
conductor material	silver plated copper
Wire color	orange, white, blue
Stock size (AWG)	34
Wire size (AWG)	22
Wire size (mm²)	.33
Overall outside diameter (in)	.098
Wire diameter	.046 mm [ .046 in ]
Conductor diameter (in)	.0293
range of working temperature	-65 – 200 °C [ -85 – 392 °F ]

	55PC0232-22-3/6/9	55PC0232-16-3/6/9	55PC0232-10-3/6/9	55PC0232-20-3/6/9	55PC0232-14-3/6/9
Description	55PC0232-22-3/6/9	55PC0232-16-3/6/9	55PC0232-10-3/6/9	55PC0232-20-3/6/9	55PC0232-14-3/6/9
Cable type	primary	primary	-	primary	Three pairs
Product Categories	Cables - High Performance - Sizes 44, 55 and RCW	Cables - High Performance - Sizes 44, 55 and RCW	-	Cables - High Performance - Sizes 44, 55 and RCW	-
Number of shares	19	19	-	19	19
Rated voltage (VAC)	600	600	-	600	-
Insulation Materials	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE	-	Irradiation cross-linked modified ETFE	Irradiation cross-linked modified ETFE
conductor material	silver plated copper	silver plated copper	-	silver plated copper	silver coated copper, silver coated copper
Wire color	orange, white, blue	orange, white, blue	-	orange, white, blue	-
Stock size (AWG)	34	29	-	32	-
Wire size (AWG)	22	16	-	20	14
Wire size (mm²)	.33	1.31	-	.52	-
Overall outside diameter (in)	.098	.153	-	.116	-
Wire diameter	.046 mm [ .046 in ]	.071 mm [ .071 in ]	-	.054 mm [ .054 in ]	-
Conductor diameter (in)	.0293	.527	-	.0375	-
range of working temperature	-65 – 200 °C [ -85 – 392 °F ]	-65 – 200 °C [ -85 – 392 °F ]	-	-65 – 200 °C [ -85 – 392 °F ]	-
