940-44-032-17-401000: DescriptionIC Socket, PLCC32, 32 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size115KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

940-44-032-17-401000 Overview

IC Socket, PLCC32, 32 Contact(s), ROHS COMPLIANT

940-44-032-17-401000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Contact to complete cooperation	MATTE TIN (150) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	PLCC32
Shell material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e3
Number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

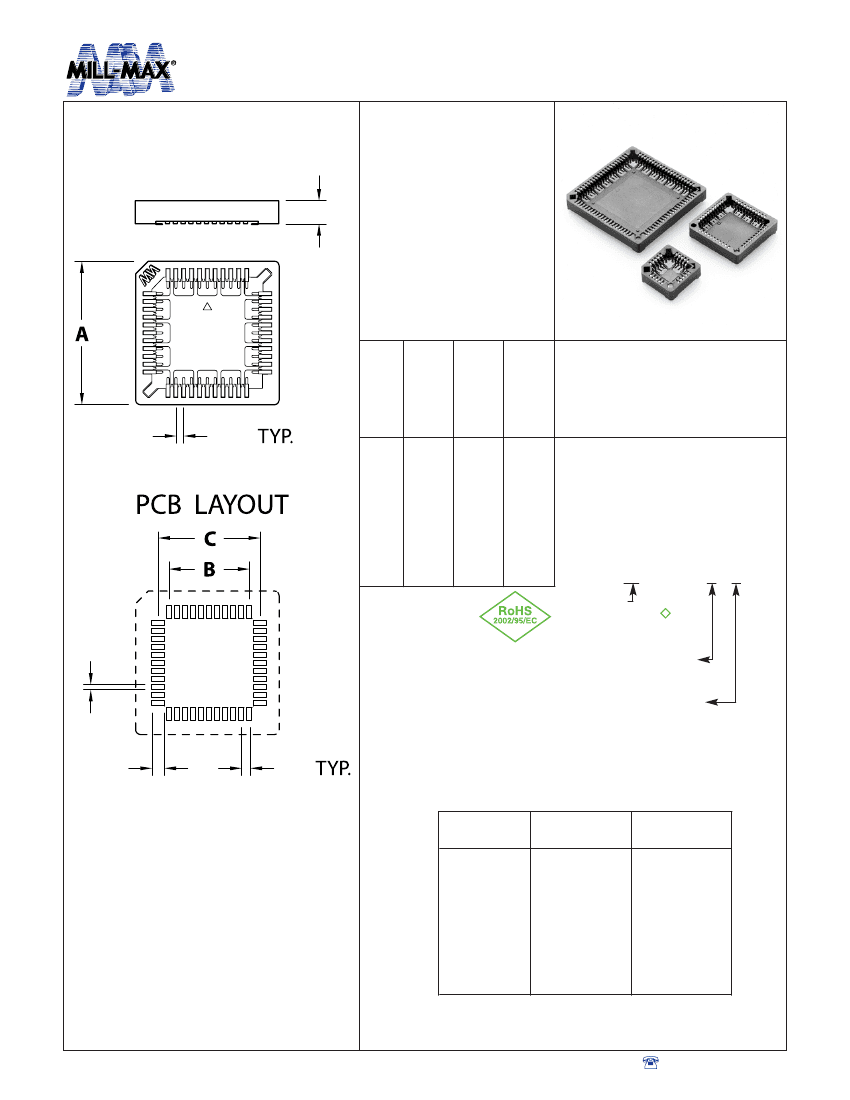

STANDARD PLCC SOCKETS

Surface Mount

•

Note: Not end stackable.

•

Accepts JEDEC PLCCs

MO-047 & MO-052.

•

Insulator material is

glass reinforced PPS.

•

Low profile for high density

PC board stacking.

•

Standoffs provide clear-

ance for heat dissipation

and cleaning.

•

Contacts are plated with

3,80

µm

tin.

•

Pre-lubricated available.

(See page 96 for specs.)

No. of

contacts

Series 940

4,45

A

B

C

Ordering

Information

940-44-020-17-40X00X

940-44-028-17-40X00X

940-44-032-17-40X00X

940-44-044-17-40X00X

940-44-052-17-40X00X

940-44-068-17-40X00X

940-44-084-17-40X00X

Plating Code

44

=

3,80 µm Sn



1,27

20

28

32*

44

52

68

84

15,57

18,11

22,86

25,73

30,81

35,89

5,08

7,62

12,7

15,24

20,32

25,4

8,48

11,02

16,10

18,64

23,72

28,80

20,6/18,1 10,2/7,62 13,6/11,0

*RECTANGULAR

0,76

X = 0

Not Lubricated

X = 1

Pre-Lubricated

X = 0

Tube Packaging

X = 4

Tape and Reel

1,78

1,27

No. of

Contacts

20

28

32

44

52

68

84

Quantity

per Tube

32

27

24

21

19

16

14

Quantity

per Reel

490

400

500

250

220

w w w. m i l l - m a x . c o m

93



516-922-6000
