4-794632-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 4-794632-0

Preview

4-794632-0: Description10P MICRO MNL ASSY,VRT,HDR,LF; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

4-794632-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-794632-0	-	-	View	Buy Now

4-794632-0 Overview

10P MICRO MNL ASSY,VRT,HDR,LF

4-794632-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
body width	0.27 inch
subject depth	0.364 inch
body length	0.748 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	150 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	NYLON
Terminal length	0.125 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Evacuation force-minimum value	.6672 N
Base Number Matches	2

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

-

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT 20

6.86

3.00

D

E1

REVISED PER ECR-16-011494

21JUN2017

NK

CX

D

HOUSING

CONTACT

9.24

3.18

3.00

DIM Z

SECTION

CIRCUIT NO.1

Z-Z

4

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

7.00

DIM Y

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

-

DIM Z

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

36.86

33.86

30.86

27.86

24.86

21.86

18.86

15.86

12.86

9.86

6.86

3.86

DIM X

24

22

20

18

16

14

12

10

8

6

4

2

24

22

20

18

16

14

12

10

8

6

4

2

NO. OF

POSN.

5-794632-4

5-794632-2

5-794632-0

4-794632-8

4-794632-6

4-794632-4

4-794632-2

4-794632-0

3-794632-8

3-794632-6

3-794632-4

3-794632-2

2-794632-4

2-794632-2

2-794632-0

1-794632-8

1-794632-6

1-794632-4

1-794632-2

1-794632-0

794632-8

794632-6

794632-4

794632-2

PART NUMBER

TE Connectivity

C

DIM Y

RETENTION FEATURE LOCATED

ON END CONTACTS ONLY

4 PLC REF

2

4

8.67

DIM X

B

REF

2.0

MIN

3.00 0.13

TYP

3.00 0.13

4

SUPERSEDED BY 5-794632-4

SUPERSEDED BY 5-794632-2

SUPERSEDED BY 5-794632-0

SUPERSEDED BY 4-794632-8

1

EDGE OF BOARD

1

SUPERSEDED BY 4-794632-6

SUPERSEDED BY 4-794632-4

SUPERSEDED BY 4-794632-2

SUPERSEDED BY 4-794632-0

SUPERSEDED BY 3-794632-8

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.000762 MINIMUM GOLD OVER 0.00254

MINIMUM NICKEL ON MATING AREA. 0.00254

TIN-LEAD MINIMUM OVER 0.00254 NICKEL

MINIMUM ON SOLDER TAILS.

MAXIMUM INSERTION 20 LBS.

RECOMMENDED BOARD THICKNESS 1.57.

MATERIAL: HOUSING - NYLON, UL 94V-0, BLACK.

CONTACT - BRASS.

0.000762 MINIMUM GOLD OVER 0.00254

MINIMUM NICKEL ON MATING AREA. 0.00254

MATTE TIN MINIMUM OVER 0.00254 NICKEL

MINIMUM ON SOLDER TAILS.

EDGE OF BOARD

+0.02

1.02

2.0 MIN

0

TYP

RECOMMENDED MOUNTING HOLE PATTERN

3

SCALE 5:1

2

3

4

SUPERSEDED BY 3-794632-6

SUPERSEDED BY 3-794632-4

SUPERSEDED BY 3-794632-2

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

A

mm[INCHES]

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.20 [.008]

-

16AUG99

B. HAYMAKER

CHK

16AUG99

K. COBLE

APVD

16AUG99

K. COBLE

PRODUCT SPEC

APPLICATION SPEC

NAME

-

SEE TABLE

WEIGHT

-

CUSTOMER DRAWING

A2

00779

SIZE

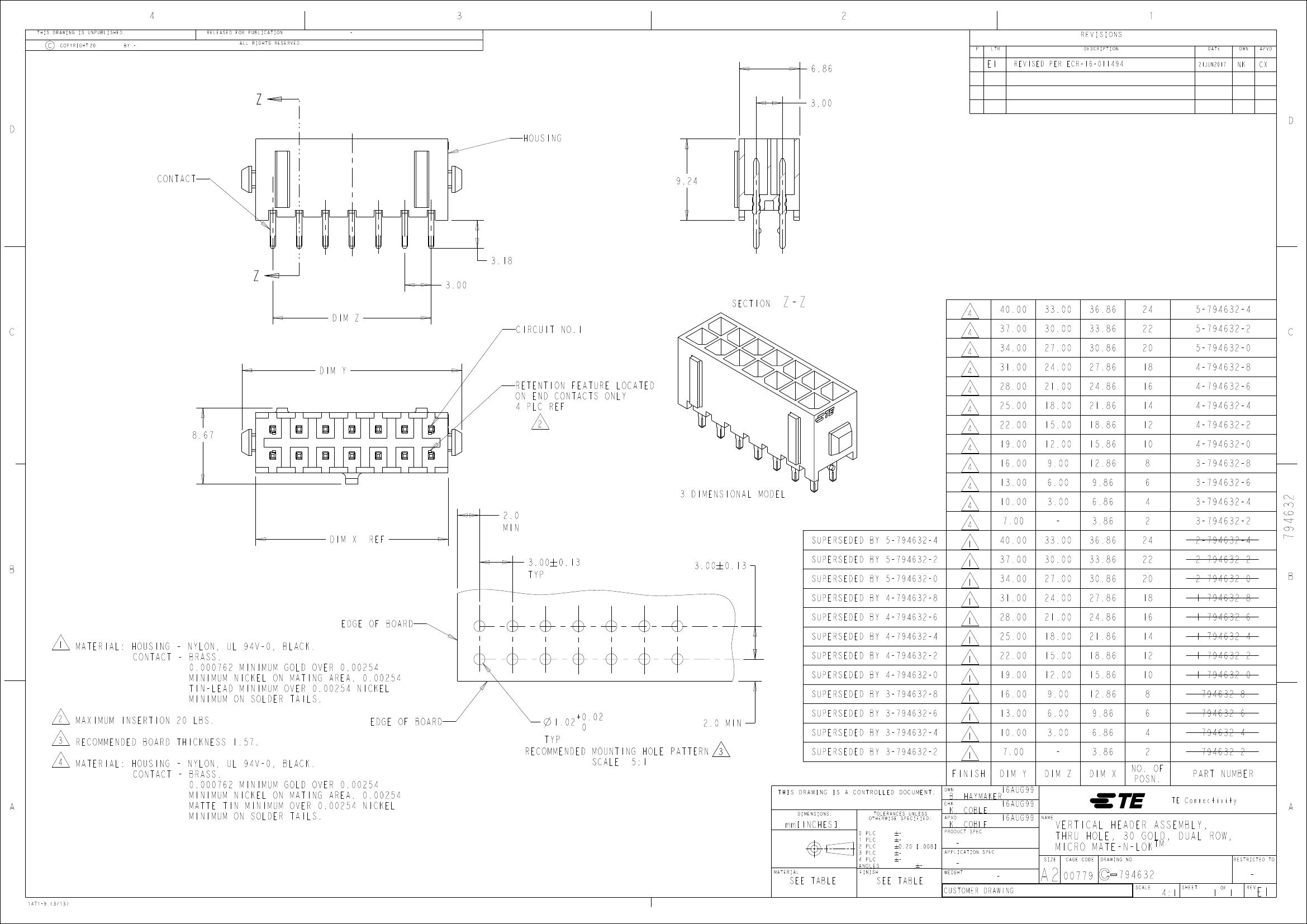

VERTICAL HEADER ASSEMBLY,

THRU HOLE, 30 GOLD, DUAL ROW,

MICRO MATE-N-LOK

TM

CAGE CODE

DRAWING NO

RESTRICTED TO

794632

SCALE

1471-9 (3/13)

4:1

SHEET

1

OF

1

REV

-

E1

794632

B

A

3 DIMENSIONAL MODEL

4
