SY89538L

3.3V, Precision LVPECL and LVDS

Programmable Multiple Output Bank Clock

Synthesizer and Fanout Buffer with Zero Delay

General Description

The SY89538L integrated programmable clock

synthesizer and fanout is part of a precision PLL-

based clock generation family optimized for

enterprise switch, router, and multiprocessor server

applications. This family is ideal for generating

internal system timing requirements up to 750MHz for

multiple ASICs, FPGAs, and NPUs. These devices

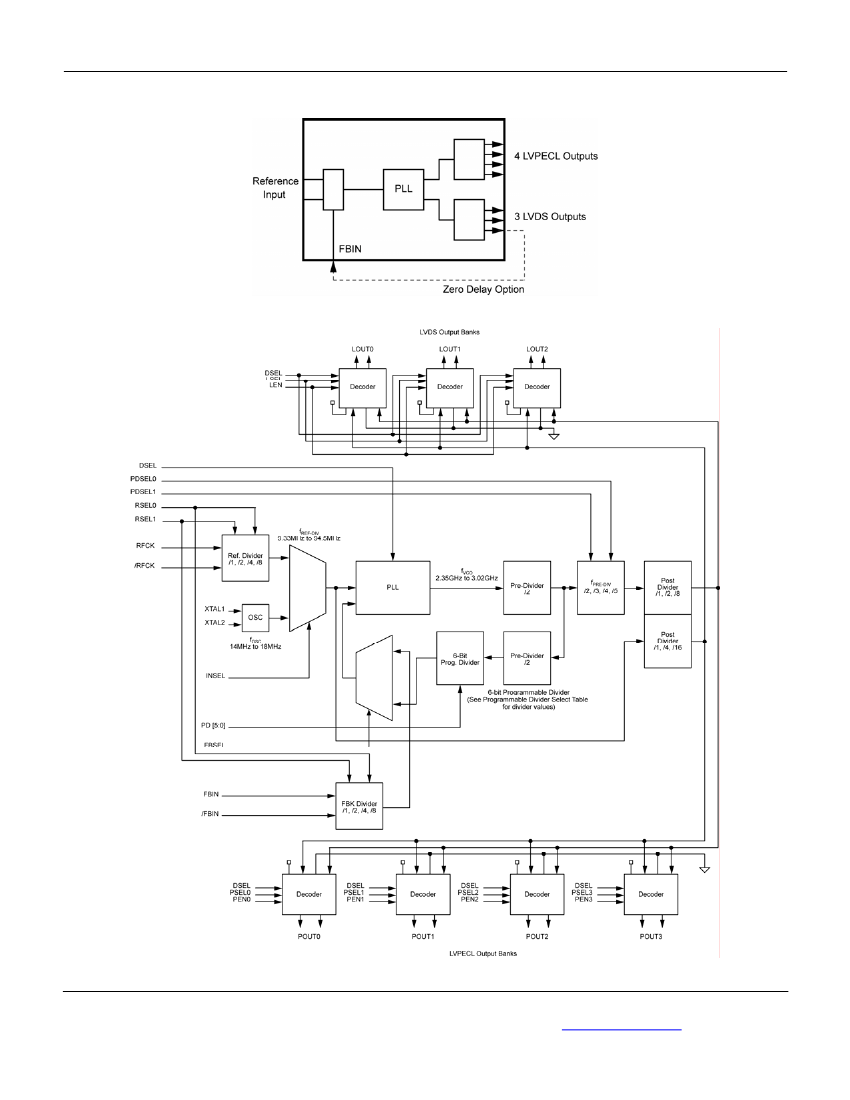

integrate the following blocks into a single monolithic

IC:

•

PLL (Phase-Lock-Loop) based synthesizer

Zero-delay MUX and feedback capability

1:4 LVPECL fanout

1:3 LVDS fanout

Clock generator (dividers)

Logic translation (LVPECL, LVDS)

Precision Edge

Features

•

Integrated programmable synthesizer with multiple

output dividers, fanout buffers, and clock drivers

•

Zero-delay capability: 29.375MHz to 756MHz

•

Reference clock input: 9.325MHz to 756MHz

•

Input MUX accepts a reference and a crystal

(XTAL) source

– Ideal for reference backup clock source or

system test frequency source

– Patent-pending unique input MUX isolates XTAL

and reference inputs which minimizes crosstalk

•

Guaranteed AC performance:

– Output frequency range: 29.375MHz to 756MHz

– <150ps

total jitter

– <6ps

RMS

cycle-to-cycle jitter (XTAL Input)

– <8ps

deterministic jitter

– <0.7ps

RMS

crosstalk induced jitter

– <75ps output-to-output skew

•

TTL/CMOS-compatible control logic

•

Five-independently programmable output

frequency banks:

– Four differential LVPECL output banks

– One differential LVDS output bank with three

output pairs

•

Output bank synchronization control pin

•

Output enable

•

3.3V ±10% power supply (2.5V output capable)

•

Guaranteed over the industrial temperature range

(-40°C to +85°C)

•

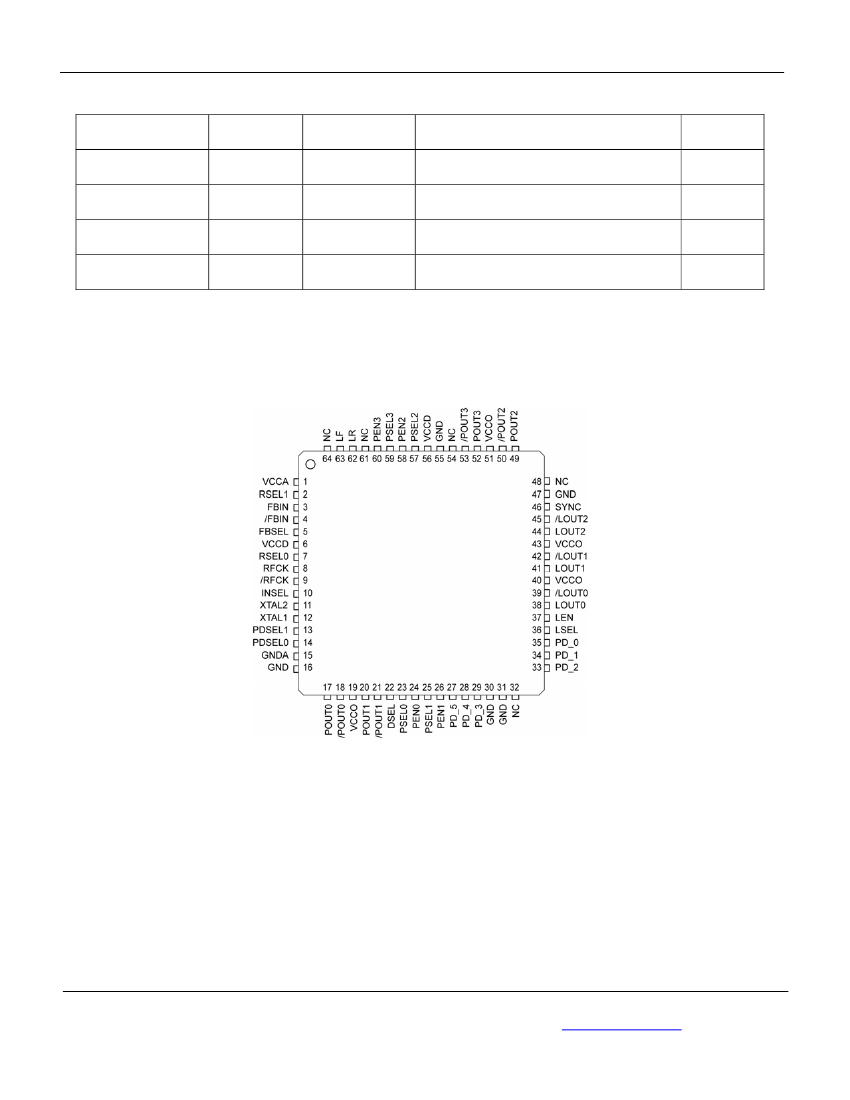

Available in a 64-pin EPAD-TQFP

Five-independently programmable output

banks

This level of integration minimizes additive jitter and

part-to-part

skew

associated

with

discrete

alternatives, resulting in superior system-level timing

with reduced board space and power. For

applications that do not require a zero-delay function,

see the SY89537L.

All support documentation can be found on

Micrel’s web site at:

www.micrel.com.

Applications

•

Enterprise routers, switches, servers and

workstations

•

Parallel processor-based systems

•

Internal system clock generation for ASICs, NPUs

and FPGAs

Markets

•

LAN/WAN

•

Enterprise servers

•

Test and measurement

Precision Edge is a registered trademark of Micrel, Inc.

MLF and

MicroLeadFrame

are registered trademarks of Amkor Technology.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com

January 2008

M9999-010808-E
