4-1734857-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 4-1734857-5

4-1734857-5: DescriptionPCI EXP STRADDLE 164P WHT 30u"; CategoryThe connector The connector; File Size780KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

4-1734857-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4-1734857-5	-	-	View	Buy Now

4-1734857-5 Overview

PCI EXP STRADDLE 164P WHT 30u"

4-1734857-5 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPL. & STRADDLE MOUNT
body width	0.343 inch
subject depth	0.661 inch
body length	3.504 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	1734857
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1.1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	164
UL Flammability Code	94V-0
Evacuation force-minimum value	.0834 N
Base Number Matches	1

Preview

Download Datasheet

View All

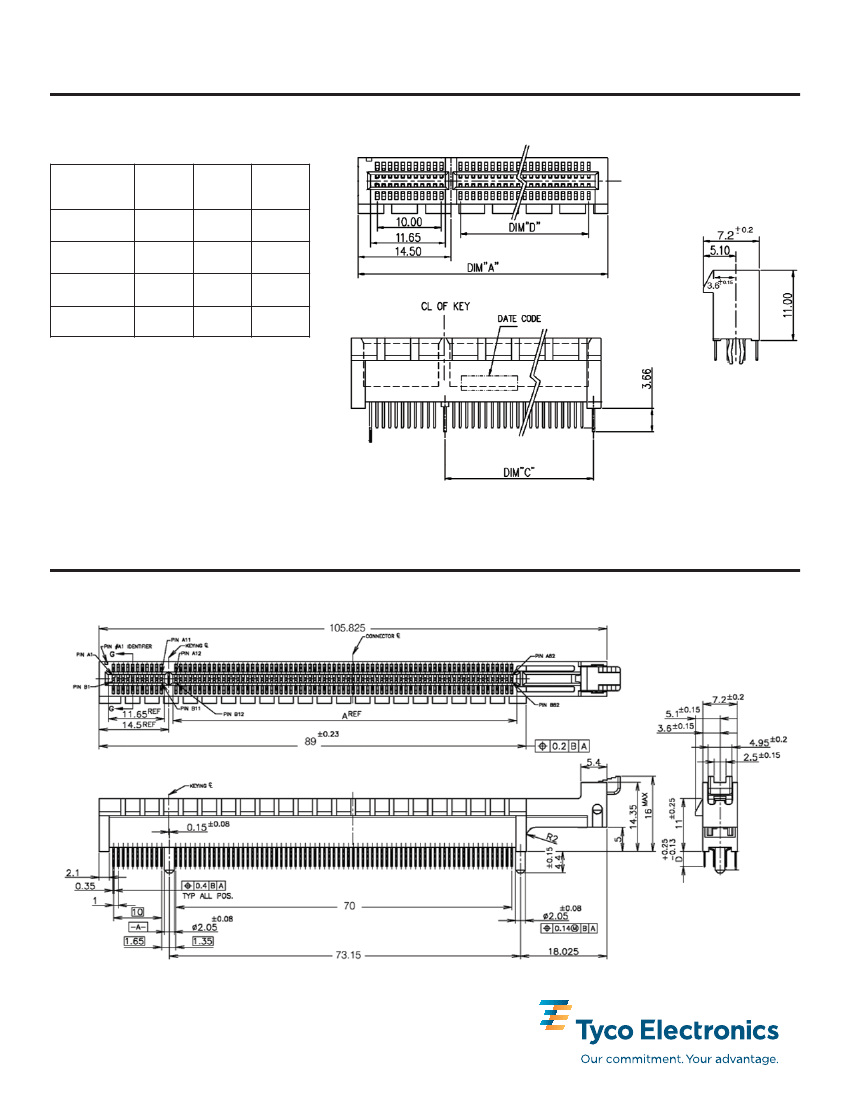

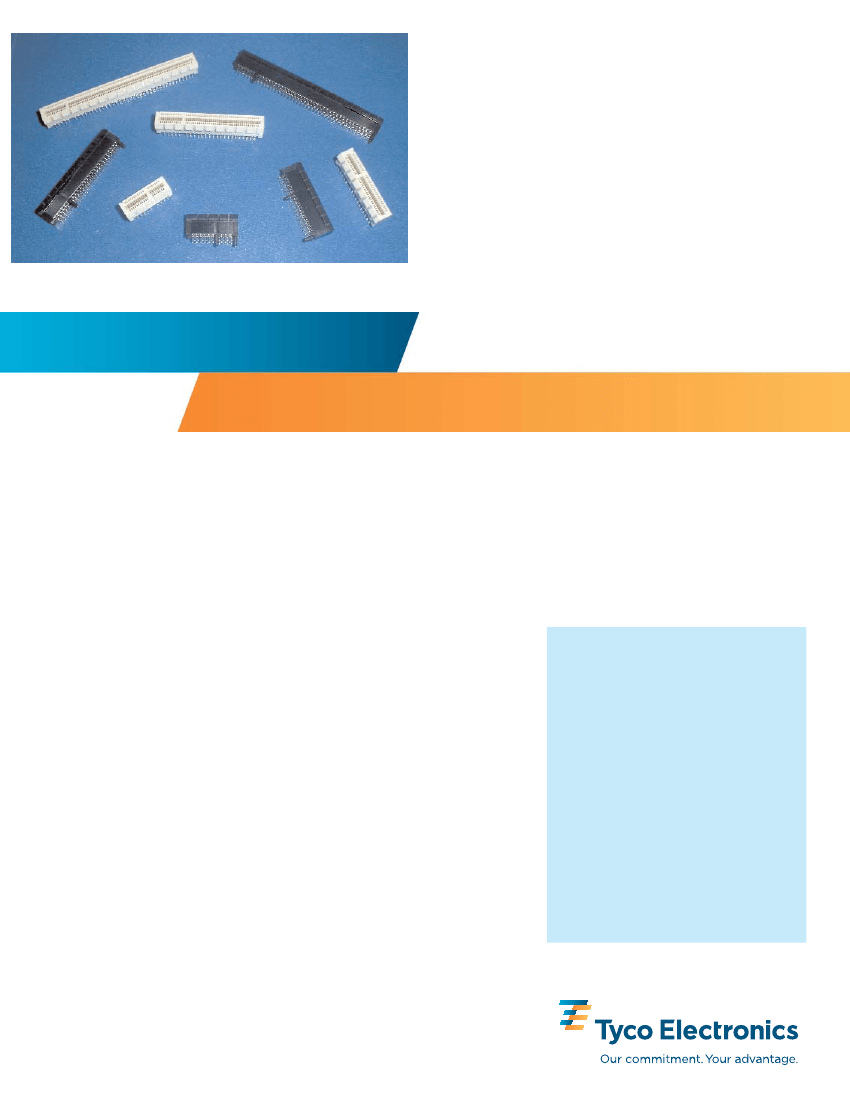

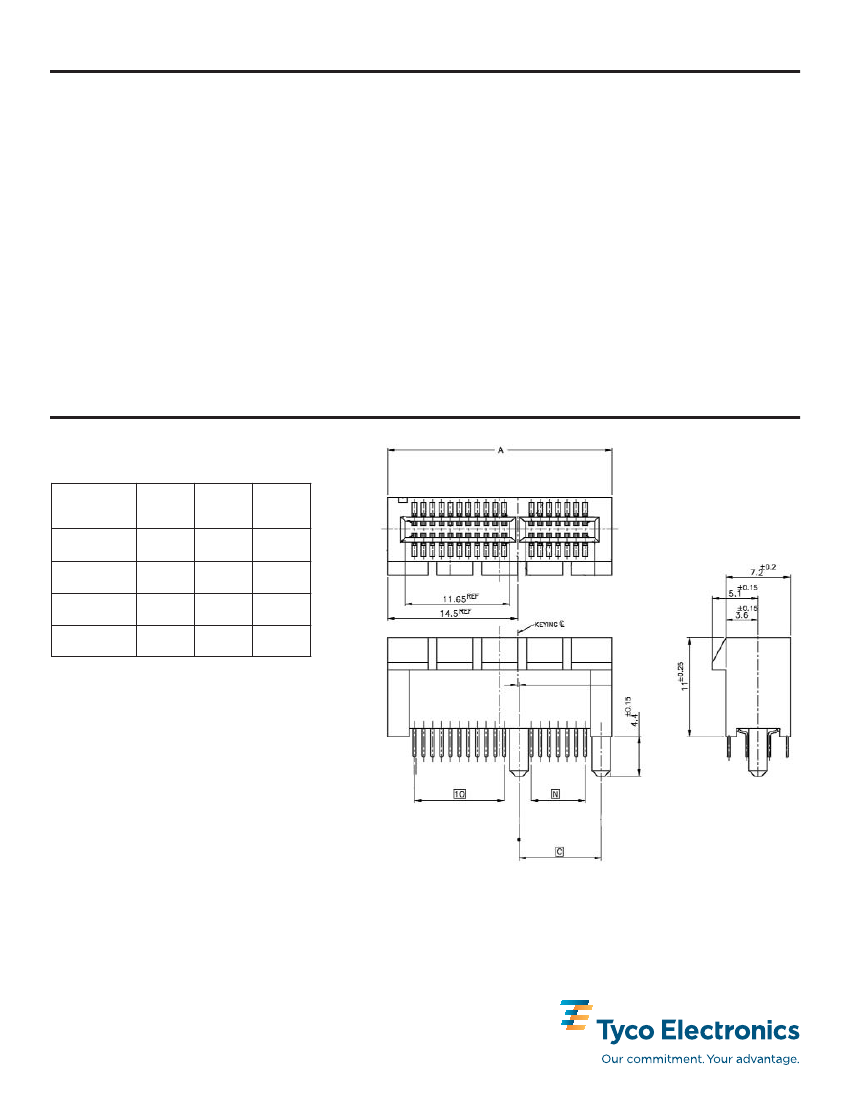

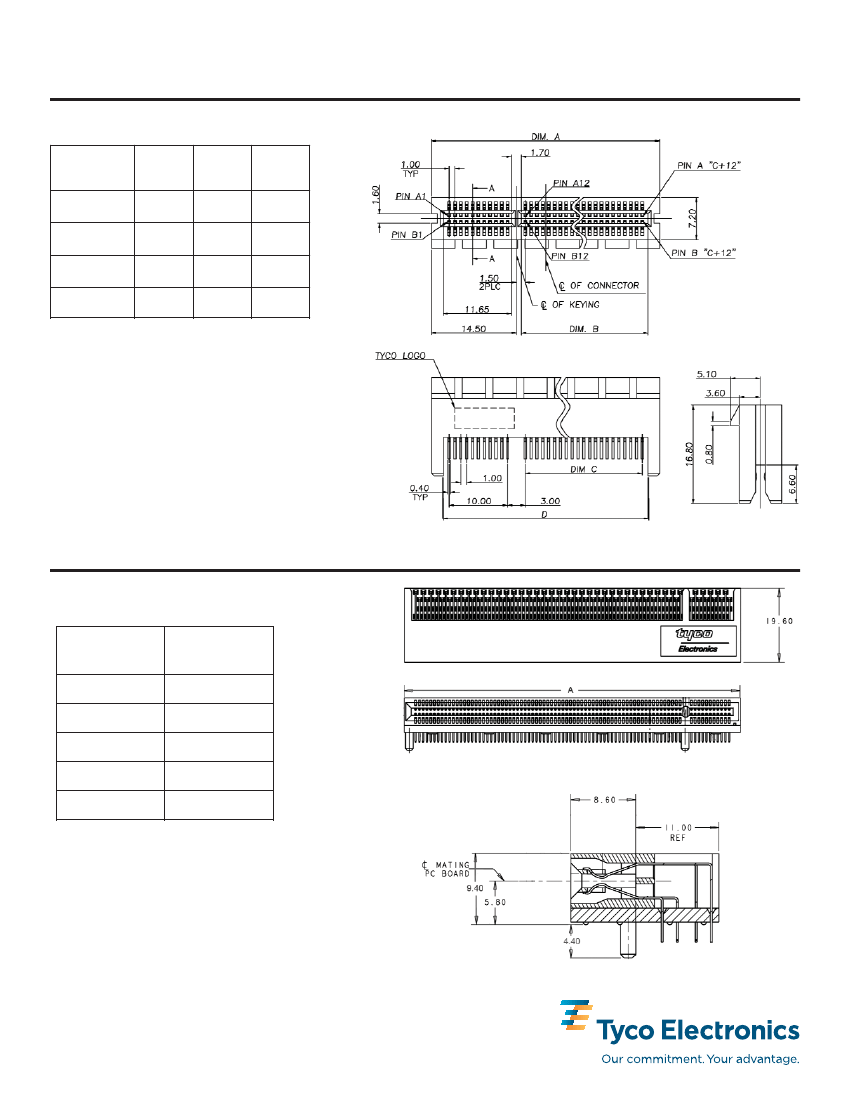

Card Edge Connector for

PCI Express Applications

DESCRIPTION

• In right angle configuration

Tyco Electronics Card Edge Connector

for PCI Express applications is a 1mm

centerline card edge product designed

to meet PCI SIG requirements for

PCI Express architecture. PCI Express

architecture is a high performance point

to point full duplex I/O Bus.

APPLICATIONS

•

Serial Bus for Graphics Cards and I/O

Client Cards for applications requiring

higher speeds than the popular PCI Bus.

Computers, both Desktop and Server,

•

along with Telecommunication Switches

and Routers.

KEY FEATURES

•Available:

• In all standard sizes: (36 pins), x4

(64 pins), x8 (98 pins), and x16

(164pins)

• With plastic locating posts or

metal hold downs

• With integrated retention

mechanism in x16 size

• In straddle mount configuration

RATINGS

Operating Temperature:

• Three tail lengths: 2.3mm, 3.1mm,

and 5.6mm

• Gold Flash, 15 Gold, and 30 Gold

plating options

•RoHS Compliant

FOR MORE INFORMATION

TECHNICAL DOCUMENTS

•Product Specification

•108-5847 (1612163, 1746220,

& 1761465)

•108-57375 (1775800 & 1775801)

Internet:

http://www.tycoelectronics.com

•108-57351 (1734857)

•Test Reports

•501-5453 (1612163,1746220,

&1761465)

•501-57406 (1775800 & 1775801)

•501-57490 (1734857)

USA: 1-800-522-6752

Canada: 1-905-470-4425

UK: 44-141-810-8967

Japan: 81-44-844-8013

John Larkin, Product Manager

Phone: 1-717-592-2074

E-mail: jtlarkin@tycoelectronics.com

Technical Support

Durability:

Current Rating:

Voltage Rating:

-40°C to +85°C

50 cycles

1.1A

50 VAC

PCI Express and PCI SIG are registered trademarks of the PCI-SIG Corporation.
