Datasheet> All Categories > Passive components> inductor> IDCS-7328220UH20%
PDF
Preview

IDCS-7328220UH20%

Description
General Fixed Inductor, 1 ELEMENT, 220 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components    inductor
File Size51KB，1 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

IDCS-7328220UH20% Overview

General Fixed Inductor, 1 ELEMENT, 220 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

IDCS-7328220UH20% Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
ECCN codeEAR99
core materialFERRITE
DC Resistance0.47 Ω
Nominal inductance(L)220 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberIDCS-7328
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Maximum rated current1.1 A
Shape/Size DescriptionCYLINDRICAL PACKAGE
shieldYES
special characteristicsYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeJ BEND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

Preview

Download Datasheet

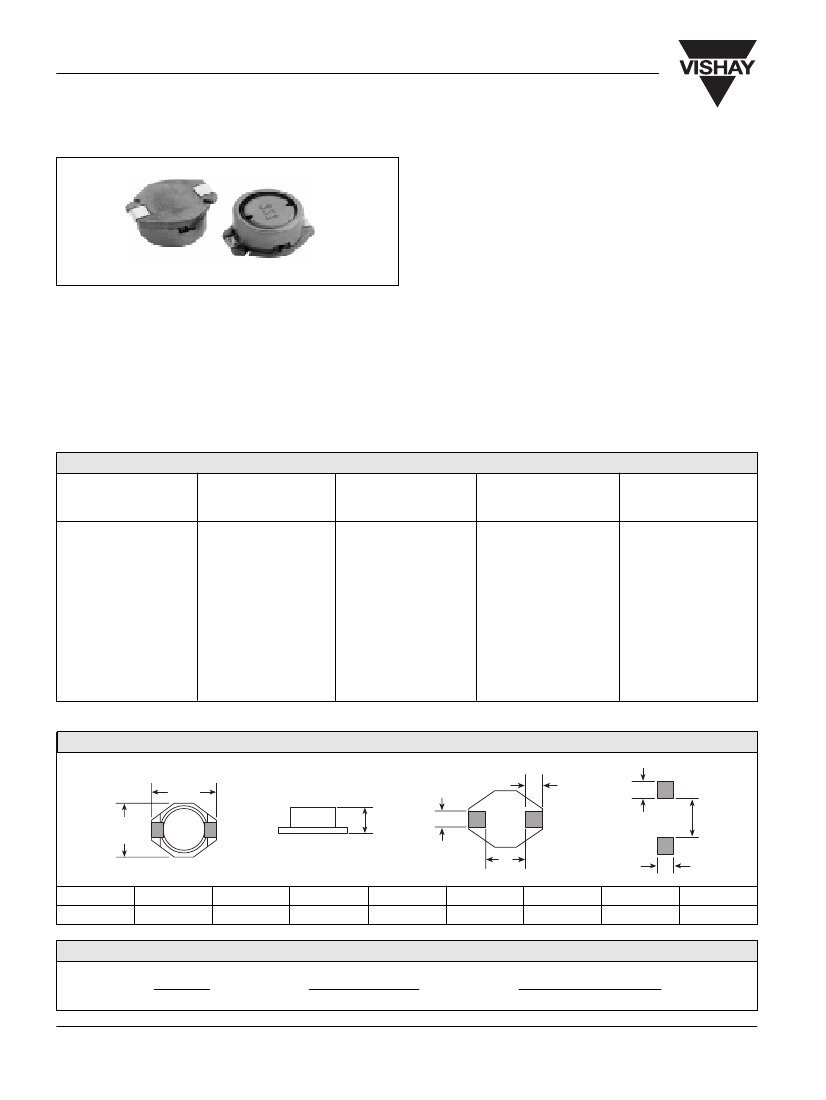

IDCS-7328
Vishay Dale
Inductors
High Current, Shielded, Surface Mount
FEATURES
•
High energy storage.
•
Low resistance.
•
Magnetically shielded.
•
Tape and reel packaging for automatic handling.
ELECTRICAL SPECIFICATIONS
Inductance Range:
10µH to 1000µH, tested at 1.0Vrms.
Inductance Tolerance:
20%.
Operating Temperature:
- 40°C to + 85°C.
Resistance to Solder Heat:
260°C for 10 Seconds.
MATERIALS
Core:
Ferrite.
Wire:
Enamelled copper wire.
Base:
LCP.
Terminal:
Nickel bronze.
Adhesive:
Epoxy resin.
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(
µ
H)
10
15
22
33
47
68
100
150
220
330
470
680
1000
*40°C temperature rise.
TEST FREQUENCY
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
MAXIMUM
(Ohms)
0.040
0.048
0.059
0.075
0.097
0.138
0.207
0.293
0.47
0.78
1.08
1.40
2.01
RATED DC
CURRENT*
(Amps)
3.9
3.4
3.1
2.8
2.4
2.0
1.7
1.3
1.1
0.86
0.73
0.64
0.53
TOLERANCE
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
±
20%
DIMENSIONS
in inches [millimeters]
A
Max.
B
Max.
D
Max.
E
F
H
I
G
J
A (Max.)
0.730 [18.54]
B (Max.)
0.600 [15.24]
D (Max.)
0.300 [7.62]
E
0.100 [2.54]
F
0.100 [2.54]
G
0.500 [12.70]
H
0.115 [2.92]
I
0.490 [12.45]
J
0.110 [2.79]
ORDERING INFORMATION
IDCS-7328
MODEL
10
µ
H
INDUCTANCE VALUE
±
20%
INDUCTANCE TOLERANCE
www.vishay.com
56
Document Number 34011
Revision 25-Sep-00
