SML-310JTT87 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SML-310JTT87

SML-310JTT87: DescriptionSingle Color LED, Bright Red, Transparent Clear, 1.2mm; CategoryLED optoelectronic/LED photoelectric; File Size218KB，5 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

SML-310JTT87 Overview

Single Color LED, Bright Red, Transparent Clear, 1.2mm

SML-310JTT87 Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	BRIGHT RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	TRANSPARENT CLEAR
Nominal luminous intensity	40 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.8 mm
method of packing	BULK
peak wavelength	660 nm
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Base Number Matches	1

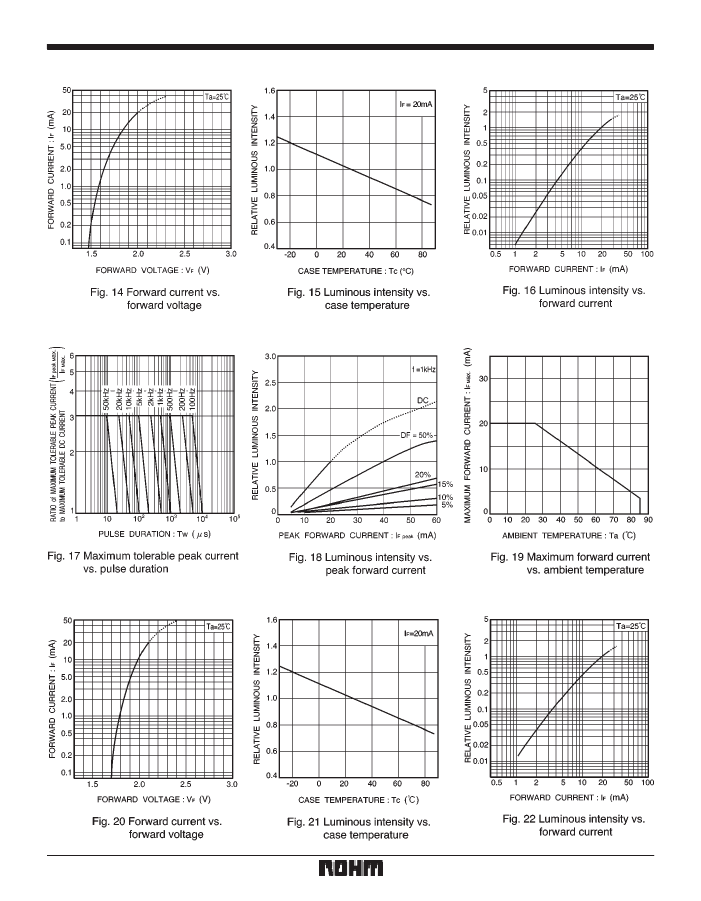

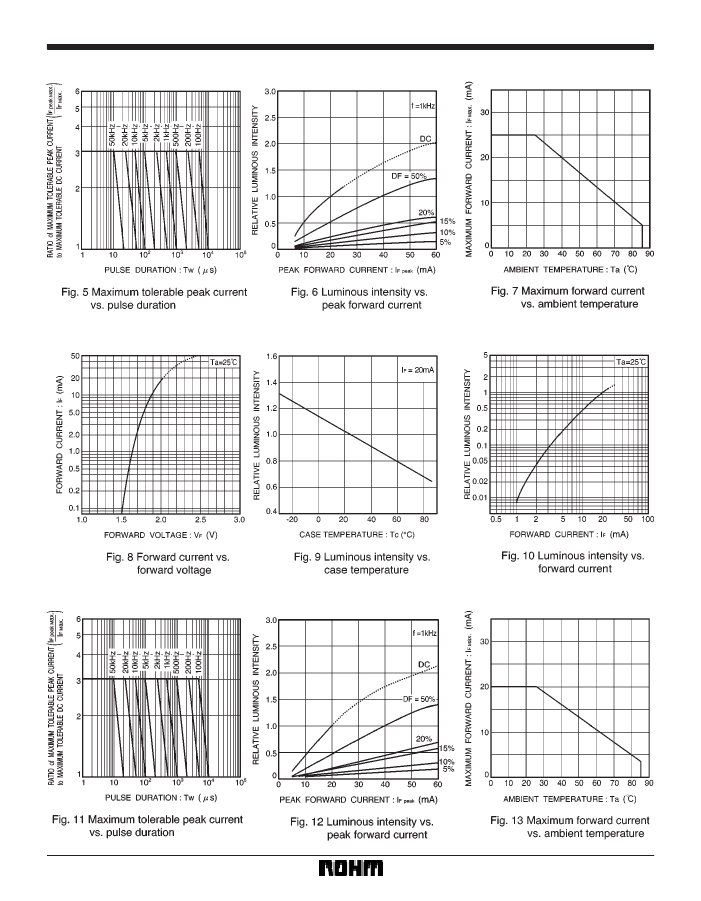

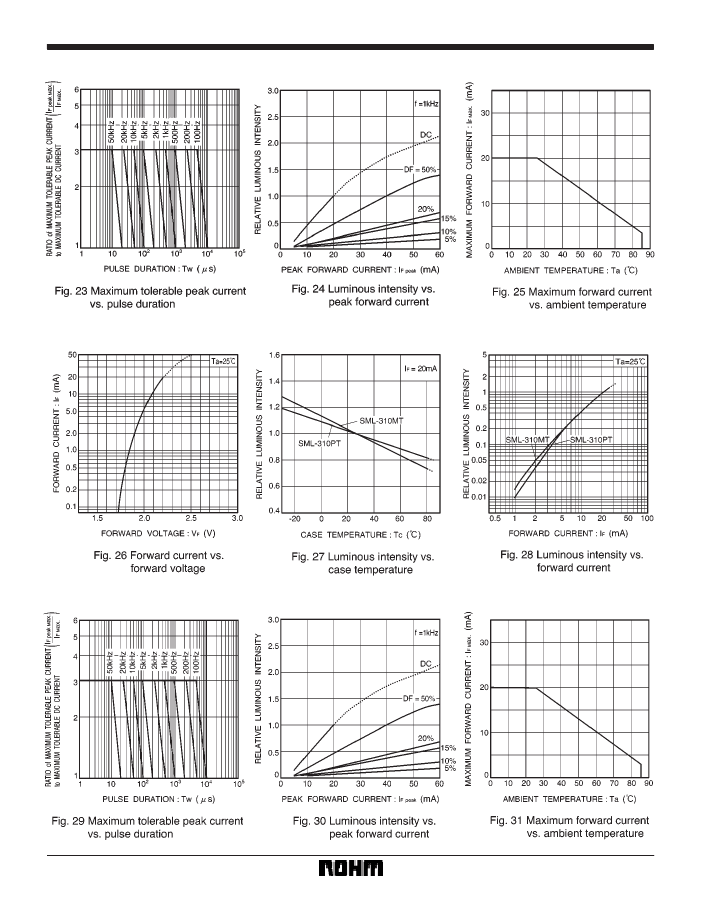

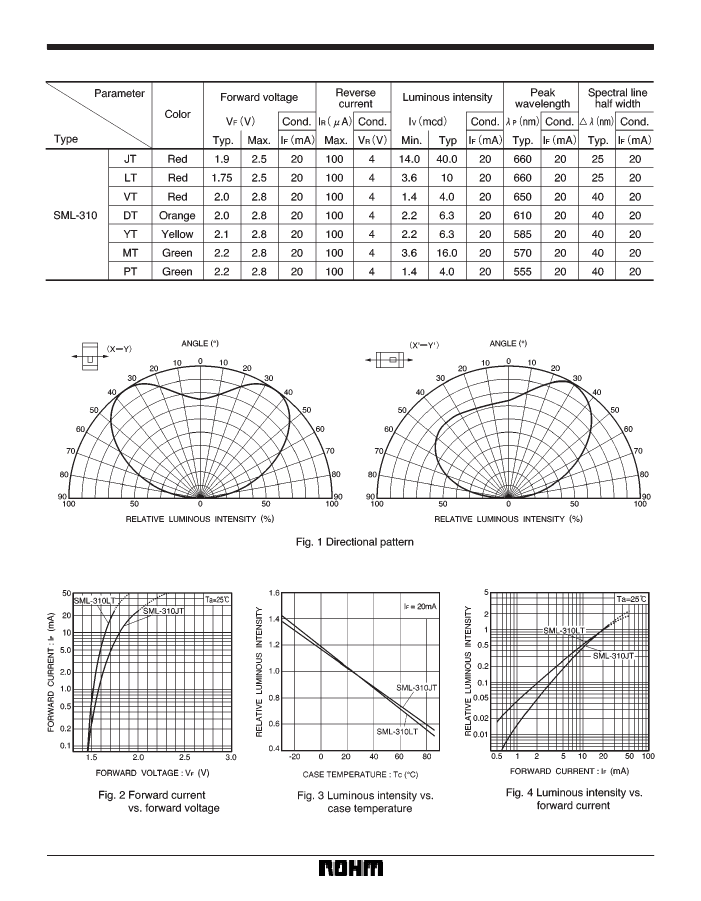

Preview

Download Datasheet

View All

LED lamps

Small, chip LEDs

SML-310 Series

The SML-310 series are small, chip

LEDs. The compact and leadless de-

sign of these LEDs allows for high

mounting density.

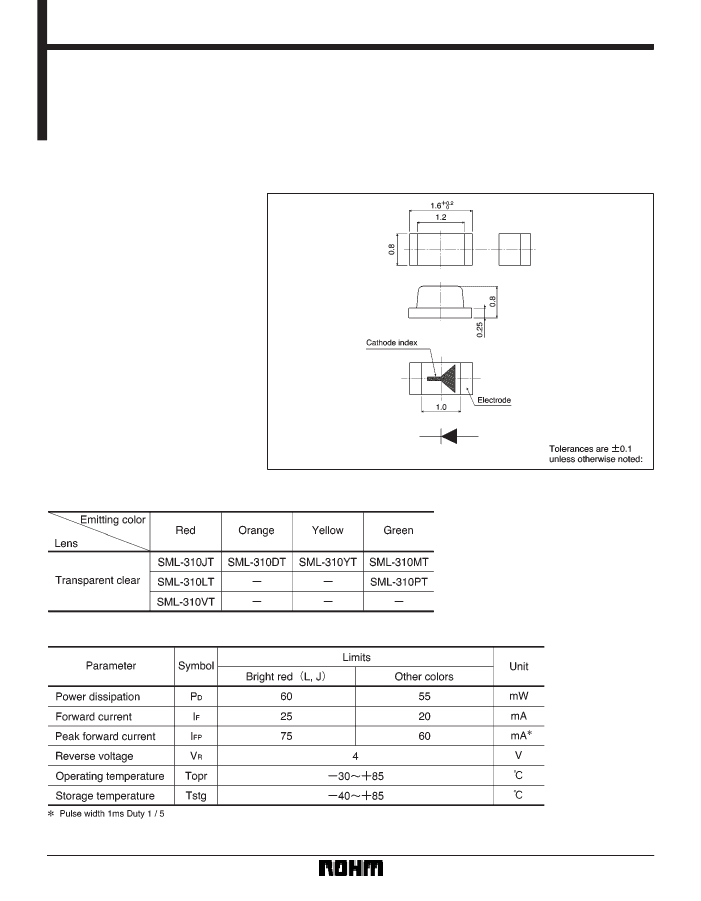

FExternal

dimensions (Units: mm)

FFeatures

1) Four colors : red, orange, yellow

and green.

2) Rectangular and leadless (1.6

0.8 mm, 0.8 mm thick).

3) Can be mounted by automatic

mounting.

FSelection

guide

FAbsolute

maximum ratings (Ta = 25_C)

SML-310JTT87 Related Products

	SML-310JTT87	SML-310JTT86	SML-310VTT87	SML-310LTT87	SML-310PTT87	SML-310MTT87	SML-310DTT87	SML-310YTT87
Description	Single Color LED, Bright Red, Transparent Clear, 1.2mm	Single Color LED, Bright Red, Transparent Clear, 1.2mm	Single Color LED, Red, Transparence Clear, 1.2mm,	Single Color LED, Bright Red, Transparence Clear, 1.2mm,	Single Color LED, Green, Transparence Clear, 1.2mm,	Single Color LED, Green, Transparence Clear, 1.2mm,	Single Color LED, Orange, Transparence Clear, 1.2mm,	Single Color LED, Yellow, Transparence Clear, 1.2mm,
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	compliant	compliant	unknown
color	BRIGHT RED	BRIGHT RED	RED	BRIGHT RED	GREEN	GREEN	ORANGE	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.02 A	0.025 A	0.02 A	0.02 A	0.02 A	0.02 A
Lens type	TRANSPARENT CLEAR	TRANSPARENT CLEAR	TRANSPARENCE CLEAR	TRANSPARENCE CLEAR	TRANSPARENCE CLEAR	TRANSPARENCE CLEAR	TRANSPARENCE CLEAR	TRANSPARENCE CLEAR
Nominal luminous intensity	40 mcd	40 mcd	4 mcd	10 mcd	4 mcd	16 mcd	6.3 mcd	6.3 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	660 nm	660 nm	650 nm	660 nm	555 nm	570 nm	610 nm	585 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Is it lead-free?	-	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	-	-	conform to	conform to	conform to	conform to	conform to	conform to
JESD-609 code	-	-	e4	e4	e4	e4	e4	e4
Terminal surface	-	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Terminal pitch	-	-	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm
