CFP0630-0302: DescriptionCard Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Natural Insulator,; CategoryThe connector The connector; File Size37KB，1 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

CFP0630-0302 Overview

Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Natural Insulator,

CFP0630-0302 Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ZIF, LOW PROFILE
body width	0.079 inch
subject depth	0.219 inch
body length	1.182 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-PB
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1

Preview

Download Datasheet

View All

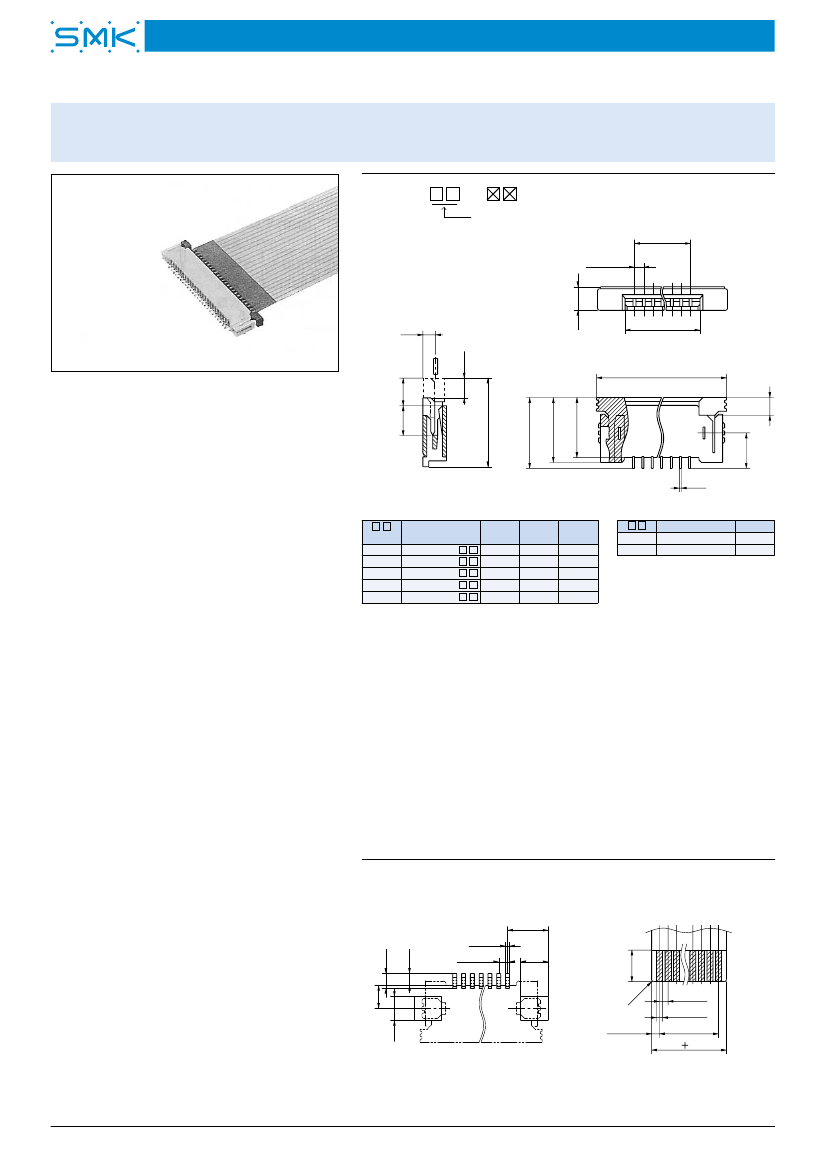

FPC Connector

FP-8

Series

0.8mm Spacing (SMT)

CFP06

-03

No. of Pins

極数

Spacing 0.8

1.5

Removable cover

distance

2.0

1.15

1.5

Features

1. The FPC connectors in this series apply to the

0.8mm spacing SMT.

2. A low profile of just 2.0mm from the circuit board.

3. Of the ZIF structure.

4. Supplied in emboss-tape packaging for

automatic mounting.

2.55

2.3

7.7

5.55

6.2

5.2

0.2

Specifications

1. Rating : 0.5A 50V AC/DC

2. Contact Resistance : 30mΩ max.

3. Insulation Resistance : 1000MΩ min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute

5. Operating Temperature Range : –25˚C to +70˚C

No. of Pins

Part No.

CFP0618-03

××

CFP0620-03

××

CFP0622-03

××

CFP0624-03□

CFP0630-03

××

13.6

15.2

16.8

18.4

23.2

15.325

16.925

18.525

20.125

24.925

20.425

22.025

23.625

25.225

30.025

××

Packing Style pcs/reel

Embossed Taping

Pack in Bulk

1000

―

Material and Plating

Housing : Polyphenylene Sulfide

(Natural Color)94V-0

Cover : Polyphenylene Sulfide

(Natural Color)94V-0

Contact : Phosphor Bronze Tin-lead Plating

Frame : Phosphor Bronze Tin-lead Plating

■ 特長

1. 0.8mmピッチのSMT対応FPCコネクタです。

2. 基板からの高さ2.0mmのロープロタイプです。

3. ZIF構造を採用しています。

4. 自動マウンタ対応でエンボステーピング方式に

よる供給です。

■ 仕様

1. 定格電圧電流

2. 接触抵抗

3. 絶縁抵抗

4. 耐電圧

5. ½用温度範囲

AC／DC 50V 0.5A

30mΩ以下

DC500V 1000MΩ以上

AC500V 1分間

−25℃∼＋70℃

■ PC Board Dimension

取付基板参考図

3.98

+ 0.1

0.4

■ Applicable FPC Dimension

適合FPC参考寸法

1.7

1.3

0.8

0.05

2.63

2.2

3.0min.

■ 材質・表面処理

2.2

0.8

0.05

0.5

+ 0.1

ハウジング

カバー

コンタクト

フレーム

ポリフェニレンサルファイド

原色 94V-0

ポリフェニレンサルファイド

原色 94V-0

リン青銅半田めっき

0.8

0.15

0.05

A 1.6

t = 0.3

0.05

3.2
