2SK1589-A datasheet, PDF - EEWORLD Datasheet

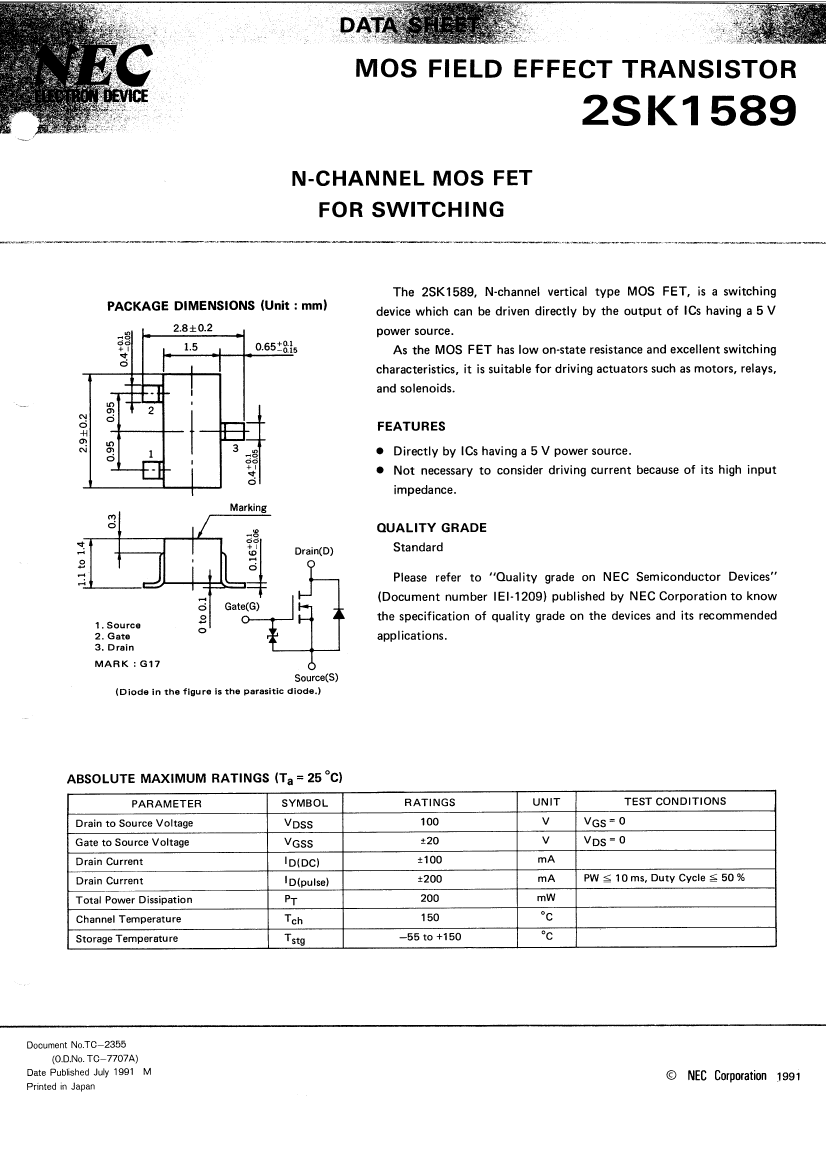

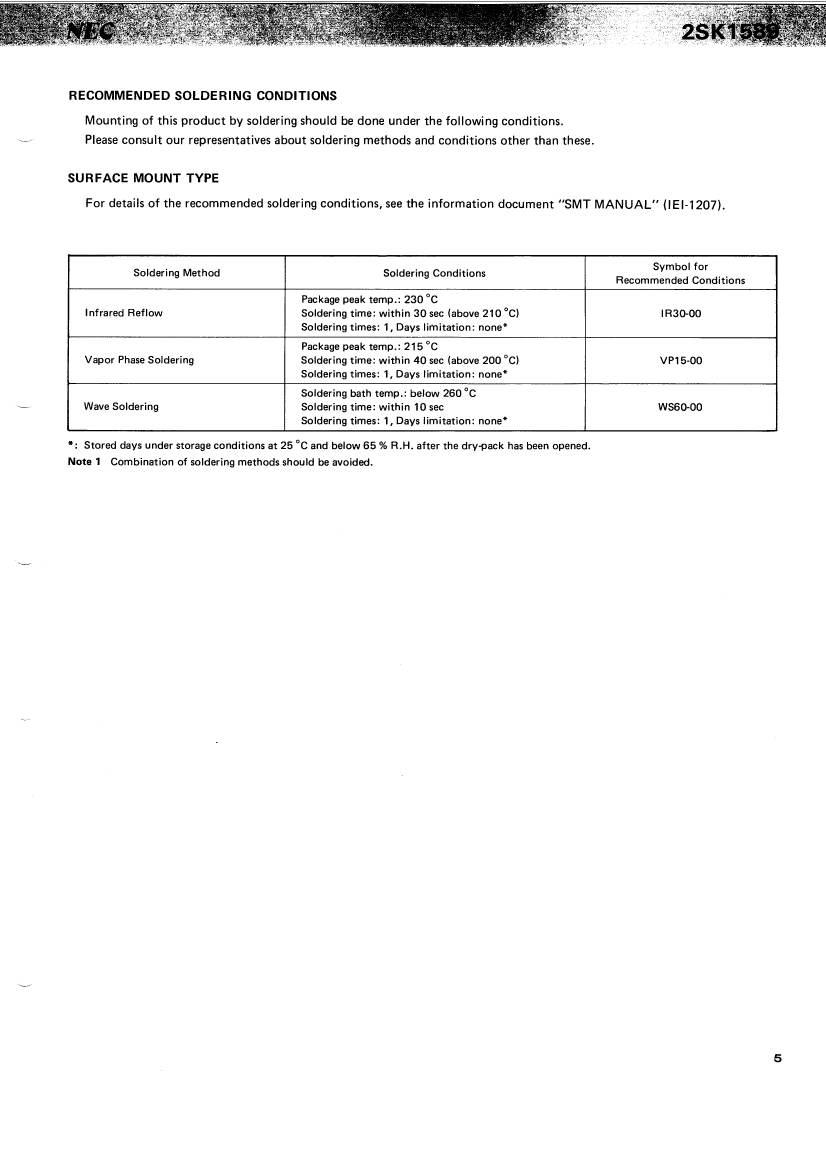

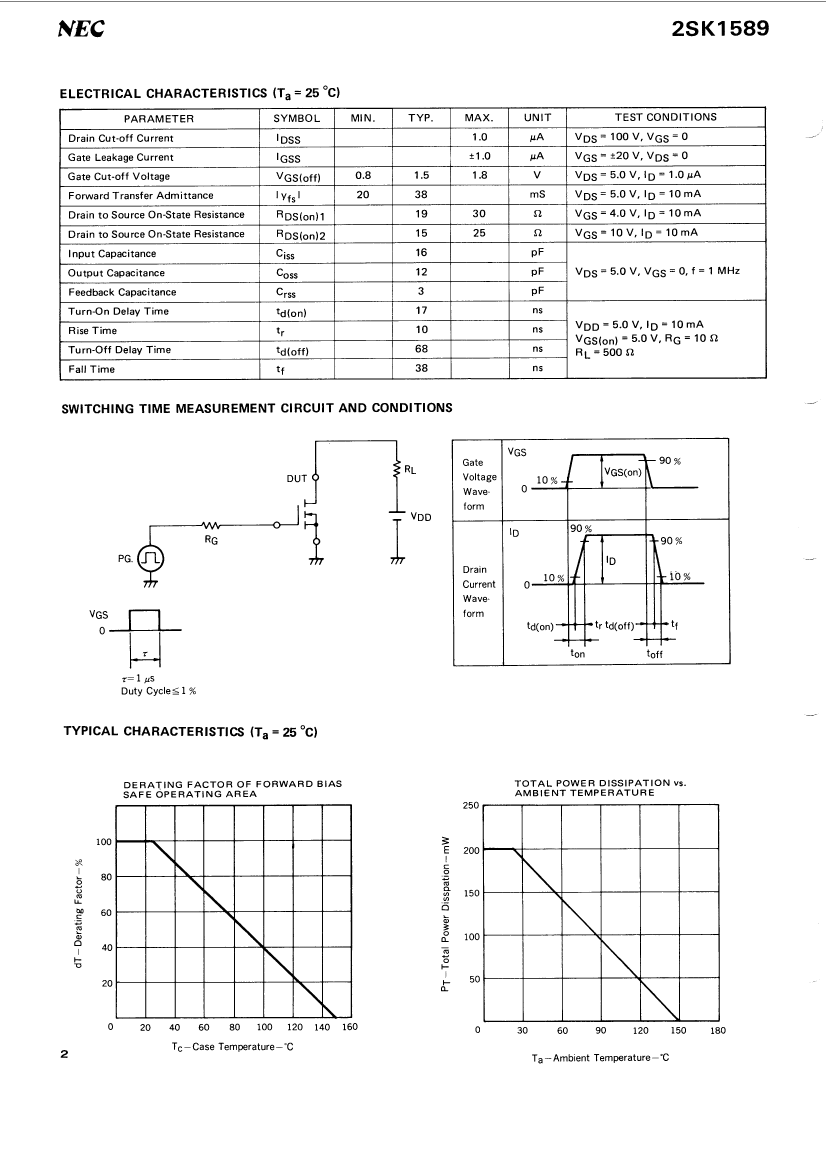

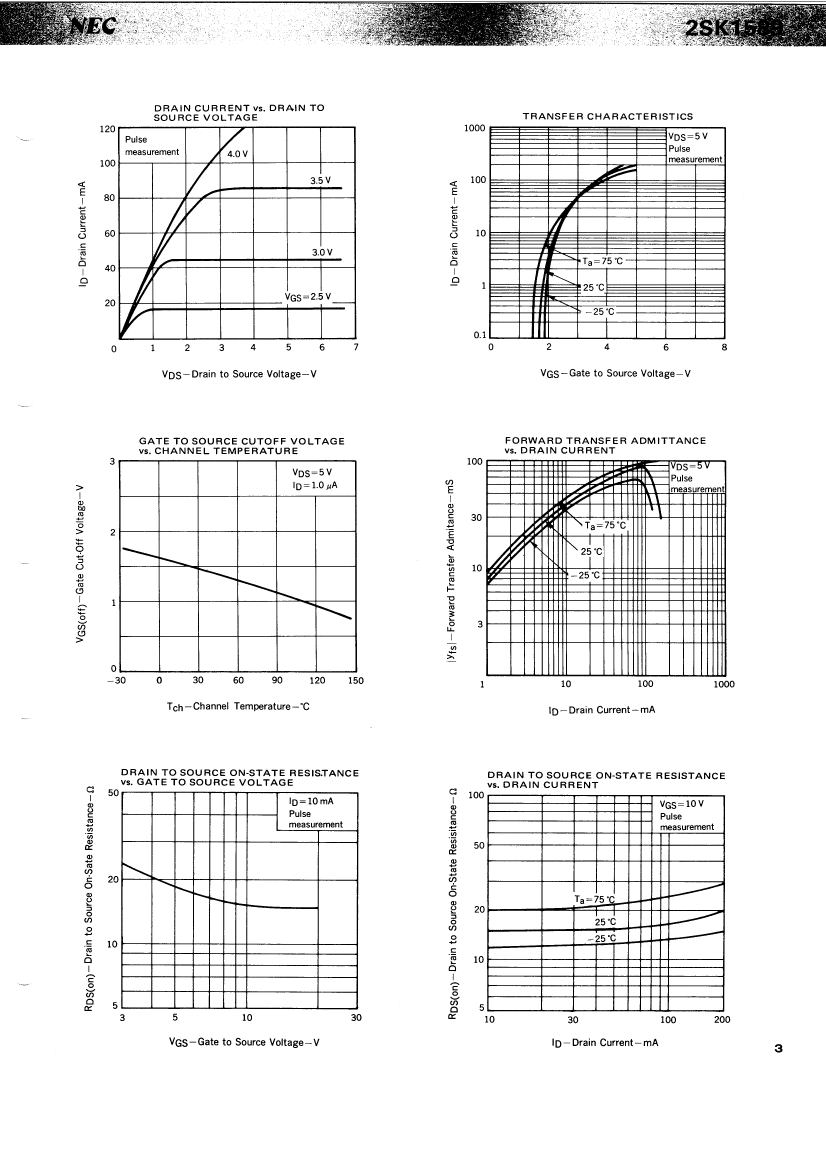

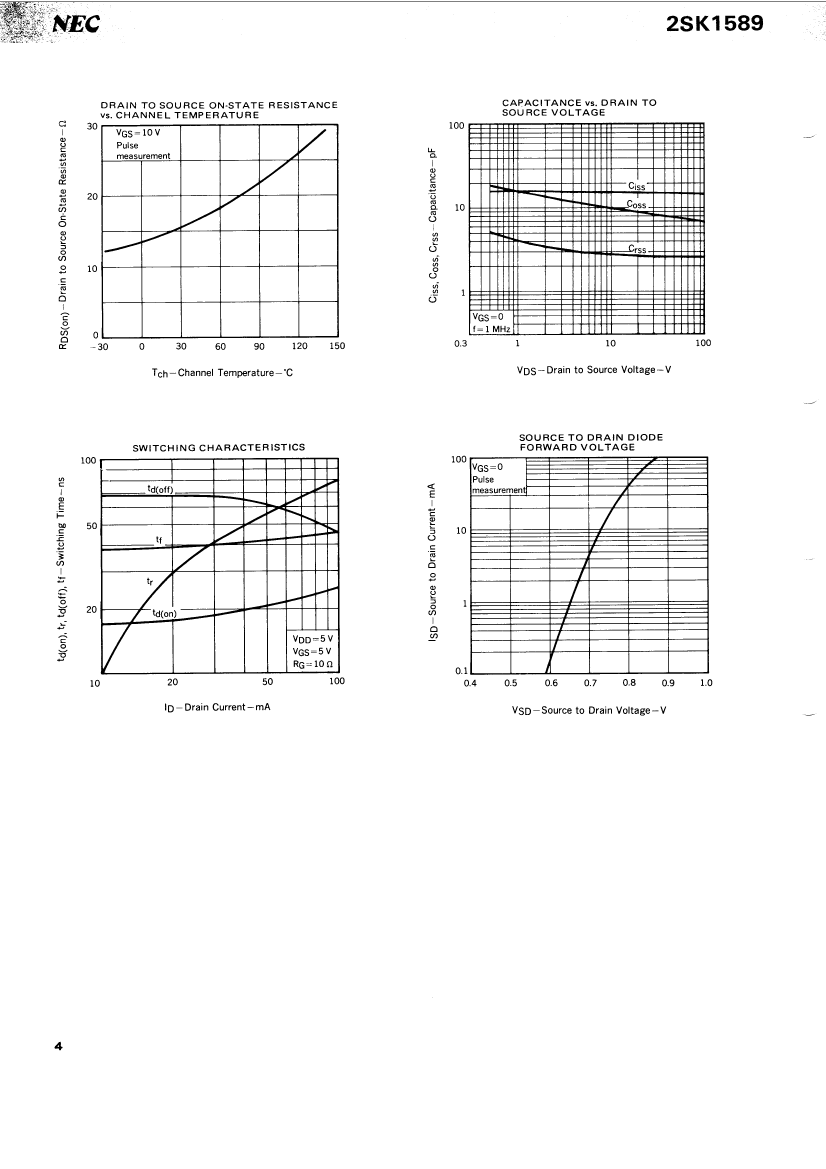

2SK1589-A: DescriptionSmall Signal Field-Effect Transistor, 0.1A I(D), 100V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, MINIMOLD, SC-59, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size399KB，6 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

2SK1589-A Overview

Small Signal Field-Effect Transistor, 0.1A I(D), 100V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, MINIMOLD, SC-59, 3 PIN

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	0.1 A
Maximum drain-source on-resistance	30 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G3
JESD-609 code	e6
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

	2SK1589-A
Description	Small Signal Field-Effect Transistor, 0.1A I(D), 100V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, MINIMOLD, SC-59, 3 PIN
Maker	NEC Electronics
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	100 V
Maximum drain current (ID)	0.1 A
Maximum drain-source on-resistance	30 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PDSO-G3
JESD-609 code	e6
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1
