3-641209-5 datasheet, PDF - EEWORLD Datasheet

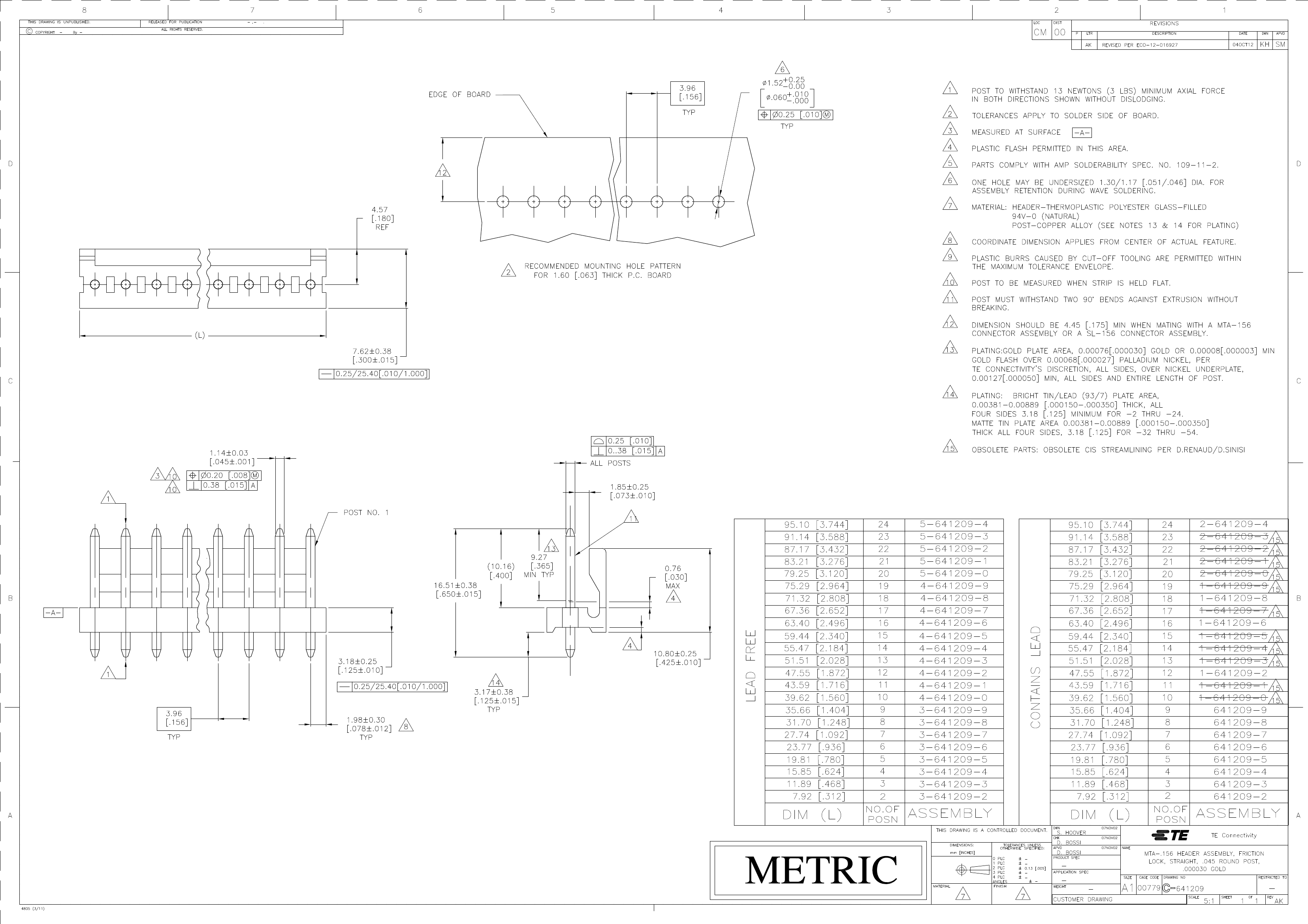

3-641209-5: Description05P MTA156 HDR ASSY FL ST LF; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-641209-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-641209-5	-	-	View	Buy Now

05P MTA156 HDR ASSY FL ST LF

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.3 inch
subject depth	0.425 inch
body length	0.78 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	5.7824 N
Insulation resistance	5000000000 Ω
Insulator color	WHITE
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.156 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	.4448 N
Base Number Matches	1
