VAL-U-LOK Glow
Wire Connectors
KEY FEATURES

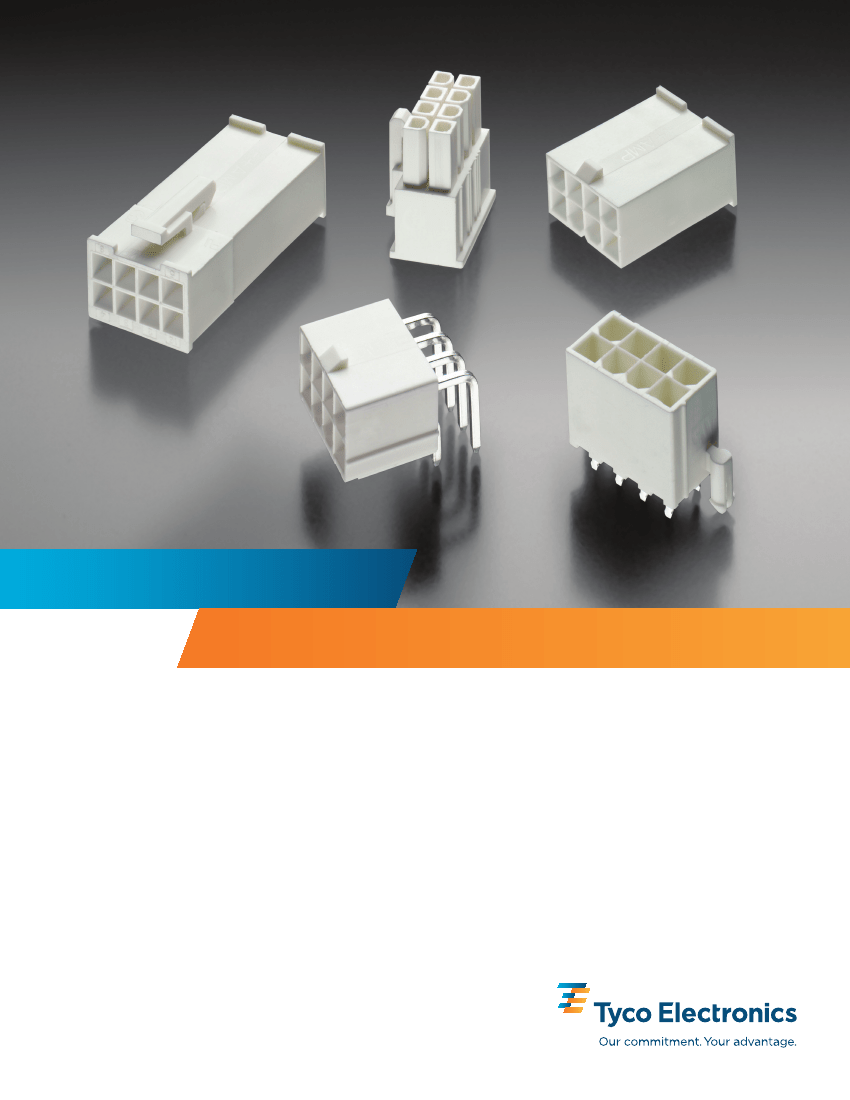

Descriptions
VAL-U-LOK connector housings and headers are now available in special Glow Wire
compatible material. Glow Wire is a test required by IEC/EN 60335-1 4th
Edition: Household and Similar Appliances – Safety. VAL-U-LOK Glow Wire
connectors allow manufacturers of home appliances sold into the European
market to comply with this standard.
• Meets the requirement of
IEC 60335-1
• Mates to standard VAL-U-LOK
and Molex Mini-Fit Jr. housings.
• Compatible with standard
VAL-U-LOK contacts.
AppLicAtions
Household Appliances :
• Air Conditioning
• Dishwasher
• Dryers
• Ovens
• Refrigerators
• Washing Machines
eLectricAL
Voltage : 600 VAC
Current : 9 amps max. in 2-position applications
Dielectric Withstanding Voltage : 1500 VAC min.
Insulation Resistance : 1000 megohms min.
Operating Temperature : –40°C to +105°C [–40°F to +221°F]
MecHAnicAL
Connector Mating : 1.55 lb. [6.90 N] max. per circuit
Connector Unmating : .11 lb. [.49 N] min. per circuit
Contact Retention : 4.88 lb. [21.71 N] min. per contact
Durability : 30 cycles, mating and unmating
MAteriALs
Housings : Glow Wire Compatible
Contacts : Brass or Phos. Bronze with tin plating (Lead-Free) or gold plating
Tyco Electronics
I VAL-U-LOK Glow
Wire Connectors

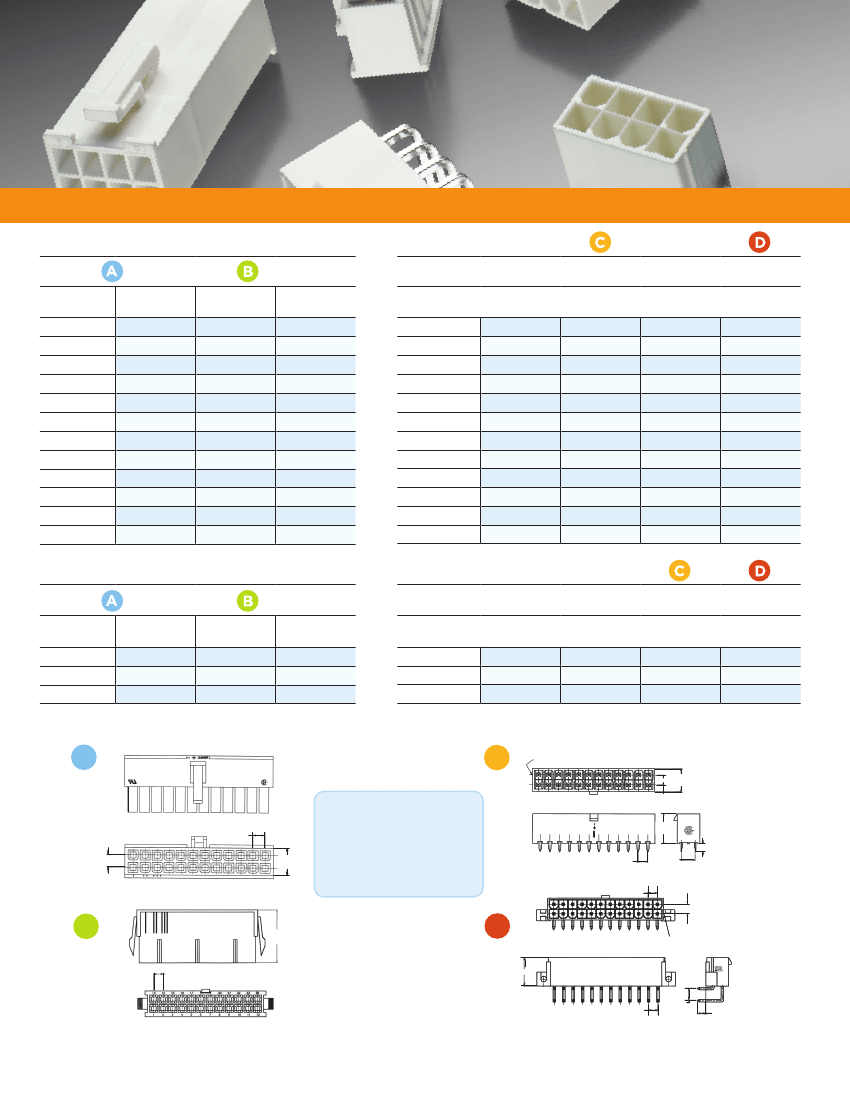

VAL-U-LOK Glow Wire Connectors
proDuct offering
receptacle and plug Housing (Dual row)
Receptacles
Number of
Positions
2
4
6
8
10
12
14
16
18
20
22
24
1586765-2
1586765-4
1586765-6
1586765-8
1-1586765-0
1-1586765-2
1-1586765-4
1-1586765-6
1-1586765-8
2-1586765-0
2-1586765-2
2-1586765-4
Plugs
Panel Mount
1586861-2
1586861-4
1586861-6
1586861-8
1-1586861-0
1-1586861-2
1-1586861-4
1-1586861-6
1-1586861-8
2-1586861-0
2-1586861-2
2-1586861-4
Free Hanging
1586862-2
1586862-4
1586862-6
1586862-8
1-1586862-0
1-1586862-2
1-1586862-4
1-1586862-6
1-1586862-8
2-1586862-0
2-1586862-2
2-1586862-4
2
4
6
8
10
12
14
16
18
20
22
24
1586768-2
1586768-4
1586768-6
1586768-8
1-1586768-0
1-1586768-2
1-1586768-4
1-1586768-6
1-1586768-8
2-1586768-0
2-1586768-2
2-1586768-4
2029059-2
2029059-4
2029059-6
2029059-8
1-2029059-0
1-2029059-2
1-2029059-4
1-2029059-6
1-2029059-8
2-2029059-0
2-2029059-2
2-2029059-4
2029265-2
2029265-4
2029265-6
2029265-8
1-2029265-0
1-2029265-2
1-2029265-4
1-2029265-6
1-2029265-8
2-2029265-0
2-2029265-2
2-2029265-4
1586863-2
1586863-4
1586863-6
1586863-8
1-1586863-0
1-1586863-2
1-1586863-4
1-1586863-6
1-1586863-8
2-1586863-0
2-1586863-2
2-1586863-4
Headers (Dual row)
Number of
Positions
Vertical w/o
pegs w/ dh*
Vertical w/
pegs w/ dh*
Vertical w/
pegs w/o dh*
Right Angle
w/o pegs
receptacle and plug Housing (single row)
Receptacles
Number of
Positions
3
4
5
2029112-3
2029178-4
2029178-5
Plugs
Panel Mount
2029110-3
2029177-4
2029177-5
Free Hanging
2029111-3
2029180-4
2029180-5
Headers (single row)
Number of
Positions
Vertical w/
pegs w/ dh
Vertical w/
pegs w/o dh
Right Angle
w/ pegs
3
4
5
2029113-3
2029113-4
2029113-5
2029181-3
2029181-4
2029181-5
2029154-3
2029154-4
2029154-5
*dh indicates drain holes
A
For additional product
information including
crimp contact
selection, please go to
www.tycoelectronics.com.
Search keyword
VAL-U-LOK.
C
Position 1 Identification Feature
.384
[9.75]
.165
[4.20]
.17
[4.2]
.17
[4.2]
.39
[9.8]
.50
[12.8]
.14[3.5]
.165
[4.20]
.223.00
[5.530.1]
.17[4.2]
.17[4.2]
B
.17
[4.2]
.94
[23.9]
D
.165
[4.20]
Position 1 Identification Feature
.17[4.2]
.22
[5.5]
.14[3.5]
VAL-U-LOK Glow Wire Connectors I
Tyco Electronics
FOR MORE INFORMATION
Technical Support
Internet:
E-mail:
USA:
Canada:
Mexico:
C. America:
South America:
Hong Kong:
Japan:
UK:
www.tycoelectronics.com
product.info@tycoelectronics.com
1-800-522-6752
1-905-470-4425
1-800-733-8926
52-55-1106-0803
55-11-2103-6000
852-2735-1628
81-44-844-8013
44-8706-080208
Tyco Electronics Corporation
Harrisburg, PA
tycoelectronics.com
Copyright 2008 Tyco Electronics Corporation
7-1773453-1 2.5m FP 12/2008
VAL-U-LOK, TE logo and Tyco Electronics are trademarks.
Mini-fit Jr. is a trademark of Molex Incorporated
