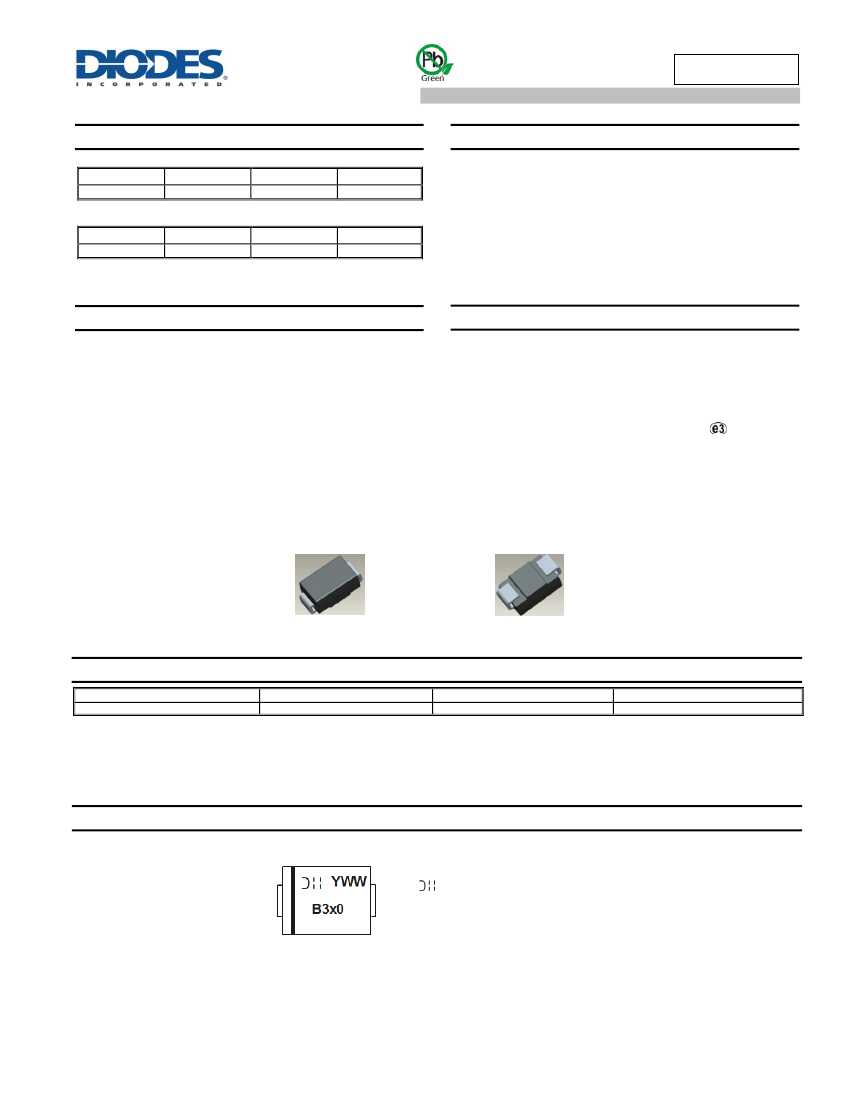

B320 - B360

3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Summary

B320/B330/B340

RRM

(V)

20/30/40

B350/B360

RRM

(V)

50/60

(A)

3.0

F max

(V)

0.5

R max

(mA)

0.1

Features and Benefits



Guard Ring Die Construction for Transient Protection

Ideally Suited for Automated Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 125A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

(A)

3.0

F max

(V)

0.7

R max

(mA)

0.1

Description and Applications

This Schottky Barrier Rectifier has been designed to meet the

general requirements of commercial applications. It is ideally suited

for use as:



Polarity Protection Diode

Re-Circulating Diode

Switching Diode

Mechanical Data



Case: SMC

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish).

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.21 grams (Approximate)

SMC

Top View

Bottom View

Ordering Information

(Notes 4 & 5)

Part Number

B3x0-13-F

Notes:

Compliance

Commercial

Case

SMC

Packaging

3,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

(Note 5)

B3x0 = Product Type Marking Code, ex: B320

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 15 for 2015)

WW = Week Code (01 to 53)

Note:

5. Device has a cathode band (as shown above) and may also have a cathode notch.

B320 - B360

Document number: DS30923 Rev. 12 - 2

1 of 5

www.diodes.com

February 2016
