BRD8049/D
Rev. 2, Oct-2006
300 W 80 PLUS ATX Reference Design
®
A High-Efficiency GreenPoint
™
Solution from ON Semiconductor
Production Ready 80 PLUS Reference Design
•
Achieves >80% efficiency with room to spare
•
Production ready design accelerates time-to-market
•
Advanced architecture is at cost parity or lower
compared to other topologies for similar efficiencies
•
Meets IEC1000-3-2 requirements
80 PLUS is a registered trademark of Ecos Consulting.
GreenPoint is a trademark of SCILLC. © Copyright, 2006.
300 W 80 PLUS ATX Reference Design
®
A High-Efficiency GreenPoint
™
Solution from ON Semiconductor

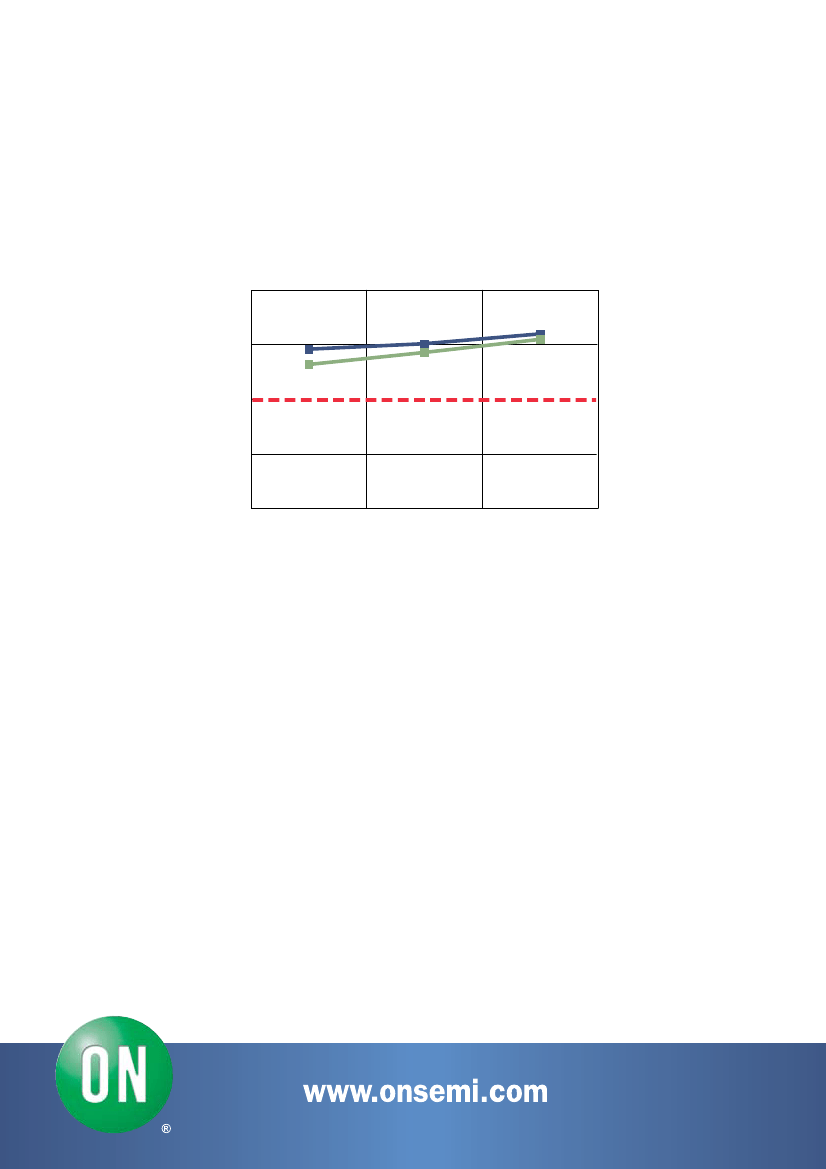

Efficiency of the Power Supply
90%
85%
80%
230 Vac
115 Vac
Efficiency (%)
70%
20%
50%
100%
Loading (% of Rated Output Power)

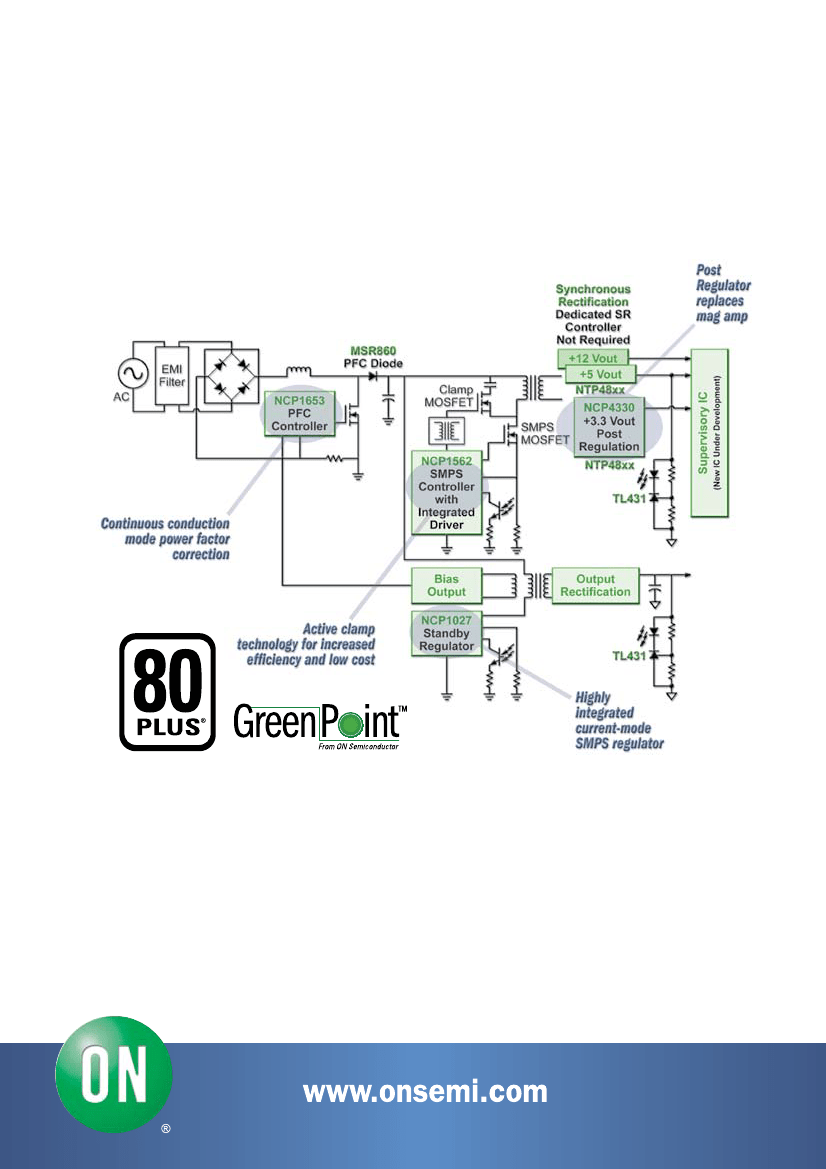

NCP1653 – Compact PFC Controller
is the ideal solution for continuous mode (CCM) PFC applications such as
ATX Power Supplies. This device enables the inclusion of a PFC front-end into an ATX power supply by simplifying
the design through integration (reduces part count) and providing a robust, cost effective front-end without
range switches.
NCP1562 – Active Clamp Controller
is a highly integrated controller for the main stage (SMPS section) of
the ATX Power Supply. It can be used in applications with or without the PFC front-end. Thanks to its integrated
drivers, soft-switching, and accurate duty-cycle control amongst other unique features (such as soft-stop), the
NCP1562 significantly enhances the efficiency and ruggedness of the power stage without additional cost.
NCP1027 – Standby Controller
is optimized for the standby/bias converter section of the ATX Power Supply. Its
highly integrated features and the integrated HV FET on the silicon makes it an ideal and cost-effective option.
The NCP1027 can deliver 15 W of standby power at high efficiency across the entire line conditions (85 V to
265 V AC).
NCP4330 – Post Regulator
is a synchronous and more efficient post-regulator that replaces the Mag-Amp
solution for generating multiple-outputs in an ATX Power Supply. The NCP4330 can also lower the cost of the
overall solution while enabling this higher efficiency and makes it an ideal solution for achieving higher than
80% efficiencies.
