Current
Sensor
Issue 2 - July 2006
ZMC10
package : modified DIL-14
1, 2, 7: not connected 3: +V
O
4: -V
B
5: -V
O
6: +V
B
8, 9, 10: current output 11, 12, 13: current input
V
O
- output voltage V
B
- supply voltage
FEATURES
•

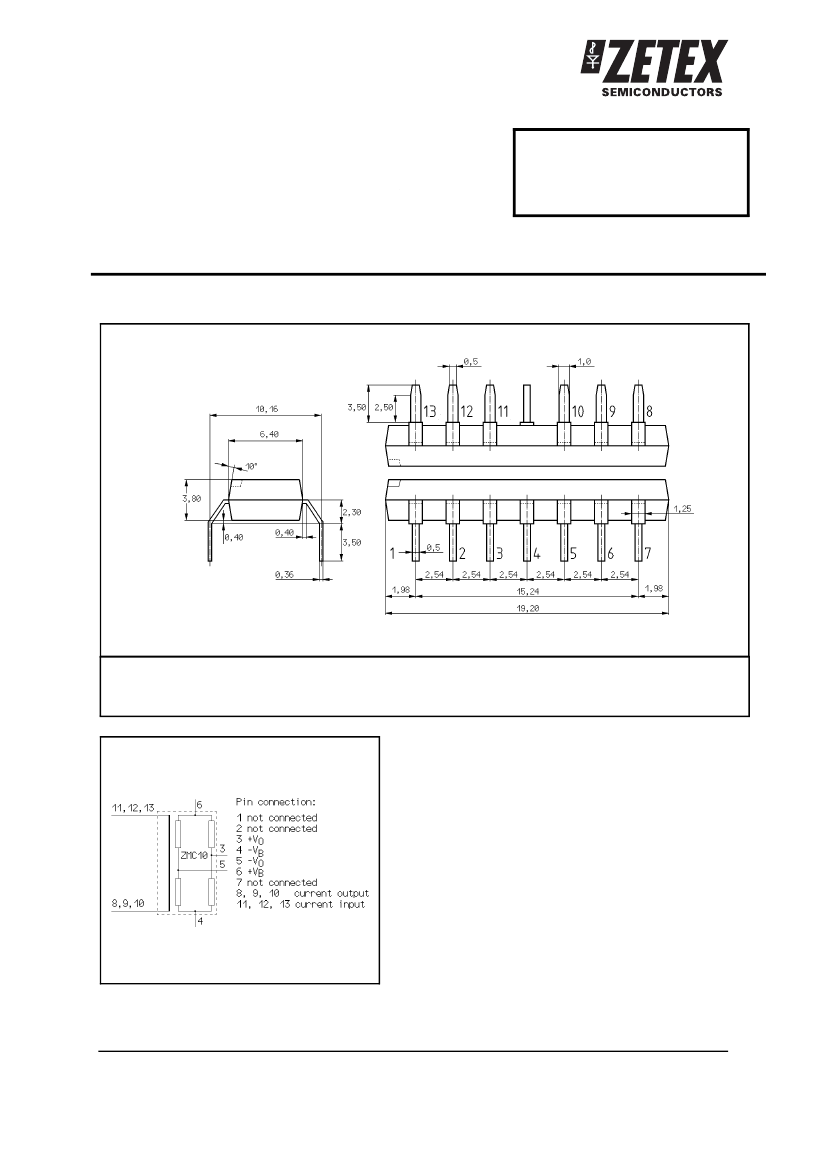

Package : mod. DIL-14
•
A magnetic sensor chip (employing the magnetore-
sistive effect of thin film permalloy) measures the
magnetic field generated by an internal current-
carrying conductor
•
measurable direct or alternating current I
M
up to
10A
•
supply voltage 12 V
•
no auxiliary field H
X
required
•
it’s possible to overload the conductor (between
pin’s 8,9,10 and 11,12,13) with 300A for 10 ms at
T
amb
= 25 °C
Issue
2
-
July 2006
© Zetex Semiconductors plc 2006
www.zetex.com
ZMC 10
ABSOLUTE MAXIMUM RATINGS
Parameter
Supply voltage
Isolation voltage
Measurable current
Operating temperature range
Storage temperature range
Symbol
V
B
V
ISOL
I
M
T
amb
T
stg
12
2
10
-40 to +120
-65 to +120
Unit
V
kV
A
°C
°C
ELECTRICAL CHARACTERISTICS
(at T
amb
= 25 °C unless otherwise stated)
Parameter
Bridge resistance
Offset voltage
Open circuit sensitivity
Resistance of the conductor
Operating frequency
Temperature coefficient of
open circuit sensitivity
Symbol Min. Typ. Max.
R
br
V
Off
S
R
f
max
T
C
1.2
-
-
-
-
-
1.7
-
0.5
0.7
-
-
2.2
±2
-
-
100
-0.3
Unit
kΩ
mV/V
(mV/V)/A
mΩ
kHz
%/K
Test conditions
Devices are identified by type on the body of the device
ZMC10 ..... ZMC10
Ordering information:
ZMC10 ........... in boxes (10 components per box)
