735222-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> Connector bracket> 735222-3

Preview

735222-3: Description2.5mm2, PHOSPHOR BRONZE, WIRE TERMINAL; CategoryThe connector Connector bracket; File Size256KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

735222-3 Overview

2.5mm2, PHOSPHOR BRONZE, WIRE TERMINAL

735222-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Assembly name	CONTACT
Maximum number of cable entries	0.169 inch
Minimum cable entry	0.118 inch
Connector bracket type	CONNECTOR ACCESSORY
Contact point gender	FEMALE
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Material	PHOSPHOR BRONZE
Installation method	STRAIGHT
Terminal type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

4

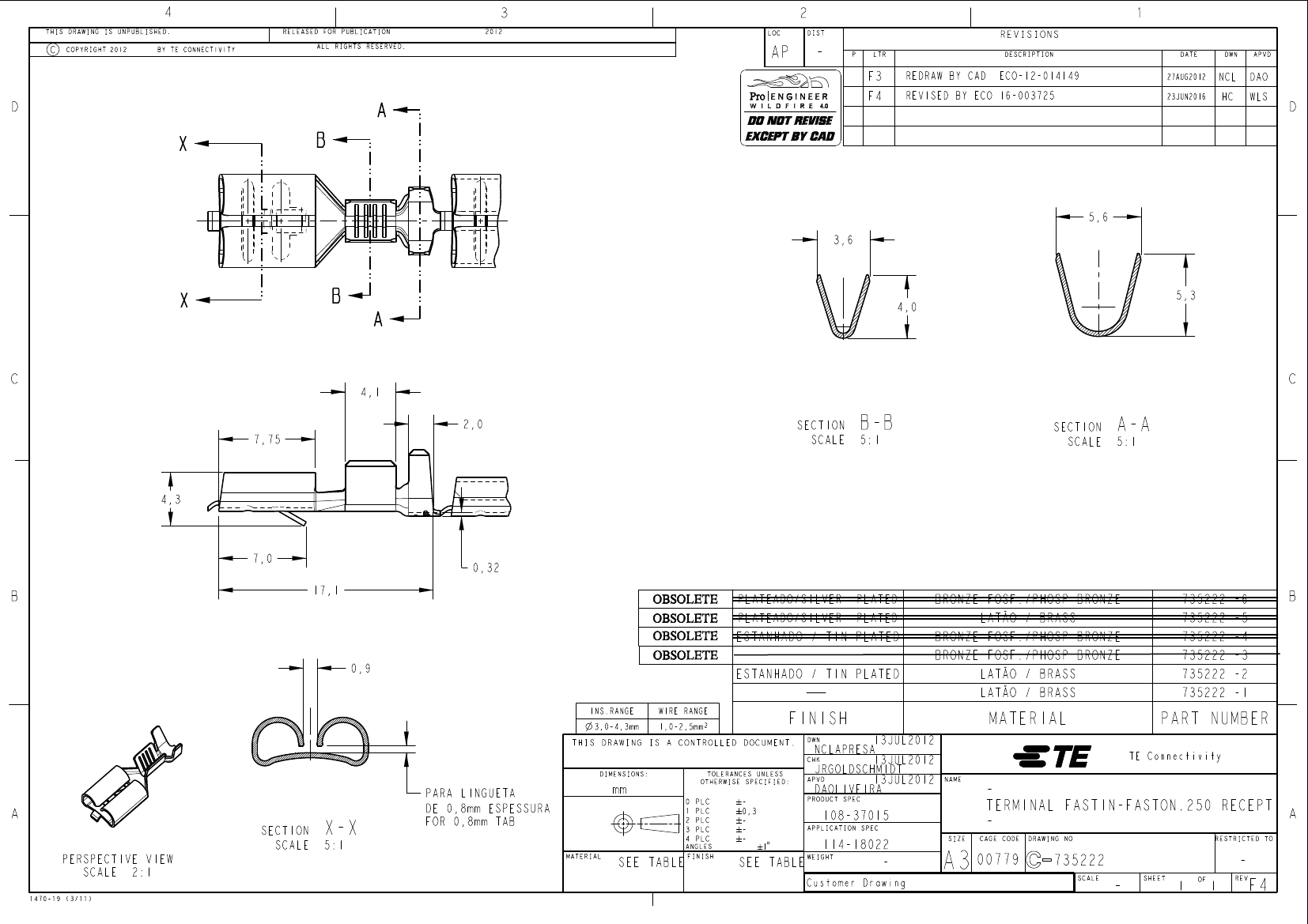

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

3

2012

LOC

2

DIST

1

C

BY TE CONNECTIVITY

AP

Pro

W I L D F I R E

-

4.0

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

F3

F4

REDRAW BY CAD

ECO-12-014149

27AUG2012

23JUN2016

NCL

HC

DAO

WLS

D

ENGINEER

REVISED BY ECO 16-003725

DO NOT REVISE

EXCEPT BY CAD

D

5,6

3,6

4,0

5,3

C

4,1

7,75

2,0

SECTION

SCALE

C

5:1

B-B

SECTION

SCALE

5:1

A-A

4,3

7,0

0,32

17,1

B

OBSOLETE

0,9

INS.RANGE

PLATEADO/SILVER

PLATED

BRONZE FOSF./PHOSP BRONZE

LATÃO / BRASS

735222 -6

735222 -4

735222 -3

735222 -2

735222 -1

B

OBSOLETE

ESTANHADO / TIN PLATED

735222 -5

WIRE RANGE

1,0-2,5mm²

FINISH

DWN

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

A

PERSPECTIVE VIEW

SCALE 2:1

1470-19 (3/11)

SECTION

SCALE

5:1

X-X

PARA LINGUETA

DE 0,8mm ESPESSURA

FOR 0,8mm TAB

MATERIAL

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

0

1

2

3

4

ANGLES

PLC

SEE TABLE

FINISH

114-18022

WEIGHT

-

SEE TABLE

1 $

-

0,3

-

13JUL2012

NCLAPRESA

CHK

13JUL2012

JRGOLDSCHMIDT

APVD

13JUL2012

DAOLIVEIRA

PRODUCT SPEC

APPLICATION SPEC

MATERIAL

NAME

PART NUMBER

TE Connectivity

108-37015

SIZE

Customer Drawing

A3

00779

CAGE CODE

-

TERMINAL FASTIN-FASTON.250 RECEPT

-

DRAWING NO

A

RESTRICTED TO

735222

SCALE

-

SHEET

1

OF

1

REV

-

F4

735222-3 Related Products

	735222-3	735222-2
Description	2.5mm2, PHOSPHOR BRONZE, WIRE TERMINAL	FF 250 REC 1.0-2.5 MM2 0.32X 19.30 BR
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	compliant
ECCN code	EAR99	EAR99
Base Number Matches	1	1
