SKY-60LH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SKY-60LH

SKY-60LH: DescriptionFrequency Mixer; CategoryWireless rf/communication Radio frequency and microwave; File Size236KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

SKY-60LH Overview

Frequency Mixer

SKY-60LH Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
package instruction	SMDIP8,.3
Reach Compliance Code	unknow
structure	COMPONENT
Maximum frequency conversion loss	9.7 dB
Maximum input power (CW)	17 dBm
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	8
Maximum operating frequency	6000 MHz
Minimum operating frequency	2500 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SMDIP8,.3
RF/Microwave Device Types	DOUBLE BALANCED
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Maximum voltage standing wave ratio	6.15

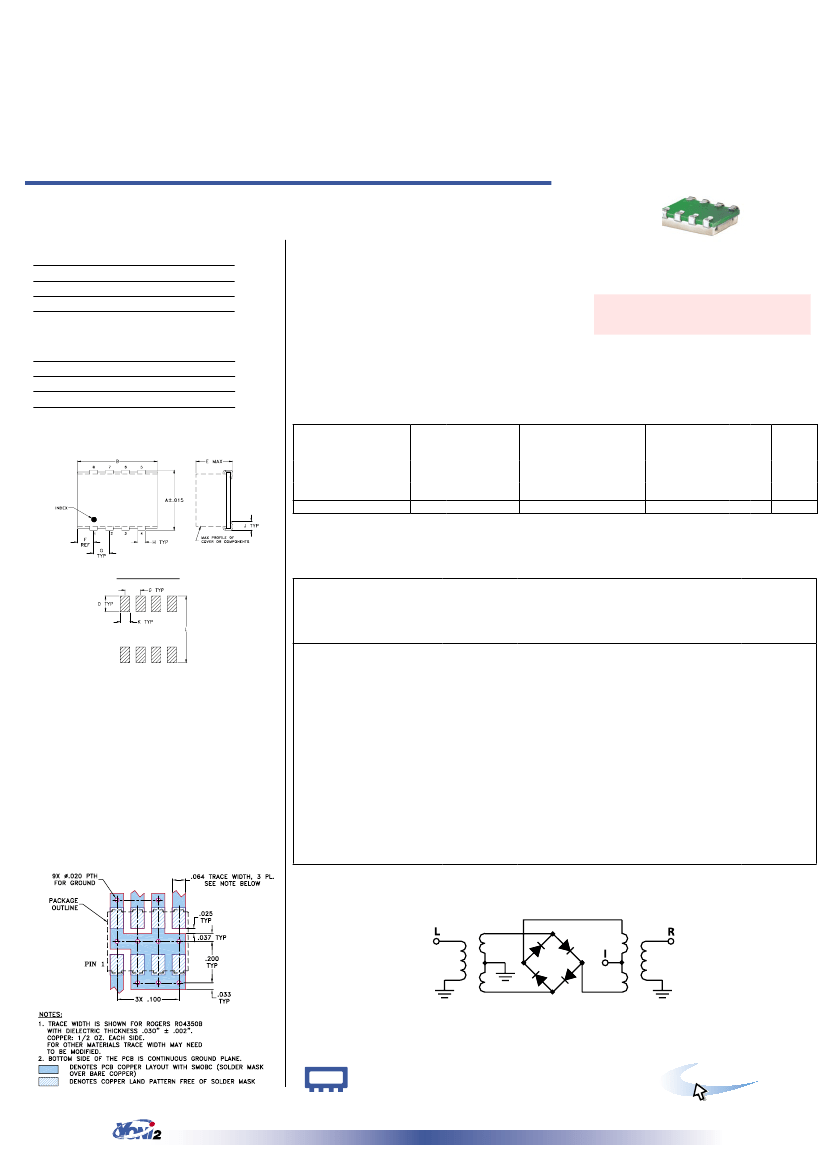

Preview

Download Datasheet

View All

Surface Mount

Frequency Mixer

Level 10 (LO Power +10 dBm)

2500 to 6000 MHz

Operating Temperature

Storage Temperature

RF Power

IF Current

SKY-60LH+

SKY-60LH

Maximum Ratings

-40°C to 85°C

-55°C to 100°C

50mW

40mA

Features

• low conversion loss, 6.2 dB typ.

• good L-R isolation, 28 dB typ.

• J-leads for strain relief

CASE STYLE: BJ398

PRICE: $16.95 ea. QTY (1-9)

Applications

Pin Connections

GROUND

2,3,4,6,8

• line of sight links

• ﬁxed satellite

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

FREQUENCY

(MHz)

LO/RF

-f

2500-6000

DC-1500

1 dB COMP.: +5 dBm typ.

Outline Drawing

CONVERSION LOSS

(dB)

Mid-Band

—

6.2

.20

Total

Range

Max.

9.7

LO-RF ISOLATION

(dB)

LO-IF ISOLATION

(dB)

IP3

at center

band

(dBm)

Typ.

Typ. Min.

PCB Land Pattern

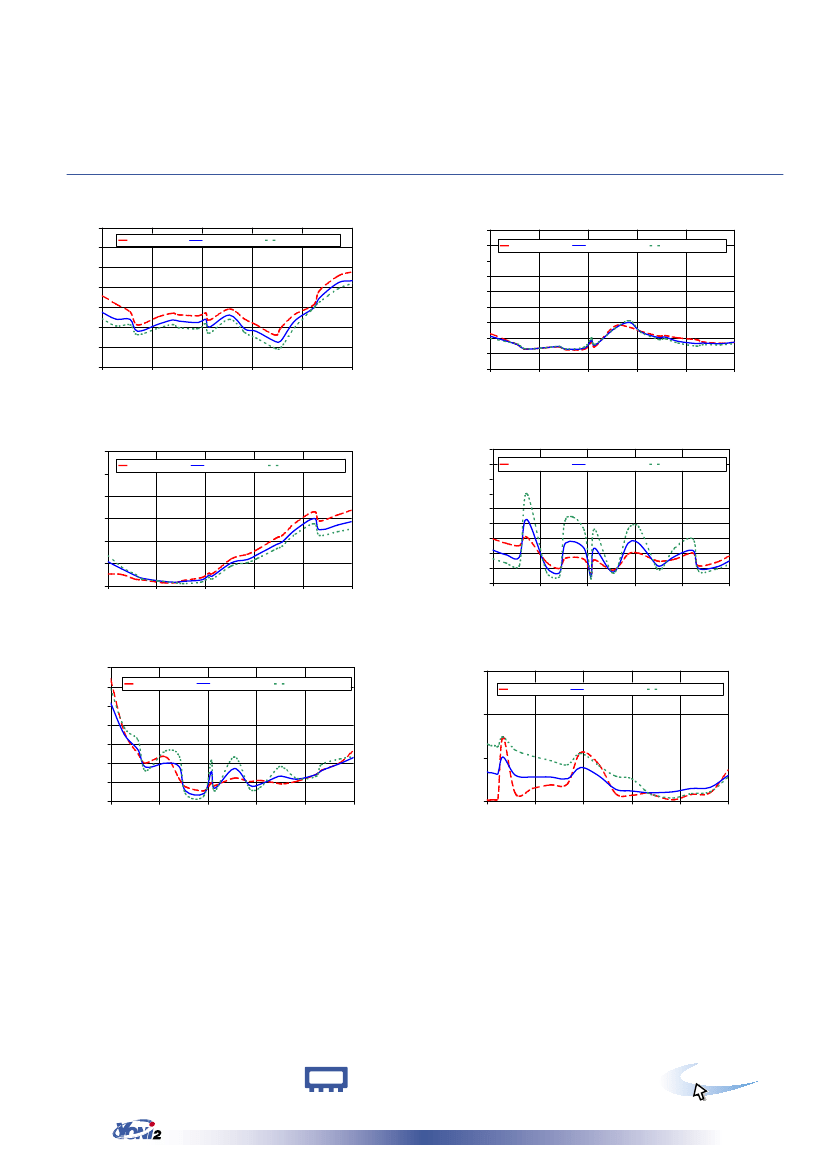

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

2530.00

2728.11

2926.23

3030.00

3322.45

3520.57

3606.92

3876.15

3982.83

4030.00

4253.02

4530.00

4683.85

4953.08

5030.00

5222.31

5491.54

5507.74

5771.89

5970.00

+7dBm

6.75

6.40

6.39

5.79

6.15

6.36

6.30

6.23

6.39

6.00

6.61

5.90

5.79

5.27

5.30

6.30

6.97

7.46

8.23

8.33

Isolation

L-R

(dB)

+7dBm

31.14

28.43

25.62

22.84

23.74

24.42

22.84

23.33

28.51

25.17

36.12

40.00

34.00

30.11

30.68

27.83

26.34

26.73

26.31

27.22

Isolation

L-I

(dB)

+7dBm

15.39

13.78

12.30

11.67

11.01

10.80

11.00

11.33

12.36

12.17

15.17

15.84

17.00

19.22

19.73

22.50

25.00

22.47

23.54

24.32

VSWR

RF Port

(:1)

+7dBm

3.22

2.90

2.77

5.28

2.08

1.72

3.69

3.36

1.42

3.35

1.73

3.68

3.69

2.21

2.19

2.80

3.18

2.00

2.08

2.49

VSWR

LO Port

(:1)

+7dBm

6.15

4.50

3.69

2.80

3.00

2.81

1.56

1.42

2.56

1.69

2.72

1.85

1.90

2.32

2.29

2.17

2.41

2.61

2.98

3.30

2500.00

2698.11

2896.23

3000.00

3292.45

3490.57

3576.92

3846.15

3952.83

4000.00

4283.02

4500.00

4653.85

4923.08

5000.00

5192.31

5461.54

5537.74

5801.89

6000.00

Suggested Layout,

Tolerance to be within

±.002

Outline Dimensions (

inch

)

.305

7.75

.047

1.19

.390

9.91

.065

1.65

.065

1.65

.100

2.54

.325

8.26

.105

2.67

.045

1.14

.100

2.54

grams

0.20

Demo Board MCL P/N: TB-11

Suggested PCB Layout (PL-056)

Electrical Schematic

Mini-Circuits

ISO 9001 ISO 14001

CERTIFIED

RF/IF MICROWAVE COMPONENTS

minicircuits.com

REV. B

M102713

SKY-60LH

DJ/TD/CP/AM

061228

Page 1 of 2

ALL N

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com
