AC Line Filters
Common Mode SSR Coils, 10VS/HS Series,
Wide Range Impedance Type
Overview

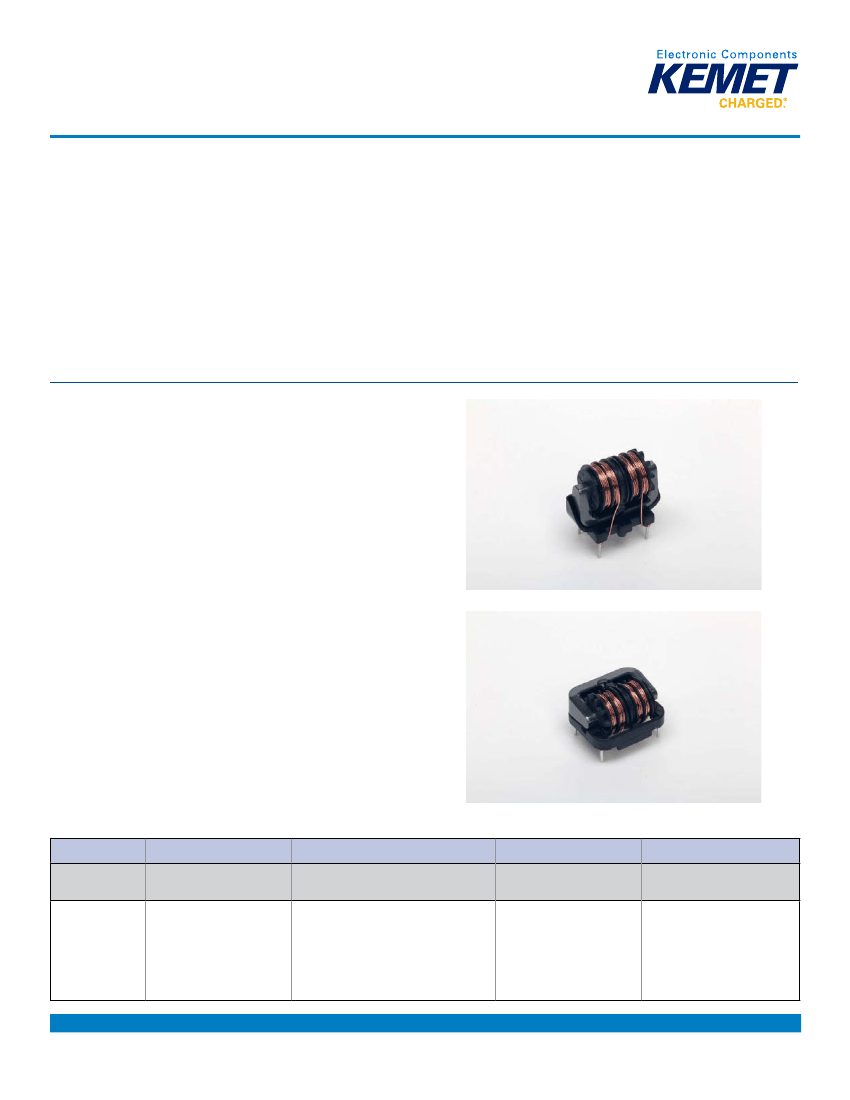

The KEMET SSR coils are common mode chokes with a
wide variety of characteristics. These gear type coils are
designed with our proprietary high permeability ferrite
S15H cores and are useful in various noise countermeasure
fields.
Applications
• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies
Benefits
• Proprietary S15H ferrite material
• High permeability
• High impedance in wide frequency range due to divided
bobbin
• Compact size, low profile, and lightweight
• Operating temperature range from −25°C to +120°C
• UL 94 V-0 flame retardant rated base and bobbin
Part Number System
SSR
Series
SSR
10
Core Size Code
10
V-
Core Orientation and Bobbin Type
HS = Horizontal, bobbin with sectional
winding structure
VS = Vertical, bobbin with sectional
winding structure
04
Rated Current
(A)
0x = 0.x A
xx = x.x A
Examples:
04 = 0.4 A
13 = 1.3 A
910
Inductance (mH)
Minimum
xxx = xx.x mH
0xx = x.x mH
Examples:
745 = 74.5 mH
013 = 1.3 mH
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0043_SSR10VS-HS • 5/28/2019
1
AC Line Filters – Common Mode SSR Coils, 10VS/HS, Wide Range Impedance Type
Magnetic Permeability of Ferrite Material
In order to achieve most efficient noise reduction, it is important to select the material according to the target frequency
band.
Depending on its magnetic permeability, a particular ferrite material will be effective in a certain frequency band.
A schematic representation of the relationship between the magnetic permeability of each material and the corresponding
effective band range is shown in Figure 1. Materials with higher magnetic permeability are effective in the lower frequency
range, while those with lower magnetic permeability are effective in the higher frequency range. Thus, Mn-Zn products are
mainly used for reducing conduction noise, while Ni-Zn products are commonly used for radiation noise countermeasures.
The effective frequency range varies depending on core shape, size and number of windings. This frequency dependence
of the magnetic permeability as shown in the figure serves for reference purposes only and it should be tested on the actual
device to determine its effectiveness.
S18H, S15H, 10H, 7H, 5H, 1400L and 700L are KEMET’s proprietary ferrite material names.
Other materials can also be available on request.
Figure 1 - Relationship between the magnetic permeability of each material and its effective frequency range
20,000
Higher magnetic permeability:
Higher noise suppression effect
in the lower frequency range
Mn-Zn Series
S18H
Magnetic Permeability
S15H
10,000
10H
7H
5H
Lower magnetic permeability:
Higher noise suppression effect
in the higher frequency range
Ni-Zn Series
1400L
700L
100 kHz
1 MHz
10 MHz
100 MHz
1 GHz
0
10 kHz
Effective Frequency Range
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0043_SSR10VS-HS • 5/28/2019
2
AC Line Filters – Common Mode SSR Coils, 10VS/HS, Wide Range Impedance Type

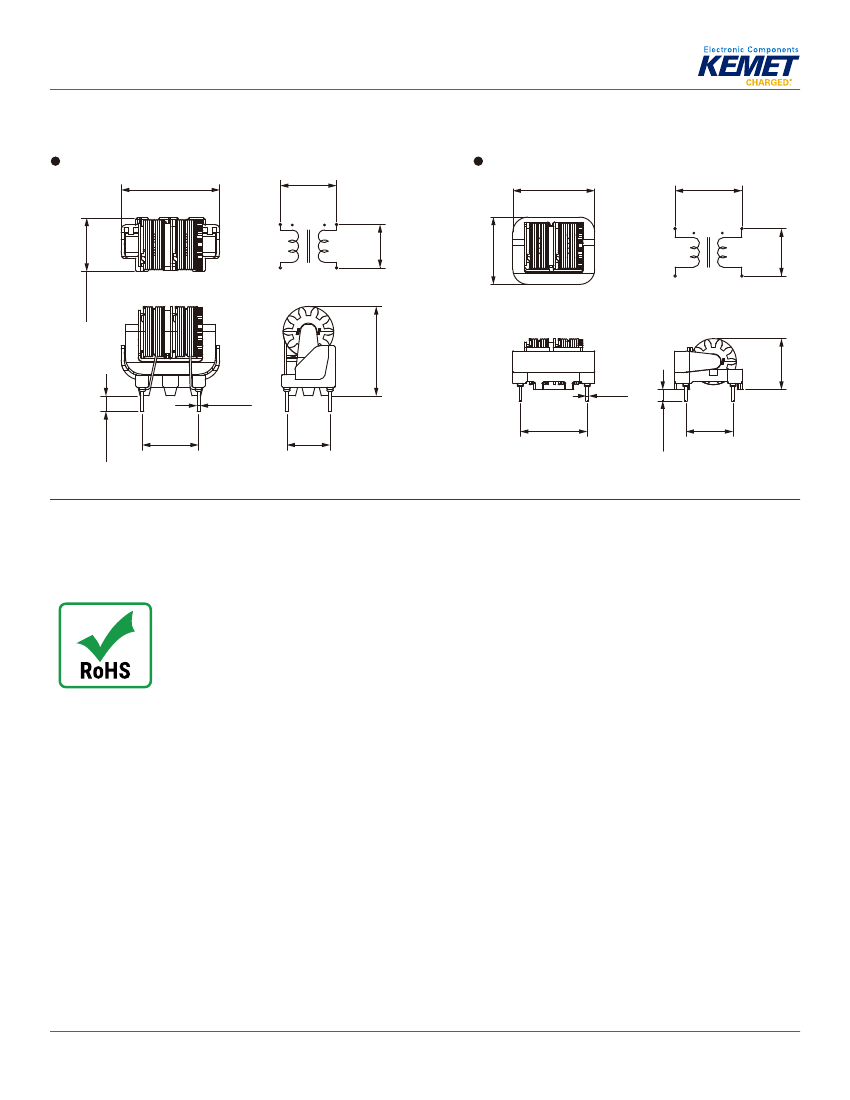

Dimensions – Millimeters
SSR10VS
23.5 Maximum
13.0
SSR10HS
22.0 Maximum
17.0
N1
N2
13.0 Maximum
21.0 Maximum
12.0
13.5 Maximum
N1
N2
18.0 Maximum
10.0
φ0.7
3.5±0.5
17±0.5
φ0.7
3.5±0.5
12±0.5
13±0.5
10±0.5
Environmental Compliance
All KEMET AC Line Filters are RoHS Compliant.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0043_SSR10VS-HS • 5/28/2019
3
AC Line Filters – Common Mode SSR Coils, 10VS/HS, Wide Range Impedance Type
Performance Characteristics
Item
Rated Voltage
Withstanding Voltage
Insulation Resistance
Rated Current Range
Rated Inductance Range
Inductance Measurement Condition
Thermal Class
Operating Temperature Range
250 VAC
2,400 VAC (2 seconds, between lines)
> 100 MΩ at 500 VDC (between lines)
0.4 – 3.0 A
1.3 – 74.5 mH minimum
10 kHz
E (120°C)
−25°C to +120°C (include self temperature rise)
Performance Characteristics
Table 1 – Ratings & Part Number Reference
Part Number
SSR10HS-04745
SSR10VS-04745
SSR10HS-05495
SSR10VS-05495
SSR10HS-06385
SSR10VS-06385
SSR10HS-07265
SSR10VS-07265
SSR10HS-08180
SSR10VS-08180
SSR10HS-10135
SSR10VS-10135
SSR10HS-11110
SSR10VS-11110
SSR10HS-13075
SSR10VS-13075
SSR10HS-17048
SSR10VS-17048
SSR10HS-22026
SSR10VS-22026
SSR10HS-30013
SSR10VS-30013
Rated Current Inductance (mH)
(A)
Minimum
0.4
0.4
0.5
0.5
0.6
0.6
0.7
0.7
0.8
0.8
1.0
1.0
1.1
1.1
1.3
1.3
1.7
1.7
2.2
2.2
3.0
3.0
74.5
74.5
49.5
49.5
38.5
38.5
26.5
26.5
18.0
18.0
13.5
13.5
11.0
11.0
7.5
7.5
4.8
4.8
2.6
2.6
1.3
1.3
DC Resistance/
Line (Ω)
Maximum
2.50
2.50
1.60
1.60
1.20
1.20
0.85
0.85
0.60
0.60
0.43
0.43
0.33
0.33
0.24
0.24
0.17
0.17
0.10
0.10
0.06
0.06
Temperature
Rise (K)
Maximum
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
55
55
55
55
60
60
Wire Diameter
(mm)
0.20
0.20
0.23
0.23
0.25
0.25
0.28
0.28
0.30
0.30
0.32
0.32
0.35
0.35
0.37
0.37
0.40
0.40
0.45
0.45
0.50
0.50
Weight (g)
Approximate
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0043_SSR10VS-HS • 5/28/2019
4
AC Line Filters – Common Mode SSR Coils, 10VS/HS, Wide Range Impedance Type
Frequency Characteristics
1M
100k
SSR10VS/HS-04745
1M
100k
SSR10VS/HS-05495
Impedance (Ω)
1k
100
10
1
1k
10k
Impedance (Ω)
100k
1M
10M
30M
10k
10k
1k
100
10
1
Frequency (Hz)
1k
10k
Frequency (Hz)
100k
1M
10M
30M
1M
100k
SSR10VS/HS-06385
1M
100k
SSR10VS/HS-07265
Impedance (Ω)
1k
100
10
1
1k
10k
Impedance (Ω)
100k
1M
10M
30M
10k
10k
1k
100
10
1
Frequency (Hz)
1k
10k
Frequency (Hz)
100k
1M
10M
30M
1M
100k
SSR10VS/HS-08180
1M
100k
SSR10VS/HS-10135
Impedance (Ω)
1k
100
10
1
1k
10k
Impedance (Ω)
100k
1M
10M
30M
10k
10k
1k
100
10
1
Frequency (Hz)
1k
10k
Frequency (Hz)
100k
1M
10M
30M
1M
100k
SSR10VS/HS-11110
1M
100k
SSR10VS/HS-13075
Impedance (Ω)
1k
100
10
1
1k
10k
Impedance (Ω)
100k
1M
10M
30M
10k
10k
1k
100
10
1
Frequency (Hz)
1k
10k
Frequency (Hz)
100k
1M
10M
30M
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
LF0043_SSR10VS-HS • 5/28/2019
5
