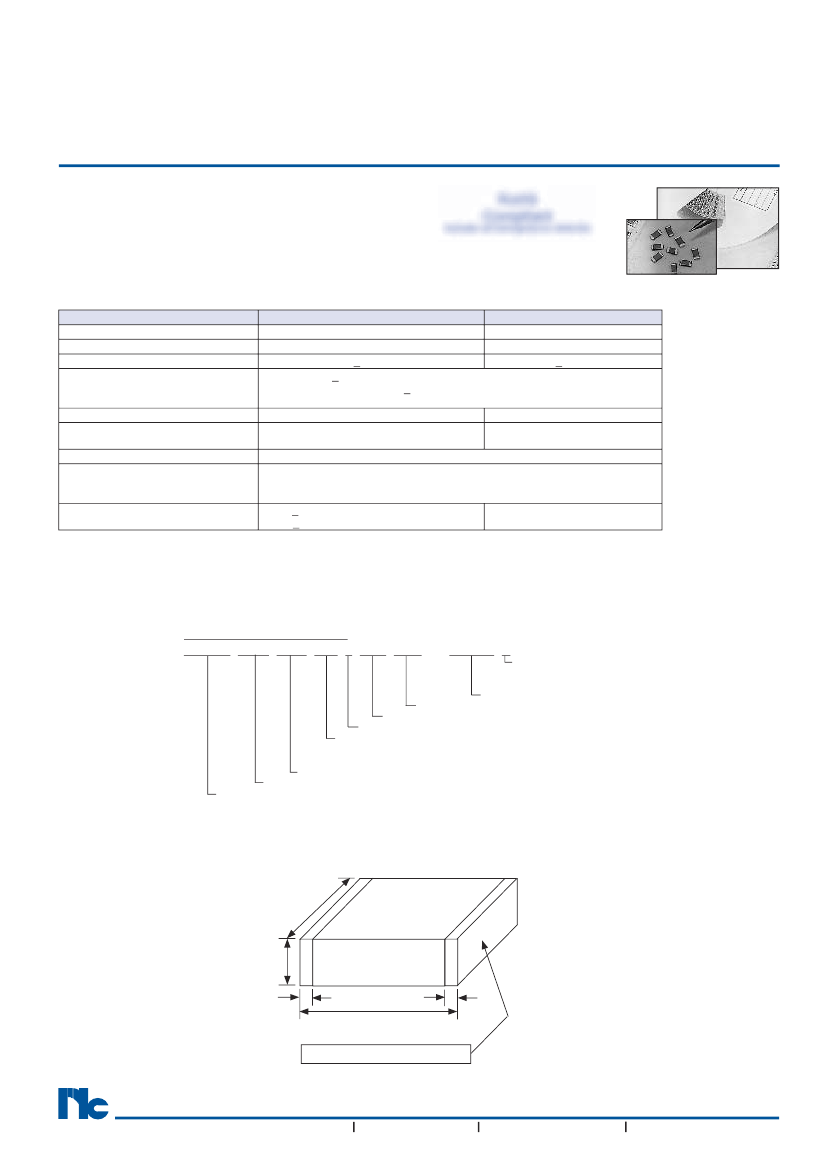

Multilayer Ceramic Chip Capacitors
FEATURES
• HIGH VOLTAGE 200Vdc ~ 3KVdc
• NPO AND X7R DIELECTRICS
• 0603, 0805, 1206, 1210, 1808 AND 1812 SIZES
• NICKEL BARRIER TERMINATION AND EXCELLENT
MECHANICAL STRENGTH
SPECIFICATIONS
Operating Temperature Range
Temperature Characteristic
Dissipation Factor
Insulation Resistance
Capacitance Range
Capacitance Tolerance
Rated Voltage
Dielectric Withstanding Voltage
Test Conditions (C & DF)
NMC-H Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NPO
X7R
-55°C ~ +125°C
-55°C ~ +125°C
±30ppm
±15%
< 0.1%
< 2.5%
> 500MegΩ or 500MegΩ-µF whichever is less
Test Method: Voltage rating < 500V measured after 1 minute at rated voltage,
Voltage rating > 500V measured after 1 minute at 500V
0.22pF ~ 0.0056µF
150pF ~ 0.47µF
±0.1pF(B), ±0.25pF(C), ±0.5pF(D)
±5%(J), ±10%(K), ±20(M)
±1%(F), ±2%(G), ±5%(J), ±10%(K), ±20(M)
250Vdc ~ 3KVdc
Working Voltage 200 & 250Vdc x 1.5 + 100Vdc for 5 seconds
Working Voltage 500Vdc x 1.5 for 5 seconds
Working Voltage greater than 500Vdc x 1.2 for 5 seconds
C < 1000pF = 1MHz, 1Vrms @ 25°C
1KHz, 1Vrms @ 25°C
C < 1000pF = 1KHz, 1Vrms @ 25°C
PART NUMBER SYSTEM
NMC-H 1210 NPO 102 J 1KV TRP or TRPLP F
RoHS compliant
Tape & Reel (Embossed Plastic Carrier)
Tape & Reel (Paper carrier)
Voltage (Vdc)
Capacitance Tolerance Code (see chart)
Capacitance Code, expressed in pF, first 2 digits are
significant, 3rd digit is no. of zeros, “R” indicates
decimal for under 10pF
Temperature Characteristic
Size Code (see chart)
Series
CONSTRUCTION
W
H
P
L
100% Sn over Ni barrier
®
P
