87C51FC/BMA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 87C51FC/BMA

87C51FC/BMA: DescriptionIC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size622KB，22 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

87C51FC/BMA Overview

IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller

87C51FC/BMA Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	QCCJ,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-GQCC-J44
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PWM channel	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
ROM programmability	OTPROM
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	J BEND
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

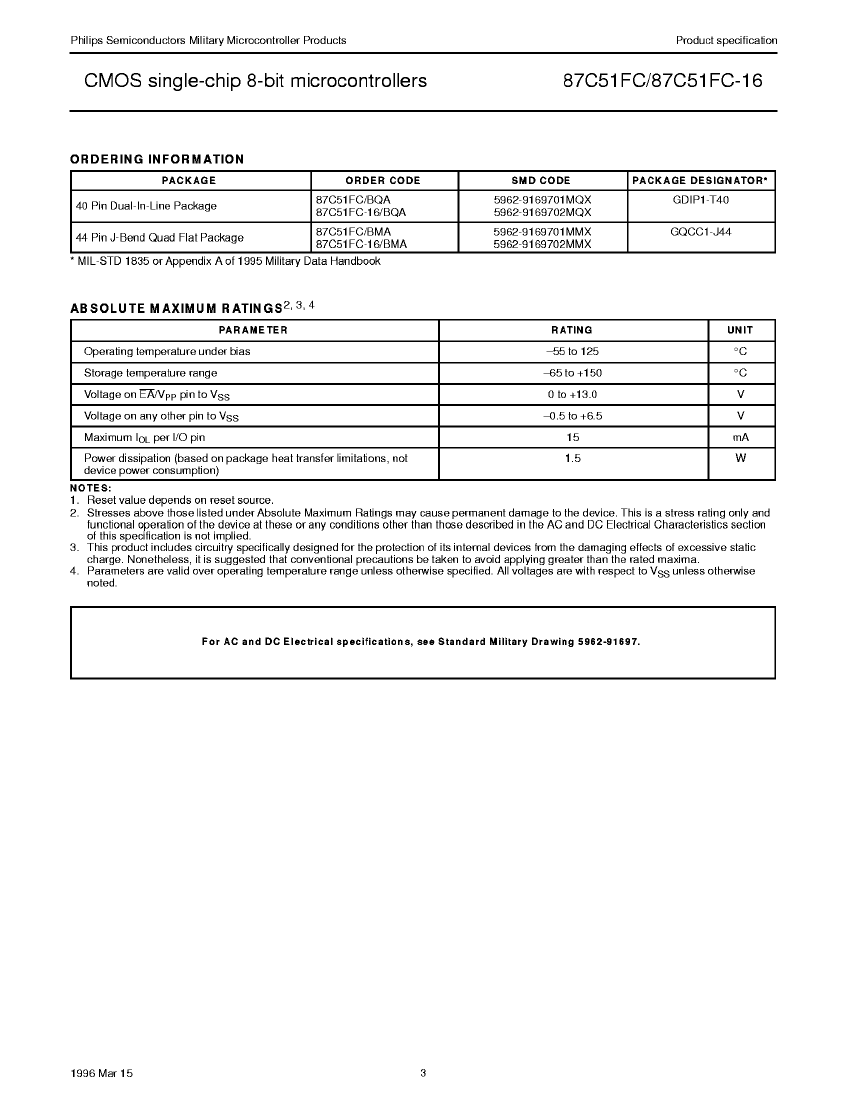

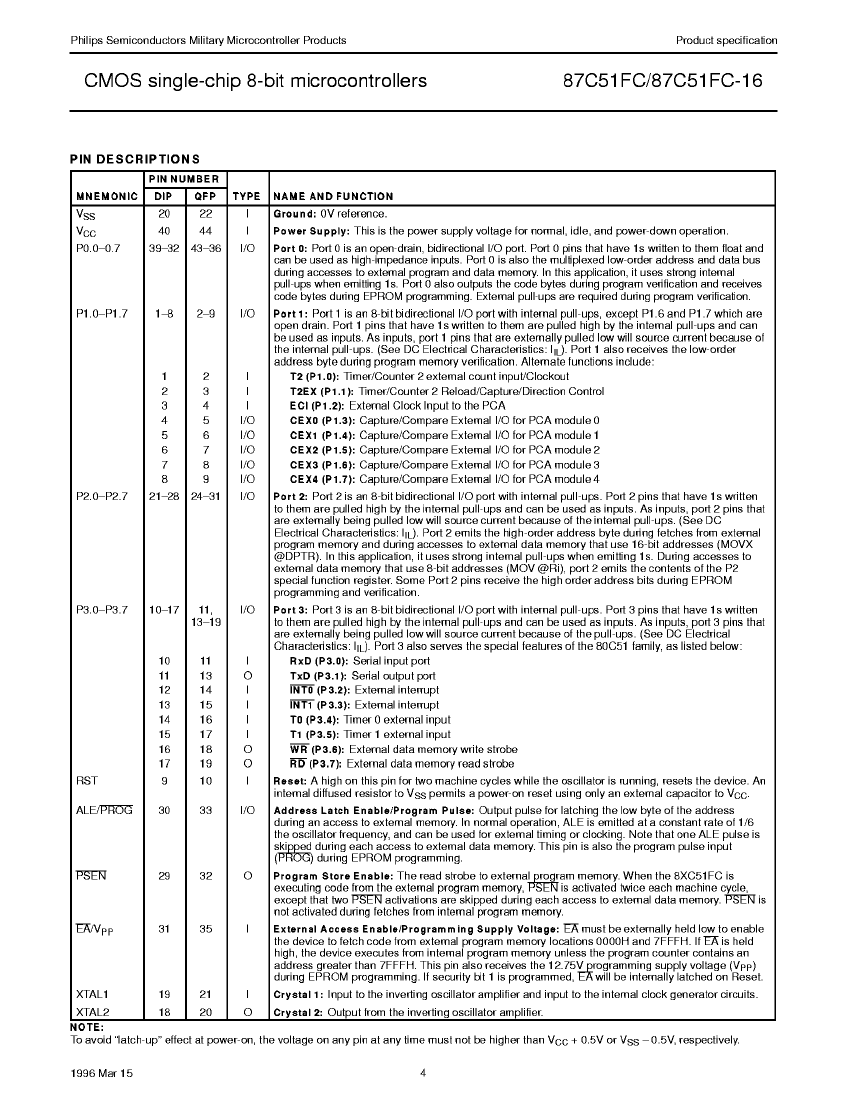

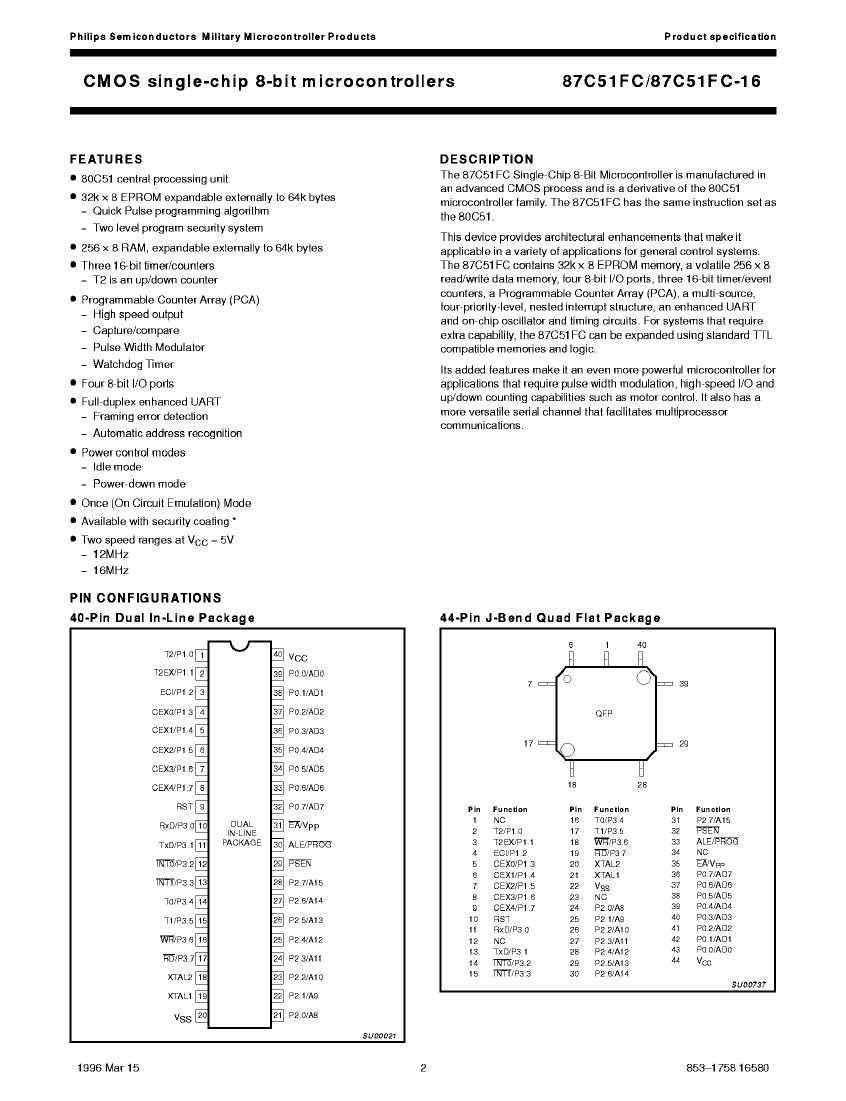

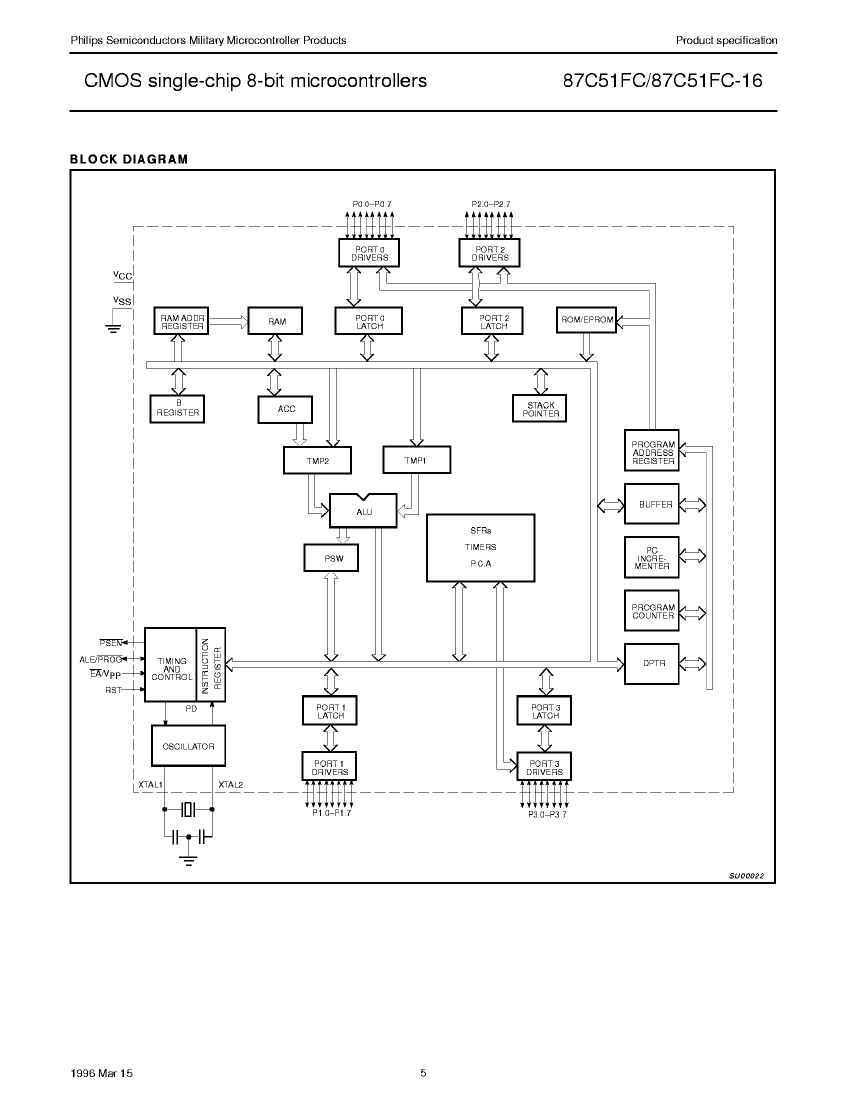

Preview

Download Datasheet

View All

87C51FC/BMA Related Products

	87C51FC/BMA	87C51FC-16/BMA-T	5962-9169701MMX	5962-9169702MQX	87C51FC-16/BMA	87C51FC/BMA-T	87C51FC/BQA	RCWP1206208KDKET1C	5962-9169702MMX	5962-9169701MQX
Description	IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CDIP40, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CDIP40, Microcontroller	Fixed Resistor, Thick Film, 0.25W, 208000ohm, 100V, 0.5% +/-Tol, -100,100ppm/Cel, Surface Mount, 1206, CHIP	IC 8-BIT, OTPROM, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, MICROCONTROLLER, CDIP40, Microcontroller
package instruction	QCCJ,	QCCJ,	QCCJ,	DIP,	QCCJ,	QCCJ,	DIP,	CHIP	QCCJ,	DIP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	EAR99	3A001.A.2.C	3A001.A.2.C
Number of terminals	44	44	44	40	44	44	40	2	44	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-65 °C	-55 °C	-55 °C
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	SMT	CHIP CARRIER	IN-LINE
surface mount	YES	YES	YES	NO	YES	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	THICK FILM	CMOS	CMOS
Maker	NXP	NXP	-	NXP	NXP	NXP	NXP	-	NXP	NXP
Has ADC	NO	NO	NO	NO	NO	NO	NO	-	NO	NO
Address bus width	16	16	16	16	16	16	16	-	16	16
bit size	8	8	8	8	8	8	8	-	8	8
maximum clock frequency	12 MHz	16 MHz	12 MHz	16 MHz	16 MHz	12 MHz	12 MHz	-	16 MHz	12 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	-	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	-	NO	NO
External data bus width	8	8	8	8	8	8	8	-	8	8
JESD-30 code	S-GQCC-J44	S-GQCC-J44	S-GQCC-J44	R-GDIP-T40	S-GQCC-J44	S-GQCC-J44	R-GDIP-T40	-	S-GQCC-J44	R-GDIP-T40
Number of I/O lines	32	32	32	32	32	32	32	-	32	32
PWM channel	YES	YES	YES	YES	YES	YES	YES	-	YES	YES
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	QCCJ	QCCJ	QCCJ	DIP	QCCJ	QCCJ	DIP	-	QCCJ	DIP
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	-	SQUARE	RECTANGULAR
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	OTPROM	-	OTPROM	OTPROM
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal form	J BEND	J BEND	J BEND	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	-	J BEND	THROUGH-HOLE
Terminal location	QUAD	QUAD	QUAD	DUAL	QUAD	QUAD	DUAL	-	QUAD	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	-	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1	1	1	1	-	1	1
