Part Number

Search

535568-5

Description
HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL
CategoryThe connector    The connector
File Size619KB,13 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

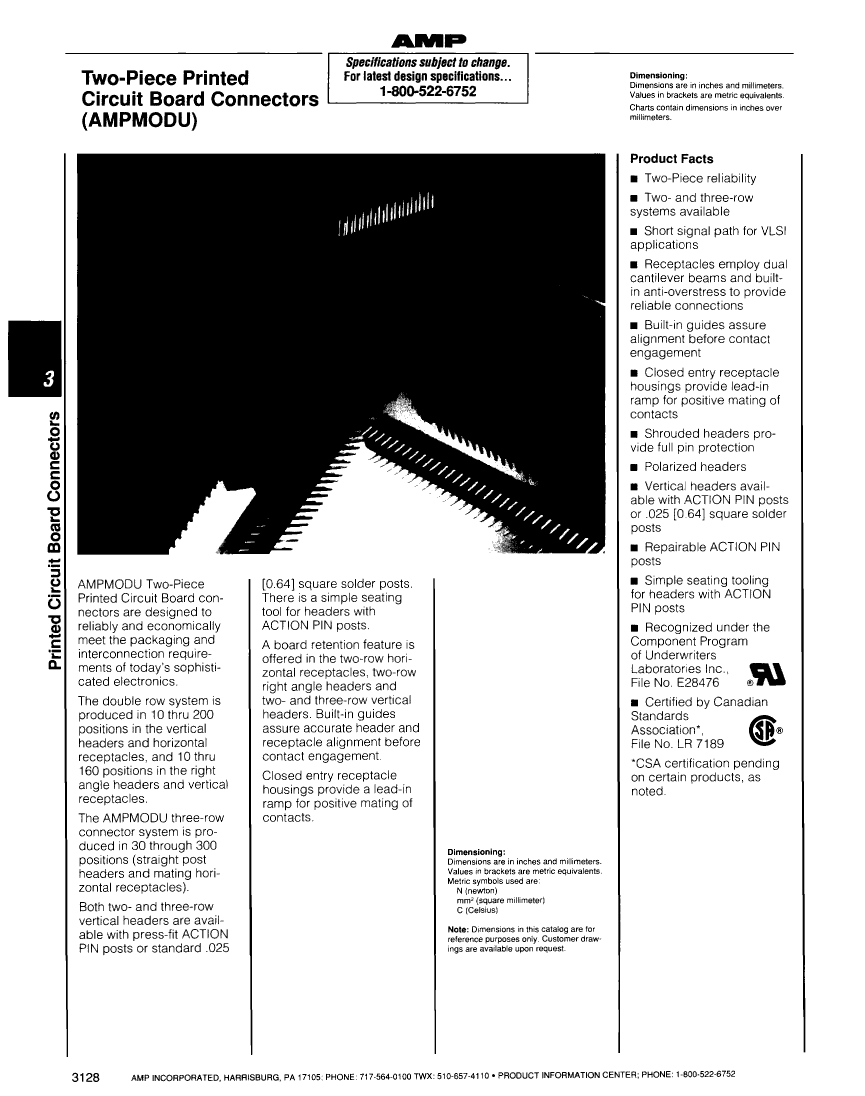

535568-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,100 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL

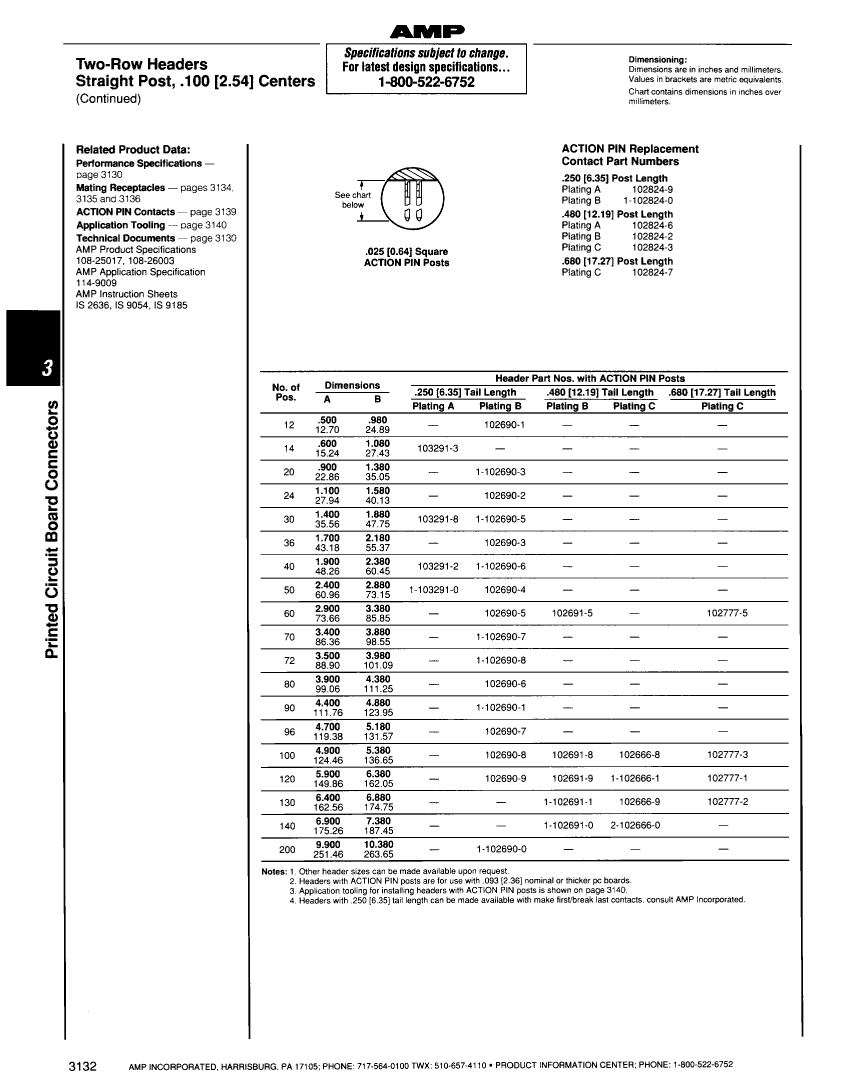

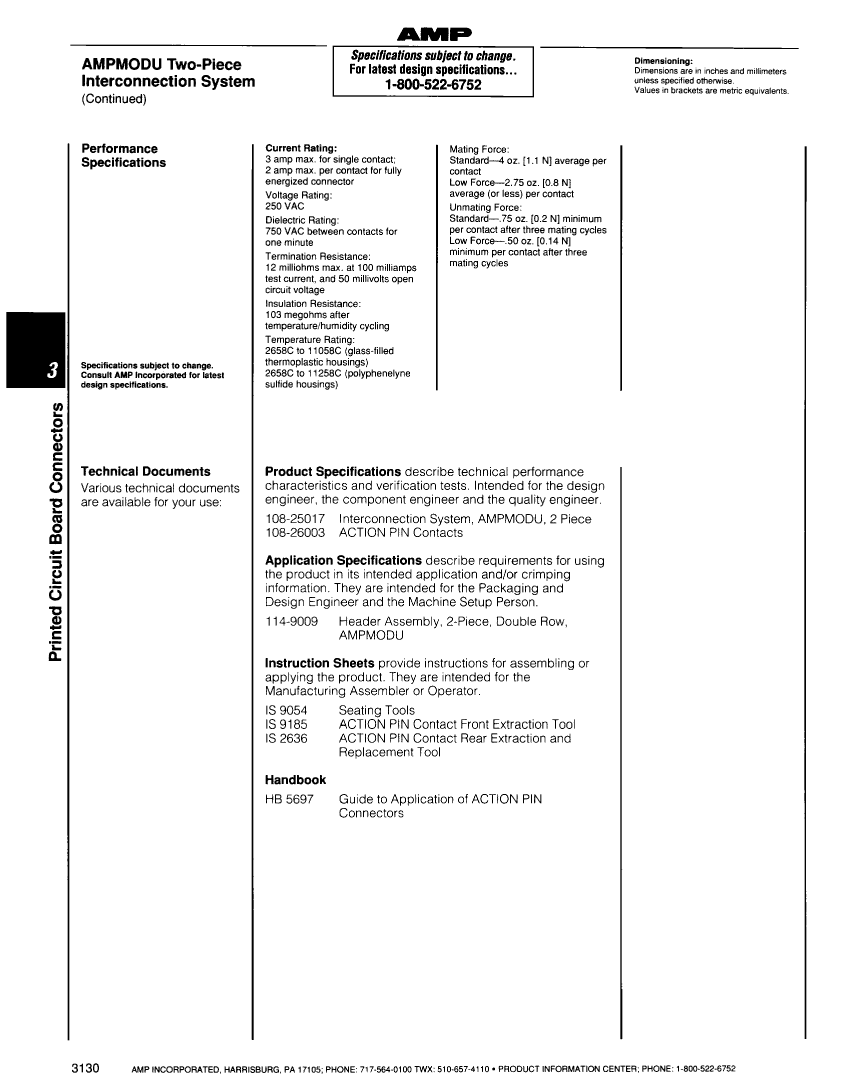

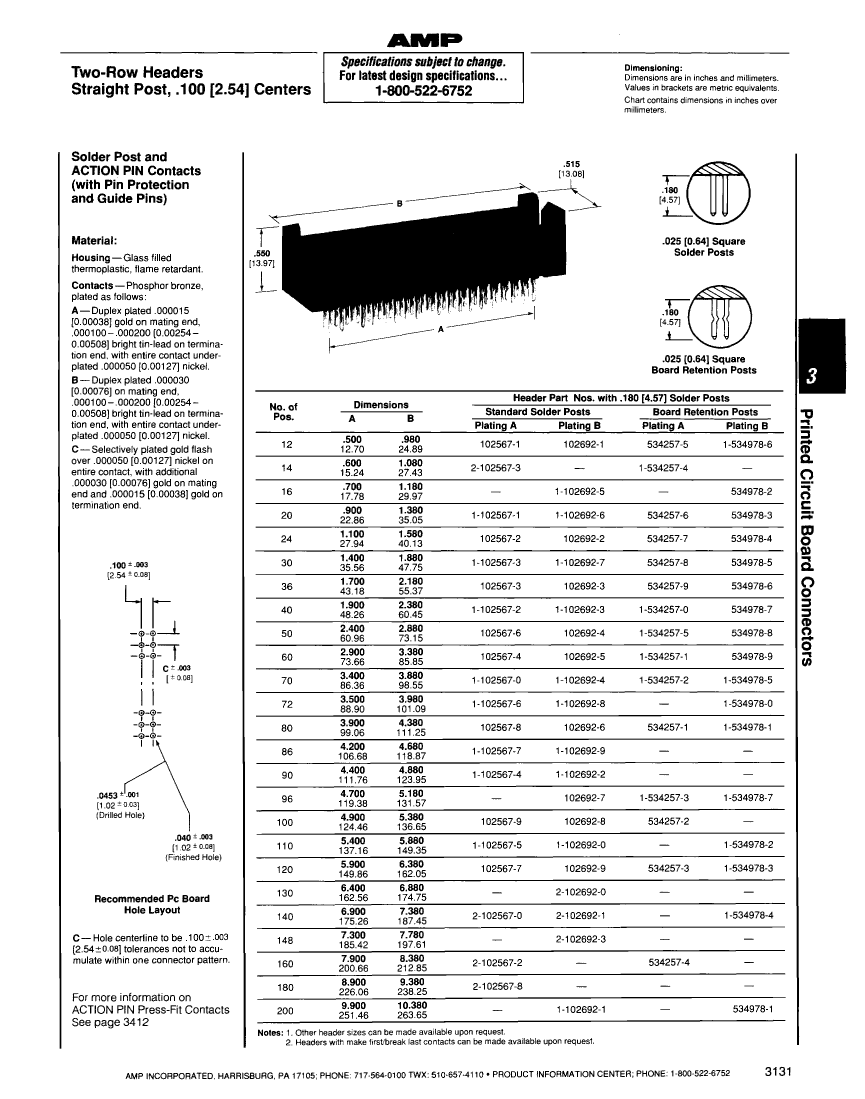

535568-5 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
body width0.32 inch
subject depth0.762 inch
body length5.38 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage250VAC V
Durability75 Cycles
maximum insertion force1.112 N
Insulation resistance103000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number535568
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness15u inch
polarization keyHOUSING SIDE
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch2.54 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts100
Evacuation force-minimum value.2085 N
Base Number Matches1
