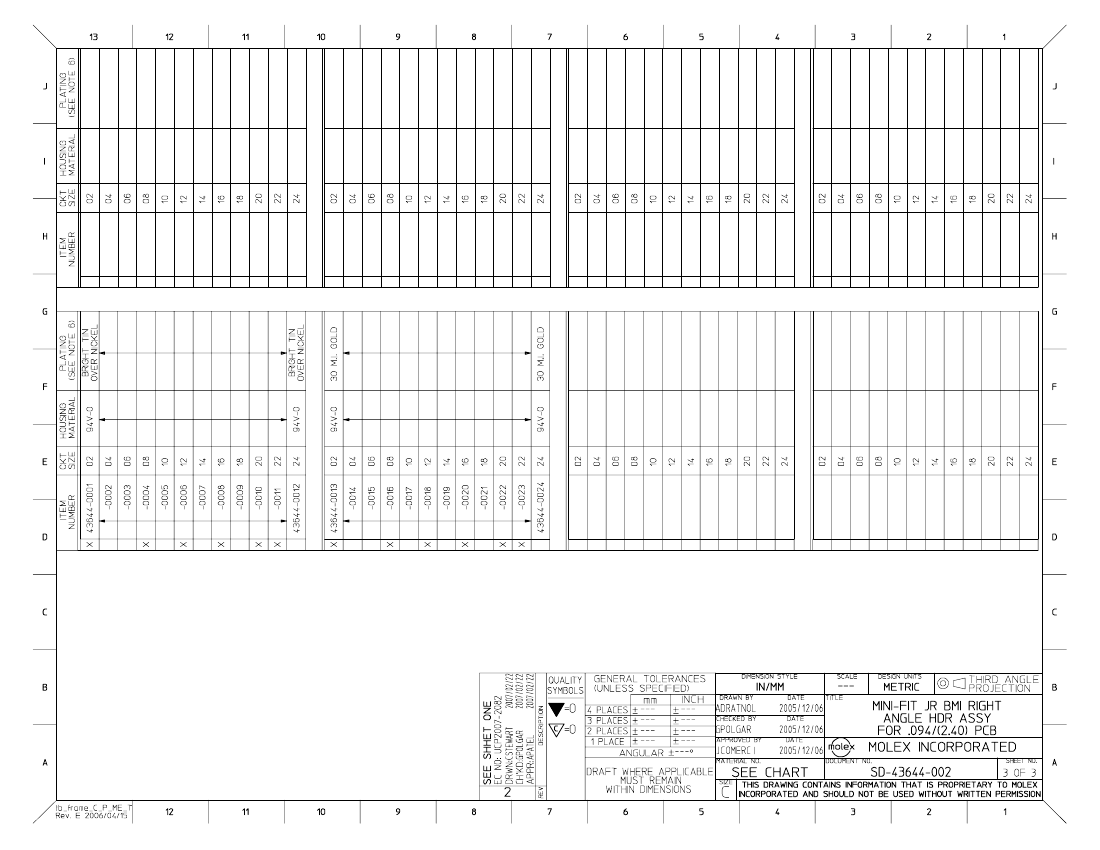

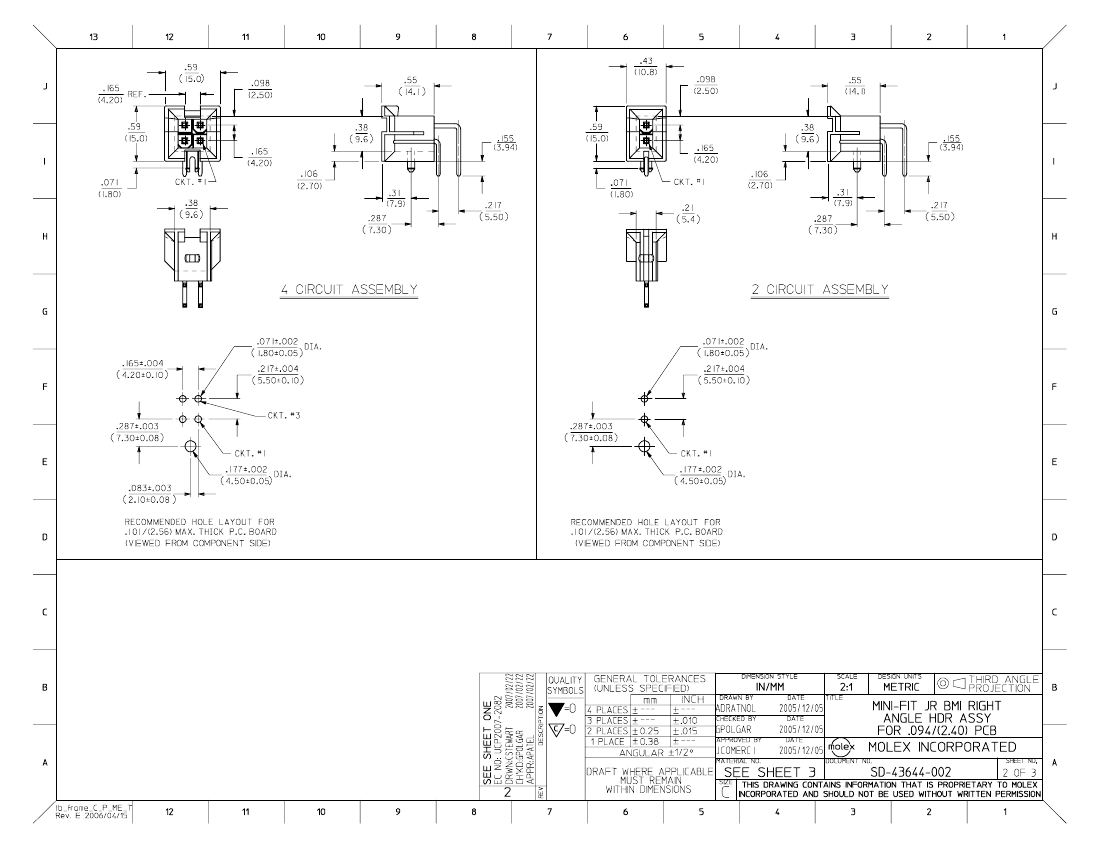

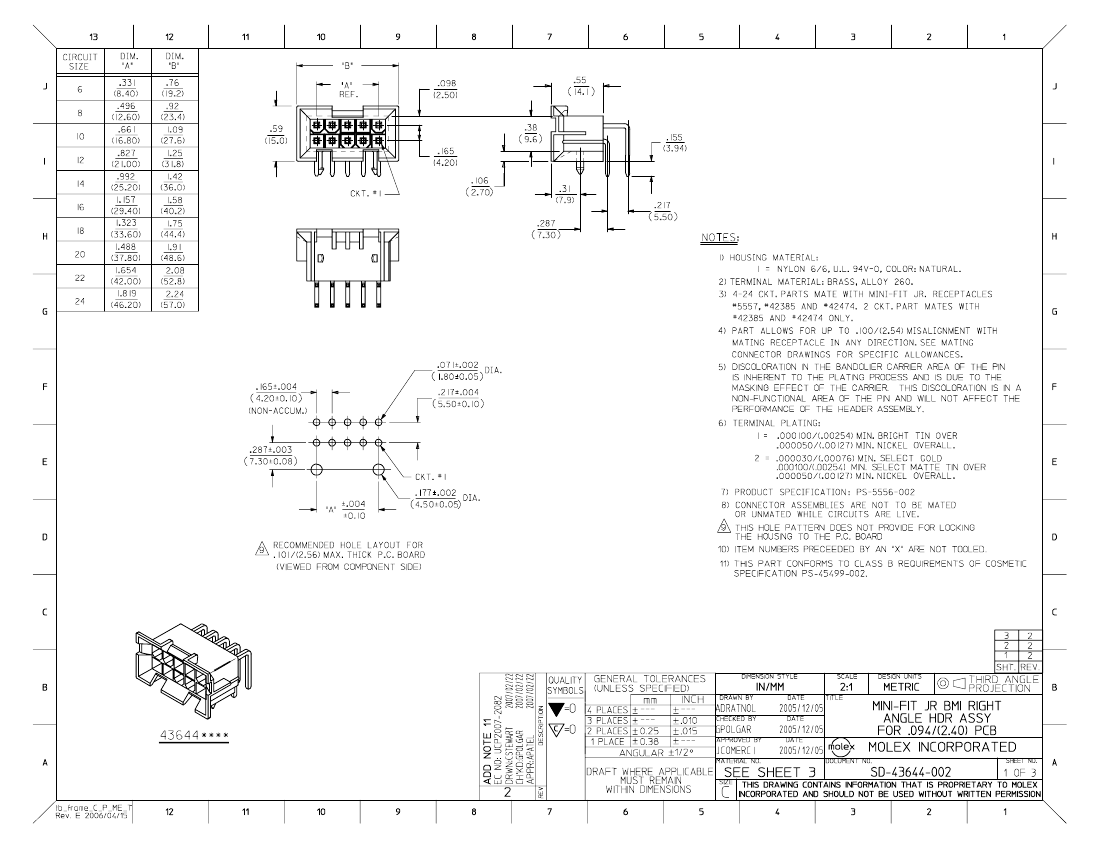

Rectangular Power Connector, 2 Contact(s), Male, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Other features | ROHS AND ELV COMPLIANT |
| Board mount options | PEG |
| body width | 0.591 inch |
| subject depth | 0.815 inch |
| body length | 0.425 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL (50)/MATTE TIN (100) OVER NICKEL (50) |
| Contact completed and terminated | GOLD (30) OVER NICKEL (50)/MATTE TIN (100) OVER NICKEL (50) |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 2200VAC V |
| Durability | 30 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 14.6784 N |
| Insulation resistance | 1000000000 Ω |
| Insulator color | NATURAL |
| insulator material | NYLON |
| JESD-609 code | e4/e3 |
| MIL compliance | NO |
| Match contact row spacing | 0.165 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 8 A |
| Guideline | CSA, UL |
| reliability | COMMERCIAL |
| Shell material | POLYAMIDE66 |
| Terminal length | 0.155 inch |
| Terminal pitch | 4.191 mm |
| Termination type | SOLDER |
| Total number of contacts | 2 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .0834 N |
| Base Number Matches | 1 |
