3-825437-2 datasheet, PDF - EEWORLD Datasheet

3-825437-2: Description32 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size235KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-825437-2 Overview

32 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1425167598
Reach Compliance Code	unknown
YTEOL	0
Other features	AMPMODU
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0

V

Contact pin base material change from CuSn (Phosphor bronze)to CuZn

(Brass). Plating change from min. 0.8microns gold plating to min. 0.7

microns Pd Ni + 0.1 microns gold flash at contact area (Area F).

24JUN

2014

TJ

JK

MATING SIDE: MIN 0.7µm PdNi + 0.1µm GOLD FLASH.

SOLDER SIDE: MIN 2.5µm TIN OVER 1.27µm NICKEL.

Cu Zn

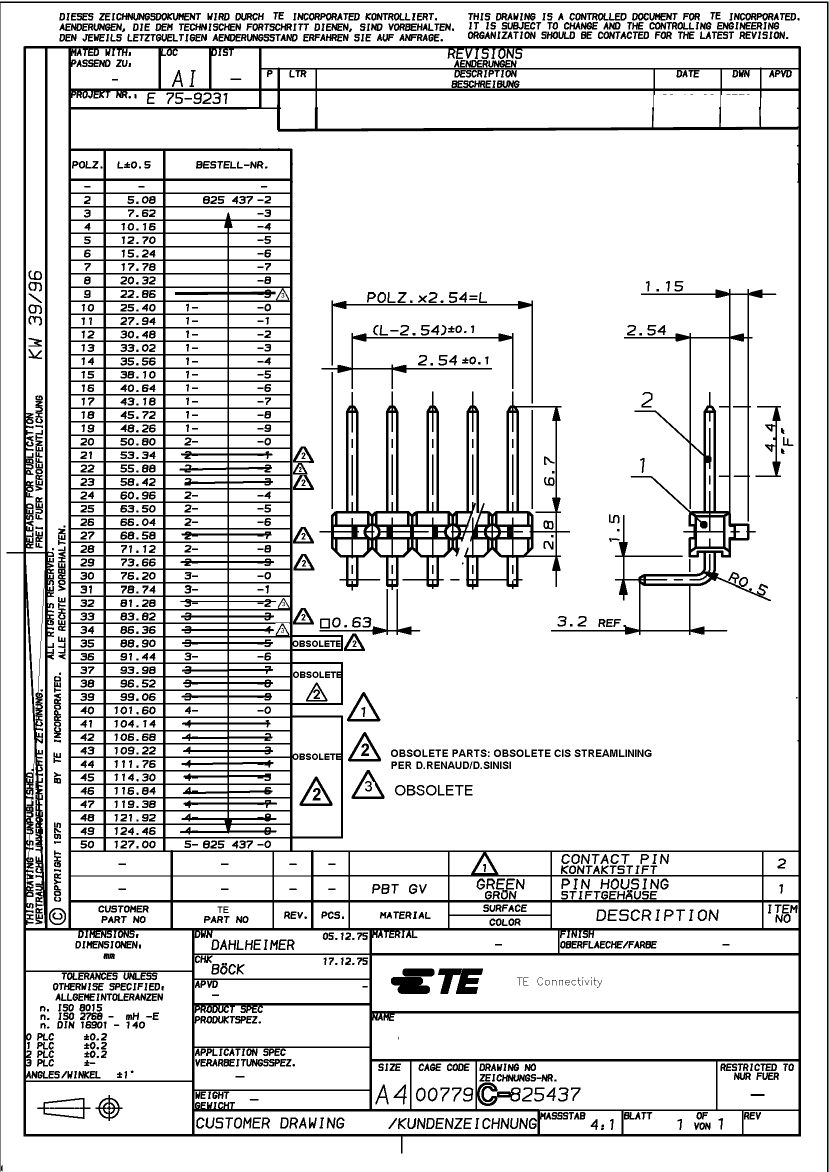

108-18012

AMPMODU II PIN HEADER, 90DEGREE,

SINGLE ROW

V
