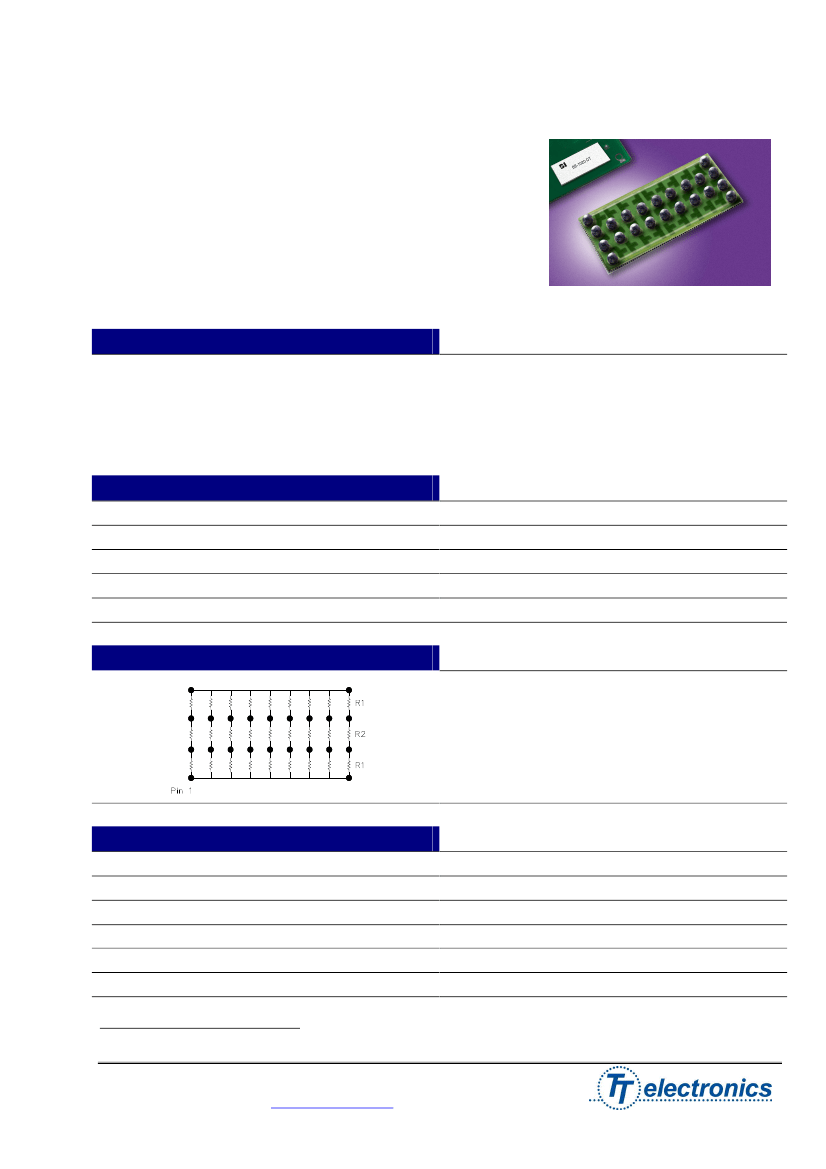

MODEL BB1020DT
SCSI Termination Resistor network
Low Voltage Differential (LVD)
DISCRIPTION
Model BB1020DT is a SCSI LVD termination network designed to terminate high performance SPI-2 (Ultra2)
and SPI-3 (Ultra3) bused applications. Wide SCSI bus applications can be terminated with three BB1020DT
networks and a linear regulator IC.
For use in high-speed SCSI bus applications, the BB1020DT utilizes thick film resistors on a ceramic substrate
with ball grid array (BGA) terminals. Resistors and solder balls reside on the same side of the ceramic
substrate, resulting in the absolute minimum stray capacitance and inductance.
FEATURES
•
•
•
•
•
SPI-2 (Ultra2) and SPI-3 (Ultra3) compliant
Each network contains LVD termination for up to 9 lines
Superior high frequency performance
Minimal stray capacitance and inductance
Surface mountable with automatic pick and place equipment
SCHEMATIC
R1 = 475Ω (18 places)
R2 = 121Ω (9 places)
ELECTRICAL
1
Resistance Nominal (R1 & R2)
Absolute Tolerance
Temperature Coefficient of Resistance (TCR)
Interlead Capacitance, Maximum
Operating Temperature Range
Power Rating (per network @ 70°C)
475Ω, 121Ω
±1%
±100
ppm/°C
0.1 pF
-55°C to +125°C
1 Watt
1
Specifications subject to change without notice.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 14, 2006
Website:
www.bitechnologies.com
page 1 of 2
BI technologies

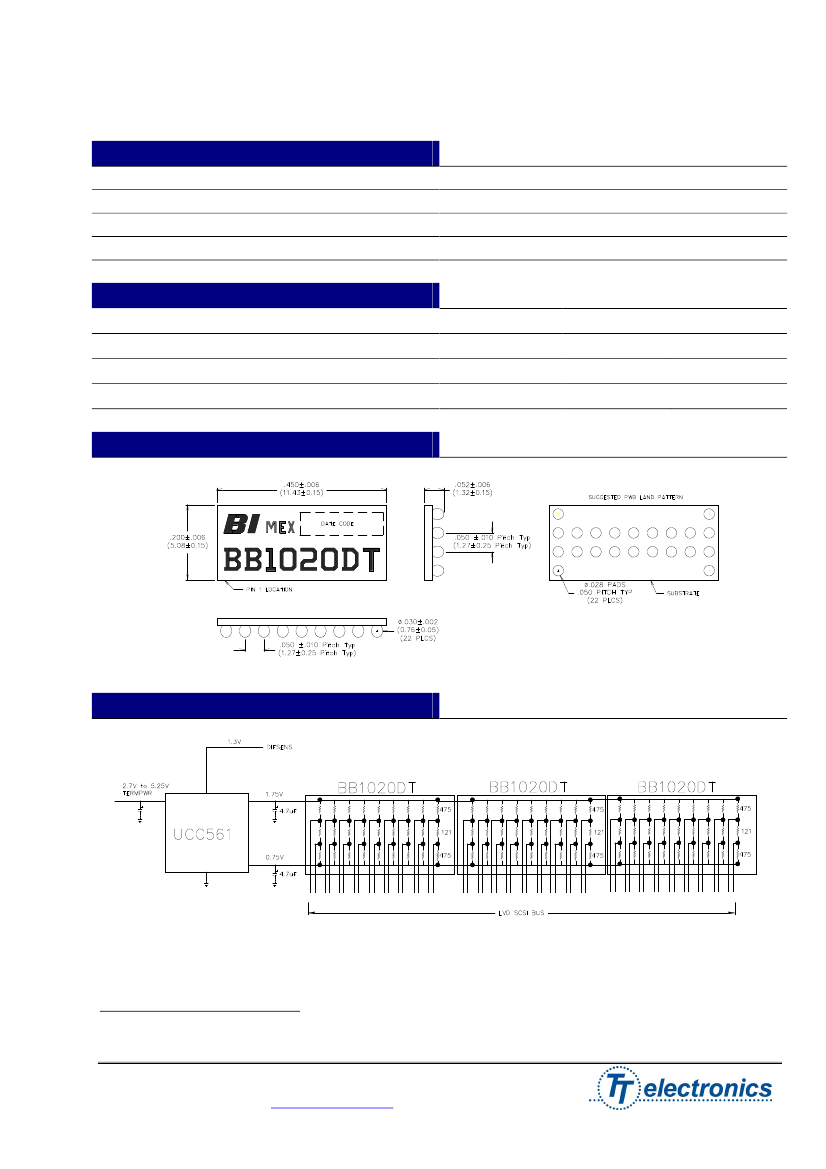

MODEL BB1020DT
MECHANICAL
Solder Ball Finish (for non-RoHS)
Solder Ball Co-planarity
Substrate Material
Resistor Material
SnPbAg 10/88/2
0.15 mm
Al
2
O
3
Cermet
3
ORDERING INFORMATION
2
BB1020DT7
BB1020DTLF7
BB1020DT13
BB1020DTLF13
Reel Size (inches)
7
7
13
13
Quantity/Reel
1000
1000
4000
4000
RoHS compliant
No
Yes
No
Yes
OUTLINE DRAWING
Units: inches / (mm)
APPLICATION NOTES
2
3
Contact our customer service for custom designs and features.
Preliminary release date is Q3 2006.
BI Technologies Corporation
4200 Bonita Place, Fullerton, CA 92835 USA
Phone: 714 447 2345
June 13, 2006
Website:
www.bitechnologies.com
page 2 of 2
