IDT79R3081E-40MJ8 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Microcontrollers and processors> IDT79R3081E-40MJ8

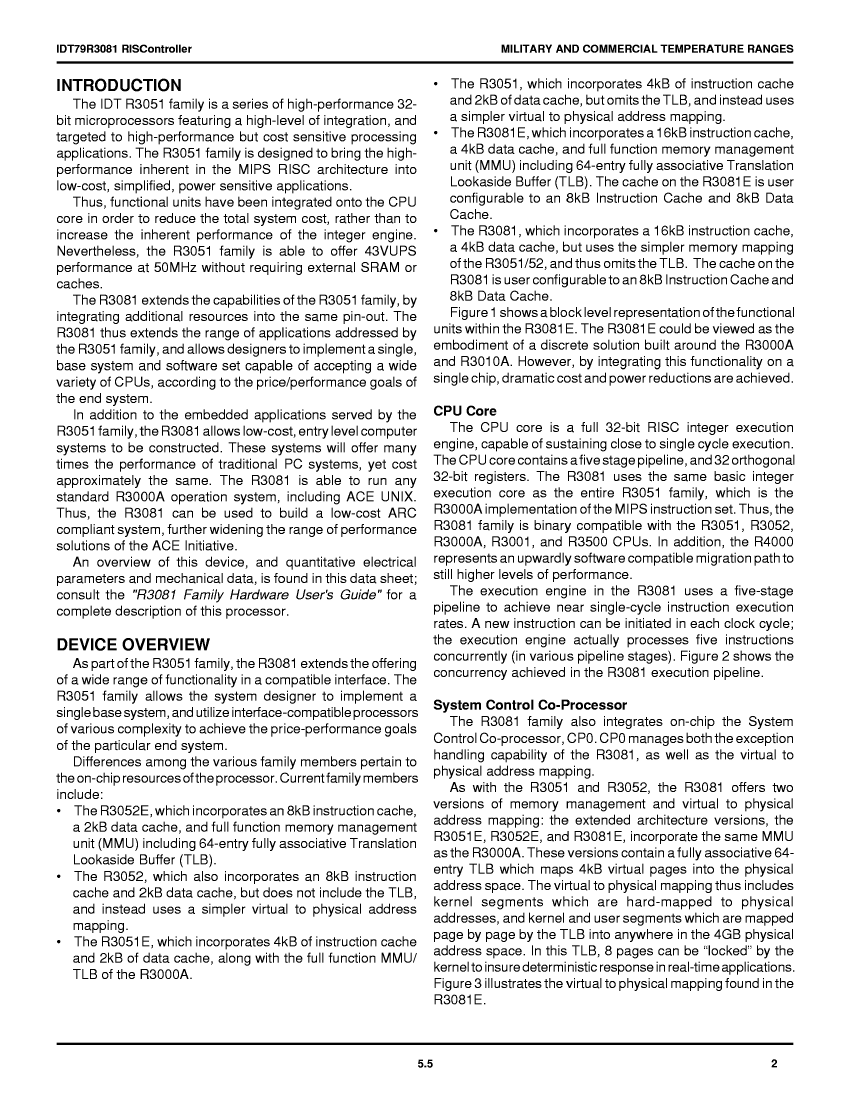

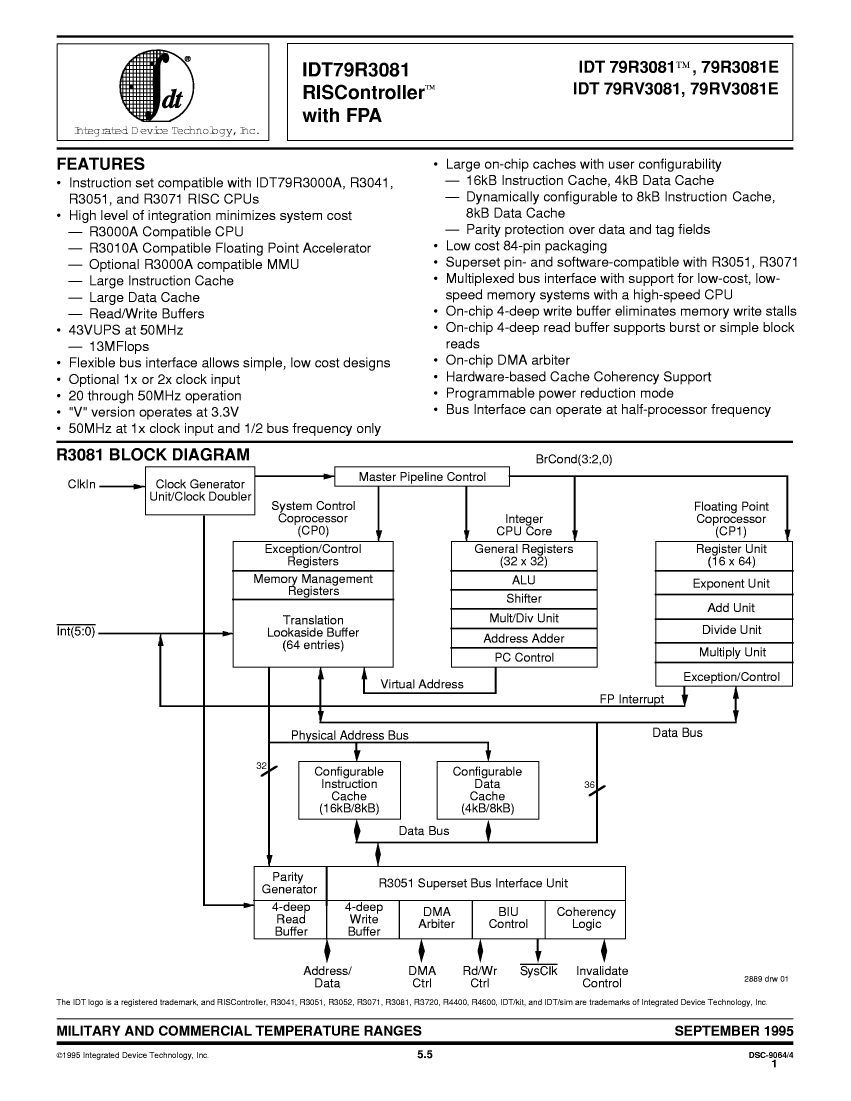

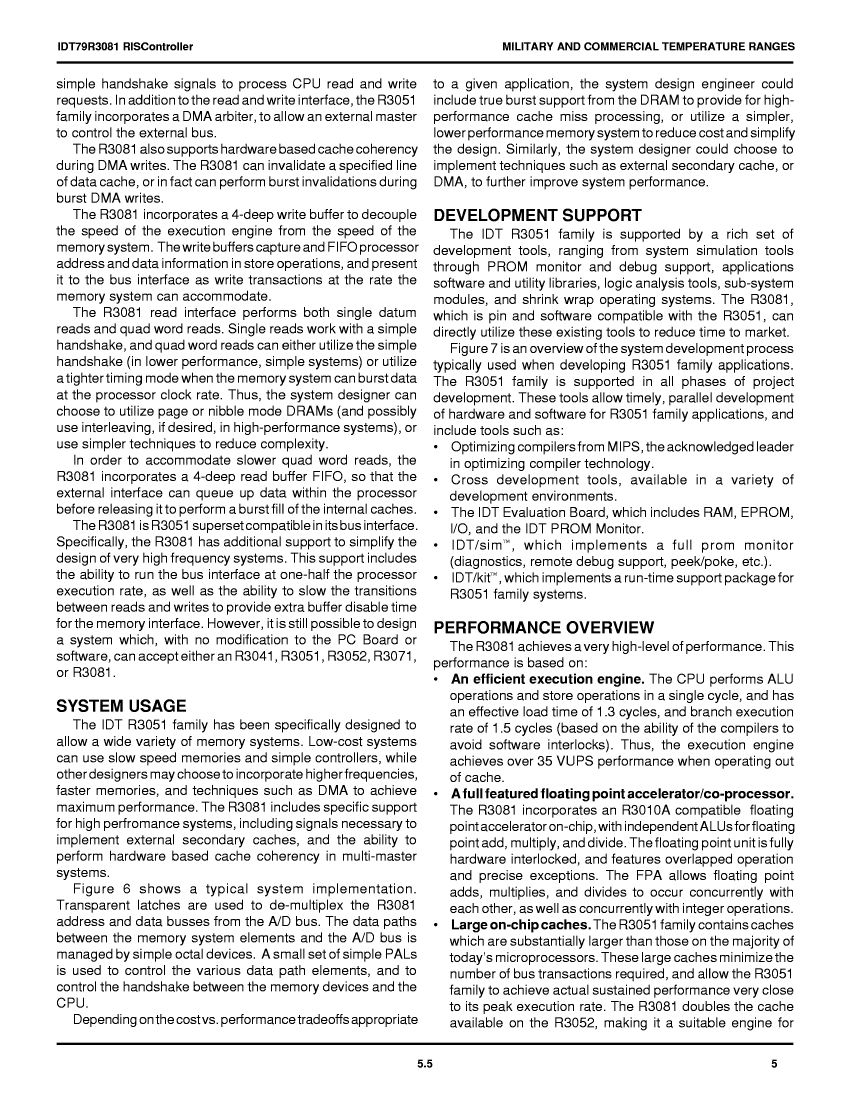

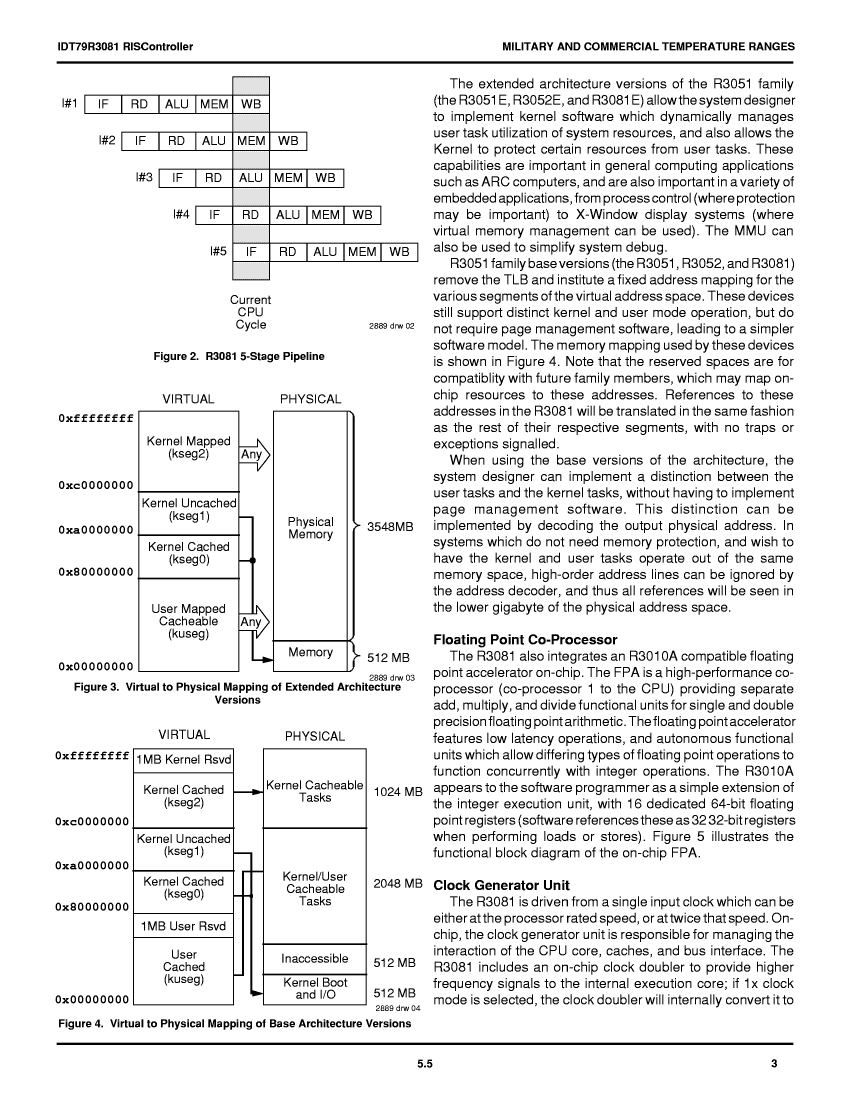

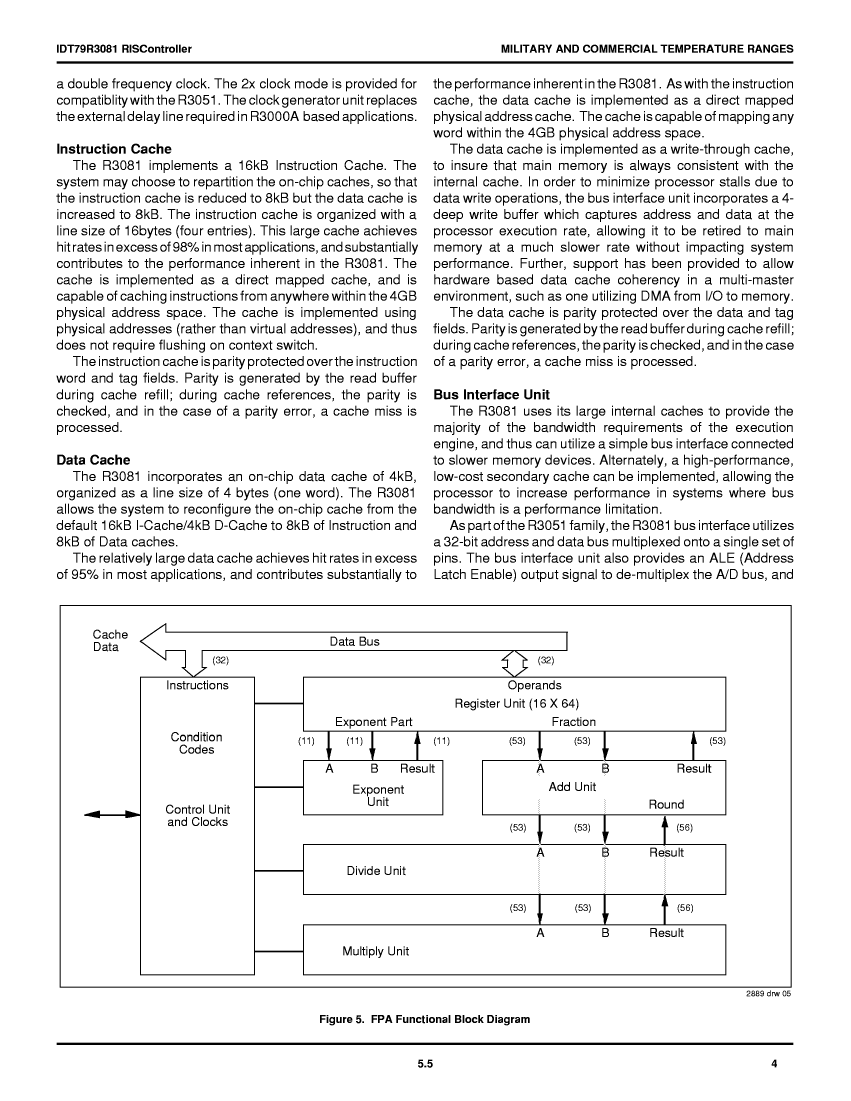

Preview

IDT79R3081E-40MJ8: DescriptionRISC Microprocessor, 32-Bit, 40MHz, CMOS, PQCC84, MQUAD-84; CategoryMicrocontrollers and processors; File Size1MB，38 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT79R3081E-40MJ8 Overview

RISC Microprocessor, 32-Bit, 40MHz, CMOS, PQCC84, MQUAD-84

IDT79R3081E-40MJ8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	QFN
package instruction	QCCJ,
Contacts	84
Reach Compliance Code	compliant
ECCN code	3A001.A.3
Other features	CACHE COHERENCY
Address bus width	32
bit size	32
boundary scan	NO
maximum clock frequency	80 MHz
External data bus width	32
Format	FLOATING POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J84
JESD-609 code	e0
length	29.083 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	6
Number of serial I/Os
Number of terminals	84
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
speed	40 MHz
Maximum slew rate	700 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	29.083 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

IDT79R3081E-40MJ8 Related Products

	IDT79R3081E-40MJ8	IDT79R3081E-50MJ8	IDT79R3081-40MJ8	IDT79R3081-50MJ8
Description	RISC Microprocessor, 32-Bit, 40MHz, CMOS, PQCC84, MQUAD-84	RISC Microprocessor, 32-Bit, 50MHz, CMOS, PQCC84, MQUAD-84	RISC Microprocessor, 32-Bit, 40MHz, CMOS, PQCC84, MQUAD-84	RISC Microprocessor, 32-Bit, 50MHz, CMOS, PQCC84, MQUAD-84
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	QFN	QFN	QFN	QFN
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	84	84	84	84
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3	3A001.A.3
Other features	CACHE COHERENCY	CACHE COHERENCY	CACHE COHERENCY	CACHE COHERENCY
Address bus width	32	32	32	32
bit size	32	32	32	32
boundary scan	NO	NO	NO	NO
maximum clock frequency	80 MHz	50 MHz	80 MHz	50 MHz
External data bus width	32	32	32	32
Format	FLOATING POINT	FLOATING POINT	FLOATING POINT	FLOATING POINT
Integrated cache	NO	NO	NO	NO
JESD-30 code	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84
JESD-609 code	e0	e0	e0	e0
length	29.083 mm	29.083 mm	29.083 mm	29.083 mm
low power mode	YES	YES	YES	YES
Number of external interrupt devices	6	6	6	6
Number of terminals	84	84	84	84
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm
speed	40 MHz	50 MHz	40 MHz	50 MHz
Maximum slew rate	700 mA	825 mA	700 mA	825 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	29.083 mm	29.083 mm	29.083 mm	29.083 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC	MICROPROCESSOR, RISC
Base Number Matches	1	1	1	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead
