5962F9666302QEC datasheet, PDF

Datasheet> All Categories > Drivers and interfaces> 5962F9666302QEC

5962F9666302QEC: DescriptionQUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; CategoryDrivers and interfaces; File Size32KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Related ProductsFound6parts with similar functions to 5962F9666302QEC

Download Datasheet Parametric Compare View All

5962F9666302QEC Overview

QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962F9666302QEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Differential output	YES
Number of drives	4
High level input current maximum value	0.000001 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	1.8 V
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	5.08 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
maximum transmission delay	42 ns
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HS-26CLV31RH

Data Sheet

August 2000

File Number

4898

Radiation Hardened 3.3V Quad Differential

Line Driver

The Intersil HS-26CLV31RH is a radiation hardened 3.3V

quad differential line driver designed for digital data

transmission over balanced lines, in low voltage, RS-422

protocol applications. CMOS processing assures low power

consumption, high speed, and reliable operation in the most

severe radiation environments.

The HS-26CLV31RH accepts CMOS level inputs and converts

them to differential outputs. Enable pins allow several devices

to be connected to the same data source and addressed

independently. The device has unique outputs that become

high impedance when the driver is disabled or powered-down,

maintaining signal integrity in multi-driver applications.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-96663. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.htm

Features

• Electrically Screened to SMD # 5962-96663

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened CMOS

- Total Dose. . . . . . . . . . . . . . . . . . . . . 300 krad(Si)(Max)

- Single Event Upset LET . . . . . . . . . . .100MeV/mg/cm

)

- Single Event Latch-up Immune

• Extremely Low Stand-by Current . . . . . . . . . 100µA (Max)

• Operating Supply Range . . . . . . . . . . . . . . . . 3.0V to 3.6V

• CMOS Level Inputs . . . . V

> (.7)(V

); V

< (.3)(V

)

• Differential Outputs. . . . . . . . . . . V

> 1.8V; V

< 0.5V

• High Impedance Outputs when Disabled or Powered

Down

• Low Output Impedance . . . . . . . . . . . . . . . . . 10Ω or Less

• Full -55

C to 125

C Military Temperature Range

Pinouts

HS1-26CLV31RH (SBDIP)

CDIP2-T16

TOP VIEW

AIN 1

AO 2

AO 3

ENABLE 4

BO 5

BO 6

BIN 7

GND 8

16 V

15 DIN

14 DO

13 DO

12 ENABLE

11 CO

10 CO

9 CIN

Ordering Information

ORDERING NUMBER

5962F9666302QEC

5962F9666302QXC

5962F9666302V9A

5962F9666302VEC

5962F9666302VXC

INTERNAL

MKT. NUMBER

HS1-26CLV31RH-8

HS9-26CLV31RH-8

HS0-26CLV31RH-Q

HS1-26CLV31RH-Q

HS9-26CLV31RH-Q

TEMP.

RANGE

(

-55 to 125

HS1-26CLV31RH/PROTO HS1-26CLV31RH/PROTO

HS9-26CLV31RH/PROTO HS9-26CLV31RH/PROTO

Logic Diagram

ENABLE

DIN

CIN

BIN

AIN

HS9-26CLV31RH (FLATPACK)

CDFP4-F16

TOP VIEW

AIN

ENABLE

DIN

ENABLE

CIN

DO DO

CO CO

BO BO

AO AO

BIN

GND

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.

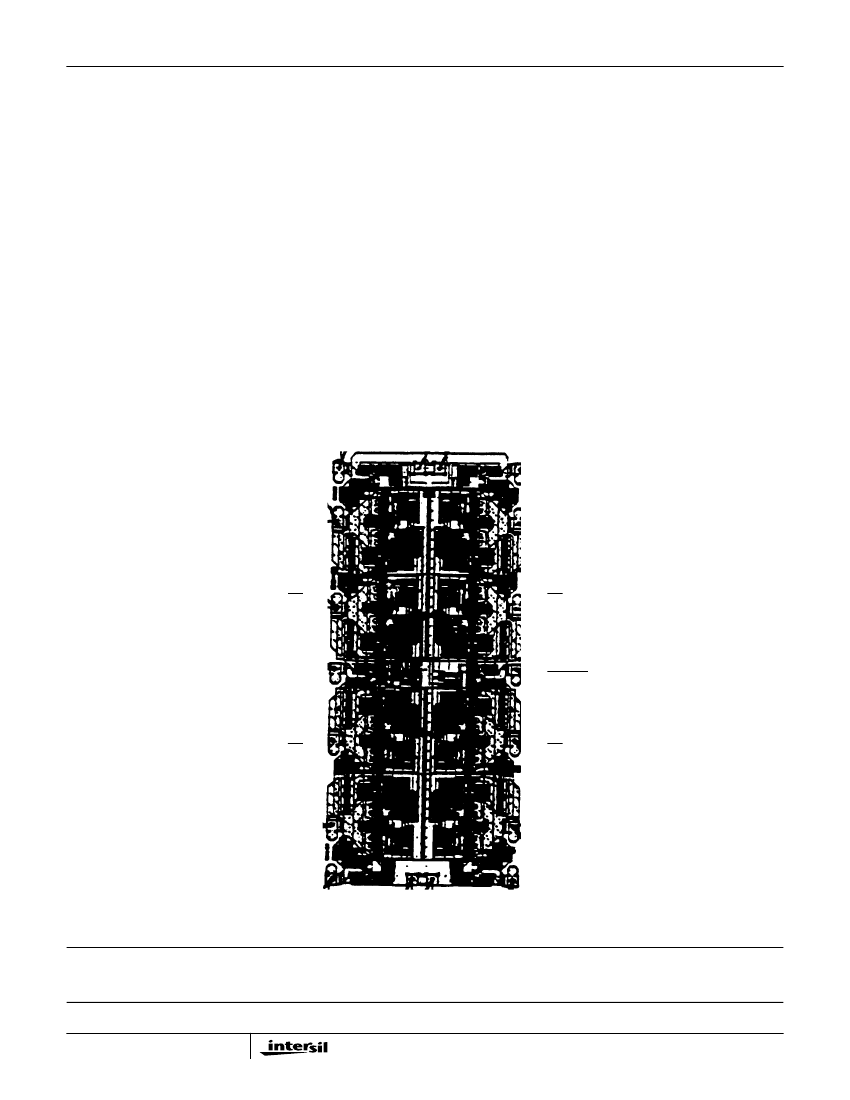

5962F9666302QEC Related Products

	5962F9666302QEC	5962F9666302QXC	5962F9666302VEC
Description	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE DRIVER, CDFP16, CERAMIC, DFP-16	QUAD LINE DRIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	conform to	conform to
Parts packaging code	DIP	DFP	DIP
package instruction	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Contacts	16	16	16
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Differential output	YES	YES	YES
Number of drives	4	4	4
High level input current maximum value	0.000001 A	0.000001 A	0.000001 A
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	EIA-422	EIA-422	EIA-422
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16
JESD-609 code	e0	e4	e4
Number of functions	4	4	4
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Minimum output swing	1.8 V	1.8 V	1.8 V
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP
Encapsulate equivalent code	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V
Maximum seat height	5.08 mm	2.92 mm	5.08 mm
Maximum supply voltage	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V
surface mount	NO	YES	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	Gold (Au)	Gold (Au)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
maximum transmission delay	42 ns	42 ns	42 ns
width	7.62 mm	6.73 mm	7.62 mm
Is it lead-free?	Contains lead	-	Lead free
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation
Base Number Matches	1	1	-
