5962F9666302V9A datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 5962F9666302V9A

5962F9666302V9A: DescriptionQUAD LINE DRIVER, UUC16, DIE-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size32KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance; Related ProductsFound6parts with similar functions to 5962F9666302V9A

Download Datasheet Parametric Compare View All

5962F9666302V9A Overview

QUAD LINE DRIVER, UUC16, DIE-16

5962F9666302V9A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Renesas Electronics Corporation
Parts packaging code	DIE
package instruction	DIE, DIE OR CHIP
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Differential output	YES
Number of drives	4
High level input current maximum value	0.000001 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	EIA-422
JESD-30 code	R-XUUC-N16
JESD-609 code	e4
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	1.8 V
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-PRF-38535 Class V
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Gold (Au)
Terminal form	NO LEAD
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
maximum transmission delay	42 ns

5962F9666302V9A Preview

HS-26CLV31RH

Data Sheet

August 2000

File Number

4898

Radiation Hardened 3.3V Quad Differential

Line Driver

The Intersil HS-26CLV31RH is a radiation hardened 3.3V

quad differential line driver designed for digital data

transmission over balanced lines, in low voltage, RS-422

protocol applications. CMOS processing assures low power

consumption, high speed, and reliable operation in the most

severe radiation environments.

The HS-26CLV31RH accepts CMOS level inputs and converts

them to differential outputs. Enable pins allow several devices

to be connected to the same data source and addressed

independently. The device has unique outputs that become

high impedance when the driver is disabled or powered-down,

maintaining signal integrity in multi-driver applications.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-96663. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.htm

Features

• Electrically Screened to SMD # 5962-96663

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened CMOS

- Total Dose. . . . . . . . . . . . . . . . . . . . . 300 krad(Si)(Max)

- Single Event Upset LET . . . . . . . . . . .100MeV/mg/cm

)

- Single Event Latch-up Immune

• Extremely Low Stand-by Current . . . . . . . . . 100µA (Max)

• Operating Supply Range . . . . . . . . . . . . . . . . 3.0V to 3.6V

• CMOS Level Inputs . . . . V

> (.7)(V

); V

< (.3)(V

)

• Differential Outputs. . . . . . . . . . . V

> 1.8V; V

< 0.5V

• High Impedance Outputs when Disabled or Powered

Down

• Low Output Impedance . . . . . . . . . . . . . . . . . 10Ω or Less

• Full -55

C to 125

C Military Temperature Range

Pinouts

HS1-26CLV31RH (SBDIP)

CDIP2-T16

TOP VIEW

AIN 1

AO 2

AO 3

ENABLE 4

BO 5

BO 6

BIN 7

GND 8

16 V

15 DIN

14 DO

13 DO

12 ENABLE

11 CO

10 CO

9 CIN

Ordering Information

ORDERING NUMBER

5962F9666302QEC

5962F9666302QXC

5962F9666302V9A

5962F9666302VEC

5962F9666302VXC

INTERNAL

MKT. NUMBER

HS1-26CLV31RH-8

HS9-26CLV31RH-8

HS0-26CLV31RH-Q

HS1-26CLV31RH-Q

HS9-26CLV31RH-Q

TEMP.

RANGE

(

-55 to 125

HS1-26CLV31RH/PROTO HS1-26CLV31RH/PROTO

HS9-26CLV31RH/PROTO HS9-26CLV31RH/PROTO

Logic Diagram

ENABLE

DIN

CIN

BIN

AIN

HS9-26CLV31RH (FLATPACK)

CDFP4-F16

TOP VIEW

AIN

ENABLE

DIN

ENABLE

CIN

DO DO

CO CO

BO BO

AO AO

BIN

GND

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.

HS-26CLV31RH

Die Characteristics

DIE DIMENSIONS:

96.5 mils x 195 mils x 21 mils

(2450 x 4950)

INTERFACE MATERIALS:

Glassivation:

Type: PSG (Phosphorus Silicon Glass)

Thickness: 8k

Metallization:

Bottom: Mo/TiW

Thickness: 5800

1kÅ

Top: AlSiCu (Top)

Thickness: 10k

Substrate:

AVLSI1RA

Backside Finish:

Silicon

ASSEMBLY RELATED INFORMATION:

Substrate Potential (Powered Up):

ADDITIONAL INFORMATION:

Worst Case Current Density:

<2.0 x 10

A/cm

Bond Pad Size:

110µm x 100µm

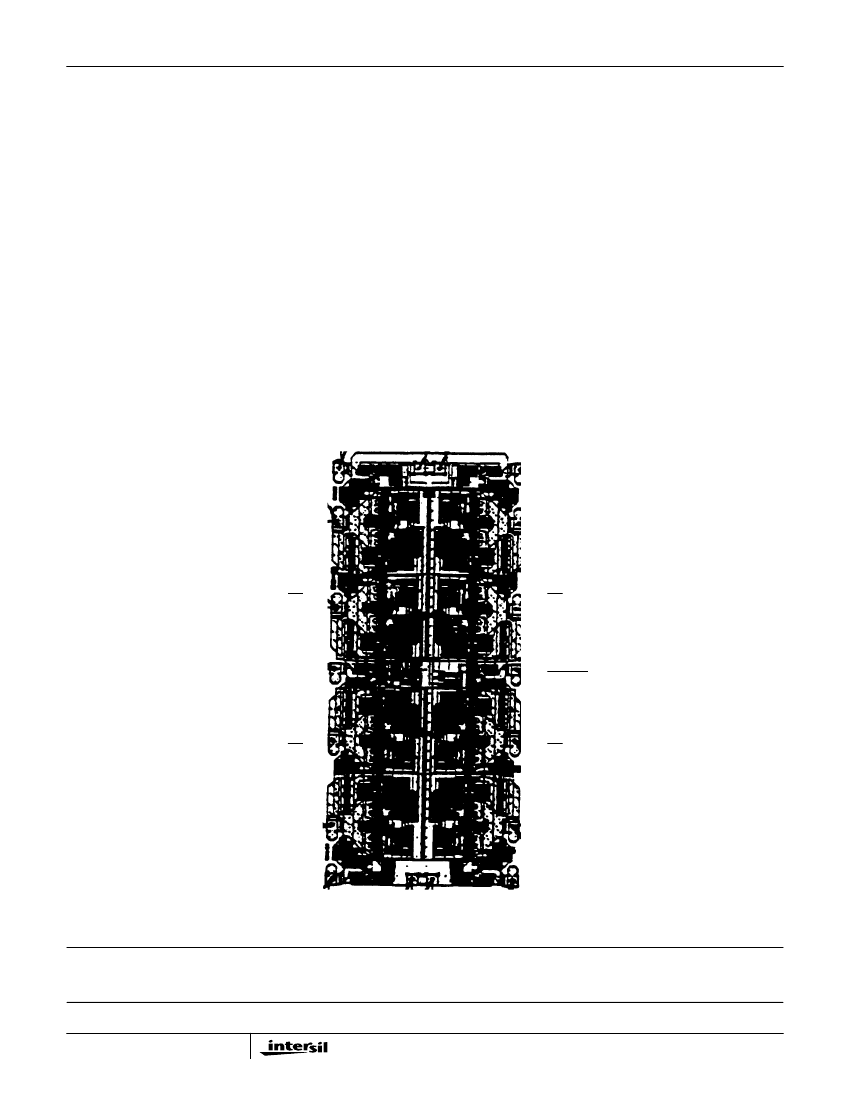

Metallization Mask Layout

HS-26CLV31RH

(16) V

(15) DIN

(14) DO

(13) DO

(12) ENABLE

(11) CO

(10) CO

CIN (9)

(1) AIN

AO (2)

AO (3)

ENABLE (4)

BO (5)

BO (6)

BIN (7)

ND (8)

All Intersil semiconductor products are manufactured, assembled and tested under

ISO9000

quality systems certiﬁcation.

Intersil semiconductor products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time with-

out notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and

reliable. However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result

from its use. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.

For information regarding Intersil Corporation and its products, see web site

www.intersil.com

ND (8)
