3-646166-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 3-646166-2

Preview

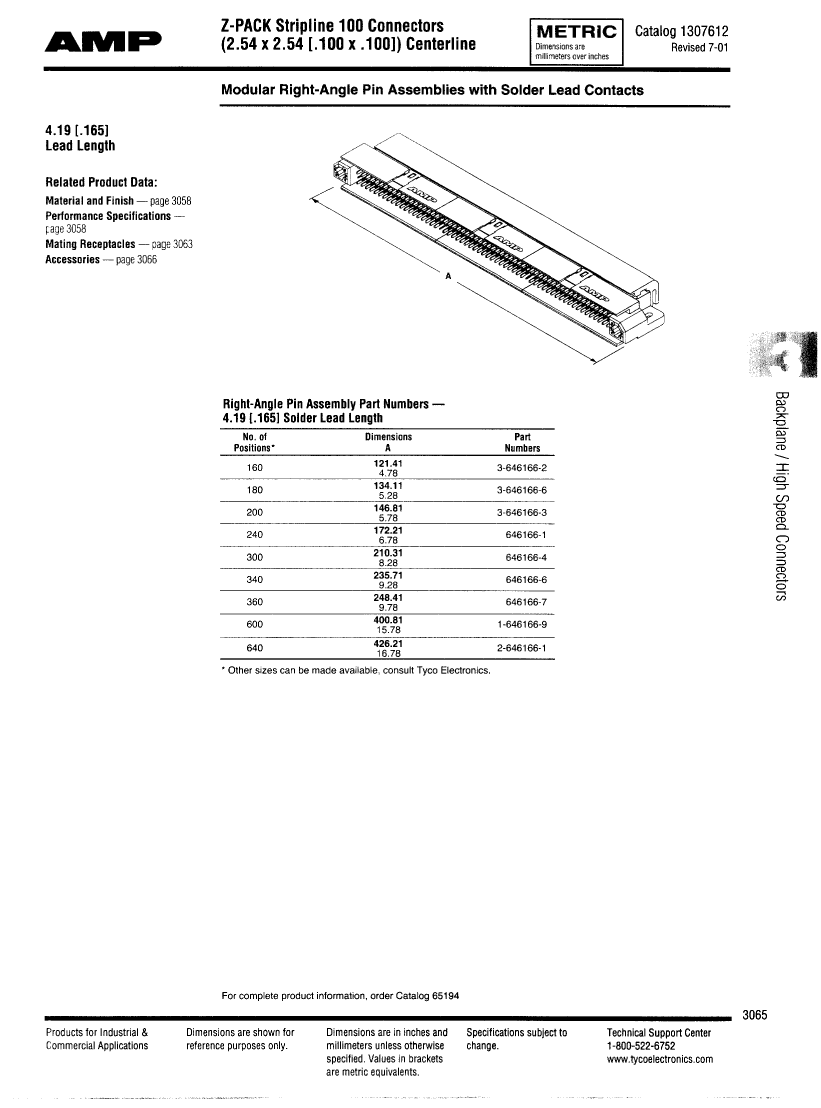

3-646166-2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector; File Size41KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-646166-2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK

3-646166-2 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
body length	4.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Durability	100 Cycles
maximum insertion force	.556 N
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	646166
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
Plating thickness	50u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

3-646166-2 Related Products

	3-646166-2	1-646166-9	646166-1	646166-4	646166-6	3-646166-6
Description	HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	CONNECTOR, 600 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, PLUG	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,300 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,340 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,BLACK	180 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, PLUG
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4	4	4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	160	600	240	300	340	180
Maker	TE Connectivity	-	TE Connectivity	TE Connectivity	TE Connectivity	-
body length	4.9 inch	-	6.9 inch	8.4 inch	9.4 inch	-
Contact completed and terminated	GOLD	-	GOLD	GOLD	GOLD	-
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact resistance	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ	-
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-
Durability	100 Cycles	-	100 Cycles	100 Cycles	100 Cycles	-
maximum insertion force	.556 N	-	.556 N	.556 N	.556 N	-
Insulator color	BLACK	-	BLACK	BLACK	BLACK	-
insulator material	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	-
Manufacturer's serial number	646166	646166	646166	646166	646166	-
Plug contact pitch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	-
Number of connectors	ONE	-	ONE	ONE	ONE	ONE
PCB row number	4	-	4	4	4	-
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	-
Minimum operating temperature	-65 °C	-	-65 °C	-65 °C	-65 °C	-
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	1.905 mm	-	1.905 mm	1.905 mm	1.905 mm	-
Plating thickness	50u inch	-	50u inch	50u inch	50u inch	-
Guideline	UL	-	UL	UL	UL	-
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal length	0.165 inch	-	0.165 inch	0.165 inch	0.165 inch	-
Evacuation force-minimum value	.1112 N	-	.1112 N	.1112 N	.1112 N	-
Base Number Matches	1	-	1	1	1	-
