824-M0127: DescriptionDatacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1; 1CT:1, SO020A; Categorytransformer; File Size124KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

824-M0127 Overview

Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1; 1CT:1, SO020A

824-M0127 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Elec & Eltek
package instruction	SO020A
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX
high	5.97 mm
Insulation voltage	1500 V
length	15.49 mm
Manufacturer's serial number	824-M0127
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TAPE & REEL
physical size	L15.49XB12.19XH5.97 (mm)
Primary inductance	350 µH
surface mount	YES
Transformer type	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1
width	12.19 mm
Base Number Matches	1

Preview

Download Datasheet

View All

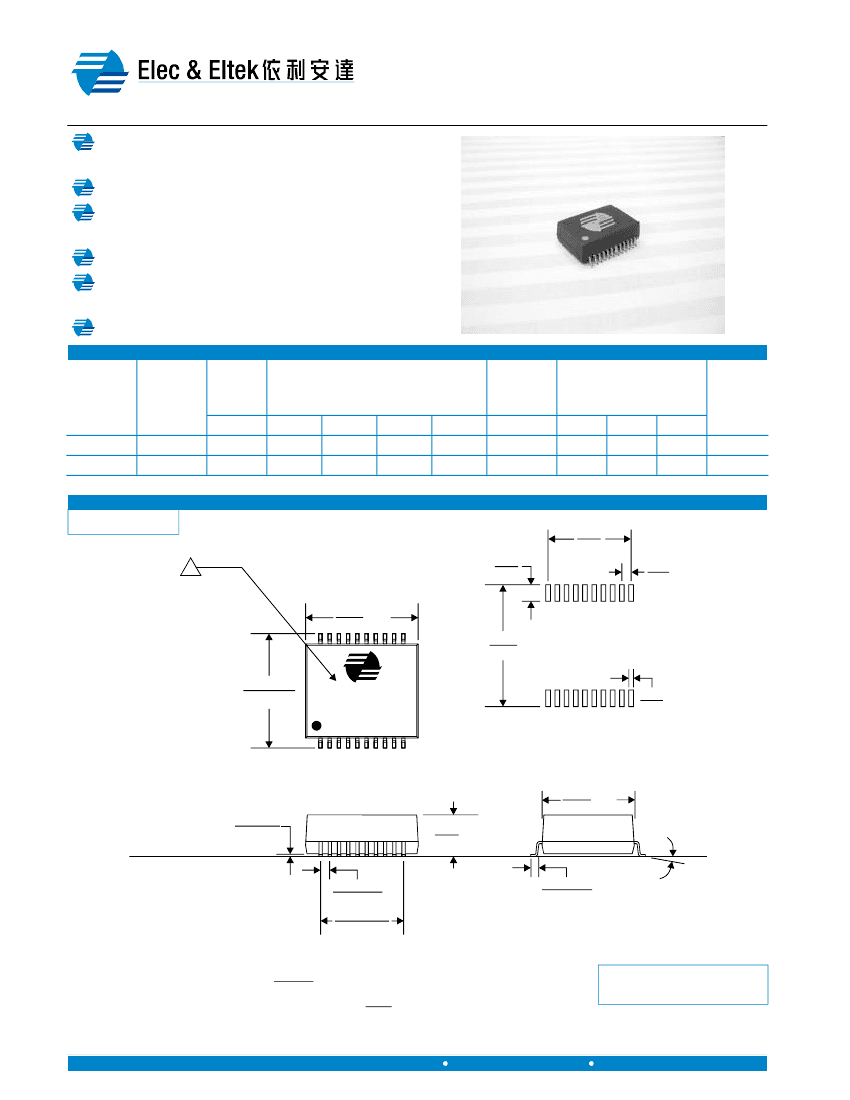

E & E Magnetic Products Limited

10/100 Base-T Single Port

Magnetic Module

Design for Auto MDI/MDIX Applications

CHEMATICS

Compliant with IEEE802.3 standard including

S

350uH

OCL with 8mA DC bias

Excellent crosstalk and return loss performance

Designed to withstand IR-Reflow with peak

temperature per IPC/JEDEC J-STD-020C

Operating temperature 0°C to +70°C

Symmetrical TX and RX channels suitable for Auto

MDI/MDIX applications

RoHS compliant versions are available

E

LECTRICAL

S

PECIFICATION @

25°C

Part

Number

RoHS

Part

Number

Insertion

Loss

(dB Max)

.1-100MHz 1-30MHz

824-M0127 824-M0127R

824-M0128 824-M0128R

1.0

18.0

Return Loss

(dB Min)

40MHz

15.5

50MHz

13.6

CMRR

(dB Min)

60-80MHz .1-100MHz

12.0

35.0

30MHz

50.0

Crosstalk

(dB Min)

60MHz

40.0

100MHz

35.0

1500

Hipot

(Vrms)

M

ECHANICAL

D

IMENSIONS

Package: SO020A

S

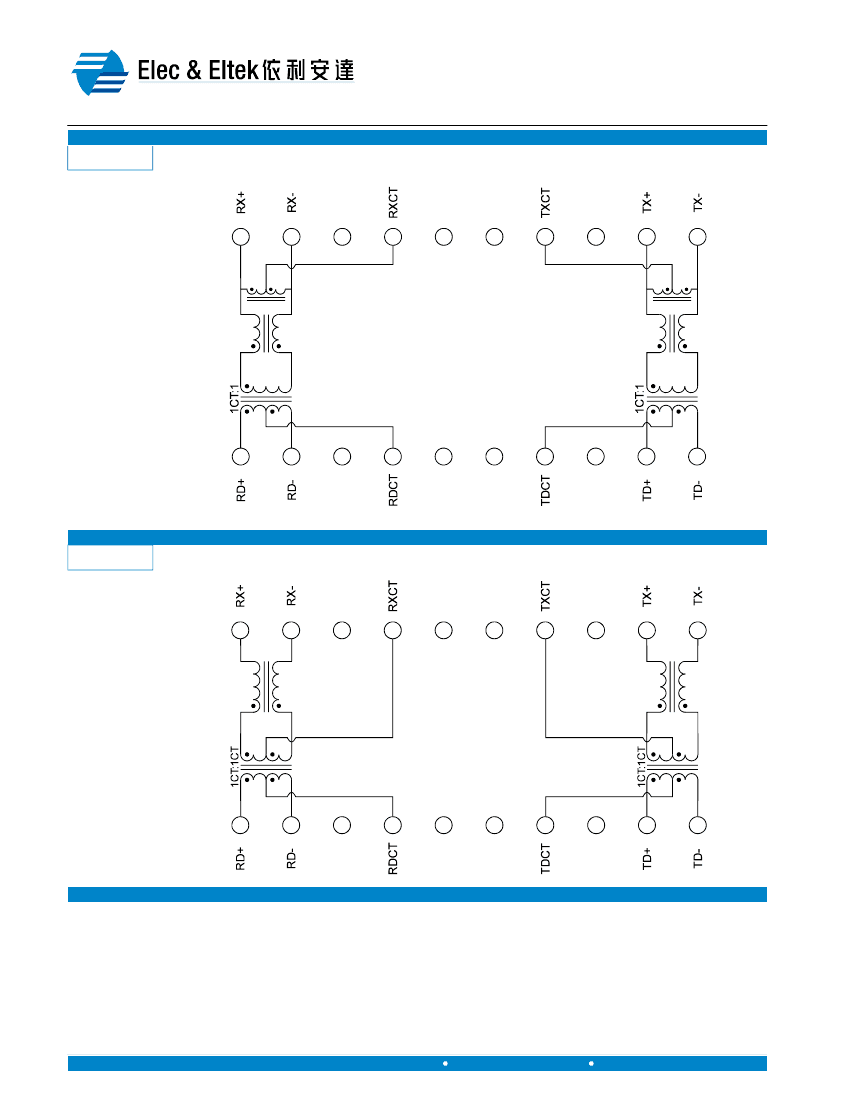

CHEMATICS

3

.090

2.29

.450

11.43

.050

1.27

.610

15.49 MAX

.660

16.76

.600±.010

15.24±0.25

824-M012x

(DATE)

.025

0.64

Recommended

Pad Layout

.480

12.19 MAX

.010-.020

0.25-0.51

REFERENCE OR

GAUGE PLANE

.050±.005

1.27±0.13

.450±.010

11.43±0.25

.235 MAX

5.97

0-8°

.045±.010

1.14±0.25

Notes:

Weight (in gram)

1. All dimensions are specified in inches with higher precedence in inches.

mm

Tape & Reel

2. Unless otherwise specified, all tolerances are ± .010 .

0.25

3. For available RoHS part number, the part will be marked with “824-M0xxxR”, instead of “824-M0xxx”.

:

2.2 typ.

450 / reel

2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong

1

Tel: (852) 2765 3888

Fax: (852) 2954 3304

EH016(05)

Revised in 06/07

824-M0127 Related Products

	824-M0127	824-M0127R	824-M0128R	824-M0128
Description	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1; 1CT:1, SO020A	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1; 1CT:1, SO020A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1CT; 1CT:1CT, SO020A, ROHS COMPLIANT	Datacom Transformer, 10/100 BASE-T; AUTOMDIX Application(s), 1CT:1CT; 1CT:1CT, SO020A
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	incompatible
Maker	Elec & Eltek	Elec & Eltek	Elec & Eltek	Elec & Eltek
package instruction	SO020A	SO020A, ROHS COMPLIANT	SO020A, ROHS COMPLIANT	SO020A
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HEIGHT DIM INCLUDES TERMINALS ALSO	HEIGHT DIM INCLUDES TERMINALS ALSO	HEIGHT DIM INCLUDES TERMINALS ALSO	HEIGHT DIM INCLUDES TERMINALS ALSO
application	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX	10/100 BASE-T; AUTOMDIX
high	5.97 mm	5.97 mm	5.97 mm	5.97 mm
Insulation voltage	1500 V	1500 V	1500 V	1500 V
length	15.49 mm	15.49 mm	15.49 mm	15.49 mm
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
method of packing	TAPE & REEL	TAPE & REEL	TAPE & REEL	TAPE & REEL
physical size	L15.49XB12.19XH5.97 (mm)	L15.49XB12.19XH5.97 (mm)	L15.49XB12.19XH5.97 (mm)	L15.49XB12.19XH5.97 (mm)
Primary inductance	350 µH	350 µH	350 µH	350 µH
surface mount	YES	YES	YES	YES
Transformer type	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER	DATACOM TRANSFORMER
Turns ratio (Np:Ns)	1CT:1; 1CT:1	1CT:1; 1CT:1	1CT:1CT; 1CT:1CT	1CT:1CT; 1CT:1CT
width	12.19 mm	12.19 mm	12.19 mm	12.19 mm
Base Number Matches	1	1	1	1
