2N6027RLRM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> 2N6027RLRM

2N6027RLRM: DescriptionPROGRAMMABLE UJT, TO-92; Categoryaccessories; File Size93KB，8 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

2N6027RLRM Overview

PROGRAMMABLE UJT, TO-92

2N6027RLRM Parametric

Parameter Name	Attribute value
Number of terminals	3
Maximum peak current	2 uA
Processing package description	Plastic, TO-226AA, 3 PIN
state	TRANSFERRED
packaging shape	round
Package Size	cylindrical
Terminal form	THROUGH-hole
Terminal location	BOTTOM
Packaging Materials	Plastic/Epoxy
structure	single
Number of components	1
Maximum cathode and anode voltage	40 V
Trigger type	programmable unijunction transistor
Minimum valley current	70 uA

Preview

Download Datasheet

View All

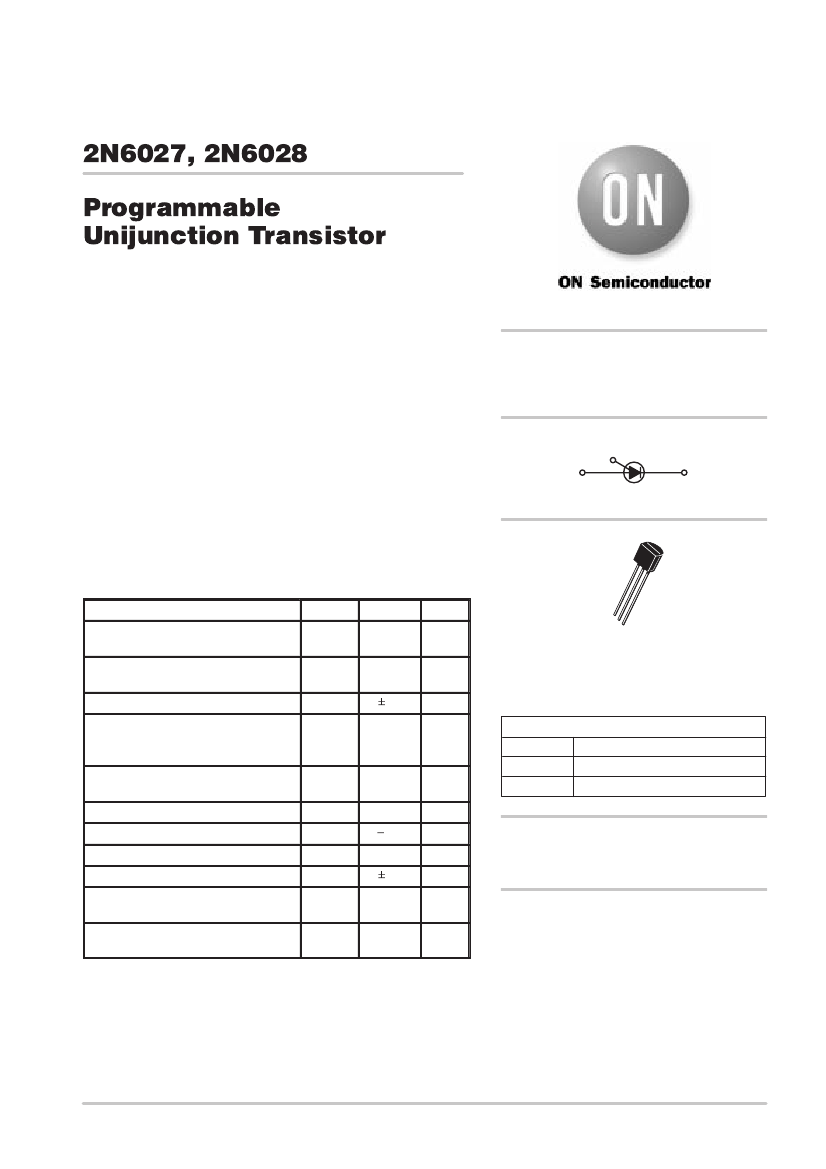

2N6027, 2N6028

Preferred Device

Programmable

Unijunction Transistor

Programmable Unijunction

Transistor Triggers

Designed to enable the engineer to “program’’ unijunction

characteristics such as RBB,

η,

IV, and IP by merely selecting two

resistor values. Application includes thyristor–trigger, oscillator, pulse

and timing circuits. These devices may also be used in special thyristor

applications due to the availability of an anode gate. Supplied in an

inexpensive TO–92 plastic package for high–volume requirements,

this package is readily adaptable for use in automatic insertion

equipment.

•

Programmable — RBB,

η,

IV and IP

•

Low On–State Voltage — 1.5 Volts Maximum @ IF = 50 mA

•

Low Gate to Anode Leakage Current — 10 nA Maximum

•

High Peak Output Voltage — 11 Volts Typical

•

Low Offset Voltage — 0.35 Volt Typical (RG = 10 k ohms)

•

Device Marking: Logo, Device Type, e.g., 2N6027, Date Code

MAXIMUM RATINGS

(TJ = 25°C unless otherwise noted)

Rating

*Power Dissipation

Derate Above 25°C

*DC Forward Anode Current

Derate Above 25°C

*DC Gate Current

Repetitive Peak Forward Current

100

s Pulse Width, 1% Duty Cycle

*20

s Pulse Width, 1% Duty Cycle

Non–Repetitive Peak Forward Current

s Pulse Width

*Gate to Cathode Forward Voltage

*Gate to Cathode Reverse Voltage

*Gate to Anode Reverse Voltage

*Anode to Cathode Voltage(1)

Operating Junction Temperature Range

*Storage Temperature Range

*Indicates JEDEC Registered Data

(1) Anode positive, RGA = 1000 ohms

Anode negative, RGA = open

Symbol

1/θJA

ITRM

1.0

2.0

ITSM

VGKF

VGKR

VGAR

VAK

Tstg

5.0

Amps

Volts

°C

Value

300

4.0

150

2.67

Unit

mW/°C

mA/°C

Amps

http://onsemi.com

PUTs

40 VOLTS

300 mW

TO–92 (TO–226AA)

CASE 029

STYLE 16

PIN ASSIGNMENT

Anode

Gate

Cathode

5.0

–50 to

+100

–55 to

+150

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 7 of this data sheet.

Preferred

devices are recommended choices for future use

and best overall value.

Semiconductor Components Industries, LLC, 2000

May, 2000 – Rev. 2

Publication Order Number:

2N6027/D
