820-AG10D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > socket> 820-AG10D

820-AG10D: DescriptionIC Socket, DIP20, 20 Contact(s); Categorysocket; File Size111KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric View All

820-AG10D Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	820-AG10D	-	-	View	Buy Now

820-AG10D Overview

IC Socket, DIP20, 20 Contact(s)

820-AG10D Parametric

Parameter Name	Attribute value
Maker	Thomas & Betts Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Device slot type	IC SOCKET
Type of equipment used	DIP20
Shell material	POLYESTER
Manufacturer's serial number	800
Number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

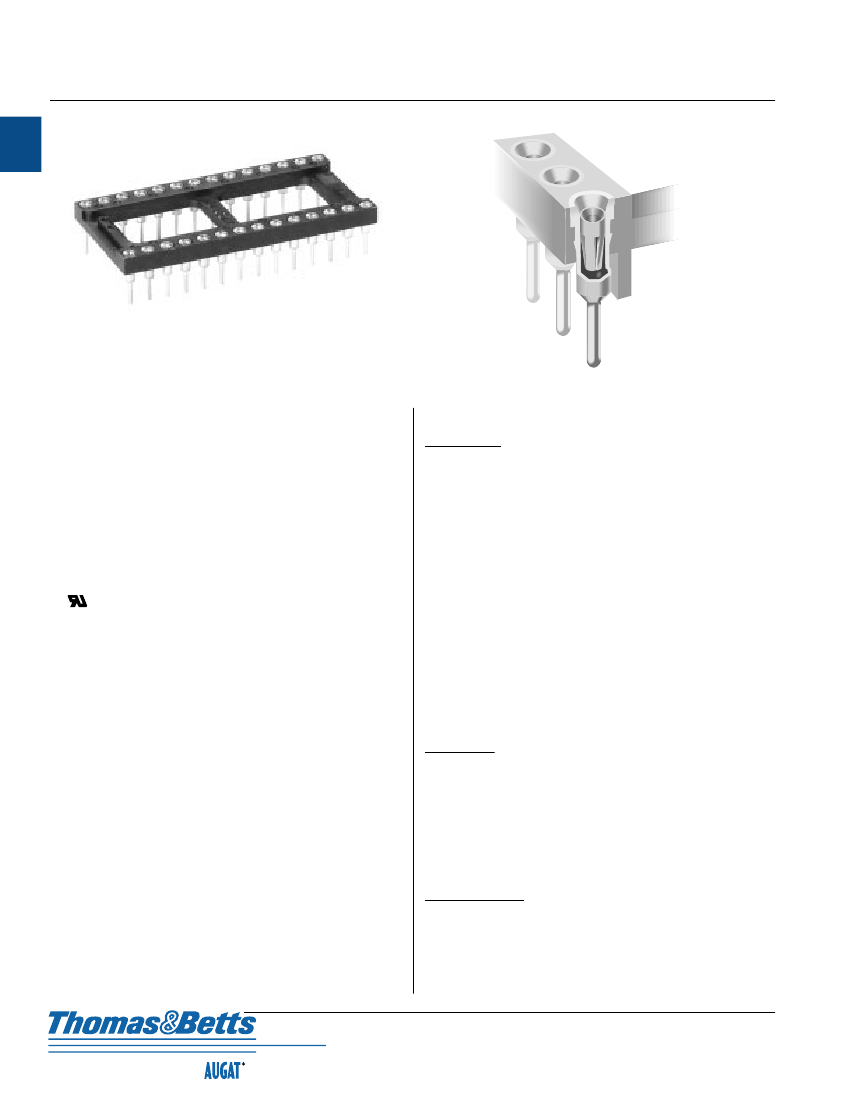

800 Series

Four-Fingered Contact Open Insulator DIP Sockets

828-AG11D-ES

FEATURES:

The Augat 800 Series combines precision four-fingered inner contacts with

an open ladder insulator to produce the ultimate high-reliability socket.

• Precision four-fingered inner contacts provide concentric funnel entry

for easy flat and round lead insertion

• “X” & “Y” stackable. Open ladder for cooling, cleaning and inspection.

Low profile

• Accommodates 8 through 64 pins DIPS, rectangular or round IC leads

• Non-wicking, closed bottom sleeve provides 100% protection

against flux and solder contamination. Choice of solderless

wrap or PC termination

•

Recognized under the Component Program of Underwriter

Laboratories, Inc. File No. E111362

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1,

Condition II, 10 G’s

Shock .............................. Passed MIL-STD-1344, Method 2004.1,

Condition C, 100 G’s

Durability ...................... Passed MIL-STD-1344, Method 2016

Normal Force ................ 125 Grams (4.4 oz.) average with .018" (0,46) dia.

polished steel pin (Premium Series)

200 Grams (7.1 oz.) average with .018" (0,46) dia.

polished steel pin (Economy Series)

Inner Contact

Retention .................... 7.5 Lbs. per line average

Sleeve Retention

in Plastic .................... 3.0 Lbs. per line minimum

Solderability .................. Passed MIL-STD-202F, Method 208

Insertion Force .............. Premium - 134 grams (4.7 oz.) average with a

.018" (0,46) dia. polished steel pin

Economy - 179 grams (6.3 oz.) average with a

.018" (0,46) dia. polished steel pin

Withdrawal Force .......... 63 Grams (2.2 oz.) average with a

(Premium and Economy) .018" (0,46) dia. polished steel pin

ELECTRICAL

Contact Resistance ........ 10 Milliohms max.

Contact Rating .............. 3 Amps

Capacitance .................... 1 pF per MIL-STD-202, Method 305

(contact to contact)

Insulation Resistance .... 5,000 Megohms min. @ 500 VDC per

MIL-STD-1344, Method 3003.1

Dielectric Withstanding

Voltage ...................... 1,000 Volts RMS per MIL-STD-1344,

Method 3001.1

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Cond. II

Thermal Shock .............. Passed MIL-STD-1344, Method 1003.1, Cond. A

Operation Temperature .. Gold inner contact -55°C to +125°C,

Tin/lead inner contact -55°C to +105°C

• Beryllium copper inner contact for maximum mechanical and

electrical performance

• Machined (Premium Series) and stamped (Economy Series) contacts

are available

• For extreme conditions involving shock and vibration, Augat's high

retention force contact is available

APPLICATION DIMENSIONS:

• PCB Thickness Range: Standard .062" and .092" (1,57 and 2,34)

• PCB Hole Size Range:

.035"

.002" (0,89

0,05) PC tail,

.055"

.003" (1,40

0,08) solderless wrap

• IC Pin Dimension Range: .009" x .015" (0,23 x 0,38) through

.011" x .020" (0,28 x 0,51)

.016" to .021" (0,41 to 0,53) round lead

.105" (2,67) min. length

MATERIAL SPECIFICATIONS:

Insulator ........................ Thermoplastic polyester, UL rated 94V-0

Sleeve ............................ Machined brass

Contact .......................... Beryllium copper

Sleeve Plating ................ Tin/lead or gold

Contact Plating .............. Premium or Economy Series (ES) - gold or

tin/lead

Economy Series (ESL) - low gold

Quality & Innovation From The

Product Group

A14

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805
