AMMP-6220
6-20 GHz Low Noise Amplifier
Data Sheet
Description
Avago’s AMMP-6220 is a high gain, low-noise ampli-
fier that operates from 6 GHz to 20 GHz. The LNA is
designed to be a easy-to-use component for any surface
mount PCB application. The broad and uncondition-
ally stable performance makes this LNA ideal for pri-
mary, sub-sequential or driver low noise gain stages.
Intended applications include microwave radios,
802.16, automotive radar, VSAT, and satellite receivers.
Since one part can cover several bands, the AMMP-6220
can reduce part inventory and increase volume purchase
options. The LNA has integrated 50
W
I/O match, DC block-
ing, self-bias and choke to eliminate complex tuning and
assembly processes typically required by hybrid (discrete-
FET) amplifiers. The package is full SMT compatible with
backside grounding and I/O to simplify assembly.
Features
•
5x5 mm surface mount package
•
Broad Band performance 6-20 GHz
•
Low 2.5 dB typical noise figure
•
High 22 dB typical gain
•
50
W
input and output match
•
Single 3 V (55 mA) supply bias
Applications
•
Microwave radio systems
•
Satellite VSAT, DBS up/down link
•
LMDS & Pt-Pt mmW Long Haul
•
Broadband Wireless Access (including 802.16 and
802.20 WiMax)
Functional Diagram
PIN
1
2
3
4
5
6
7
8
FUNCTION
V
d
RF
out
•
WLL and MMDS loops
•
Commercial grade military
3
1
2
8
100 pF
100 pF
4
RF
in
7
6
5
PACKAGE
BASE
GND
Attention: Observe precautions for handling electrostatic sensitive devices.
ESD Machine Model (Class 1A)
ESD Human Body Model (Class 0)
Refer to Avago Application Note A004R:
Electrostatic Discharge Damage and Control.
AMMP-6220 Absolute Maximum Ratings
[1]
Symbol
Parameters/Conditions
V
d
Positive Drain Voltage
I
d
Drain Current
P
in
CW Input Power
T
ch
Operating Channel Temp.
T
stg
T
max
Storage Case Temp.
Maximum Assembly Temp.
(60 sec max.)
Units
V
mA
dBm
°C
°C
°C
Min.
Max.
7
100
15
+150
+150
+300
-65
Note:
1. Operation in excess of any one of these conditions may result in permanent damage to this
device.
AMMP-6220 DC Specifications/Physical Properties
[1]
Symbol Parameters and Test Conditions
Units
I
d
Drain Supply Current (under any mA
RF power drive and temperature)
(V
d
= 3.0 V)
q
ch-b
Thermal Resistance
[2]
(Backside temperature, T
b
= 25°C) °C/W
Min.
Typ.
55
Max.
70
27
Notes:
1. Ambient operational temperature T
A
= 25°C unless otherwise noted.
2. Channel-to-backside Thermal Resistance (T
channel
(T
c
) = 34°C) as measured using infrared mi-
croscopy. Thermal Resistance at backside temperature (T
b
) = 25°C calculated from measured
data.
AMMP-6220 RF Specifications
[3, 4, 6]
T
A
= 25°C, V
d
= 3.0 V, I
d(Q)
= 55 mA, Z
o
= 50
W
Symbol
Parameters and Test Conditions
Gain
Small-signal Gain
[5]
NF
Noise Figure into 50
W
[5]
P
-1dB
Output Power at 1dB Gain Compression
OIP3
Third Order Intercept Point;
∆f = 100 MHz; Pin = -20 dBm
RLin
Input Return Loss
RLout
Output Return Loss
Isol
Reverse Isolation
Units
dB
dB
dBm
dBm
dB
dB
dB
Typical
22
2.5
+10
+20
-12
-16
-45
Sigma
0.5
0.2
0.8
1.1
0.3
0.7
0.5
Notes:
3. Small/Large -signal data measured in a fully de-embedded test fixture form T
A
= 25°C.
4. Pre-assembly into package performance verified 100% on-wafer per AMMC-6220 published specifications.
5. This final package part performance is verified by a functional test correlated to actual performance at one or more frequencies.
6. Specifications are derived from measurements in a 50
W
test environment. Aspects of the amplifier performance may be improved over a more
narrow bandwidth by application of additional conjugate, linearity, or low noise (Gopt) matching.
2
AMMP-6220 Typical Performances
(T
A
= 25°C, V
d
=3 V, I
D
= 55 mA, Z
in
= Z
out
= 50
W
unless otherwise stated)
Note:
These measurements are in 50
W
test environment. Aspects of the amplifier performance may be improved over a narrower bandwidth by
application of additional conjugate, linearity or low noise (Gopt) matching.
25
20
15
0
-10
0
-5
-20
S21 (dB)
S21 (dB)
-30
-40
S11 (dB)
-10
10
5
0
-15
-50
-60
-20
4
6
8
10
12
14
16
18
20
22
4
6
8
10
12
14
16
18
20
22
4
6
8
10
12
14
16
18
20
22
FREQUENCY (GHz)
FREQUENCY (GHz)
FREQUENCY (GHz)

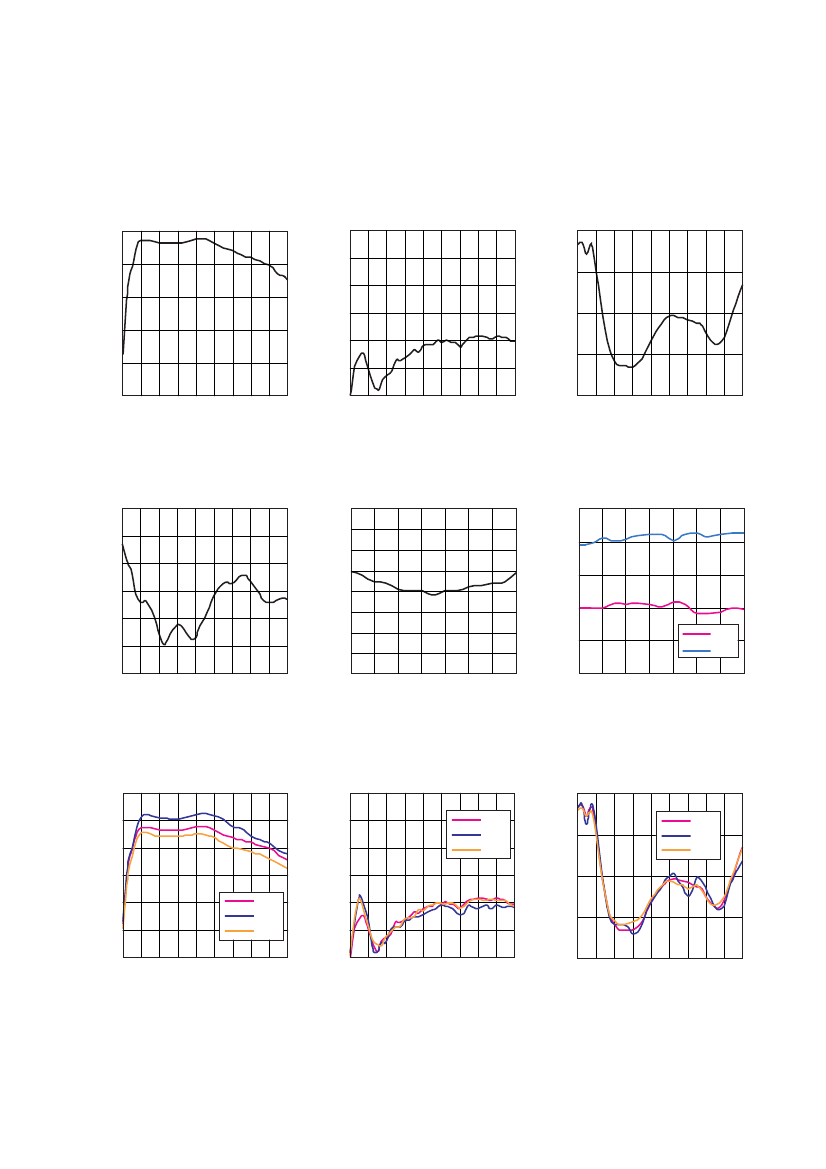

Figure 1. Gain.
Figure 2. Isolation.
Figure 3. Input return loss.
0
-5
-10
4.0
3.5
25
20
S22 (dB)
2.5
OP-1dB & OIP3 (dBm)
3.0
-15
-20
-25
-30
NF (dB)
15
10
P-1dB
OIP3
6
8
10
12
14
16
18
20
2.0
1.5
1.0
0.5
5
0
4
6
8
10
12
14
16
18
20
22
0
6
8
10
12
14
16
18
20
FREQUENCY (GHz)
FREQUENCY (GHz)
FREQUENCY (GHz)
Figure 4. Output return loss.
Figure 5. Noise figure.
Figure 6. Typical power, OP-1dB and OIP3.
30
25
20
0
-10
-20
+25°C
-40°C
+85°C
0
+25°C
-5
-40°C
+85°C
S21 (dB)
S12 (dB)
15
10
5
0
+25°C
-40°C
+85°C
-30
-40
S11 (dB)
4
6
8
10
12
14
16
18
20
22
-10
-15
-50
-60
-20
4
6
8
10
12
14
16
18
20
22
4
6
8
10
12
14
16
18
20
22
FREQUENCY (GHz)
FREQUENCY (GHz)
FREQUENCY (GHz)
Figure 7. Gain over temperature.
Figure 8. Isolation over temperature.
Figure 9. Input return loss over temperature.
3
AMMP-6220 Typical Performances
(T
A
= 25°C, V
d
= 3 V, I
D
= 55 mA, Z
in
= Z
out
= 50
W
unless otherwise stated)
Note:
These measurements are in 50
W
test environment. Aspects of the amplifier performance may be improved over a narrower bandwidth by
application of additional conjugate, linearity or low noise (Gopt) matching.
0
+25°C
-5
-10
-40°C
+85°C
4.0
3.5
3.0
2.5
+25°C
-40°C
+85°C
62
+25°C
60
58
Idd (mA)
-40°C
+85°C
S22 (dB)
-15
-20
-25
-30
NF (dB)
2.0
1.5
1.0
0.5
56
54
52
50
3.0
4
6
8
10
12
14
16
18
20
22
0
6
8
10
12
14
16
18
20
3.5
4.0
Vdd (V)
4.5
5.0
FREQUENCY (GHz)
FREQUENCY (GHz)

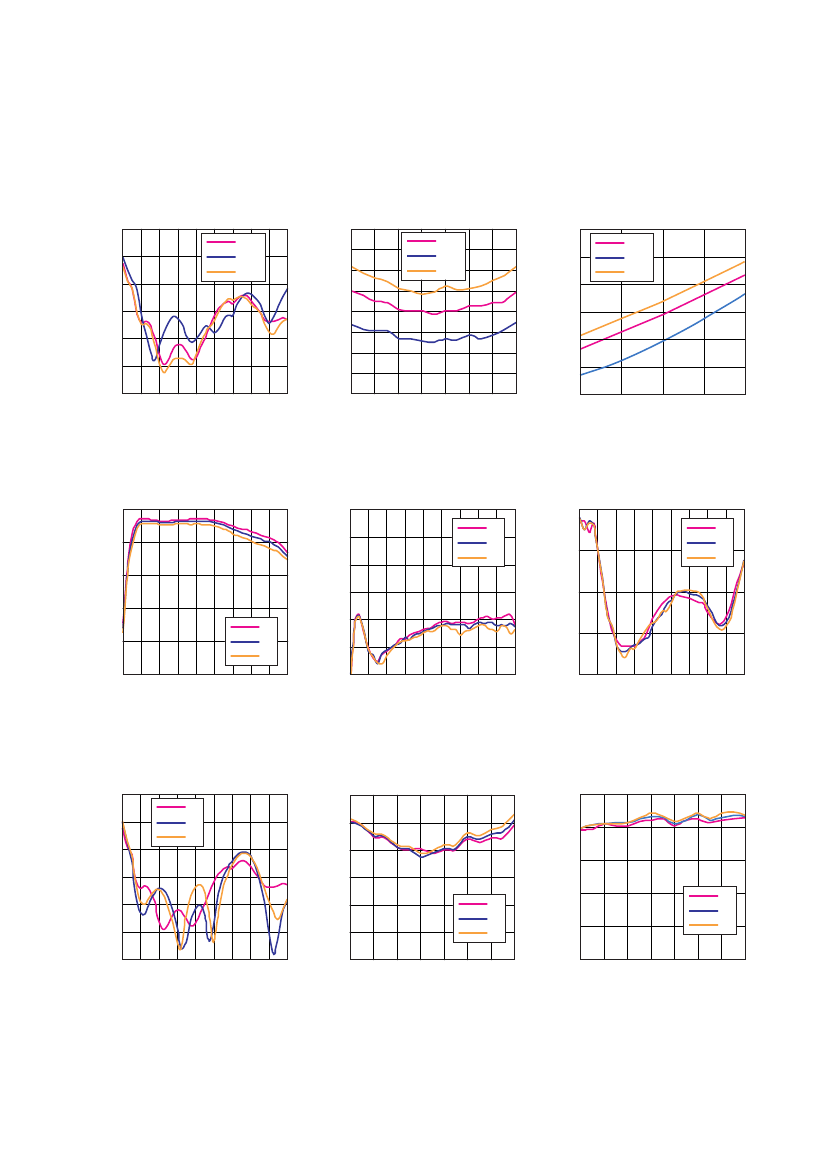

Figure 10. Output return loss over temperature.
Figure 11. NF over temperature.
Figure 12. Bias current over temperature.
25
20
15
0
-10
-20
3V
4V
5V
0
3V
-5
4V
5V
S21 (dB)
S12 (dB)
S11 (dB)
4
6
8
10
12
14
16
18
20
22
-30
-40
-10
10
3V
5
0
4V
5V
4
6
8
10
12
14
16
18
20
22
-15
-50
-60
-20
4
6
8
10
12
14
16
18
20
22
FREQUENCY (GHz)
FREQUENCY (GHz)
FREQUENCY (GHz)
Figure 13. Gain over Vdd.
Figure 14. Isolation over Vdd.
Figure 15. Input RL over Vdd.
0
3V
-5
-10
S22 (dB)
3.0
25
20
OIP3 (dBm)
4V
5V
2.5
2.0
NF (dB)
15
10
-15
-20
-25
-30
1.5
1.0
0.5
0
3V
4V
5V
6
8
10
12
14
16
18
20
3V
4V
5V
5
0
4
6
8
10
12
14
16
18
20
22
6
8
10
12
14
16
18
20
FREQUENCY (GHz)
FREQUENCY (GHz)
FREQUENCY (GHz)
Figure 16. Output return loss over temperature.
Figure 17. Noise figure over Vdd.
Figure 18. OIP3 over Vdd.
4
AMMP-6220 Typical Scattering Parameters
[1]
(T
A
= 25°C, V
d
= 3 V, Zo = 50
W)
Freq GHz
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
14.5
15.0
15.5
16.0
16.5
17.0
17.5
18.0
18.5
19.0
19.5
20.0
20.5
21.0
21.5
22.0
22.5
23.0
23.5
24.0
24.5
25.0
S11
DB
-1.46
-1.03
-0.40
-4.65
-1.67
-1.39
-2.80
-1.59
-4.66
-8.62
-11.96
-14.57
-15.90
-16.48
-16.49
-16.53
-16.56
-16.19
-15.63
-14.36
-13.22
-12.30
-11.45
-10.83
-10.47
-10.32
-10.53
-10.62
-10.79
-10.97
-11.25
-11.47
-12.36
-13.30
-13.86
-13.77
-12.94
-11.42
-9.73
-8.00
-6.54
-5.44
-5.12
-4.72
-4.17
-3.40
-2.65
Mag
0.845
0.888
0.955
0.585
0.825
0.851
0.724
0.832
0.585
0.370
0.252
0.187
0.160
0.150
0.150
0.149
0.149
0.155
0.165
0.191
0.218
0.242
0.268
0.287
0.299
0.305
0.297
0.294
0.289
0.283
0.274
0.267
0.241
0.217
0.203
0.205
0.225
0.268
0.326
0.398
0.471
0.534
0.554
0.581
0.618
0.675
0.737
Phase
65.6
-4.4
-83.9
-150.2
153.6
72.8
18.7
-65.0
-144.6
148.4
93.4
48.4
12.5
-21.7
-58.8
-100.8
-147.1
161.1
108.2
54.8
3.0
-50.7
-102.0
-154.6
153.2
101.7
52.2
8.9
-33.2
-67.4
-109.8
-152.2
168.0
132.5
99.5
67.3
32.0
-6.3
-49.1
-94.4
-140.6
173.4
128.5
86.1
44.3
0.9
-44.6
S21
dB
-28.9
-10.6
6.1
10.6
6.2
16.6
19.6
22.8
23.5
23.6
23.6
23.3
23.2
23.1
23.1
23.2
23.2
23.3
23.4
23.6
23.8
23.7
23.7
23.6
23.2
22.7
22.3
22.1
21.9
21.5
21.4
21.0
20.9
20.6
20.4
20.1
19.8
19.4
18.5
18.2
17.7
16.9
16.3
15.3
13.7
12.6
11.6
Mag
0.036
0.292
2.027
3.420
2.051
6.764
9.563
13.836
15.077
15.218
15.198
14.717
14.575
14.429
14.408
14.455
14.462
14.624
14.926
15.226
15.497
15.483
15.450
15.143
14.518
13.724
13.168
12.858
12.536
11.970
11.796
11.331
11.208
10.720
10.474
10.158
9.847
9.413
8.500
8.140
7.703
7.055
6.535
5.881
4.894
4.288
3.822
Phase
-62.0
-147.1
96.8
-71.3
-104.2
-178.3
93.3
9.3
-72.4
-145.1
150.4
90.5
33.6
-20.9
-74.7
-126.9
-178.2
131.2
80.4
29.4
-20.8
-72.0
-122.8
-173.1
135.7
87.2
38.7
-8.5
-56.2
-102.6
-151.3
162.1
115.8
69.0
21.3
-25.9
-74.5
-121.1
-169.0
142.8
93.3
45.0
-3.1
-54.0
-102.8
-147.1
168.3
S12
dB
-60
-51
-46
-56
-61
-49
-45
-44
-50
-55
-58
-54
-52
-51
-47
-47
-46
-45
-43
-44
-42
-41
-41
-40
-40
-39
-40
-40
-42
-40
-39
-38
-38
-38
-38
-39
-38
-39
-39
-40
-40
-41
-43
-45
-47
-49
-50
Mag
0.001
0.003
0.005
0.001
0.001
0.003
0.005
0.006
0.003
0.002
0.001
0.002
0.002
0.003
0.004
0.004
0.005
0.006
0.007
0.006
0.008
0.008
0.008
0.010
0.009
0.010
0.009
0.009
0.008
0.009
0.011
0.012
0.012
0.012
0.012
0.011
0.012
0.011
0.011
0.010
0.010
0.009
0.007
0.005
0.004
0.003
0.003
INPUT REFERENCE
PLANE FOR
S-PARAMETERS
Phase
70.9
12.1
-72.
136.7
143.5
-86.3
140.2
26.4
-66.8
-116.2
153.4
89.9
33.2
-16.5
-46.2
-85.8
-121.8
-155.9
159.4
130.7
88.0
49.2
14.5
-26.9
-66.8
-104.7
-146.3
174.6
138.1
116.4
77.9
38.0
-5.3
-40.0
-82.3
-118.5
-161.5
162.1
124.7
79.8
35.1
2.9
-41.2
-84.6
-136.3
-162.8
134.1
S22
dB
-4.8
-9.6
-8.8
-6.3
-6.1
-9.3
-10.8
-15.5
-16.9
-16.7
-17.5
-19.5
-22.7
-24.6
-23.7
-21.9
-21.0
-21.3
-22.6
-23.8
-23.4
-21.3
-19.7
-17.8
-16.0
-14.4
-13.5
-13.2
-13.6
-12.7
-12.1
-12.1
-13.1
-14.2
-15.4
-16.5
-16.8
-16.8
-16.5
-16.1
-16.5
-17.3
-21.9
-18.0
-11.5
-9.0
-7.7
Mag
0.570
0.330
0.361
0.483
0.491
0.342
0.286
0.166
0.141
0.146
0.132
0.106
0.073
0.059
0.065
0.080
0.089
0.086
0.074
0.064
0.067
0.086
0.102
0.127
0.157
0.189
0.211
0.218
0.208
0.231
0.247
0.246
0.220
0.194
0.170
0.148
0.144
0.143
0.148
0.156
0.149
0.136
0.080
0.126
0.265
0.355
0.409
Phase
85.5
38.7
18.1
-46.1
-118.9
174.4
125.8
79.4
64.2
31.4
-8.7
-51.8
-103.7
-172.2
119.7
70.3
31.0
-3.6
-29.9
-46.2
-59.0
-90.7
-130.4
179.7
128.3
79.9
34.8
-4.6
-38.0
-65.0
-101.8
-140.0
179.3
139.1
94.9
44.7
-5.1
-51.5
-92.9
-132.8
-167.4
159.4
138.2
178.1
141.6
100.9
61.8
Note:
Data obtained from ICM fixture measurements fully de-embedded to package edge.
OUTPUT REFERENCE
PLANE FOR
S-PARAMETERS
(VIEW FROM
PACKAGE BOTTOM)
5
京公网安备 11010802033920号
EEWORLD
