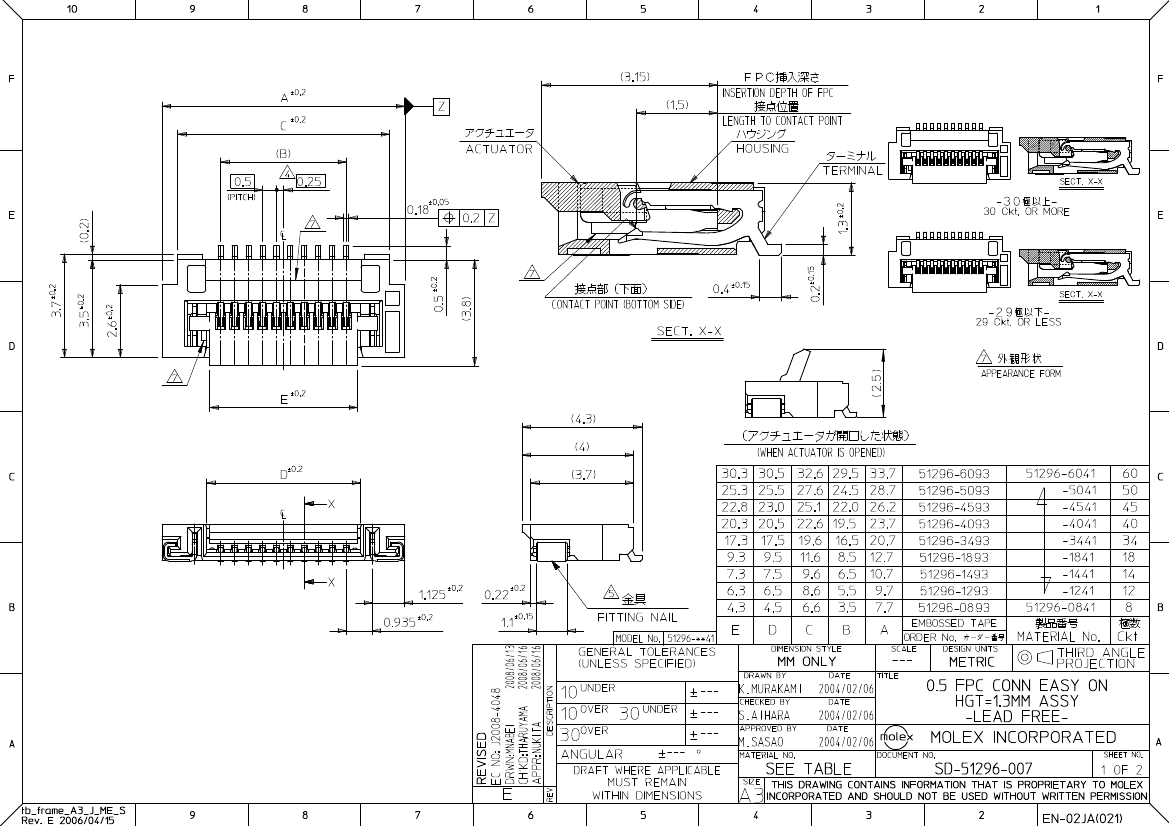

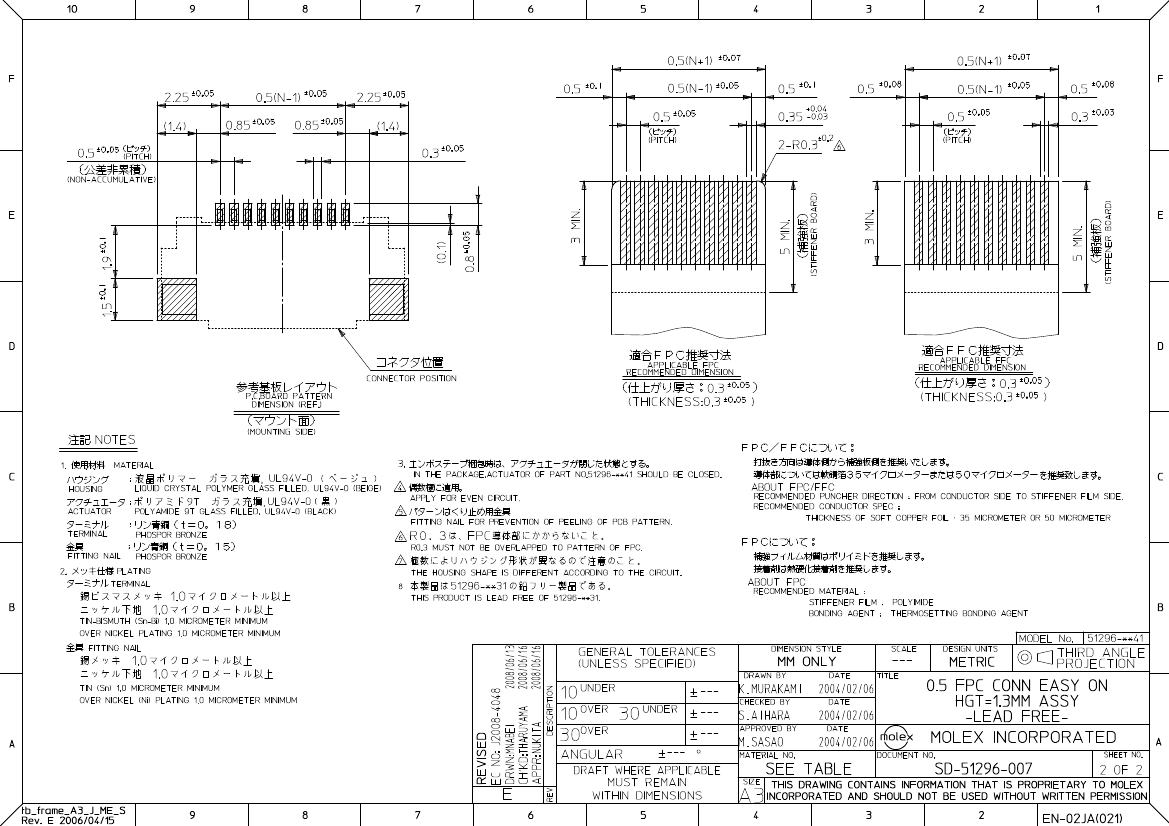

51296-1841: DescriptionCard Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE; CategoryThe connector; File Size243KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

51296-1841 Overview

Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS AND ELV COMPLIANT
Board mount options	FITTING NAIL
body width	0.051 inch
subject depth	0.157 inch
body length	0.5 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN-BI ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
Insulation resistance	50000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.02 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	39u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	ZIF N
Base Number Matches	1
