CWN-471-26-0077 datasheet, PDF

CWN-471-26-0077: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Latch & Eject, Blue Insulator, Receptacle,; CategoryThe connector; File Size557KB，4 Pages; ManufacturerCW Industries; Websitehttp://www.cwind.com; Environmental Compliance

Download Datasheet Parametric View All

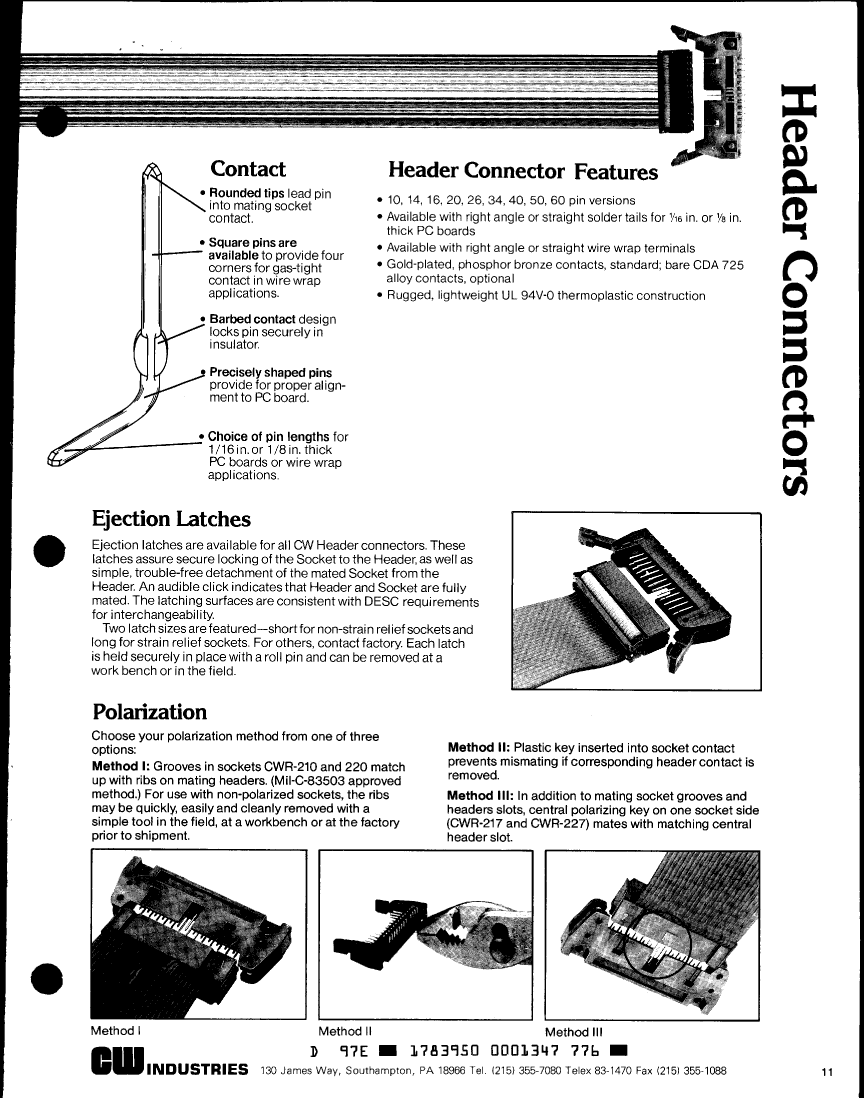

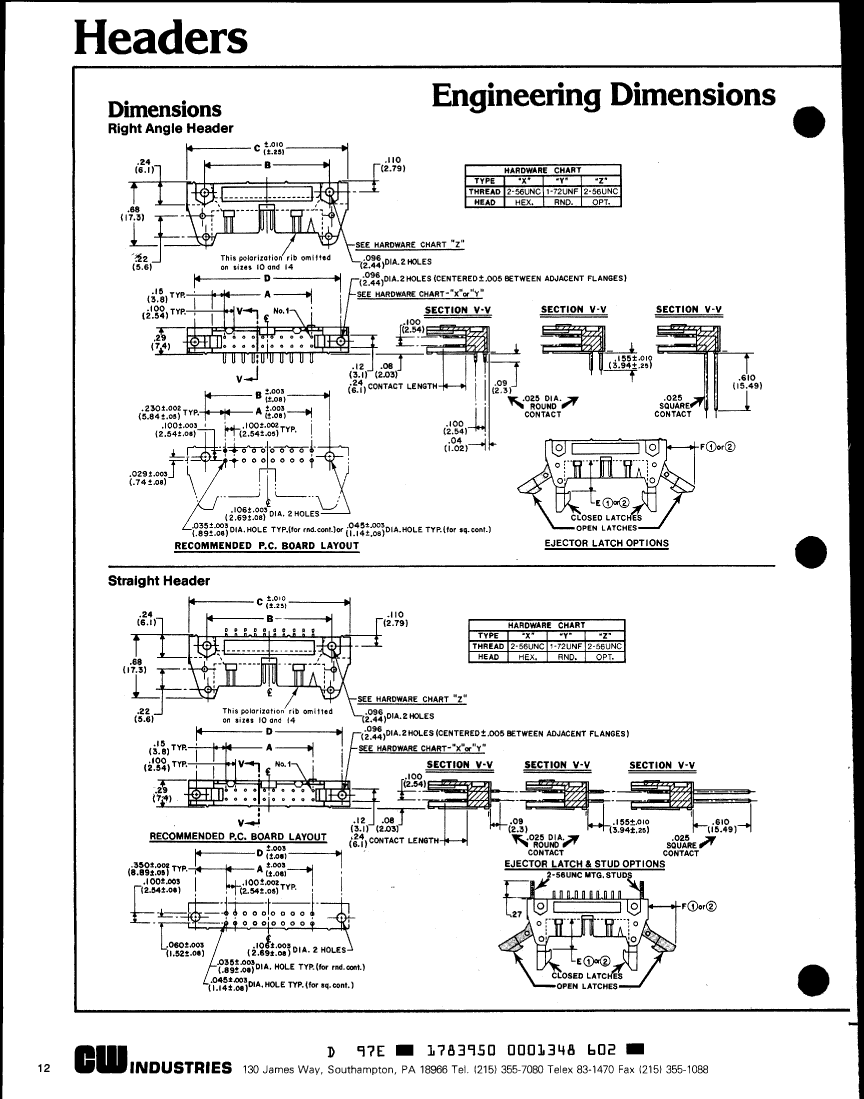

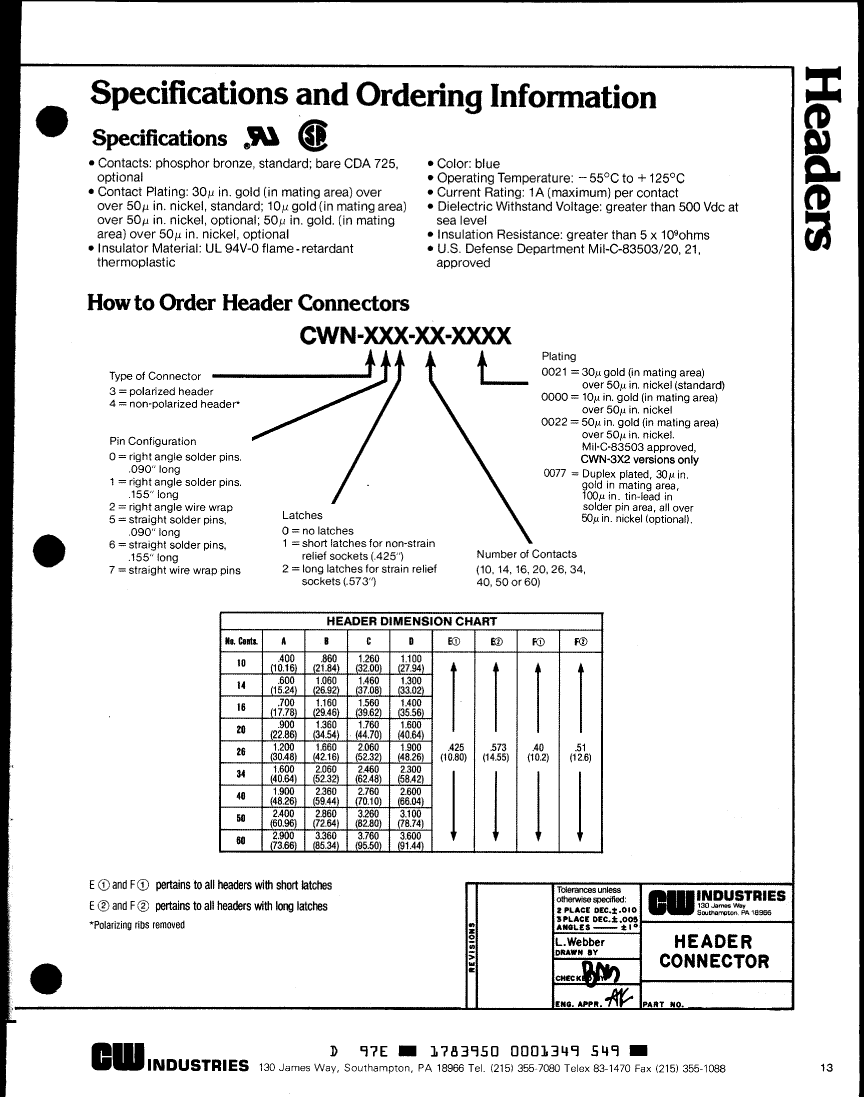

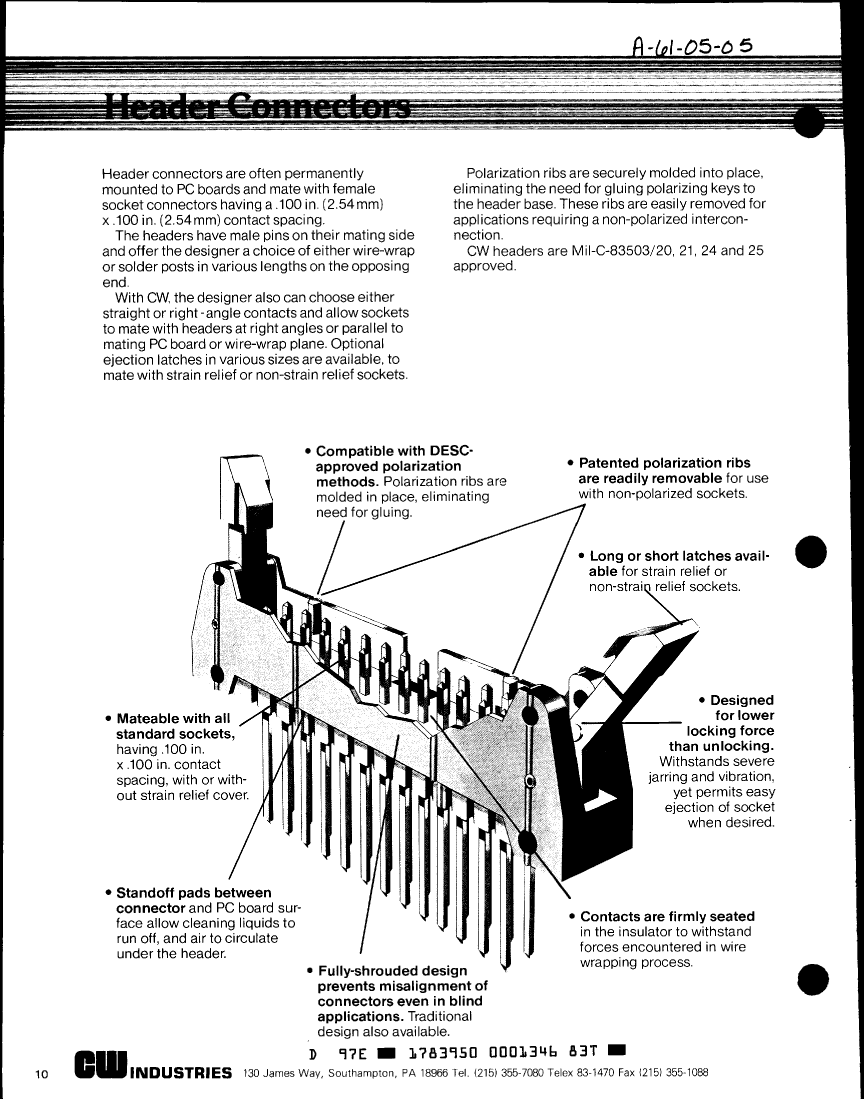

CWN-471-26-0077 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Latch & Eject, Blue Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CW Industries
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	INSERTABLE POLARIZATION
Board mount options	HOLE .086-.098
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	YES
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LATCHING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	CENTER
Guideline	UL, CSA
reliability	MIL-C-83503
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	26
Base Number Matches	1
