SM5400 ... SM5408
SM5400 ... SM5408
Surface Mount Si-Rectifiers
Si-Gleichrichter für die Oberflächenmontage
Version 2005-08-18
Nominal current – Nennstrom
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
Type
Typ
3A
50...1000 V
DO-213AB
0.12 g
2.5
0.5
Plastic case MELF
Kunststoffgehäuse MELF
Weight approx. – Gewicht ca.
Plastic material has UL classification 94V-0
Gehäusematerial UL94V-0 klassifiziert
Standard packaging taped and reeled
Standard Lieferform gegurtet auf Rolle
5.0
Dimensions - Maße [mm]
Maximum ratings
Type
Typ
SM5400
SM5401
SM5402
SM5404
SM5406
SM5407
SM5408
Repetitive peak reverse voltage
Periodische Spitzensperrspannung
V
RRM
[V]
50
100
200
400
600
800
1000
T
A
= 50°C
f > 15 Hz
T
A
= 25°C
T
A
= 25°C
I
FAV
I
FRM
I
FSM
i
2
t
0.5
Grenzwerte
Surge peak reverse voltage
Stoßspitzensperrspannung
V
RSM
[V]
50
100
200
400
600
800
1000
3A
30 A
1
)
100/110 A
50 A
2
s
-50...+175°C
-50...+175°C
Max. average forward rectified current, R-load
Dauergrenzstrom in Einwegschaltung mit R-Last
Repetitive peak forward current
Periodischer Spitzenstrom
Peak forward surge current, 50/60 Hz half sine-wave
Stoßstrom für eine 50/60 Hz Sinus-Halbwelle
Rating for fusing, t < 10 ms
Grenzlastintegral, t < 10 ms
Junction temperature – Sperrschichttemperatur
Storage temperature – Lagerungstemperatur
T
S
T
j
1
Mounted on P.C. board with 60 mm
2
copper pads at each terminals
Montage auf Leiterplatte mit 60 mm
2
Kupferbelag (Lötpad) an jedem Anschluss
http://www.diotec.com/
© Diotec Semiconductor AG
1
SM5400 ... SM5408
Characteristics
Forward voltage – Durchlass-Spannung
Leakage current – Sperrstrom
Thermal resistance junction to ambient air
Wärmewiderstand Sperrschicht – umgebende Luft
Thermal resistance junction to terminal
Wärmewiderstand Sperrschicht
−
Anschluss
T
j
= 25°C
T
j
= 25°C
I
F
= 3 A
V
R
= V
RRM
V
F
I
R
R
thA
R
thT
Kennwerte
< 1.2 V
< 10 µA
< 33 K/W
1
)
< 8 K/W
120
[%]
100
10
2
[A]
10
T
j
= 125°C
80
T
j
= 25°C
60
1
40
10
-1
20
I
FAV
0
0
T
A
50
100
150
[°C]
1
I
F
10
-2
100a-(3a-1.2v)
0.4
V
F
0.8
1.0
1.2
1.4
[V] 1.8

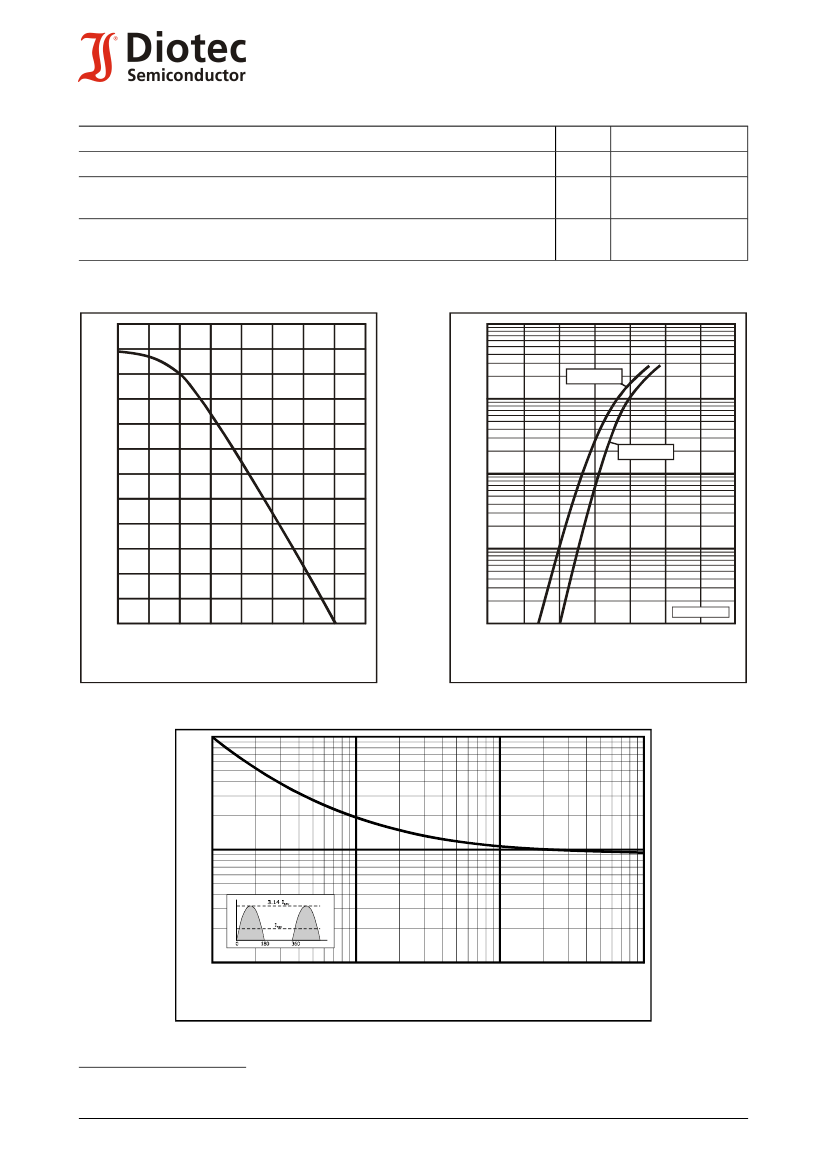

Rated forward current versus ambient temperature )
Zul. Richtstrom in Abh. von der Umgebungstemp.
1
)
Forward characteristics (typical values)
Durchlasskennlinien (typische Werte)
10
2
[A]
10
î
F
1
1
10
10
2
[n]
10
3
Peak forward surge current versus number of cycles at 50 Hz
Durchlaß-Spitzenstrom in Abh. von der Zahl der Halbwellen bei 50 Hz
1
Mounted on P.C. board with 60 mm
2
copper pads at each terminals
Montage auf Leiterplatte mit 60 mm
2
Kupferbelag (Lötpad) an jedem Anschluss
http://www.diotec.com/
© Diotec Semiconductor AG
2
