82MMCX-50-0-1/111NH datasheet, PDF

Datasheet> All Categories > The connector> 82MMCX-50-0-1/111NH

82MMCX-50-0-1/111NH: DescriptionBOARD TERMINATED, FEMALE, MMCX CONNECTOR, SOLDER, JACK, ROHS COMPLIANT; CategoryThe connector; File Size50KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

82MMCX-50-0-1/111NH Overview

BOARD TERMINATED, FEMALE, MMCX CONNECTOR, SOLDER, JACK, ROHS COMPLIANT

82MMCX-50-0-1/111NH Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	VSWR MAX AT 2.5 GHZ
subject depth	0.177 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MMCX CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL PALLADIUM (79)
Contact completed and terminated	GOLD (4) OVER NICKEL PALLADIUM (79)
Contact point gender	FEMALE
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	15.1232 N
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	MMCX
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD
Shell material	BRASS
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.11
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

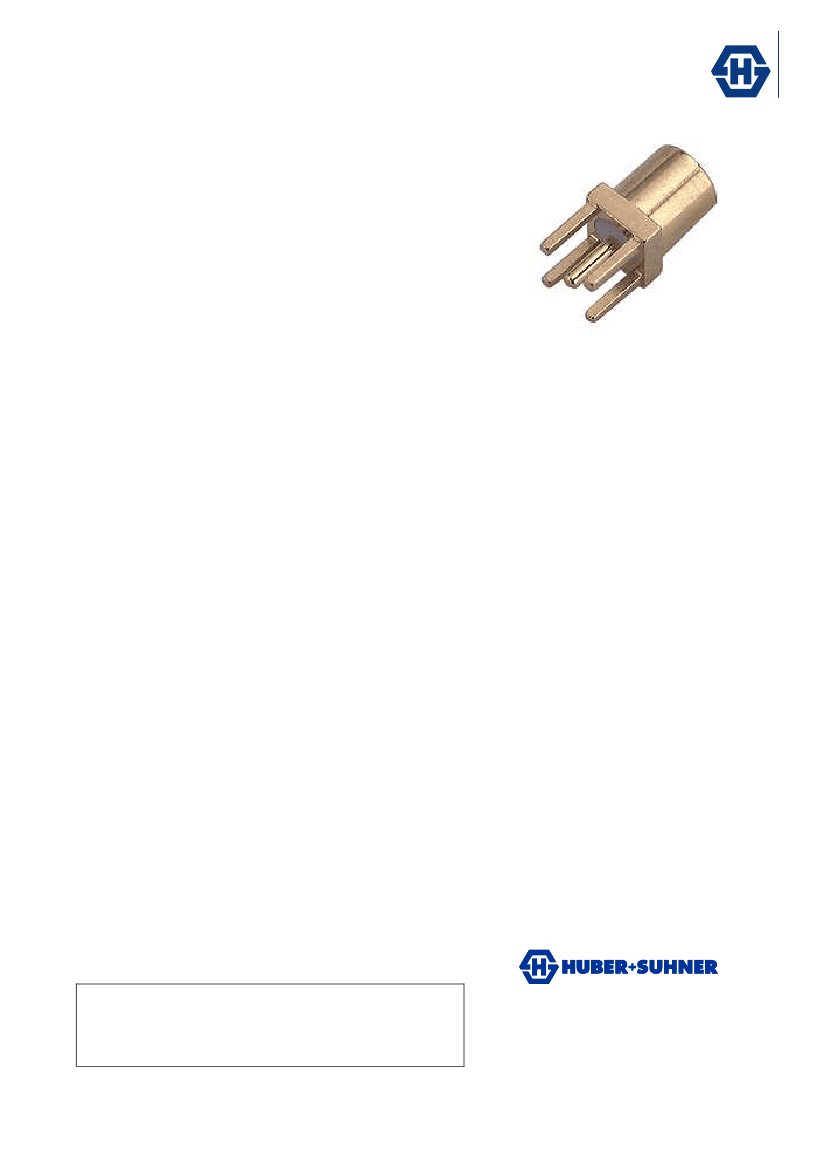

DATA SHEET

Coaxial PCB Connector: 82_MMCX-50-0-1/111_N

Description

Rev.: E

Straight PCB jack

Interface Standards

SUHNER-MMCX

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Ω

6 GHz

DC to 1 GHz

≥ 35 dB

through holes

0.0002 kg

-55 °C to 155 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

DOU-00013145

DCA-00013147

DOU-00012639

82_MMCX-50-0-1/111_NE

82_MMCX-50-0-1/111_NH

Surface Plating

Hard Au min. 0.1 m over NiP min. 2 m

SUCOPRO Plating

Hard Au min. 0.1 m over NiP min. 2 m

Mechanical Data

1 to 2 GHz

≥ 30 dB

2 to 2.5 GHz

≥ 26 dB

Board mounting type

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material Data

82MMCX-50-0-1/111NH Related Products

	82MMCX-50-0-1/111NH	82MMCX-50-0-1/111NE
Description	BOARD TERMINATED, FEMALE, MMCX CONNECTOR, SOLDER, JACK, ROHS COMPLIANT	BOARD TERMINATED, FEMALE, MMCX CONNECTOR, SOLDER, JACK, ROHS COMPLIANT
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	VSWR MAX AT 2.5 GHZ	VSWR MAX AT 2.5 GHZ
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF MMCX CONNECTOR	RF MMCX CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL PALLADIUM (79)	GOLD (4) OVER NICKEL PALLADIUM (79)
Contact completed and terminated	GOLD (4) OVER NICKEL PALLADIUM (79)	GOLD (4) OVER NICKEL PALLADIUM (79)
Contact point gender	FEMALE	FEMALE
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Manufacturer's serial number	MMCX	MMCX
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Maximum operating frequency	6 GHz	6 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Termination type	SOLDER	SOLDER
voltage standing wave ratio	1.11	1.11
Base Number Matches	1	1
