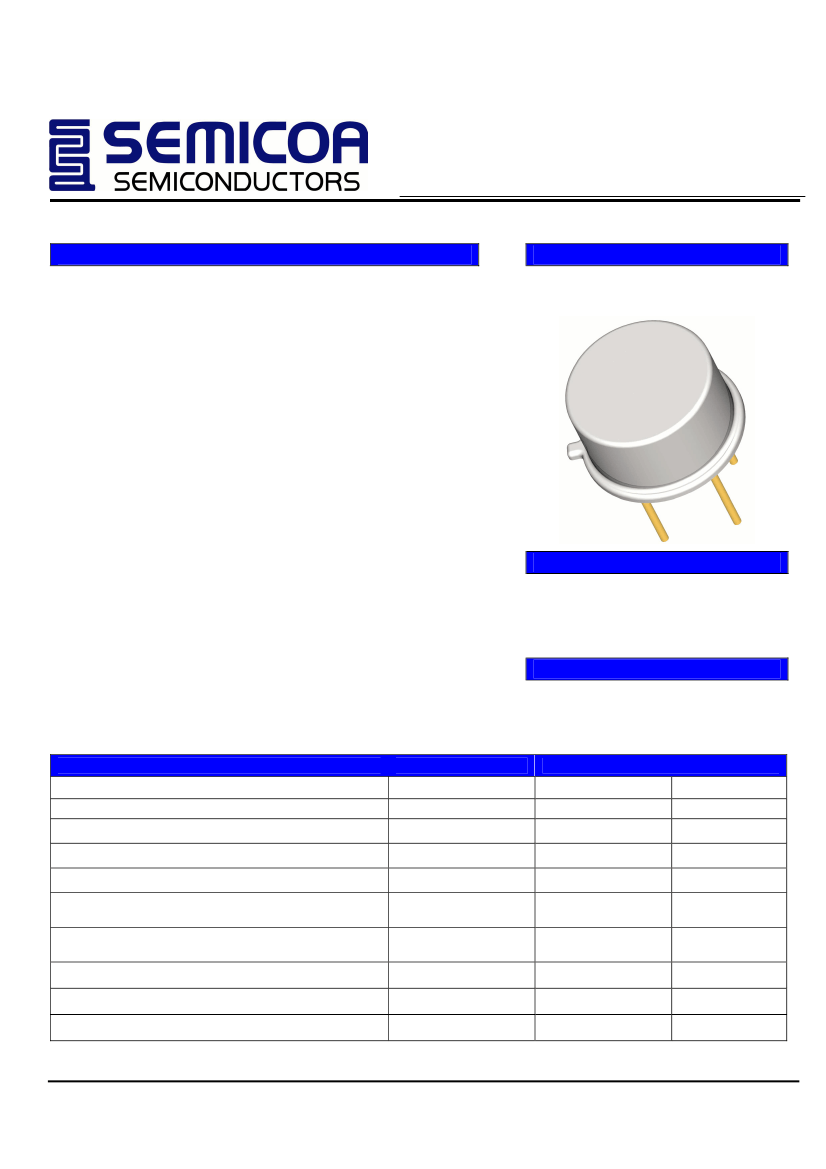

2N2905A
Silicon PNP Transistor
Data Sheet
Description
Semicoa Semiconductors offers:
•
Screening and processing per MIL-PRF-19500
Appendix E
•
JAN level (2N2905AJ)
•
JANTX level (2N2905AJX)
•
JANTXV level (2N2905AJV)
•
JANS level (2N2905AJS)
•
QCI to the applicable level
•
100% die visual inspection per MIL-STD-750 method
2072 for JANTXV and JANS
•
Radiation testing (total dose) upon request
Applications
•
General purpose
•
Low power
•
PNP silicon transistor
Features
•
•
•
•
Hermetically sealed TO-39 metal can
Also available in chip configuration
Chip geometry 0600
Reference document:
MIL-PRF-19500/290
Benefits
Please contact Semicoa for special configurations
www.SEMICOA.com or (714) 979-1900
•
Qualification Levels: JAN, JANTX,
JANTXV and JANS
•
Radiation testing available
T
C
= 25°C unless otherwise specified
Absolute Maximum Ratings
Parameter
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current, Continuous
Power Dissipation, T
A
= 25
°C
Derate above 60
°C
Power Dissipation, T
C
= 25
°C
Derate above 25
°C
Thermal Resistance
Operating Junction Temperature
Storage Temperature
Symbol
V
CEO
V
CBO
V
EBO
I
C
P
T
P
T
Rating
60
60
5
600
0.8
5.7
3.0
17.2
175
-65 to +200
-65 to +200
Unit
Volts
Volts
Volts
mA
W
mW/°C
W
mW/°C
°C/W
°C
°C
R
θJA
T
J
T
STG
Copyright 2002
Rev. H
Semicoa Semiconductors, Inc.
333 McCormick Avenue, Costa Mesa, California 92626 714.979.1900, FAX 714.557.4541
Page 1 of 1
www.SEMICOA.com
2N2905A
Silicon PNP Transistor
Data Sheet
ELECTRICAL CHARACTERISTICS
characteristics specified at T
A
= 25°C
Off Characteristics
Parameter
Collector-Emitter Breakdown Voltage
Collector-Base Cutoff Current
Collector-Base Cutoff Current
Collector-Base Cutoff Current
Collector-Emitter Cutoff Current
Emitter-Base Cutoff Current
Emitter-Base Cutoff Current
On Characteristics
Parameter
Symbol
h
FE1
h
FE2
h
FE3
h
FE4
h
FE5
h
FE6
V
BEsat1
V
BEsat2
V
CEsat1
V
CEsat2
Symbol
|h
FE
|
h
FE
C
OBO
C
IBO
t
on
t
off
Test Conditions
I
C
= 0.1 mA, V
CE
= 10 Volts
I
C
= 1.0 mA, V
CE
= 10 Volts
I
C
= 10 mA, V
CE
= 10 Volts
I
C
= 150 mA, V
CE
= 10 Volts
I
C
= 500 mA, V
CE
= 10 Volts
I
C
= 10 mA, V
CE
= 10 Volts
T
A
= -55
O
C
I
C
= 150 mA, I
B
= 15 mA
I
C
= 500 mA, I
B
= 50 mA
I
C
= 150 mA, I
B
= 15 mA
I
C
= 500 mA, I
B
= 50 mA
Test Conditions
V
CE
= 20 Volts, I
C
= 50 mA,
f = 100 MHz
V
CE
= 10 Volts, I
C
= 1 mA,
f = 1 kHz
V
CB
= 10 Volts, I
C
= 0 mA,
100 kHZ < f < 1 MHz
V
EB
= 2.0 Volts, I
E
= 0 mA,
100 kHZ < f < 1 MHz
Symbol
V
(BR)CEO
I
CBO1
I
CBO2
I
CBO3
I
CES
I
EBO1
I
EBO2
Test Conditions
I
C
= 10 mA
V
CB
= 60 Volts
V
CB
= 50 Volts
V
CB
= 50 Volts, T
A
= 150
O
C
V
CE
= 60 Volts
V
EB
= 5 Volts
V
EB
= 3.5 Volts
Min
60
10
10
10
1
10
50
Typ
Max
Units
Volts
µA
nA
µA
µA
µA
nA
Pulse Test: Pulse Width = 300
µs,
Duty Cycle
≤
2.0%
DC Current Gain
Min
75
100
100
100
50
50
Typ
Max
450
300
Units
Base-Emitter Saturation Voltage
Collector-Emitter Saturation Voltage
Dynamic Characteristics
Parameter
Magnitude – Common Emitter, Short
Circuit Forward Current Transfer Ratio
Small Signal Short Circuit Forward
Current Transfer Ratio
Open Circuit Output Capacitance
Open Circuit Input Capacitance
Switching Characteristics
Saturated Turn-On Time
Saturated Turn-Off Time
1.3
2.6
0.4
1.6
Volts
Volts
Min
2.0
100
Typ
Max
Units
8
30
pF
pF
45
300
ns
ns
Copyright 2002
Rev. H
Semicoa Semiconductors, Inc.
333 McCormick Avenue, Costa Mesa, California 92626 714.979.1900, FAX 714.557.4541
Page 2 of 2
www.SEMICOA.com
