8403607ZA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> 8403607ZA

8403607ZA: DescriptionStandard SRAM, 2KX8, 120ns, CMOS, CQCC32, CERAMIC, CC-32; Categorystorage; File Size247KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

8403607ZA Overview

Standard SRAM, 2KX8, 120ns, CMOS, CQCC32, CERAMIC, CC-32

8403607ZA Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	QCCN,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Maximum access time	120 ns
Other features	TTL COMPATIBLE
JESD-30 code	R-CQCC-N32
length	13.97 mm
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	2KX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3.05 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm
Base Number Matches	1

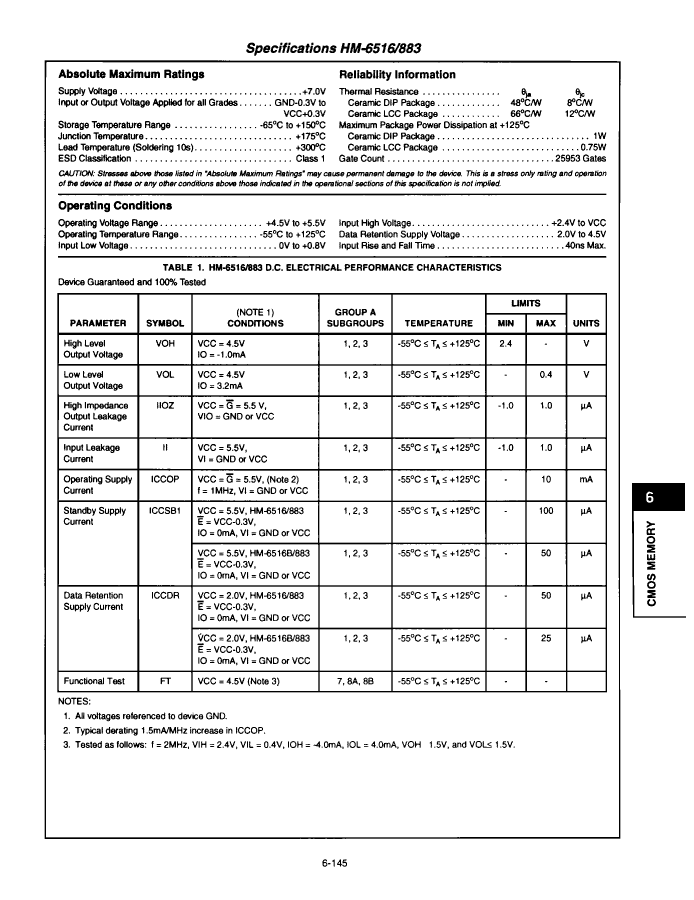

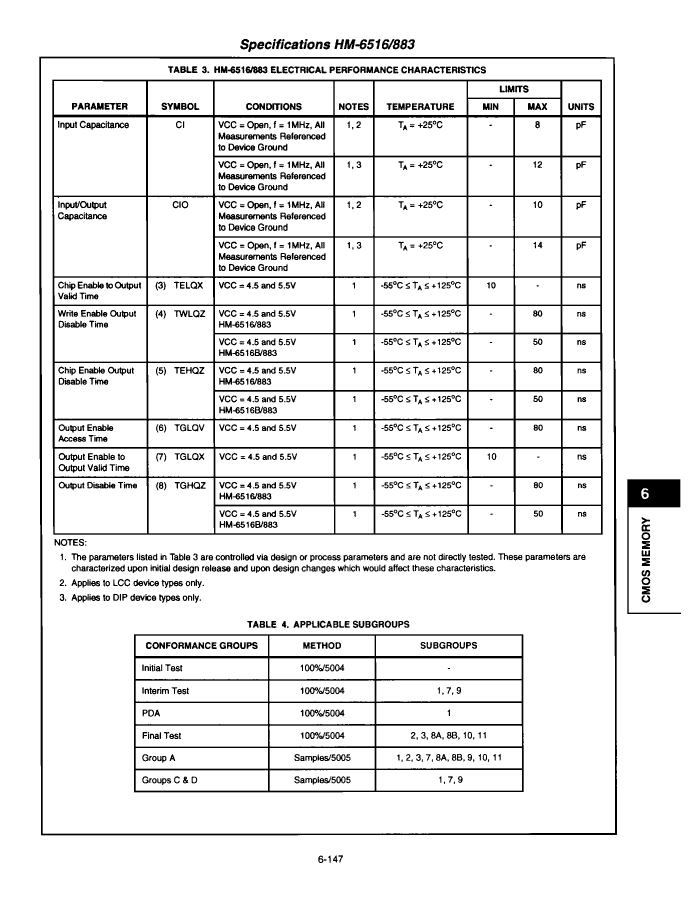

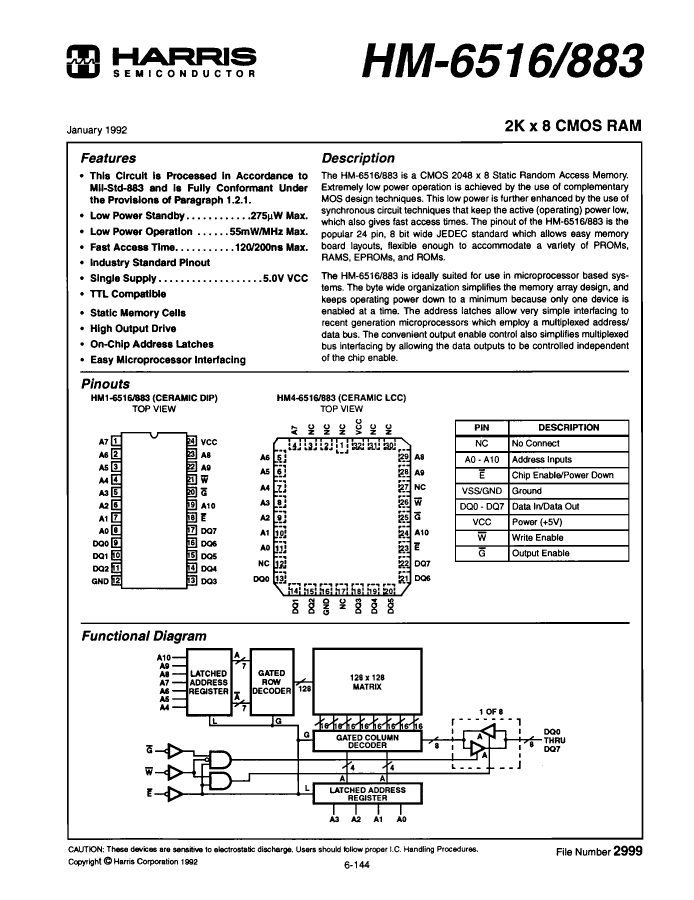

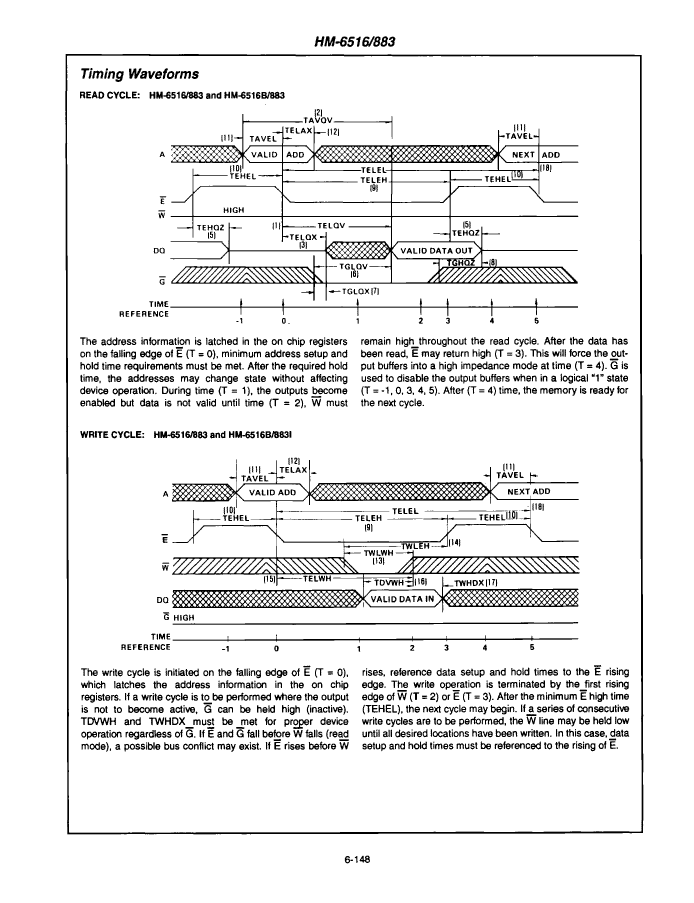

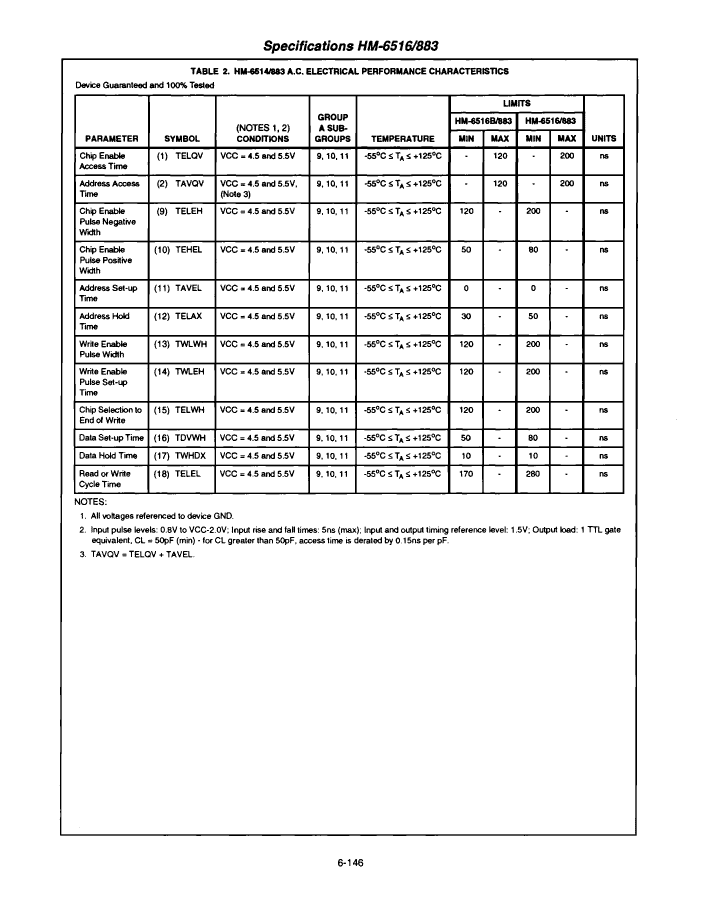

Preview

Download Datasheet

View All

8403607ZA Related Products

	8403607ZA	8403601JX	8403607ZX	HM4-6516/883	8403601JA	8403601ZX
Description	Standard SRAM, 2KX8, 120ns, CMOS, CQCC32, CERAMIC, CC-32	Standard SRAM, 2KX8, 200ns, CMOS, CDIP24, CERAMIC, DIP-24	Standard SRAM, 2KX8, 120ns, CMOS, CQCC32, CERAMIC, CC-32	Standard SRAM, 2KX8, 200ns, CMOS, CQCC32	Standard SRAM, 2KX8, 200ns, CMOS, CDIP24, CERAMIC, DIP-24	Standard SRAM, 2KX8, 200ns, CMOS, CQCC32, CERAMIC, CC-32
package instruction	QCCN,	DIP,	QCCN,	QCCN, LCC32,.45X.55	DIP,	QCCN,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Maximum access time	120 ns	200 ns	120 ns	200 ns	200 ns	200 ns
Other features	TTL COMPATIBLE	TTL COMPATIBLE	TTL COMPATIBLE	ADDRESS LATCH	TTL COMPATIBLE	TTL COMPATIBLE
JESD-30 code	R-CQCC-N32	R-GDIP-T24	R-CQCC-N32	R-CQCC-N32	R-GDIP-T24	R-CQCC-N32
memory density	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	32	24	32	32	24	32
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	QCCN	QCCN	DIP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	QUAD	DUAL	QUAD
Maker	Harris	Harris	Harris	-	Harris	Harris
Maximum seat height	3.05 mm	5.72 mm	3.05 mm	-	5.72 mm	3.05 mm
width	11.43 mm	15.24 mm	11.43 mm	-	15.24 mm	11.43 mm
Base Number Matches	1	1	1	1	1	-
