5962R9572701TXC datasheet, PDF

Datasheet> All Categories > logic> 5962R9572701TXC

5962R9572701TXC: DescriptionHC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERAMIC, DFP-16; Categorylogic; File Size158KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9572701TXC Overview

HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERAMIC, DFP-16

5962R9572701TXC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
series	HC/UH
Input adjustment	STANDARD
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.006 A
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	34 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HCS138T

Data Sheet

July 1999

File Number

4614.1

Radiation Hardened Inverting 3-to-8 Line

Decoder/Demultiplexer

Intersil‘s Satellite Applications

(SAF) devices are

fully tested and guaranteed to 100kRAD total dose. These

QML Class T devices are processed to a standard ﬂow

intended to meet the cost and shorter lead-time needs of

large volume satellite manufacturers, while maintaining a

high level of reliability.

The Intersil HCS138T is a Radiation Hardened 3-to-8 Line

Decoder/Demultiplexer. The outputs are active in the low

state. Two active low and one active high enables (E1, E2,

E3) are provided. If the device is enabled, the binary inputs

(A0, A1, A2) determine which one of the eight normally high

outputs will go to a low logic level.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- Latch-Up Free Under Any Conditions

- SEP Effective LET No Upsets: >100 MEV-cm

/mg

- Single Event Upset (SEU) Immunity < 2 x 10

-9

Errors/Bit-Day (Typ)

• 3 Micron Radiation Hardened SOS CMOS

• Fanout (Over Temperature Range)

- Standard Outputs - 10 LSTTL Loads

• Signiﬁcant Power Reduction Compared to LSTTL ICs

• DC Operating Voltage Range: 4.5V to 5.5V

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the HCS138T are

contained in SMD 5962-95727.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil‘s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/spacedefense/newsafclasst.asp

• Input Logic Levels

- V

= 0.3 V

Max

- V

= 0.7 V

Min

• Input Current Levels Ii

≤

5mA at V

, V

Pinouts

HCS138DTR (SBDIP), CDIP2-T16

TOP VIEW

16 V

15 Y0

14 Y1

13 Y2

12 Y3

11 Y4

10 Y5

9 Y6

Ordering Information

ORDERING

NUMBER

5962R9572701TEC

5962R9572701TXC

PART

NUMBER

HCS138DTR

HCS138KTR

TEMP.

RANGE

(

-55 to 125

GND

HCS138KTR (FLATPACK), CDFP4-F16

TOP VIEW

GND

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.

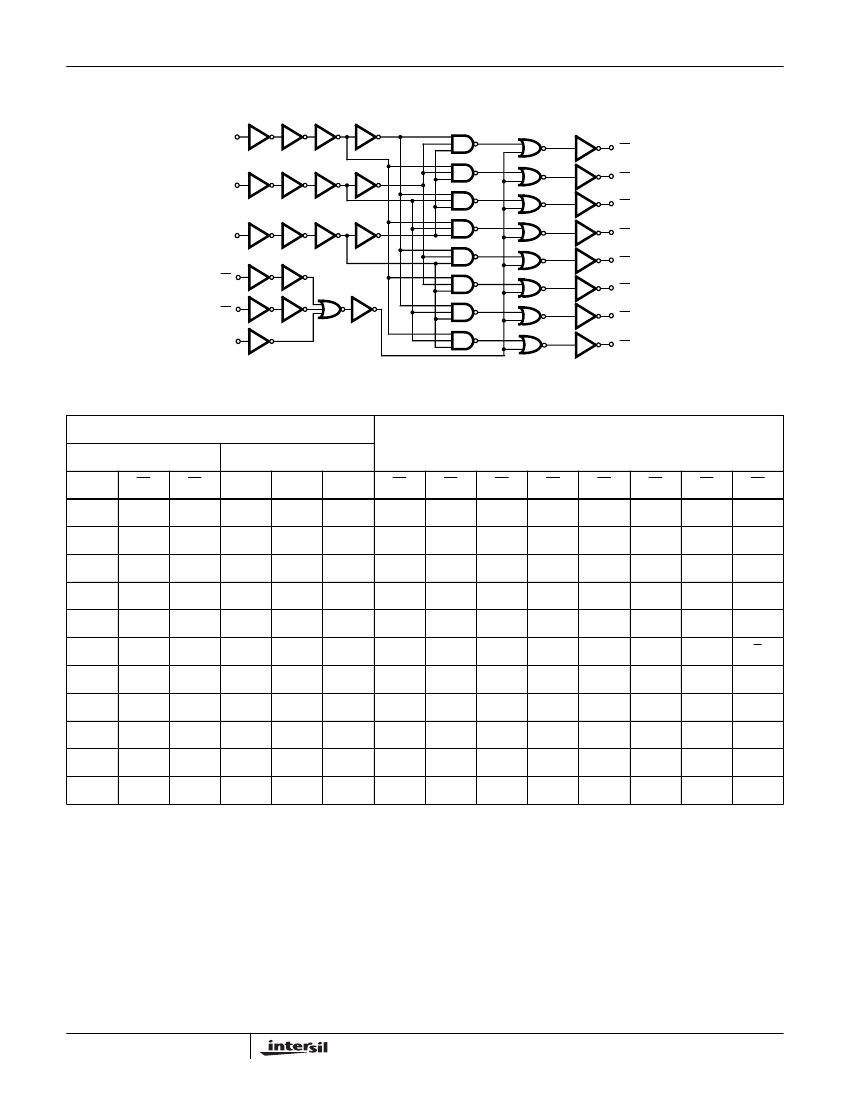

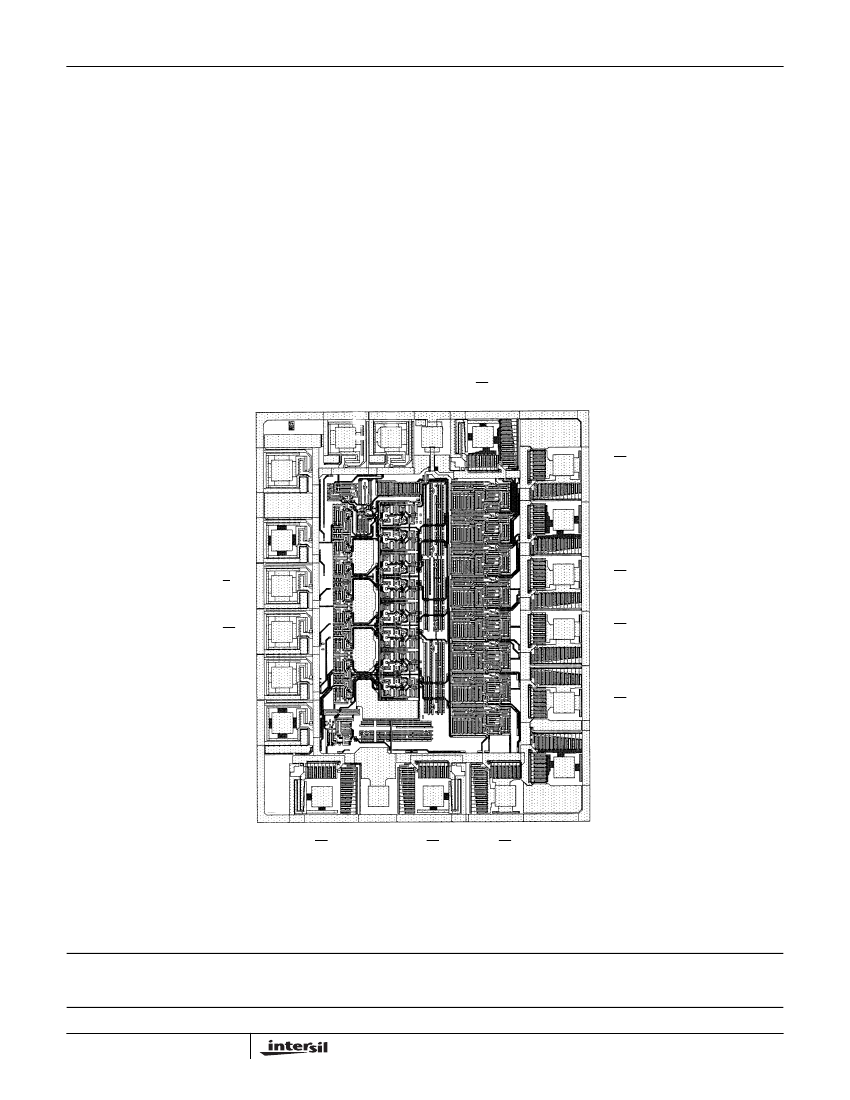

5962R9572701TXC Related Products

	5962R9572701TXC	5962R9572701TEC
Description	HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDFP16, CERAMIC, DFP-16	HC/UH SERIES, OTHER DECODER/DRIVER, INVERTED OUTPUT, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Parts packaging code	DFP	DIP
package instruction	DFP, FL16,.3	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
series	HC/UH	HC/UH
Input adjustment	STANDARD	STANDARD
JESD-30 code	R-CDFP-F16	R-CDIP-T16
JESD-609 code	e4	e4
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.006 A	0.006 A
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	34 ns	34 ns
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	2.92 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V
width	6.73 mm	7.62 mm
Base Number Matches	1	1
