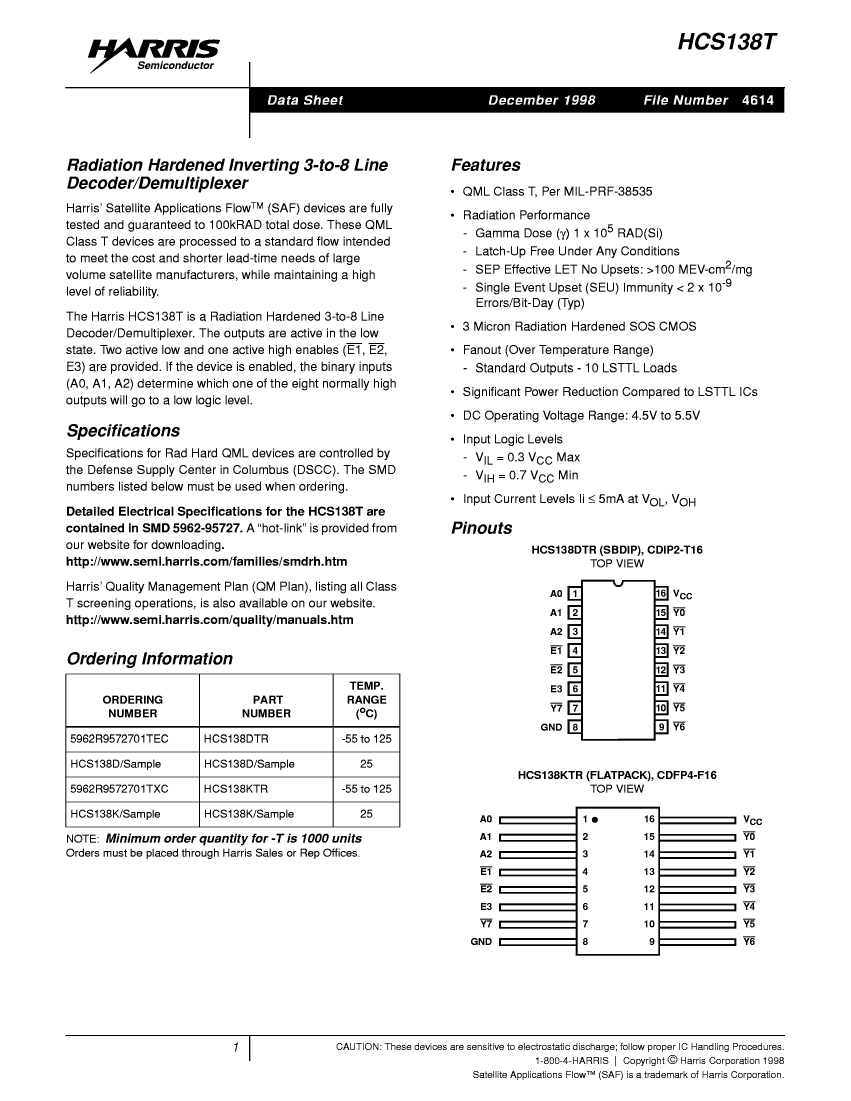

5962R9572701TXC datasheet, PDF

5962R9572701TXC: DescriptionDecoder/Driver, HC/UH Series, Inverted Output, CMOS, CDFP16; Categorylogic; File Size145KB，3 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

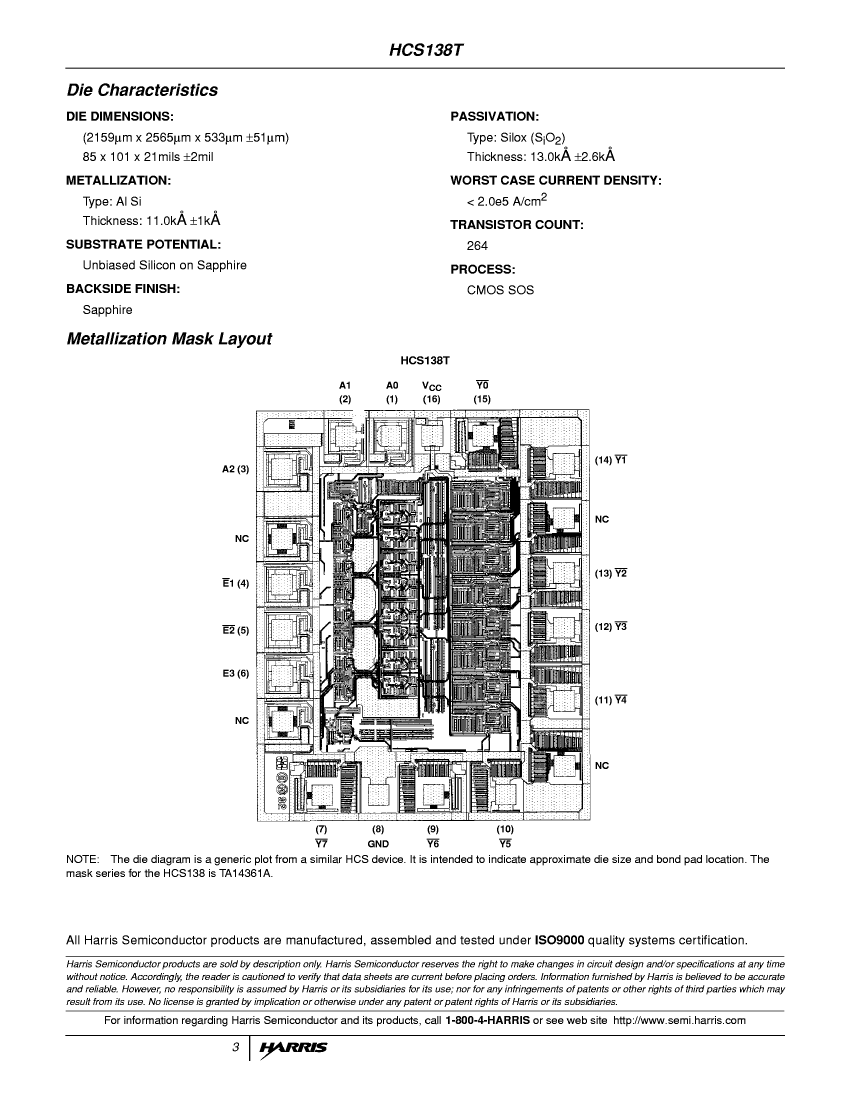

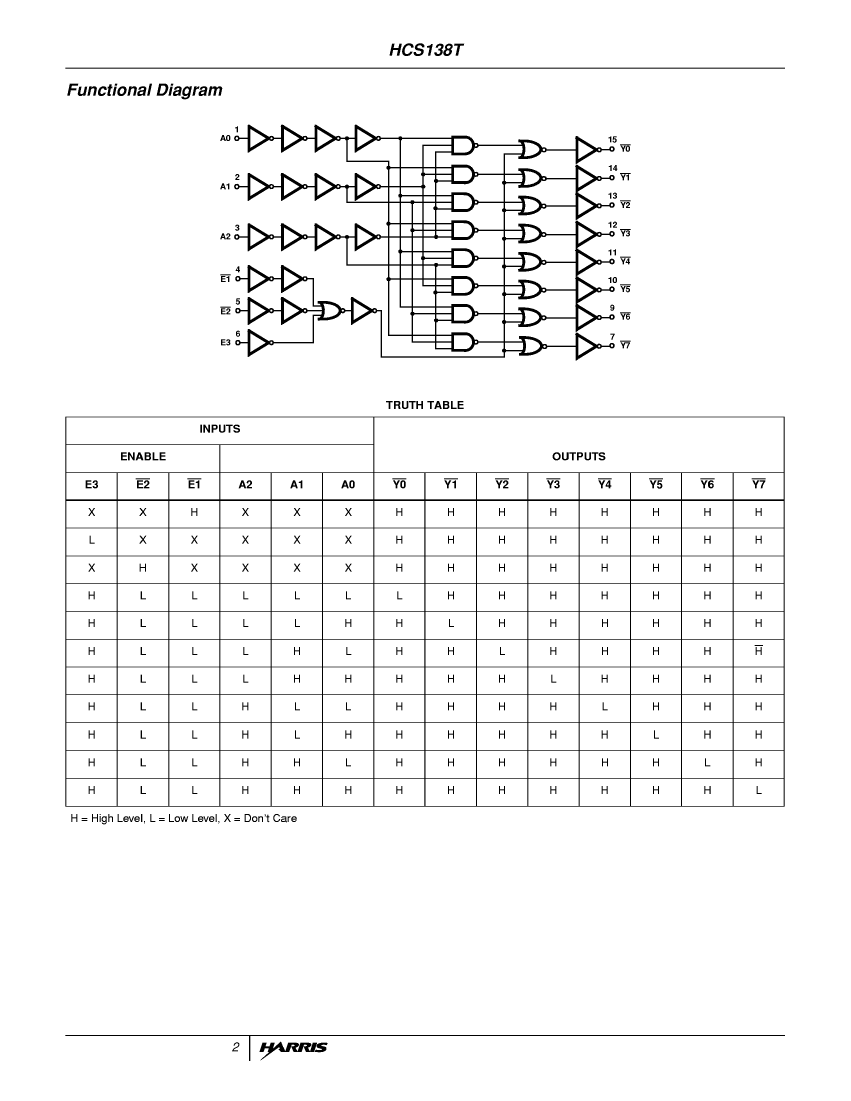

5962R9572701TXC Overview

Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDFP16

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3 ENABLE INPUTS
series	HC/UH
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	FLAT
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

	5962R9572701TXC	HCS138D/SAMPLE	HCS138KTR	5962R9572701TEC
Description	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDFP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDFP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
series	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDFP-F16	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4 V	4.5 V	4 V	4 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Terminal form	FLAT	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1
Maker	Harris	Harris	Harris	-
Other features	3 ENABLE INPUTS	-	3 ENABLE INPUTS	3 ENABLE INPUTS
Maximum operating temperature	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C
Temperature level	MILITARY	-	MILITARY	MILITARY
