74F505SPCQR datasheet, PDF - EEWORLD Datasheet

74F505SPCQR: DescriptionADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, Bipolar, PDIP24, 0.300 INCH, SLIM, PLASTIC, DIP-24; Categoryconverter; File Size97KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

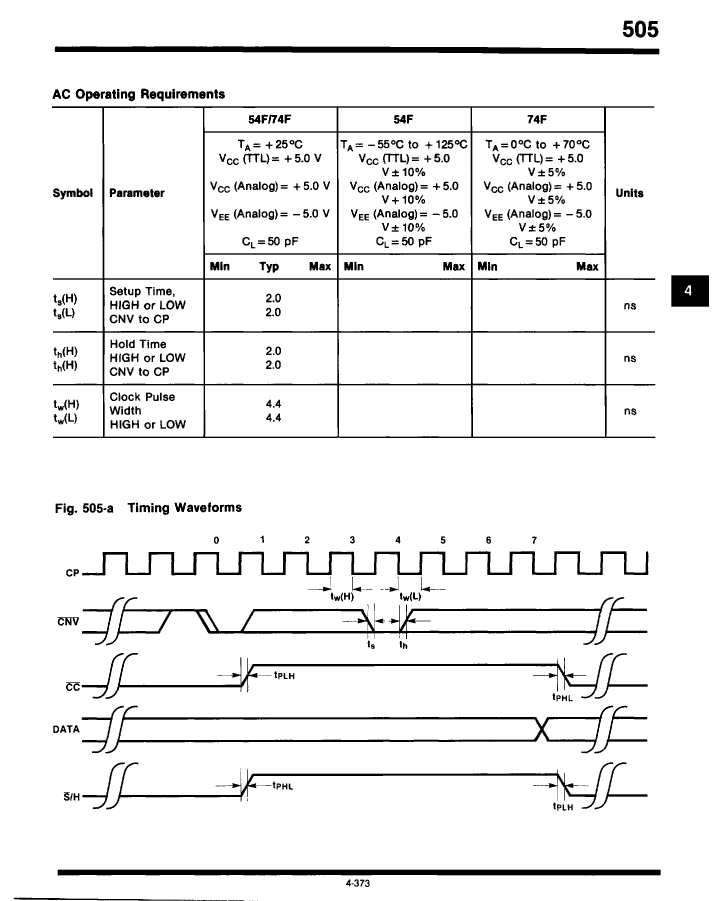

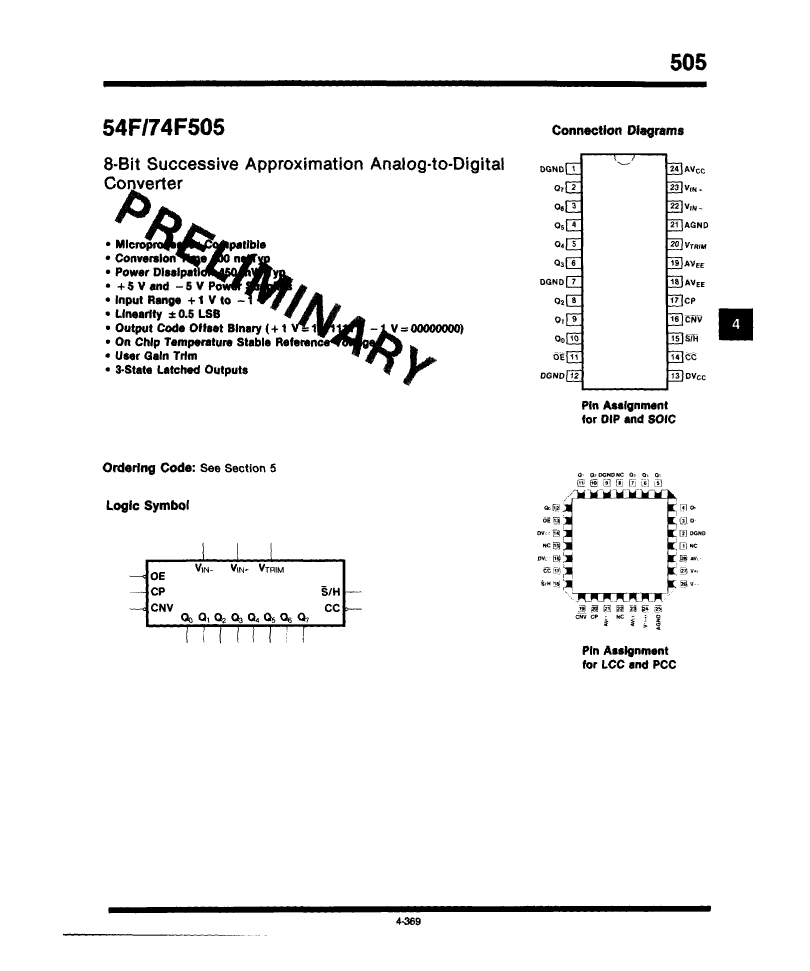

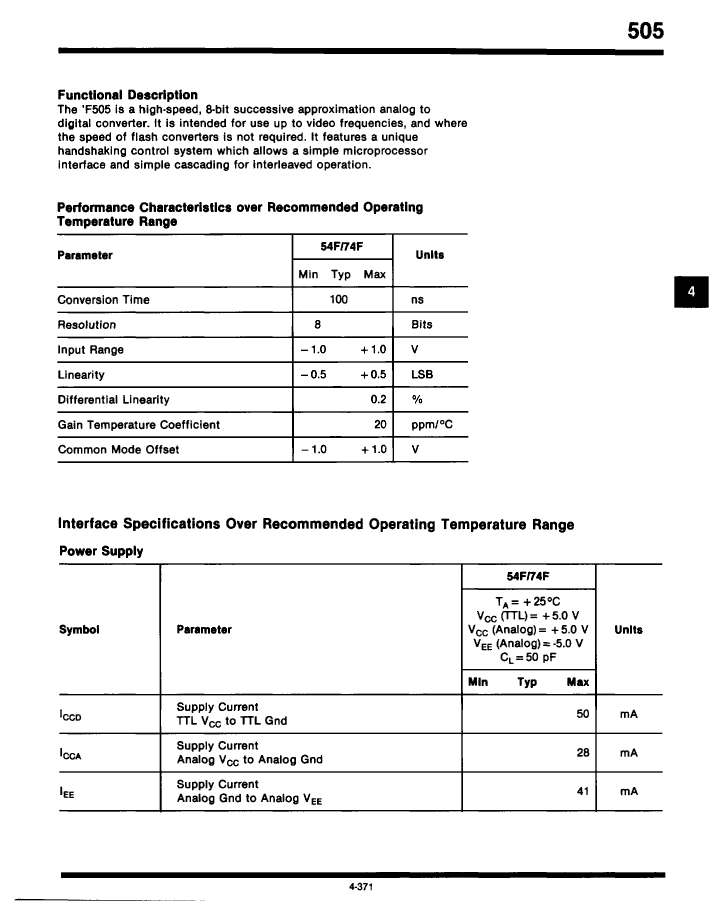

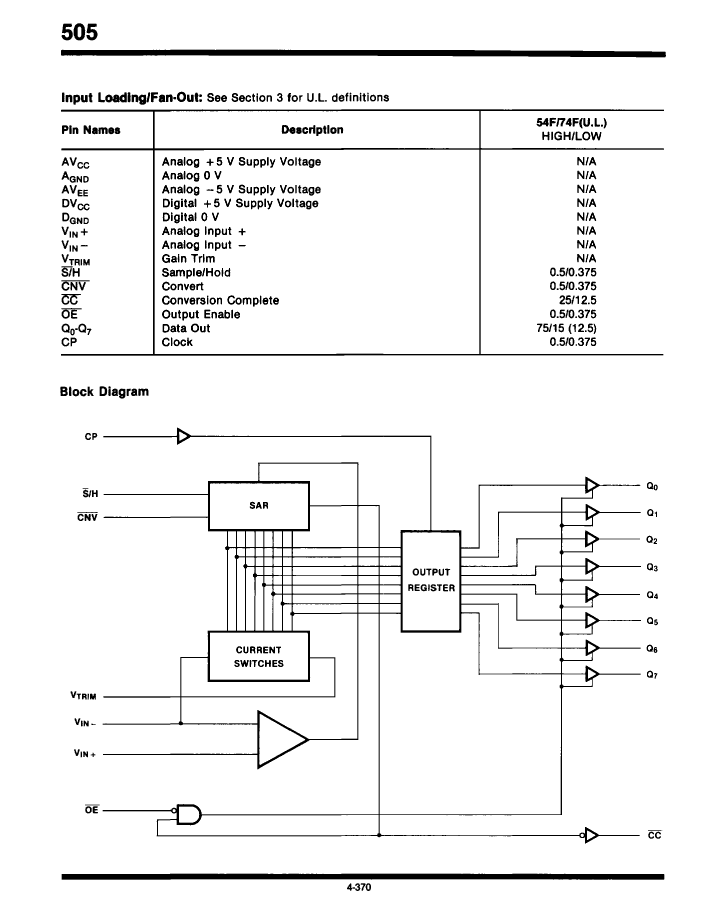

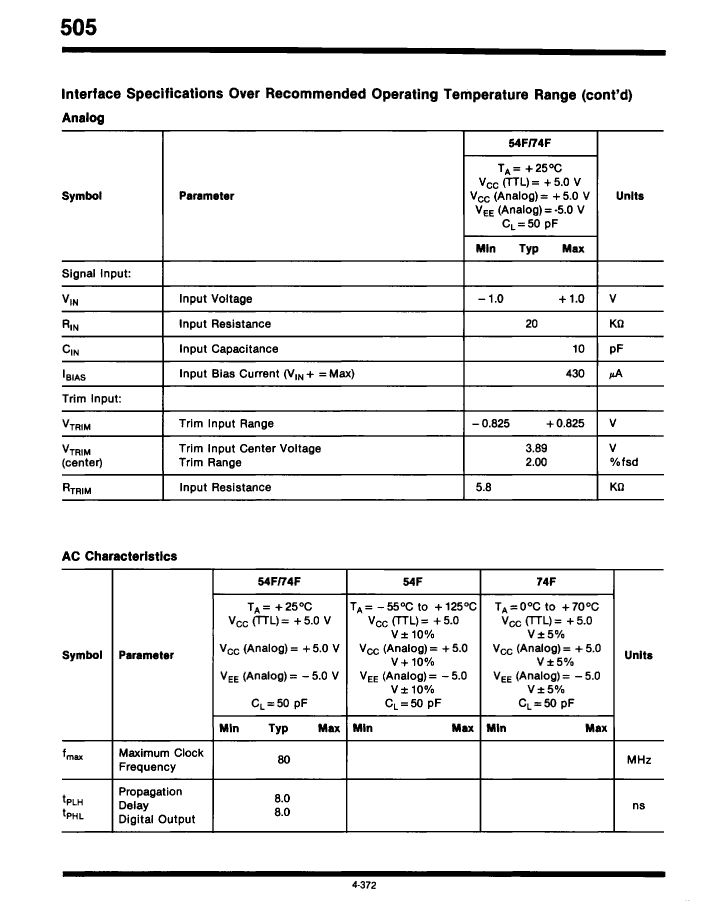

74F505SPCQR Overview

ADC, Successive Approximation, 8-Bit, 1 Func, 1 Channel, Parallel, 8 Bits Access, Bipolar, PDIP24, 0.300 INCH, SLIM, PLASTIC, DIP-24

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	1 V
Minimum analog input voltage	-1 V
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24
length	30.095 mm
Maximum linear error (EL)	0.1953%
Nominal negative supply voltage	-5 V
Number of analog input channels	1
Number of digits	8
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	OFFSET BINARY
Output format	PARALLEL, 8 BITS
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.08 mm
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1
