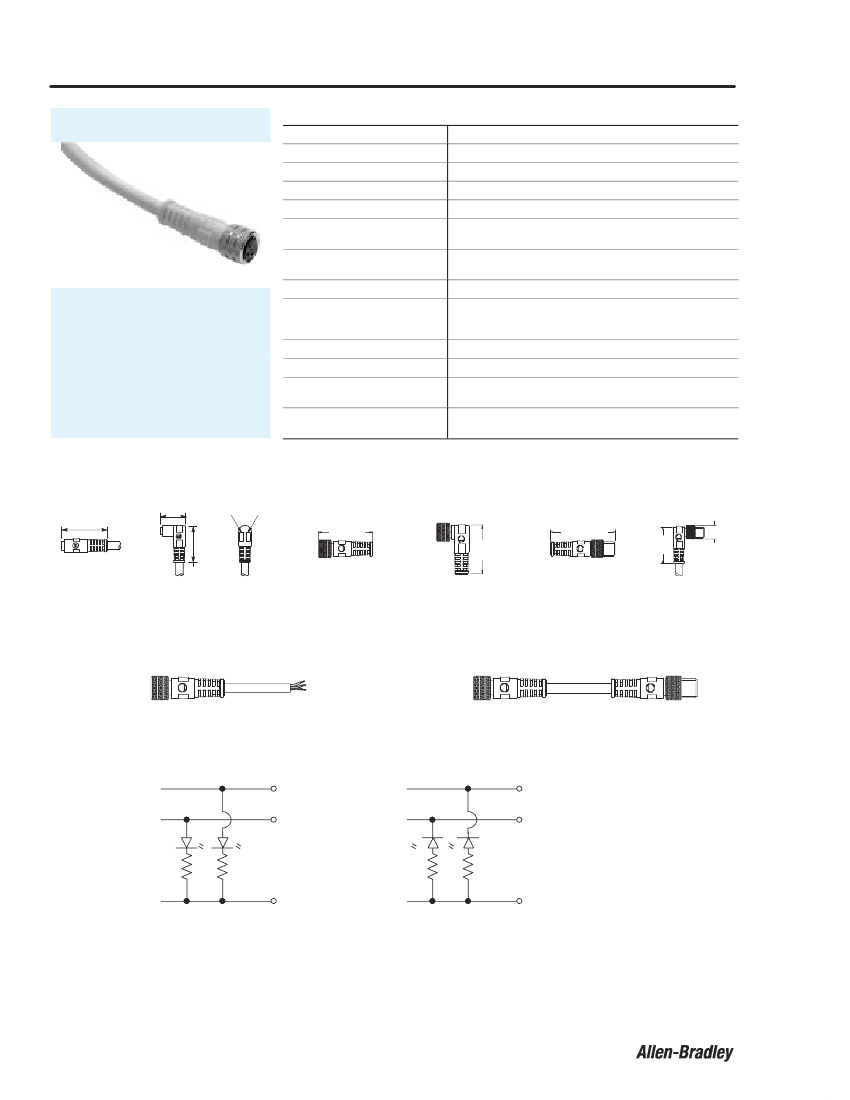

Connection Systems
Cordsets & Patchcords, Pico Style
24 AWG, Yellow PVC or PUR, Screw-On or Snap-On, LED and NonLED
Pico Style
Specifications
Certifications
UL recognized and CSA certified
Mechanical
Coupling Nut Material
Connector Material
Contacts
Cable
Cable Diameter
Nickel-plated brass
Molded TPE
Gold over nickel-plated brass
Oil-resistant yellow PVC or PUR jacket, 24 AWG
conductors, 300V, UL recognized, CSA certified
3/c = 4.3 mm (0.17 in)
4/c = 4.6 mm (0.18 in)
Pico Screw On Style
Features
•
Highly visible yellow PVC jacket
offers good oil and chemical
resistance
•
LED versions provide power and
output indication for either PNP or
NPN devices
•
Snap-on coupling style for quick
and simple connection
Electrical
Cable Rating
PVC: UL AWM style 2661 VW–1 105C 300V, CSA AWM A/B
I/II 105C 300V FT1
PUR: UL AWM style 20233 or 20549 80C 300V
NonLED: 60V AC/75V DC, 4 A; LED: 10…30V DC, 4 A
Assembly Rating
Environmental
Enclosure Type Rating
Operating Temperature—C (F)
Screw-type: IP 67
Snap-on type: IP 65
PVC models: –20…+105_ (–4…+221_)
PUR models: –20…+80_ (–4…+176_)
Dimensions—mm (in)
29.3 (1.15)
17.9
(0.70)
Green
Power
Amber
Output
31 (1.22)
A-B
Female Plug
A-B
37 (1.45)
26.5
(1.04)
A-B
26.5
(1.04)
A-B
26.5
(1.04)
10
(0.39)
Straight Snap On
Female
Right Angle
Snap On Female
Straight Screw On
Female
Right Angle Screw On
Female
Straight Screw On
Male
Right Angle Screw On
Male
Dimensions are approximate. Illustrations are not drawn to scale.
A-B
A-B
A-B
Example of Cordset
Example of Patchcord
Wiring Diagrams
Pins
1)
4)
Yellow
Green
Conductors
+
Brown
Black
Pins
3)
4)
Yellow
Green
Conductors
−
Blue
Black
3)
PNP (Sourcing)
- Blue
1)
NPN (Sinking)
+
Brown
3–106
Connection Systems
Cordsets & Patchcords, Pico Style
24 AWG, Yellow PVC or PUR, Screw-On or Snap-On, LED and NonLED
Pinout and Color Code
Face View Pinout
3-Pin
4-Pin
4
3
Color
Code
A
Female
1 Brown
3 Blue
4
1
Male
4 Black
4
3
Female
1 Brown
2 White
2
2
4
3
Male
1
3
1 1
3 Blue
4 Black
Product Selection
Snap-On Cordsets
Cat. No.
Pin Count
3-Pin
3 Pin
Jacket Material
Yellow PVC
Yellow PUR
Yellow PVC
3-Pin
3 Pin LED
Yellow PUR
Yellow PVC
Yellow PUR
Yellow PVC
4-Pin
4 Pin
Yellow PUR
A-B
Assembly Rating
24 AWG
60V AC/75V DC
4A
24 AWG
10…30V
10 30V DC
4A
24 AWG
60V AC/75V DC
4A
Color Code
LED Type
—
Straight Female
889P–S3AB–*
889P–S3UB–*
—
—
—
—
889P–S4AB–*
Right Angle Female
889P–Z3AB–*
889P–Z3UB–*
889P–W3AB–*
889P–W3UB–*
889P–Y3AB–*
889P–Y3UB–*
889P–Z4AB–*
889P–Z4UB–*
PNP
A
NPN
—
889P–S4UB–*
Screw-On Cordsets
Jacket
Material
Yellow PVC
3-Pin
3 Pin
Yellow PUR
Yellow PVC
3-Pin
3 Pin LED
Yellow PUR
Yellow PVC
Yellow PUR
Yellow PVC
4-Pin
4 Pin
Yellow PUR
Cat. No.
Pin Count
Assembly
Rating
24 AWG
60V AC/75V DC
4A
24 AWG
10…30V
10 30V DC/
4A
24 AWG
60V AC/75V DC
4A
A-B
A-B
Color
Code
LED
Type
—
Straight Female
889P–F3AB–*
889P–F3UB–*
—
—
—
—
889P–F4AB–*
Right Angle
Female
889P–R3AB–*
889P–R3UB–*
889P–P3AB–*
889P–P3UB–*
889P–N3AB–*
889P–N3UB–*
889P–R4AB–*
889P–R4UB–*
Straight Male
889P–M3AB–*
—
—
—
—
—
889P–M4AB–*
889P–M4UB–*
Right Angle
Male
889P–E3AB–*
—
—
—
—
—
889P–E4AB–*
889P–E4UB–*
PNP
A
NPN
—
889P–F4UB–*
Screw-On Patchcords
Jacket
Color
Yellow PVC
Yellow PUR
Yellow PVC
Yellow PUR
Yellow PVC
Yellow PUR
Cat. No.
Pin Count
3-Pin
3 Pin
4-Pin
Female to
3-Pin Male
4-Pin
4 Pin
Assembly
Rating
Color
Code
Straight Female
Straight Male
889P–F3ABPM–
}
889P–F3UBPM–
}
24 AWG
60V AC/75V DC
3A
A
889P–F4ABPM3–
}
889P–F4UBPM3–
}
889P–F4ABPM–
}
889P–F4UBPM–
}
Straight Female
Right Angle Male
889P–F3ABPE–
}
—
889P–F4ABP3E–
}
—
—
—
Right Angle Female
Straight Male
889P–R3ABPM–
}
889P–R3UBPM–
}
889P–R4ABPM3–
}
—
—
889P–R4UBPM–
}
Right Angle Female
Right Angle Male
889P–R3ABPE–
}
—
889P–R4ABP3E–
}
—
—
—
*
Replace symbol with 2 (2 m), (5 m) or 10 (10 m) for standard cable lengths.
}
Replace symbol with 1 (1 m ), 2 (2 m), 3 (3 m), 5 (5 m) or 10 (10 m) for standard cable lengths.
3–107

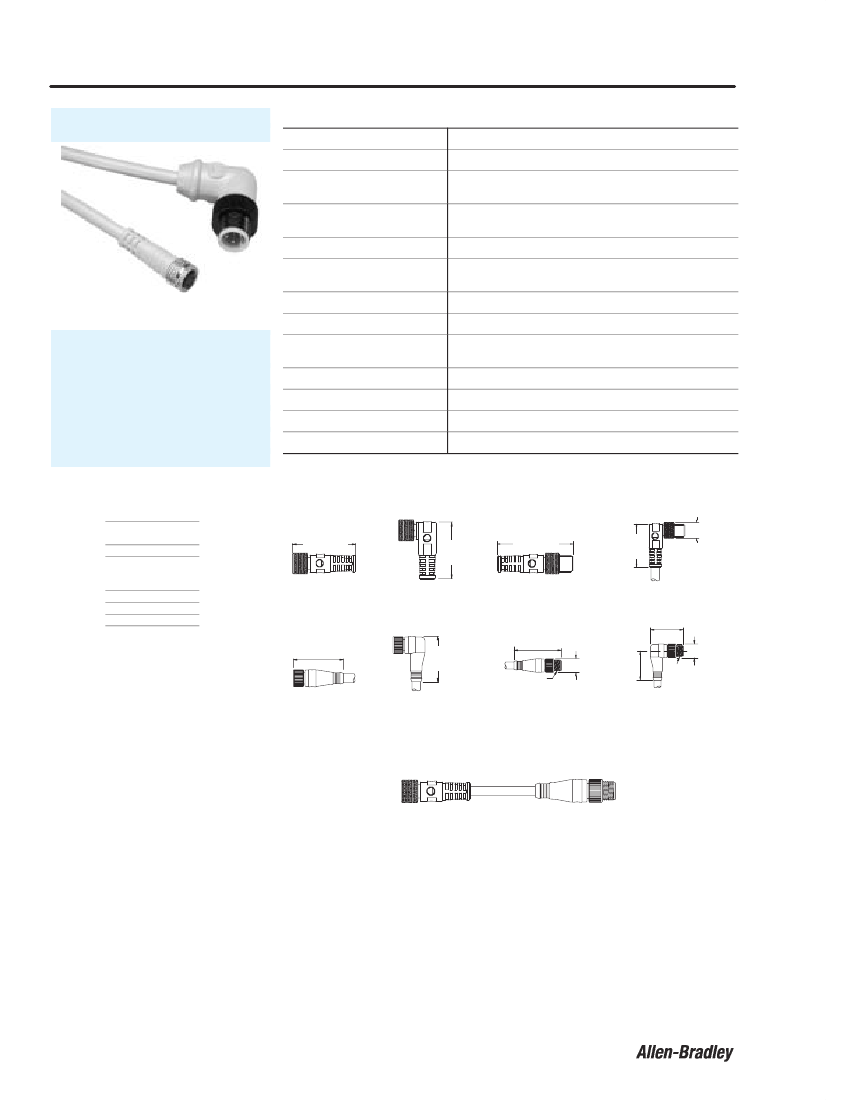

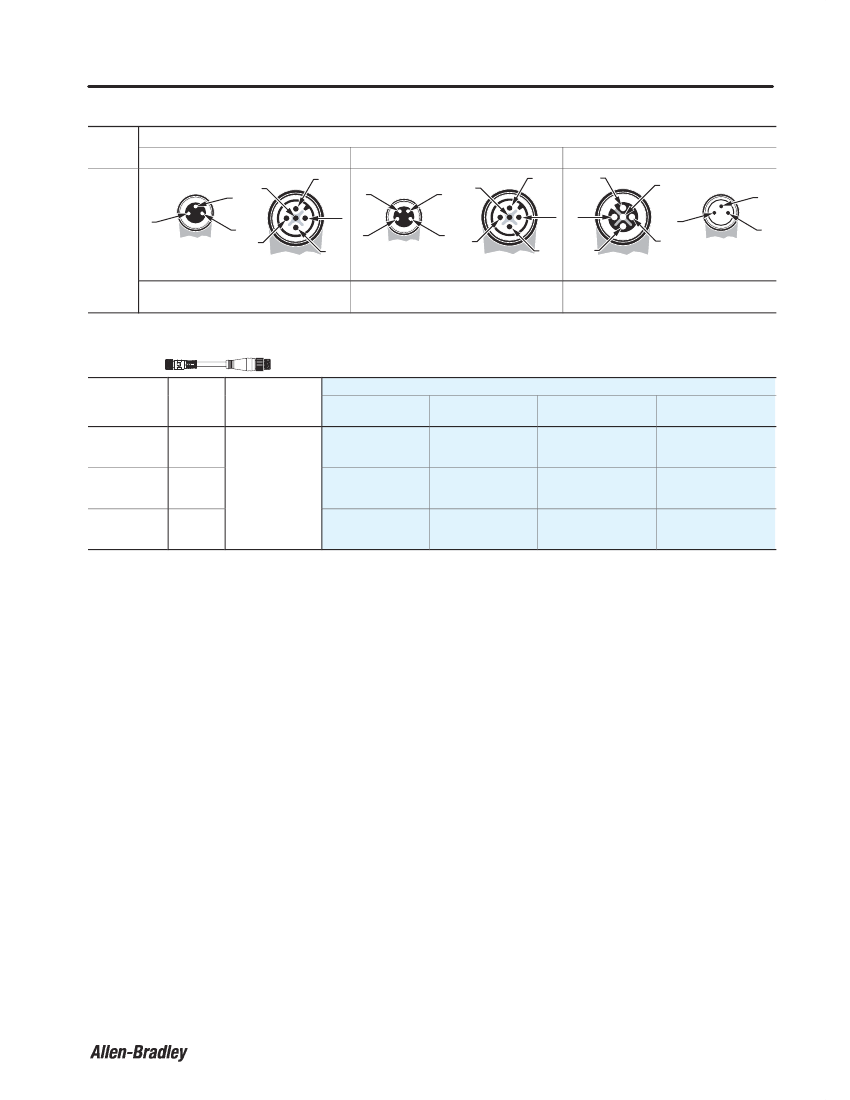

Connection Systems
Patchcords, Pico Style
24 AWG, Pico to DC Micro, PVC
Pico Style
Specifications
Certifications
UL recognized and CSA certified
Mechanical
Coupling Nut Material
Connector Material
Contacts
Cable
Cable Diameter
DC micro: Black epoxy-coated zinc
Pico: Nickel-plated brass
DC micro: Molded oil-resistant PUR
Pico: Molded oil resistant TPE
Gold over nickel-plated brass
Oil-resistant yellow PVC jacket, 24 AWG conductors, 300V,
UL recognized and CSA certified
4.3 mm (0.17 in)
DC Micro to Pico Patchcord
Electrical
Features
•
Highly visible yellow PVC jacket
offers good oil and chemical
resistance
•
Convenient connection from pico
to DC micro
•
Ratcheting coupling nut for
vibration resistance
Cable Rating
Assembly Rating
UL AWM style 2661 VW–1 105C 300V, CSA AWM A/B I/II
105C 300V FT1
60V AC/75V DC, 3 A
Environmental
Enclosure Type Rating
Operating Temperature—C (F)
IP 67
–20…+105_ (–4…+221_)
Wiring Diagrams
3-Pin Pico
Pin 1>
Pin 3>
Pin 4>
4-Pin Pico Female
Pin 1>
Pin 2>
Pin 3>
Pin 4>
4-Pin DC Micro
>Pin 1
>Pin 2
>Pin 3
>Pin 4
4-Pin DC Micro Male
>Pin 1
>Pin 2
>Pin 3
>Pin 4
Dimensions—mm (in)
Female Plug
26.5
(1.04)
A-B
31 (1.22)
A-B
A-B
10 (0.39)
26.5
(1.04)
37 (1.45)
A-B
Straight Pico
Female
Right Angle Pico
Female
Straight Pico
Male
51.3 (2.02)
M12 x 1
Right Angle Pico
Male
35.8
(1.41)
14.48
(0.57) Dia.
31.2
(1.23)
14.48
(0.57) Dia.
47 (1.85)
31.8
(1.25)
M12 x 1
Straight DC
Micro Female
Right Angle DC
Micro Female
Straight DC
Micro Male
Right Angle DC
Micro Male
Dimensions are approximate. Illustrations are not drawn to scale.
A-B
Example of Patchcord
3–108
Connection Systems
Patchcords, Pico Style
24 AWG, Pico to DC Micro, PVC
Pinout
Face View Pinout
Pinout
A
5
2
B
C
5
2
2
1
1
4
3
1
4
1
2
1
Female
5
1
4
3
3
3
4
3
4
4
Female
3
Male
Female
Male
Male
3-Pin Pico Female to
4-Pin DC Micro Male
4-Pin Pico Female to
4-Pin DC Micro Male
4-Pin DC Micro Female to
3-Pin Pico Male
Product Selection
Patchcords
A-B
Cat. No.
Style: Female
to Male
3-Pin Pico to
4-Pin DC
Micro
4-Pin Pico to
4-Pin DC
Micro
4-Pin DC
Micro to 3-Pin
Pico
*
Pinout
A
24 AWG
60V AC/75V DC
3A
Assembly Rating
Straight Female
Straight Male
889P–F3ABDM4–*
Straight Female
Right Angle Male
889P–F3ABDE4–*
Right Angle Female
Straight Male
889P–R3ABDM4–*
Right Angle Female
Right Angle Male
889P–R3ABDE4–*
B
889P–F4ABDM–*
889P–F4ABDE–*
—
—
C
889D–F4ABP3M–*
889D–F4ABP3E–*
889D–R4ABP3M–*
889D–R4ABP3E–*
Replace symbol with 1 (1 m), 2 (2 m), 5 (5 m) or 10 (10 m) for standard cable lengths.
3–109
