TRANSPORT PRODUCTS
VSC7978
9.9 Gbps – 11.3 Gbps High Gain Transimpedance Amplifier for TO-Can Based ROSA Applications
BENEFITS:
Lowest Cost 10 Gbps ROSA Solution Designed Specifically
for High Volume XFP Module Applications
S P E C I F I C AT I O N S :
Transimpedance Gain 4k ohm Differential
F E AT U R E S :
TO-46 Can Compatible Die Size
4k ohm Differential Transimpedance Gain
Low Power, 140mW typ.
Photodetector Cusrrent Monitor Voltage Output
Single +3.3V Power Supply
Integrated Photo Detecotor Bias Circuit
Low Frequency Cutoff 30kHz
Overload Current 4.5mA
Limiting Output 360mV Differential
3dB Bandwidth in a TO-46 Can 8GHz
NOTE: All Specifications are Typical

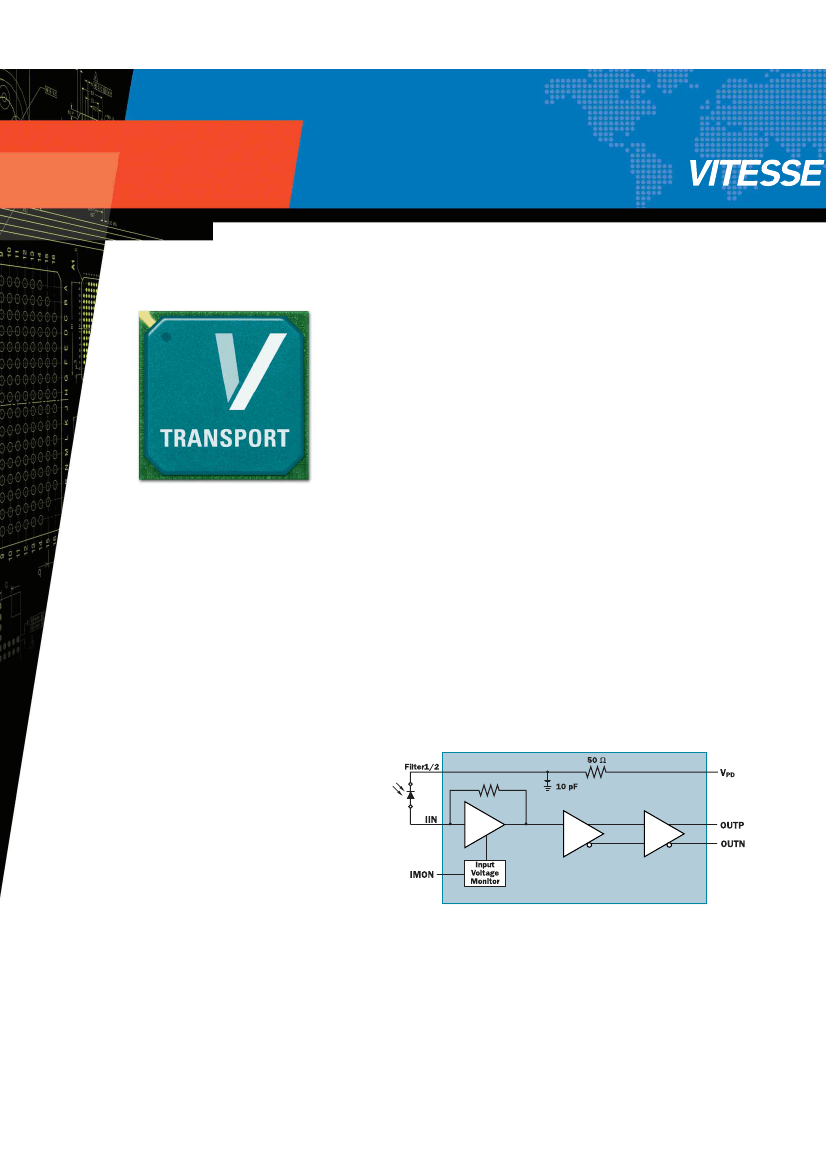

BLOCK DIAGRAM:
PB-VSC7978-001
VSC7978
9.9 Gbps – 11.3 Gbps High Gain Transimpedance Amplifier for TO-Can Based ROSA Applications
GENERAL DESCRIPTION:
The VSC7978 is a 9.9 Gbps – 11.3 Gbps high performance,
low power transimpedance amplifier designed for use in
TO-46 Can based Receiver Optical Sub Assemblies (ROSA)
for optical communication networks; SONET/SDH (OC-
192/STM-64), 10G Ethernet, 10G Fiber Channel and OTN
applications. The device is intended for use with a PIN
photo detector or APD, and is capable of amplifying input currents of up to and
greater than 3.5mAp-p with low duty-cycle distortion. The VSC7978 offers
4kohm differential transimpedance, eliminating the need for an additional post-
amplifier. The outputs limit to a typical differential value of 300mVp-p,
increasing the dynamic range of the system by reducing the possibility of
exceeding the input voltage range of the transceiver device. A space-saving
filter connection is provided for a positive bias to the photo detector through a
50ohm resister to external VCCPD. The VSC7978 operates at 3.3V power supply
and is offered as bare die form.
