TB62709NG Overview

7−SEGMENT DRIVERS WITH BUILT−IN DECODERS (COMMON ANODE CAPABILITY, MAXIMUM 4−DIGIT CONTROL)

TB62709NG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP24,.3
Contacts	24
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COMMON-ANODE
data entry mode	SERIAL
display mode	DIGIT
Interface integrated circuit type	LED DISPLAY DRIVER
JESD-30 code	R-PDIP-T24
JESD-609 code	e2/e6
length	22 mm
Multiplex display function	YES
Number of digits/characters	4-DIGIT
Number of functions	1
Number of segments	8
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.5 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	6 V
Mains voltage 1-minute	4 V
Supply voltage1-Nom	5 V
surface mount	NO
technology	BICMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN SILVER/TIN BISMUTH
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	7.62 mm
minfmax	10 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

TB62709NG/FG

TOSHIBA Bi−CMOS INTEGRATED CIRCUIT SILICON MONOLITHIC

TB62709NG,TB62709FG

7−SEGMENT DRIVERS WITH BUILT−IN DECODERS

(COMMON ANODE CAPABILITY, MAXIMUM 4−DIGIT CONTROL)

The TB62709NG and TB62709FG are multifunctional, compact,

7−segment LED display drivers.

These ICs can directly drive 7−segment displays and individual

LEDs, and can control either a 4−digit display with decimal

points, or 32 individual LEDs.

These ICs can also be used with common−anode displays. Their

outputs are constant current, the ampere levels at which are set

using an external resistor.

A synchronous serial port connects the IC to the CPU.

The different modes of control provided by this device including

Duty Control Register Set, Digit Set, Decode Set and Standby Set,

are all based on every 16−bit of serial data.

The suffix (G) appended to the part number represents a

Lead(Pb)-Free product.

TB62709NG

TB62709FG

FEATURES

Control circuit power supply

: V

= 4.5 to 5.5 V

Digit output rating

: 17 V /

−400

Decoder output rating

: 17 V / 50 mA

Built−in decoder

: Decodes the numerals 0 to 9, certain alphabetic

characters, and of course blanks code.

Digit control function

: Can scan digit outputs DIG−0 to DIG−3 when connected

to the common anode pins of a 7−segment display.

Maximum transmission frequency

: f

CLK

= 15 MHz

Decoder outputs (OUT−A to OUT−Dp)

Output current can be set up to a 40mA maximum using an external resistor.

Constant current tolerance (Ta = 25°C, V

= 5.0 V)

: Variation between bits = ±7%, variation between devices

(including variation between bits) = ±15% at V

≥

0.7 V

Package

: 24−pin SDIP (SDIP24−P−300−1.78)

24−pin SSOP (SSOP24−P−300−1.00)

Weight

SDIP24-P-300-1.78 : 1.62 g (typ.)

SSOP24-P-300-1.00 : 0.32 g (typ.)

2006-06-14

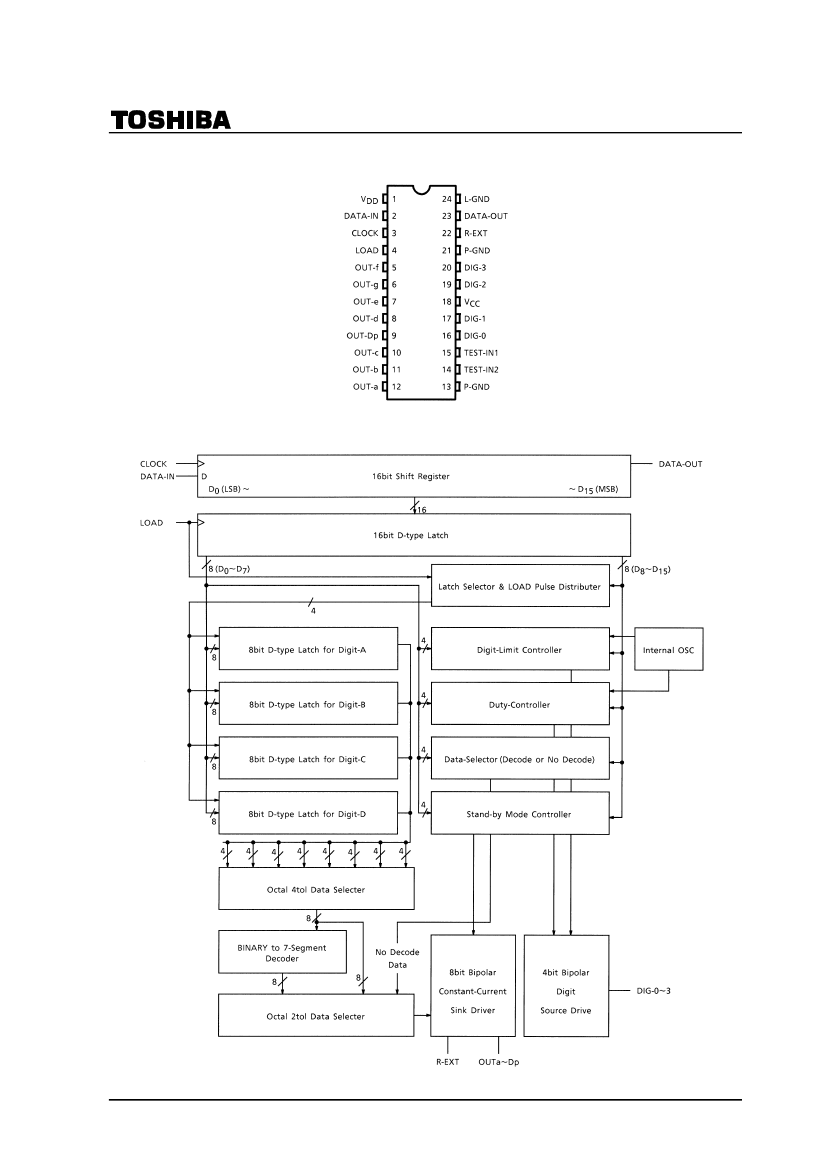

TB62709NG/FG

DESCRIPTION OF OPERATION

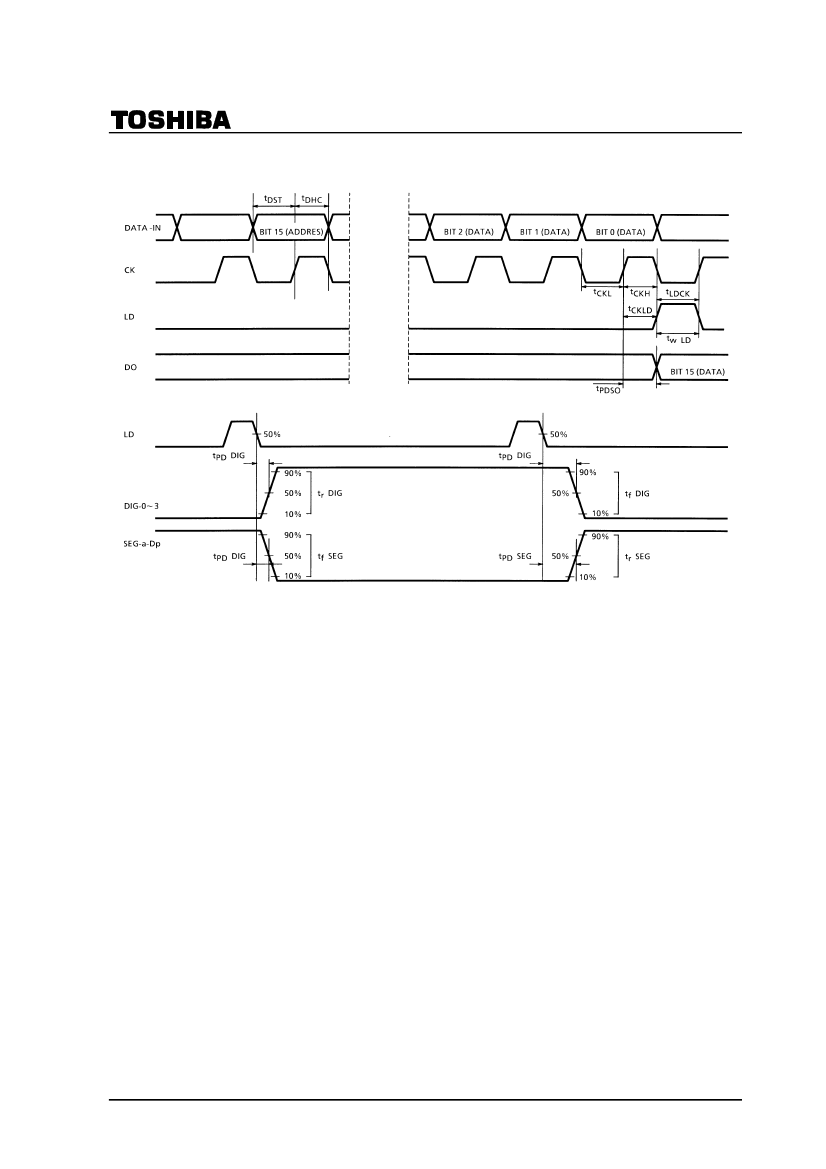

Data input (DATA−IN, CLOCK, LOAD)

The data are input serially using the DATA−IN pin. The data input interface consists of a total of three

inputs : DATA−IN, LOAD, and CLOCK.

Binary code stored in the 16−bit shift register offers control modes including duty Control Register Set, Digitset,

Decode Set, and Standby Set,

The data are shifted on the rising edge of the clock, starting from the MSB. Cascade−connecting TB62709NG or

TB62709FG devices provides capability for controlling a larger number of digits.

The serial data in the 16−bit shift register are used as follows : the four bits D

(MSB) to D

select the IC

operating mode (Table 1), while D11 to D

select the register corresponding to the operating mode (Table 2).

Bits D

to D

(LSB) of the 16−bit shift register are used for detail settings, such as number of digits in use,

character settings in each digit, and light intensity.

The internal registers are loaded on the rising edge of the LOAD signal, which causes loading of data from an

external source into the D

(MSB) to D8 bits of the shift register, operating mode and the corresponding

to D0 (LSB) are loaded.

Normally LOAD is Low. After a serial transfer of 16bits, the input of a High−level pulse loads the data.

Note the following caution : Use the D

to D

setting and the D

to D

detail data setting as a pair. If only the

to D

data are input without setting D

to D

an error condition may result, in which the device will not

operate normally. If the current mode is set again by a new signal, the data for D

to D

must also be re−input.

Operating precautions

At power−on or after operation in Clear mode (in initial state), set the IC to Normal mode again. Otherwise, the

IC will not drive the LED.

Operating the IC in Blank mode (all lights off) or in All On mode (all lights lit) does not affect the internal data.

Setting the IC to Normal mode again continues the LED lighting in the state governed by the settings made

immediately before mode change.

Normal mode (not Shut Down, Clear, Blank, or All On mode) continues the operations set in Load Register

mode. In Normal mode, operations are governed by any new settings made in the Load Register, as soon as the

changed setting values are loaded.

2006-06-14
